Reinforced PU V belt A B C D E

Product Overview

Description

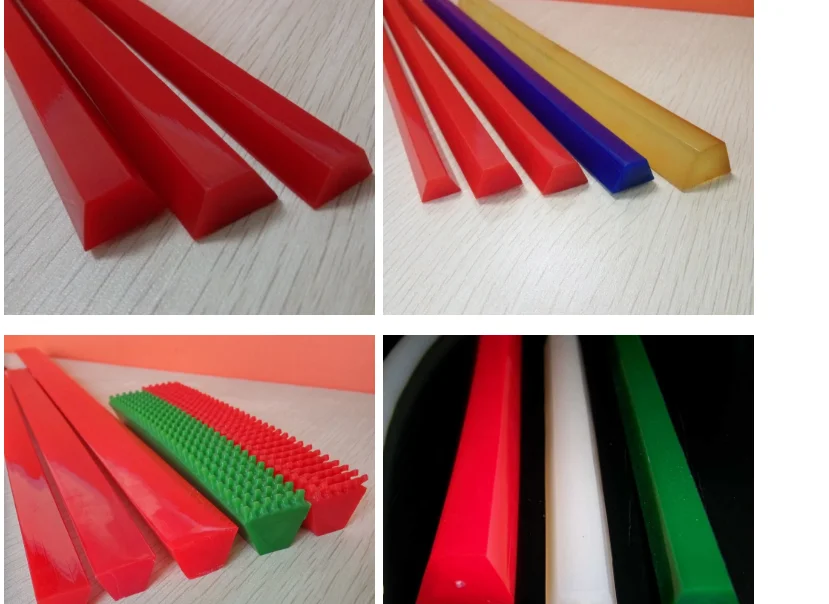

Reinforced  PU V belt A B C D E

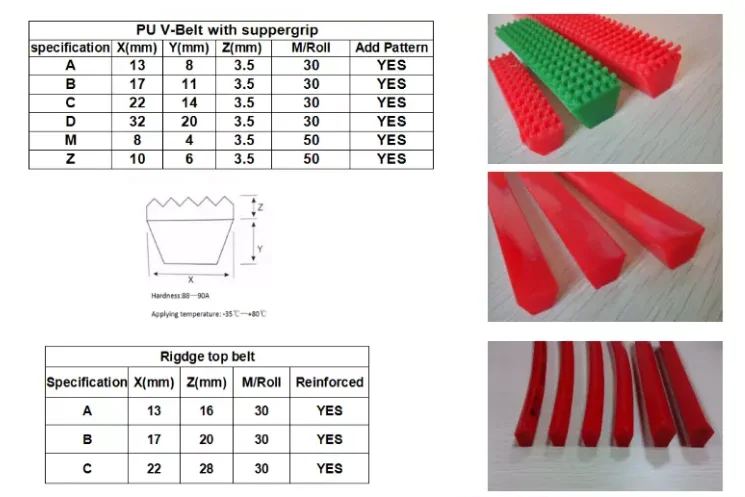

Specification:

Type	X(mm)	Y(mm)	Z(mm)	Color	Standard Packing	MOQ
A	13	8	3.5	Red/Green	30m/roll	1Roll
B	17	11	3.5	Red/Green	30m/roll	1Roll
C	22	14	3.5	Red/Green	30m/roll	1Roll
D	32	20	3.5	Red/Green	30m/roll	1Roll
M	8	4		Red/Green	50m/roll	1Roll
Z	10	6	3.5	Red/Green	50m/roll	1Roll



Applications:

PUV Belt is widely used in transmission and distribution products for the textile, clothing, food, packaging, printing,
machinery, electronic, glass,chemicals, automobiles, beverages, furniture, toys, paper and other industries;
Especially in the following industry.
---Newspaper conveying,
---Packing machines,
---Ceramic and stoneware processing plants, such as glazing Lines, transmission lines, polishing line etc.
---Floor and roof tiles conveying,
---Wood Working machineries,
---Textile machines,
---Paper industry machines,
---Food grading machines, other food processing machines.

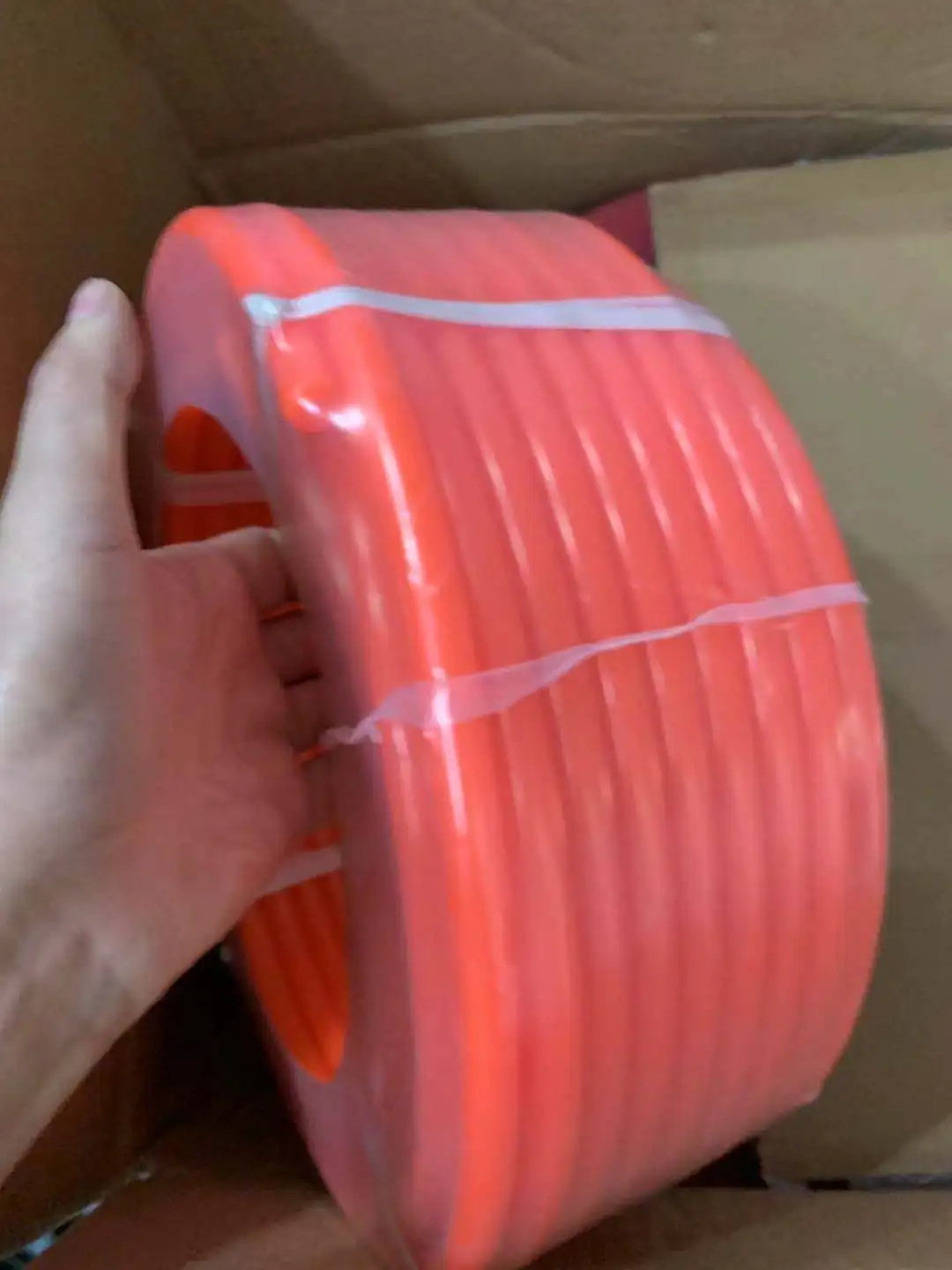

 Packaging Details:Wooden core cover with PP-Cloth or according to the customers' requirement



Delivery Time: 20 working days from order



1. Delivery --- On time

Your times is expensive, we can’t waste it!

2. Free samples

Good samples good start,we’d to offer the free samples in small size for your test.

3. Quality ---- Strictly Control System of Quality, Guaranteed
 Newstar Quality tenet: 1% quality defect is user 100% disaster.

We’ll take photos to you about every procedure,packing,loading.



 Having specilized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.





1.Payment terms

a. West Union/ MoneyGram (sample order).

b. T/T (Telegraphic transfer/ Wire transfer): 30% in advance, balance before loading the goods. Other payment terms can be negotiated.



2. Shipment

a. By express/air: small quantity order.

b. By sea: container load.



3. OEM/ ODM/ OBM

Available. R&D team is ready to match up your requirements.



4.Loading port

Ningbo/ Shanghai.



5. Lead time

According to the order. about 20 working days from order if quantity as a 20ft container.



6.Prices

PRICE just for reference. The final prices (FOB, CIF, CFR) prices are according to order quantity, payment terms, delivery time, packaging, etc.
