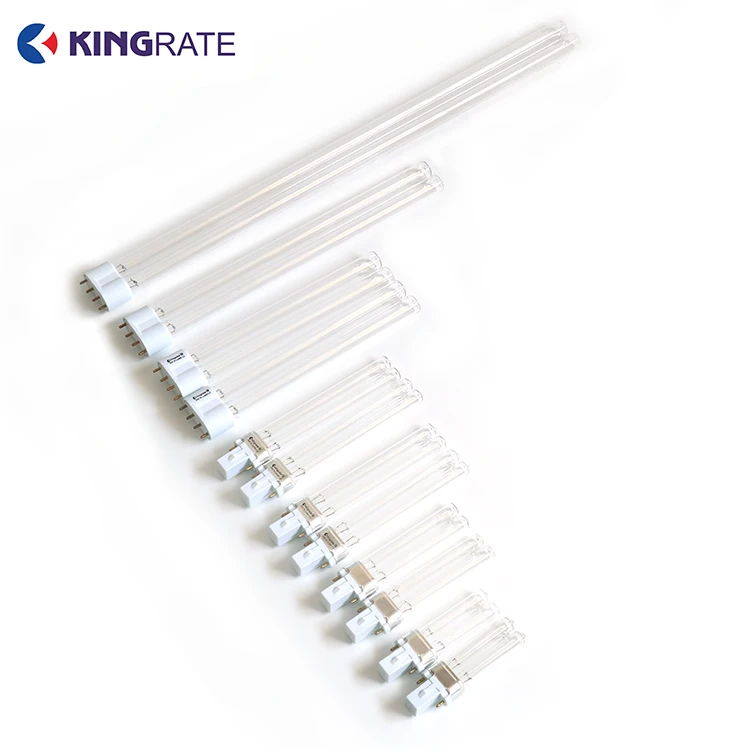

GX23 G23 2G7 2G11 Germicidal PL UVC Lamp For Air Purifiers/Water Treatment

Product Overview

Description

Speciality

   1, The high purity quartz glass tube is adopted and treated with special technology,

       which further reduces the impurity content and makes the efficiency of lamp tube

       more stable.

   2, Advance technology enables our lamp with high initial uv radiation and low uv light

       decay.

   3, Ozone type and non-ozone type are available.

   4, High output UV lamp is a better choice for reducing system size and maintaining uv

       output.

   5, Corresponding quartz sleeve and ballast are available.

Main Application

• Aquarium disinfection


• Water treatment


• Air cleaning and disinfection


• Air conditioning pipe disinfection


• Purifier

Type	Tube Diamter	Length (H)	Power	Current	Voltage	UV Output at  1M		Base	Standard Life	Long Life
	MM	MM		MA	V	uw/cm²	W		H	H
PL-S 5W	12	85	5	180	34	12	1.1	G23/2G7	9000	13000
PL-S 7W	12	115	7	175	47	20	1.5	G23/2G7	9000	13000
PL-S 9W	12	145	9	170	60	23	2.4	G23/2G7	9000	13000
PL-S11W	12	214	11	160	89	33	3.6	G23/2G7	9000	13000
PL-S13W	12	155	12	290	60	31	3.4	G23/GX23	9000	13000
PL-L18W	17	217	18	370	60	60	5.8	2G11	9000	13000
PL-L24W	17	317	24	350	87	90	7	2G11	9000	13000
PL-L35W*	17	217	35	850	40	105	11	2G11	9000	13000
PL-L60W*	17	410	60	670	118	170	18	2G11	9000	13000
PL-L95W*	17	530	95	950	100	305	33	2G11	9000	13000
Remark:The product parameters and data are provided by Kingrate and for reference only.



For more product information, please click. Contact us

For more product, please click. Contact us



Q1:Can I have a sample first for the UV lamps?

A:Yes, we welcome sample order to test and check quality.

Q2:What's your lead time?

A:Samples would be need 5-7 days; mass production would be need 1-4 weeks according to the order quantities.

Q3: What is your shipping method and how long does it take to arrive?

A:We usually ship via DHL, UPS, FedEx or TNT and it usually takes 3-5 days to arrive. Both Air shipment and sea shipment are also optional.

Q4:Do you offer guarantee for the products?

A:Yes, we offer 1 years warranty to our most of our UV lamp, and half of one year warranty to the submersible UV lamp.

Q5:Can I use my own design package and logo on the products ?

A:Yes, We can accept OEM as per customers’requirements.
