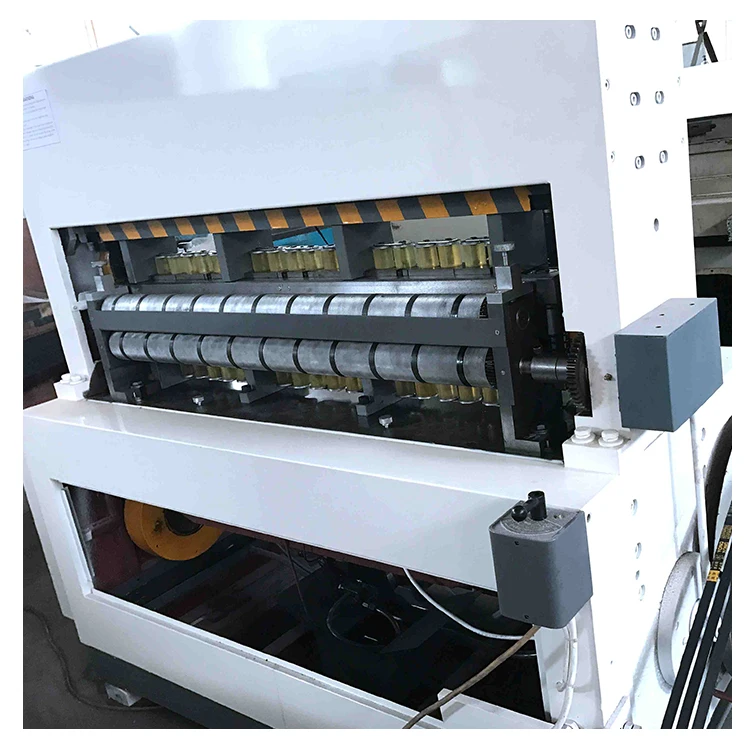

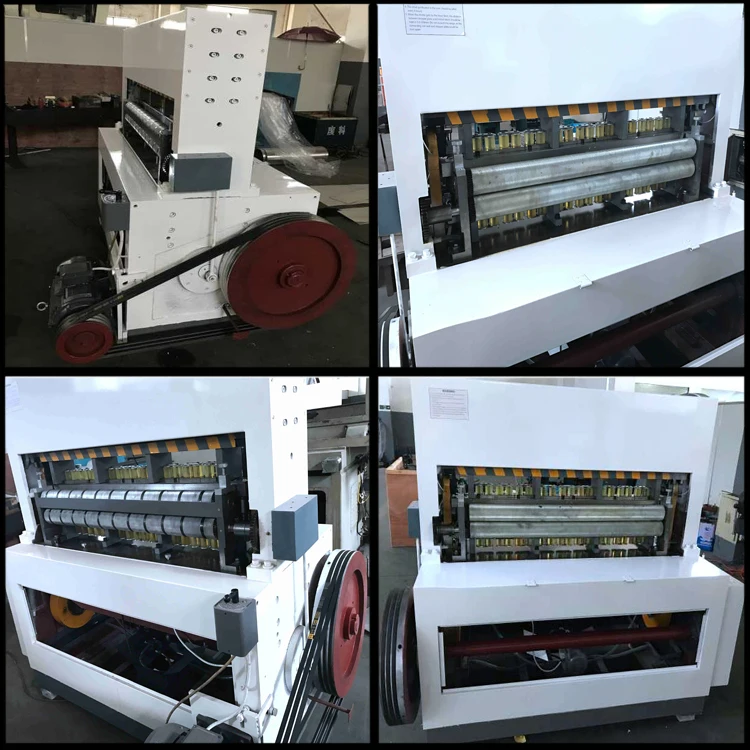

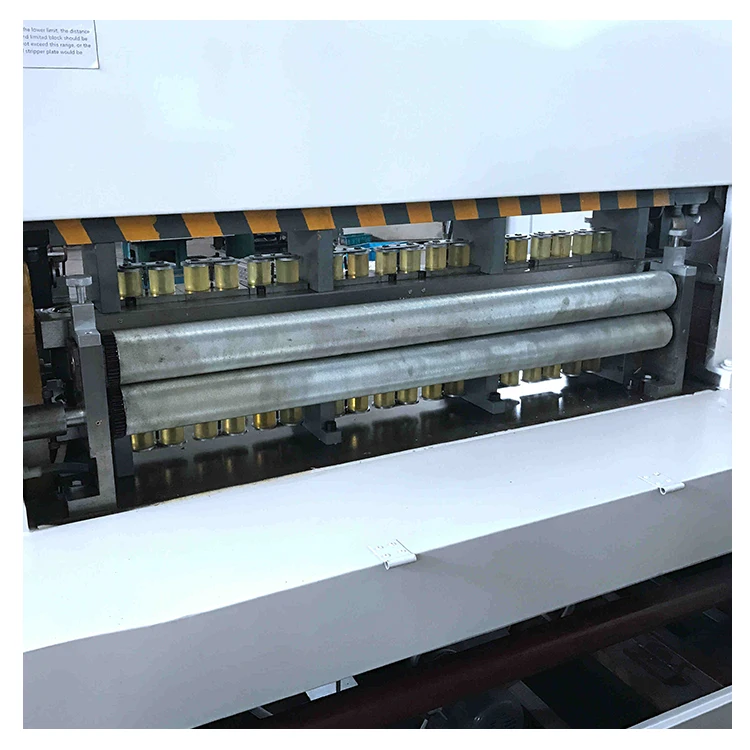

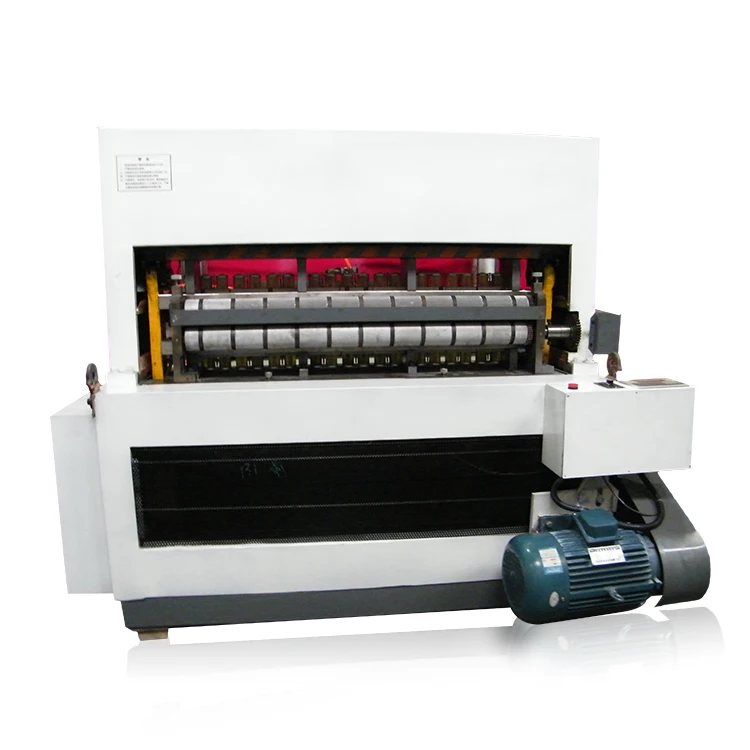

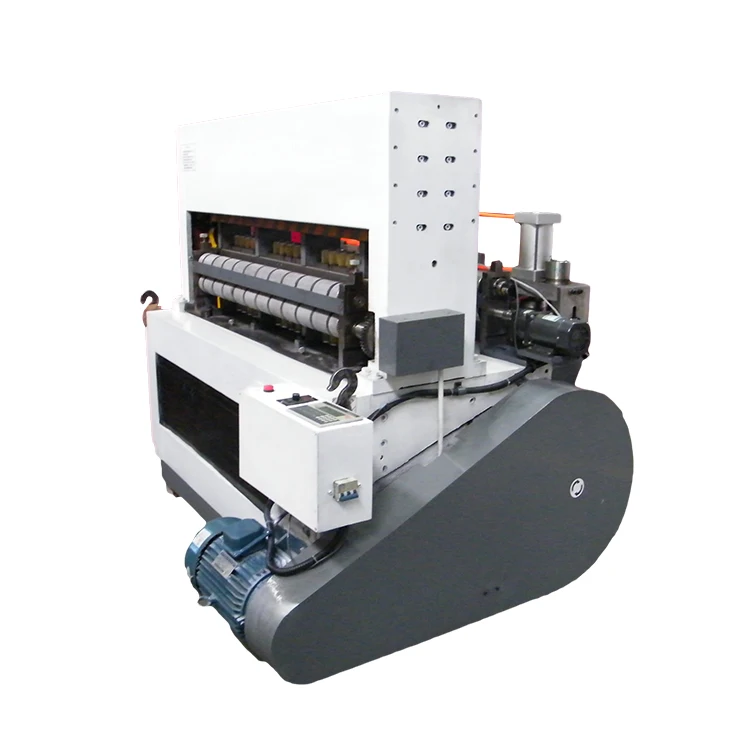

High Speed needle punching machine to perforate tinplate or metal

Product Overview

Description

Tin plate perforating  Machine,metal perforate machine, has the low noise and high efficiency, very convenient to use. It can perforate the coiled material & piece material with the size of thickness at 0.15-0.35mm, width at 200-1070mm, 70 m² per hour. It’s the first choice for the for the seal composite board manufacturing.



Perforate Machine Specifications

Item	Description
Max Perforating Width	1070 mm
Perforating Speed	101 times/min
Material Moving Distance	11.2 mm/time
Allowed Material Thickness	0.15—0.30 mm
Material Form	Coiled material, Piece material
Needle Material	High-Speed Steel, 57-60HRC
Needle Service Life	About 1200 hours
Transmissions Type	Gear and Belt
Working Efficiency	690 square meter / 10 hours
Working Stroke	39mm
Needles Replacement Time	About 35 mins
Automatic Lube Supply System	Good supply and recyclable device
Motion Guide Rail Hardness	HRC50—53
Components	Standard and replaceable
Perforating Needle Specs.	Φ1.0, Φ1.1, Φ1.2, Φ1.3, Φ1.4, Φ1.5mm
Motor Power	4KW, 960 r/min
Machine Size	1560(L) x 1100(W) x 1488(H)   (Packed: 2230x1760x1930)
Net Weight	2100kg



tin plate perforate machine,  metal perforate machine  :



1. After perforating, the thickness of tinplate material could become to about 2mm from 0.2mm, also the thickness can be adjusted.

2. The machine has cutter device on the lengthways, the cutter have been packed into the toolkit;

3. The machine can be adjusted to perforate just single side of the tinplate material.

4. Needle board design is quite reasonable, quick and easy for disassembly and replacement.

5. Feeding mechanism is reliable, stable, accurate and durable; surface of the feed roller has been hardened.

6. Easy to operate, just turn on or turn off the switch.
