Splicing Screen Ingscreen Ultra Thin Bezel Tv Lcd Smart Big Panel Video Wall
US $488.00-$533.00
49 inch 3.5mm lcd video wall panel 1920x1080 brightsign video wall for financial center
- Category: Splicing Screen >>>
- Supplier: Shenzhen DDW Technology. Ltd.
Share on (62044258172):
Product Overview
Description
Customized hot 49 inch 3.5mm lcd video wall panel 1920x1080 brightsign video wall for financial center
Product Description
Product pecification
| LCD Video Wall Screen (LG DID) | ||||||||
| Specifications | ||||||||
| Panel Size | 49'' Samsung DID LCD Screen(super narrow bezel 3.5mm with LED Backlight) | |||||||
| Aspect Ratio | 16:09 | |||||||
| Max Resolution Support | 1920x1080 | |||||||
| Color | 8Bit,16.7M | |||||||
| Brightness (nits) | 500cd/m2 | |||||||
| Contrast | 3500:01:00 | |||||||
| Visual Angle (H/V) | 178° | |||||||
| Response Time | <=6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Input and output | ||||||||
| DVI | 1 | |||||||
| HDMI | 1 | |||||||
| D-15 RGB Input(VGA) | 1 | |||||||
| YUV/YPbPR | 1(3xBNC) | |||||||
| S-(YC) | 1(2xBNC) | |||||||
| Composite Video Input/(AV) | 3(3xBNC) | |||||||
| Composite Video Output | 2(2xBNC) | |||||||
| AUDIO INPUT | 1 | |||||||
| Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||||||
| Power | ||||||||
| Power Supply | AC100V~240V | |||||||
| Maximum Power Consumption | 250W | |||||||
| Standby Power Consumption | <=3W | |||||||
| Temperature | ||||||||
| Working Temperature | 0°C~50°C | |||||||
| Working Humidity | 20%-80% | |||||||
| Dimension | 1023.98x578.57x105mm | |||||||

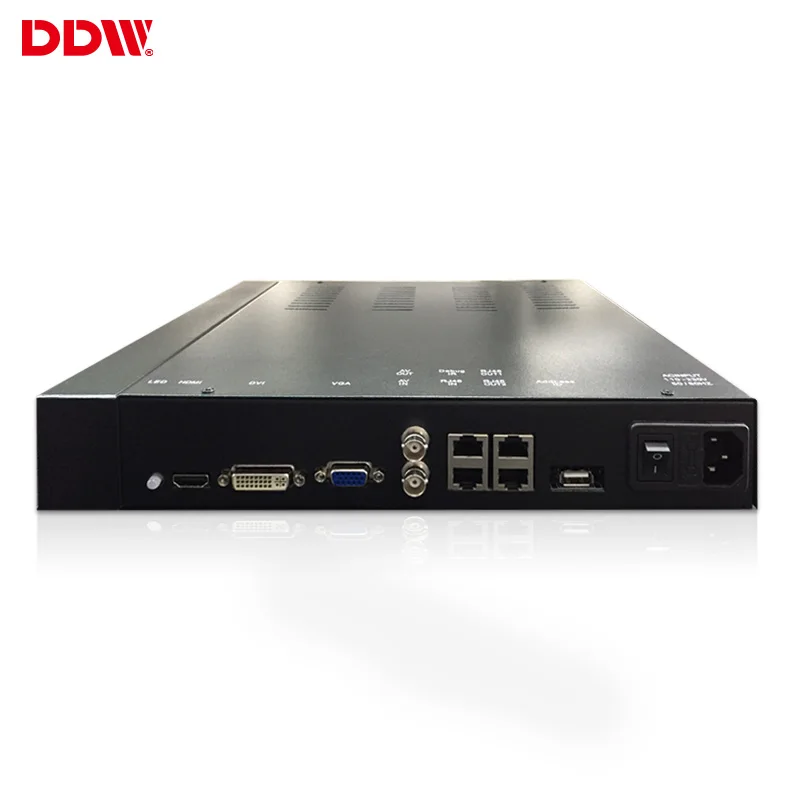

| Video Wall Controller(Built-in each Screen) | ||||||||
| Input | CVBS | 1*BNC port, support PAL/NTSC all formats | ||||||
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
| HDMI | 5*BNC ports, support SVGA/XGA/WUXGA | |||||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
| CVBS | support PAL/NTSC all formats | |||||||
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
| Operate mode | Panel key operation(needs customization) | |||||||
| Standard RS232 port( provide free control software) | ||||||||
| ADD Code | ||||||||
| Engineering software | XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out) | |||||||
| Working temperature | 0~70 °C | |||||||
| working humidity | 5~95 %RH | |||||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||||
| power consumption | Max 300W,according to different Screen models | |||||||
| Dimension | 307×283×55(mm) | |||||||
| Weight | About 3.5KG | |||||||
Company Information
Production Flow
EXPOS AND PARTNER
CERTIFICATIONS
PAYMENT
FAQ
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
7.Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
8.Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or skype me,i will reply you ASA
