RS232 open close loop servo controller 24v 36v 48v 800w 1000w 1200w 1500w bldc motor controller for AGV ROBOT
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (62044286810):
Product Overview
Description
RS232 open close dc servo motor controller 24v 36v 48v 800w 1000w 1200w 1500w bldc motor controller for Automatic wheelchair
Model:KYDBL4875-1E
Product overview
1.Overview:
KYDBL4875-1E is an intelligent brushless DC motor controller. It adopts 32-bit high-performance MCU,Advanced motion control algorithm is suitable to the outside of the quadrature encoder input to complete the open loop and closed loop speed, under the closed loop torque of motor sport.Controller with multiple analog input port, the pulse input port and digital I/O port, can through the special software to redefine its functions.Universal RS232 serial port communication, CAN bus, the USB communication, CAN be widely used in automation.
2. Specification and Model:
Max output Max Input voltage
current output volt Range
Model AC : (A) DC:(V) DC:(V)
KYDBL4875-1E 75 48V 10-55V
3.Product Features:
| 1)Wide-range voltage input, 10-55V. |
| 2)Intelligent PID control loop. |
| 3)Working mode: Speed open-loop, close-loop control, torque close-loop control, position close-loop control. |
| 4)External potentiometer, 0-5V analog quantity or pulse command control mode, RC (pulse width signal outputted by the receiver of aeromodelling remote control) control mode. |
| 5)Safety forward & reverse control, four-quadrant operation, support regeneration. Enable control function. |
| 6)Enable control function.Maximum current control. |
| 7)4-way input port; the function can be defined as analog input, pulse input or digital input functions. |
| 8)2-way digital (MOS tube open-drain) output, Generally as 24V 1A output (maximum load capacity of 40V 1A), can be used to loosen the brake or other attachments. |
| 9)Abnormalities like overcurrent, overheating, overvoltage and short circuit will start the protection function. |
| 10)LED status indicator. |
| 11)CAN bus communication, see the detailed communication protocol when using it. |
| 12)RS232 communication, see the detailed communication protocol when using it. |
| 13)USB communication, see the detailed communication protocol when using it. |
4.Performance Index:
1) Power voltage: 10-55VDC.
2) At the ambient temperature 25℃, continuous working current 40A, transient current up to 75A 30S.
3) Out+5VDC power (It can power up the encoder): 5V DC 20mA
4) Analog input range: 0-- 5VDC
5) Impulse input range: 500Hz—5000Hz (corresponding maximum speed)
[Note] The minimum impulse frequency may change along with the setting of maximum speed.
6) Input range of duty ratio 0%-- 100% (input frequency range f ≤1KHz, recommend to use the frequency of 250Hz).
7) the digital output interface: 2 road, open drain, maximum load capacity of 40 V 1 A
8) Temperature protection status: When the temperature is 70℃, the controller will reduce output by overheating protection and will stop output when the temperature is 80℃.
9) Working temperature: -10℃-- +60℃.
10) Ambient humidity: Relative humidity≤80RH.
11) Boundary dimension: L * W * H = 148mm * 117mm * 40mm
12) Weight: 800g

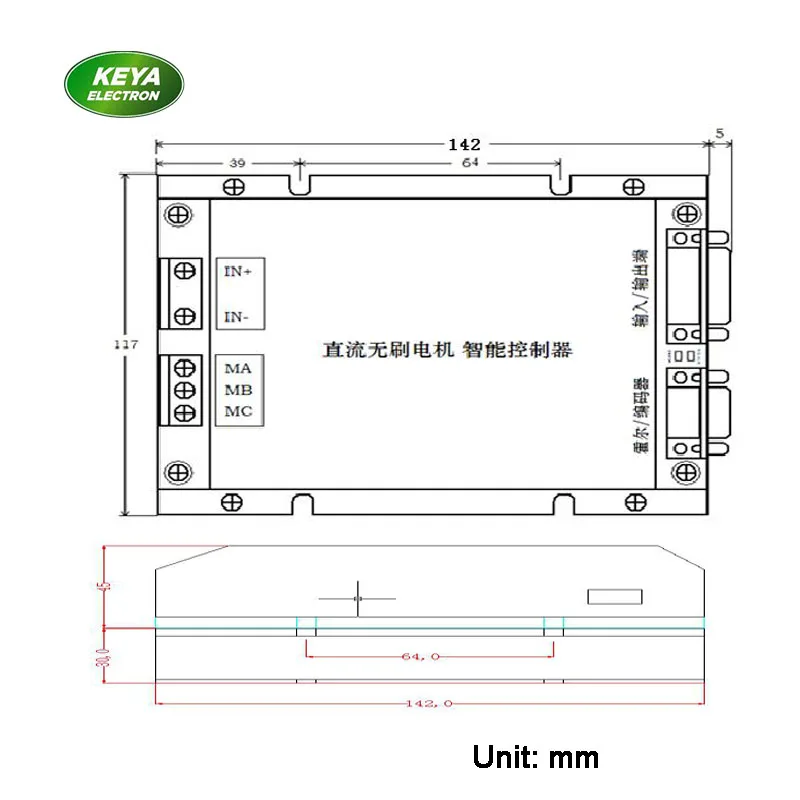

5.Dimension:
Boundary dimension: L*W*H =148mm*117mm*40mm
6.Matched motor:
BLDC servo motor

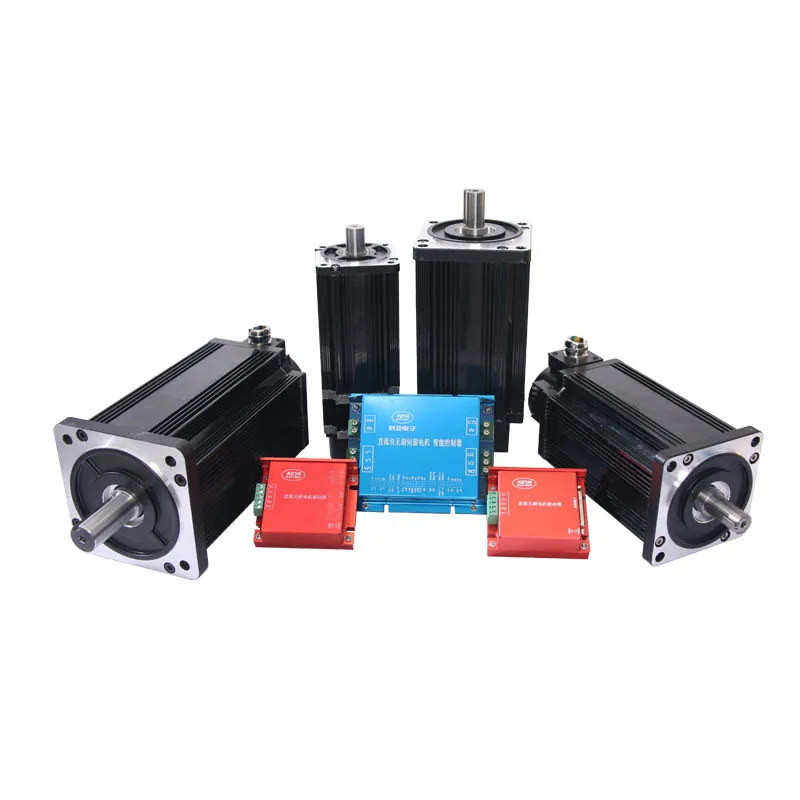

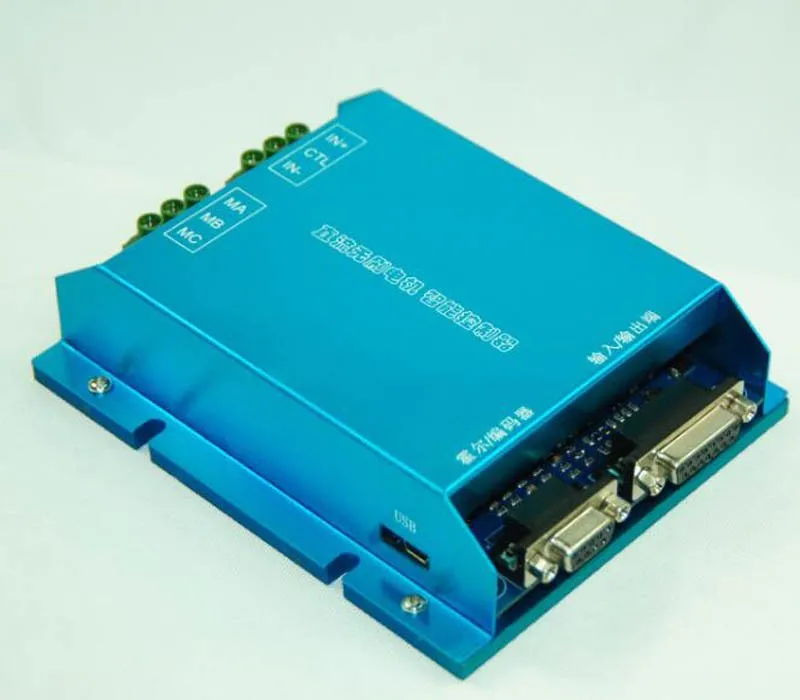

Product show
RS232 open close dc servo motor controller 24v 36v 48v 800w 1000w 1200w 1500w bldc motor controller for Automatic wheelchair

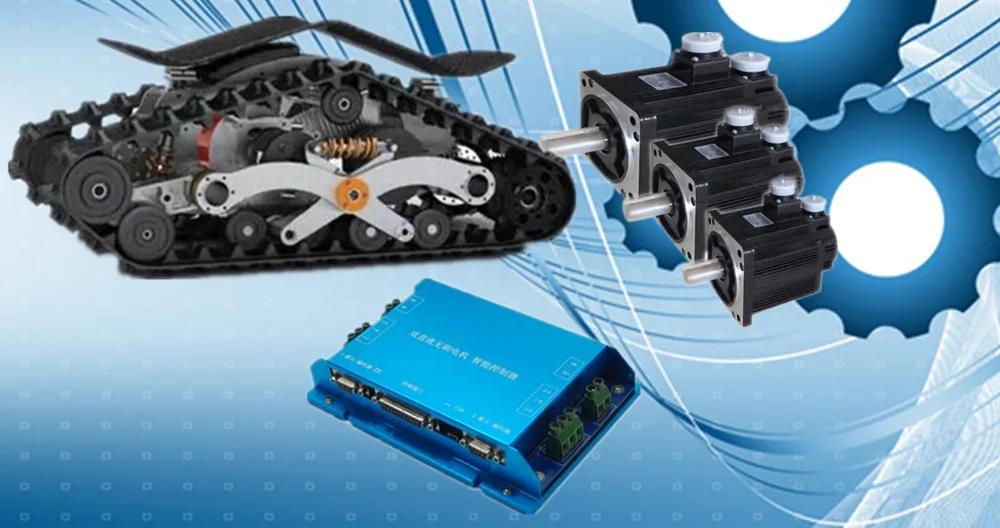

Application
24v 36v 48v dc motor speed controller
Company introduction
Jinan Keya Electron Science And Technology Co., Ltd. leading manufacturer of brushless dc (BLDC) motors with power range from 200W to 5000W, and the voltage range from 24V to 72V DC.We have a variety of different motors to meet different customer requirements. For example bldc motor with encoder or brake,brushless motor with worm gearbox or Precise planetary reducer. All the motors have been exported to Europe under CE certification.It is more than 10 years experience to study the technical to keep the quality.
It has been widely used for many applications, eg., Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
Our Certifications
The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
dc servo motor controller
Packaging&Shipping
We pay high attention to the Motor packaging, adopt polyfoam packing and then fill them to carbon to protect the controller, this series of complete packing enable you receive good products.
We have strong cooperation with DHL,TNT,EMS,China Post.You also can choose your own shipping forwarder.
48v 1000w bldc motor controller
Our services
1.) Many kinds of motor with different powers to meet difference requirements.
2.) Many designs and Matched controller for your choice.
3.) Samples will be offered to attest to the quality and our services.
4.) No design limited. you design it by yourself.
