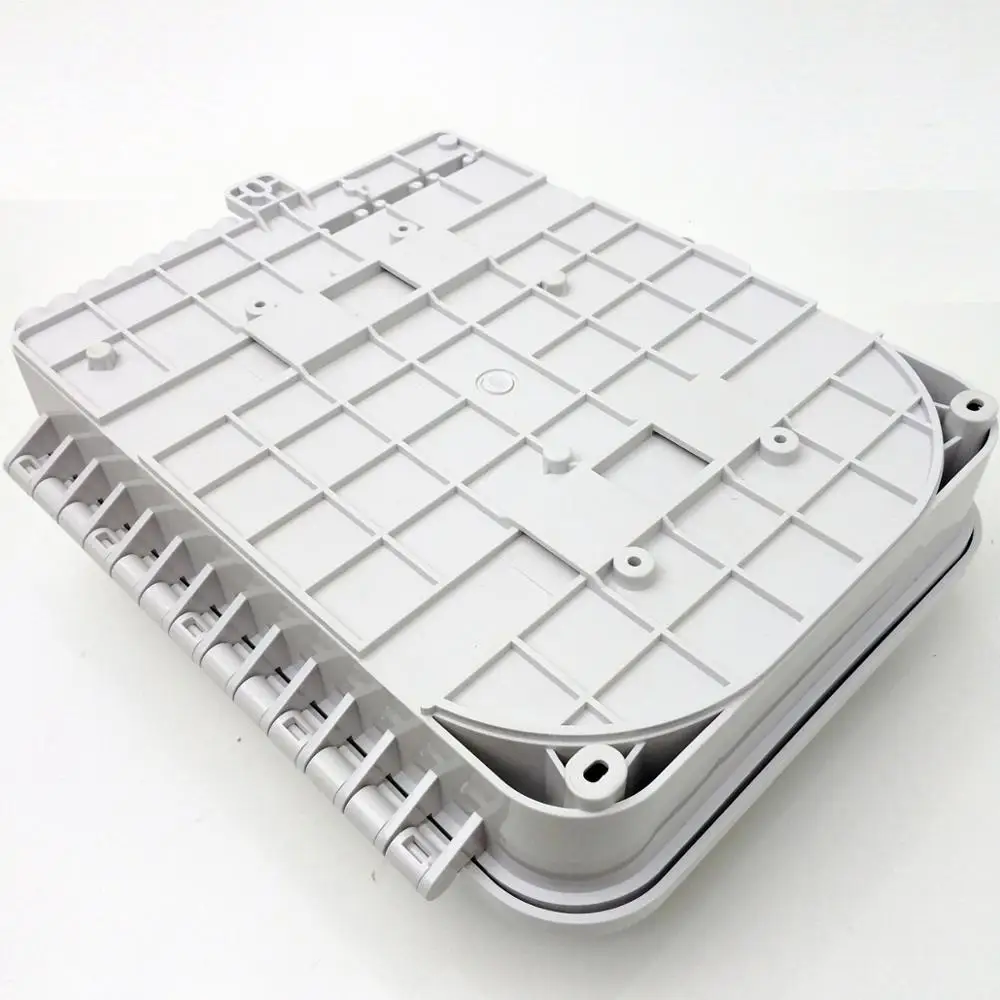

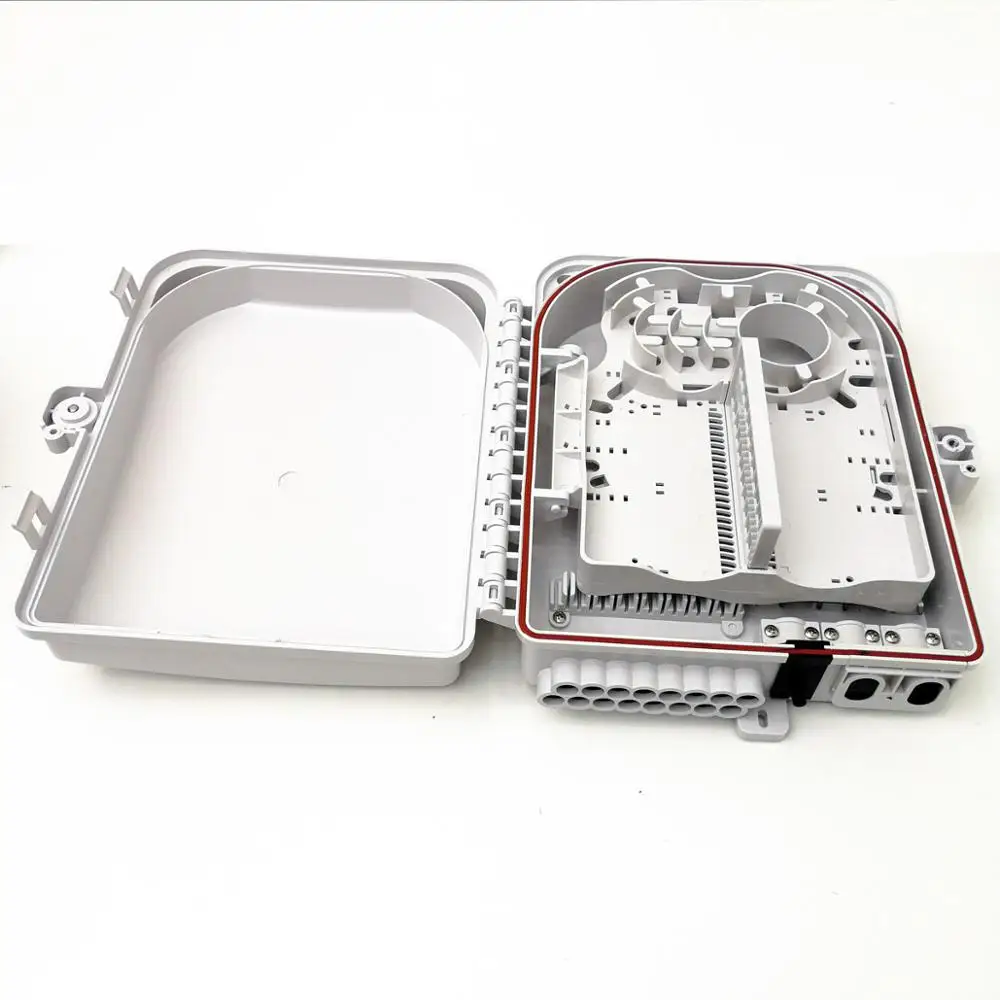

Fiber Splitter Distribution Box fiber terminal box ftb 24 ports with SC/APC adapter splitter junction box type

Product Overview

Description

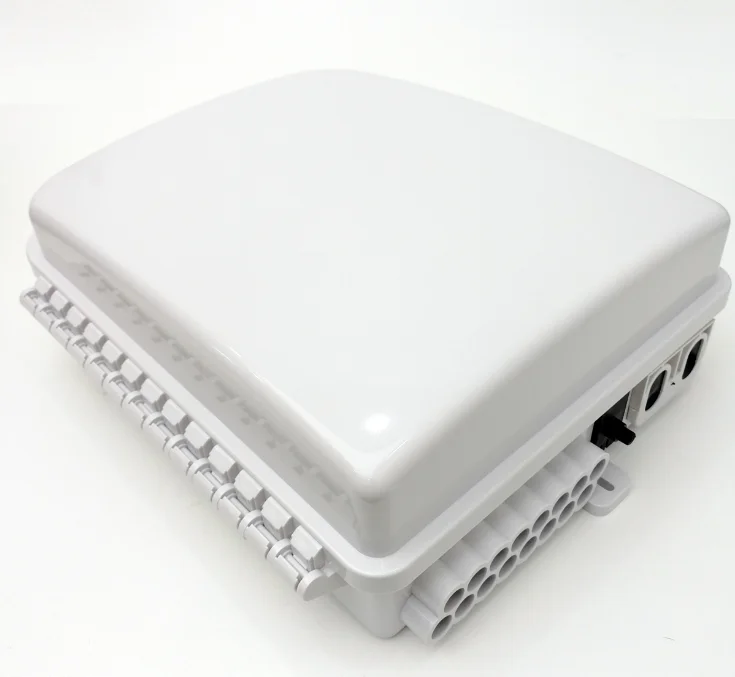

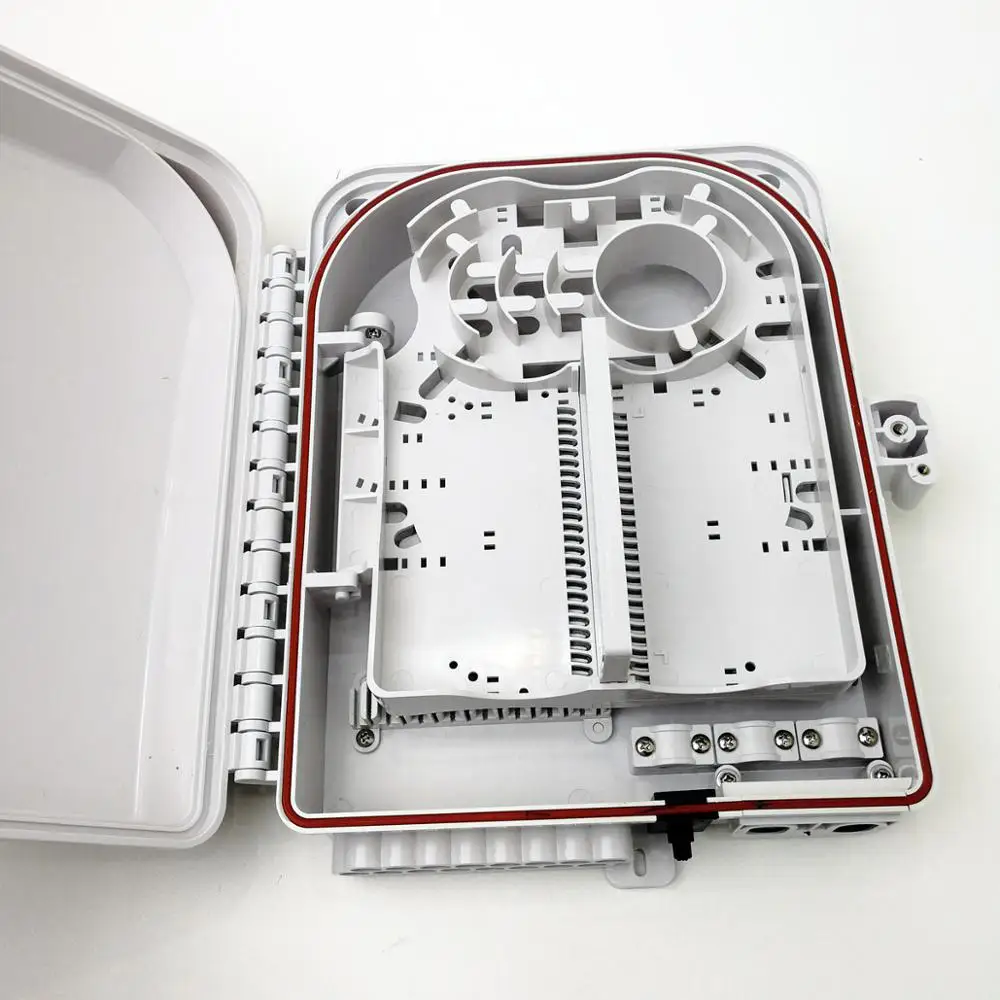

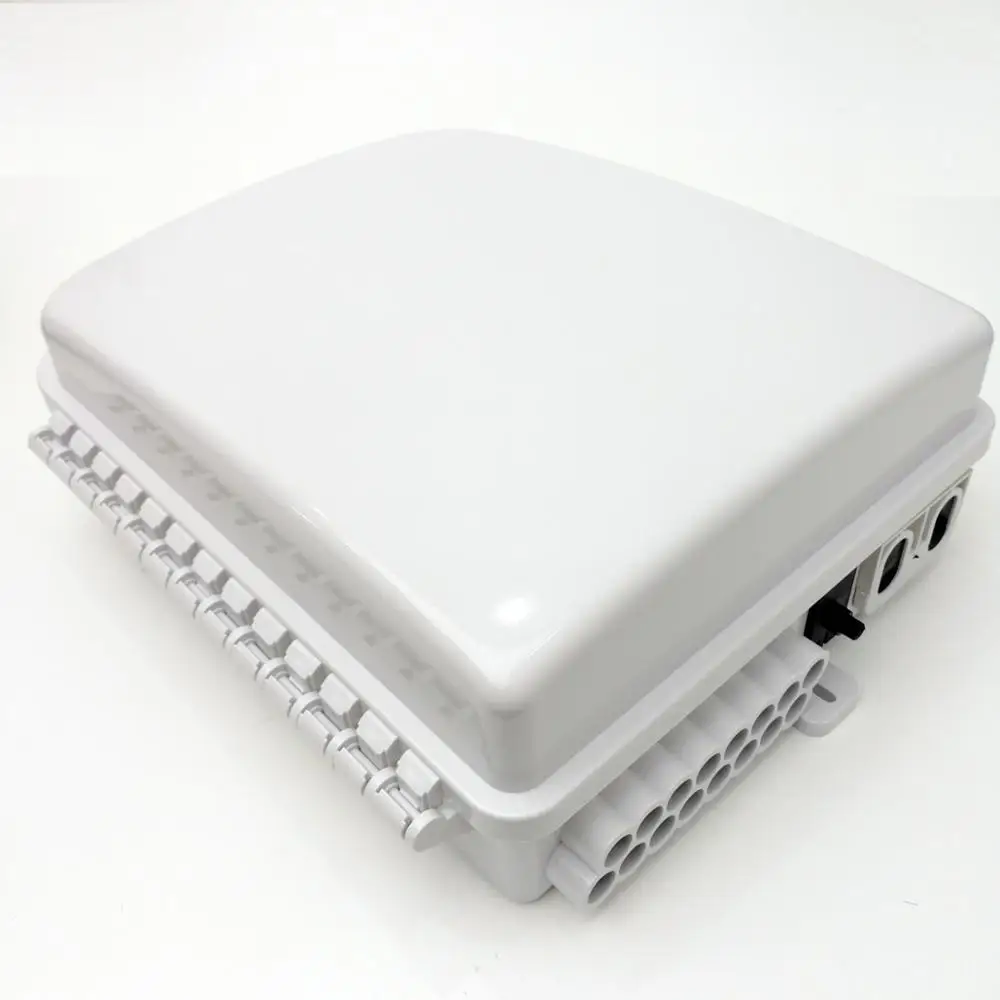

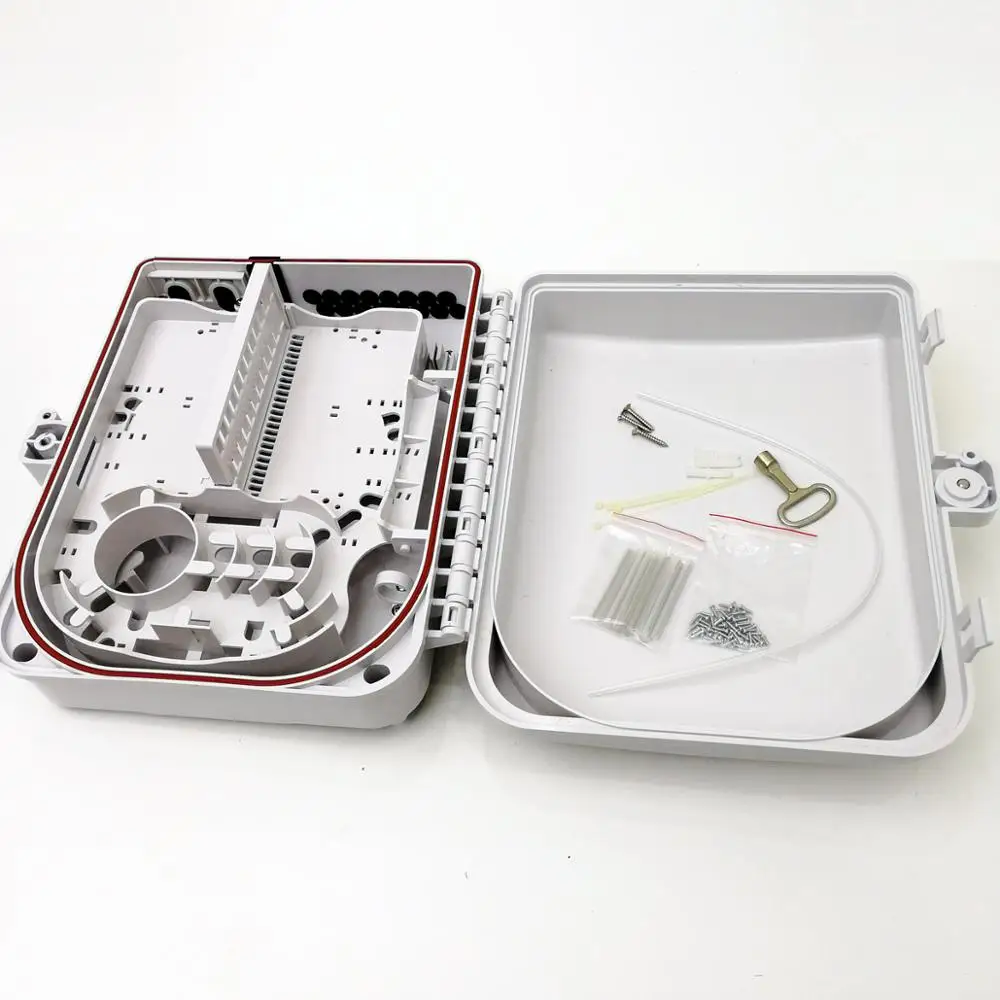

24 ports Splitter Distribution Box

3C-FBD-0324

The FDB is made of high strength materials,UV resistance,waterproof,maximum capacity up to 24cores,with perfect space design,a variety of PLC splitter can be installed,it can be used in indoor and outdoor environment,safe,reliable,cost-effective,and provide the best solutions for FTTH optical acess networks.













Dimension(LxWxH)	335x295.5x117.2mm
Cable entries	3 Nos. φ12mm ports: 2ports are suitable for inlet/outlet 1 No. φ6-8mm cable for mid-span,1 port is suitable for φ6-8mm cable branching. 16 Nos. for 2x3mm drop cable
Splicing Tray	12/24 fiber per tray
Max.capacity	24cores
Material	ABS+PC-LSZH
PLC splitter	2 Nos. 1:8(or 2:8) Module/cassette/Blockless/Bare PLC splitter
No. of Adapter	Max. SC/APC Adapter 24pcs
IP rating	IP65







 Main points during operation

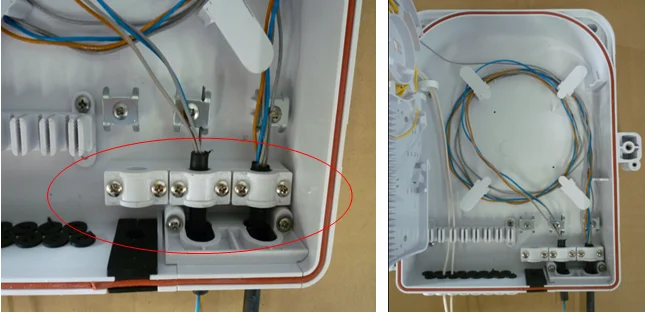

1. Insert on 12-24 cores small diameter cable and fix it for mid-span,insert one 6-12 cores small diameter cable and fix it for branching,the mid-span fiber coiling in the bottom.

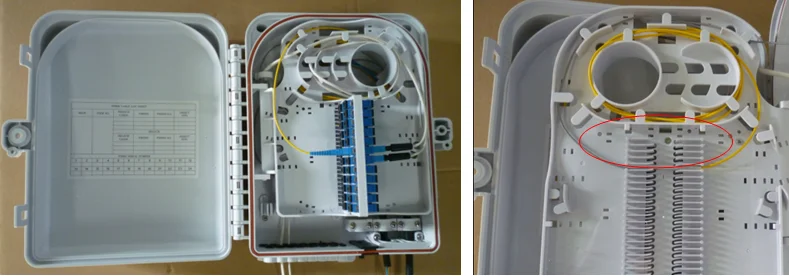

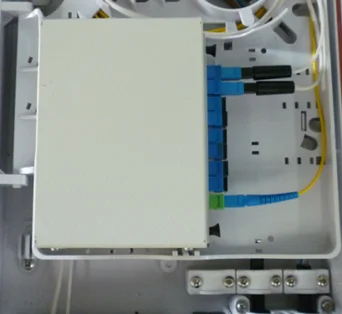

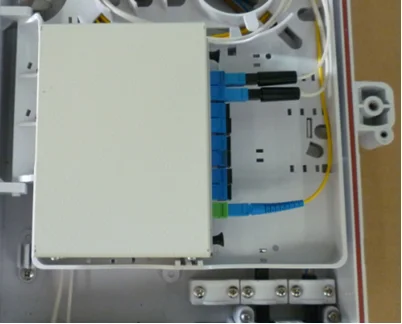

2. Fix two 1:8 cassette PLC Splitter and plug the pigtail in the input adaptor of the splitter.

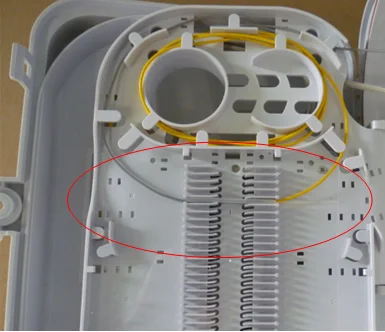

3. Connect input fiber with splitter input pigtail by fusion splicing or mechanical splicing at splice tray,and reserved fiber coiling in the splice tray.



4. Pre-insert drop calbes to outlet holes in order,then seal it by soft block and fix it.





 5. Pre-installed the field assembly connector of drop cable,then insert connector to adaptor in order and tie it.



6. If use bare PLC splitter.

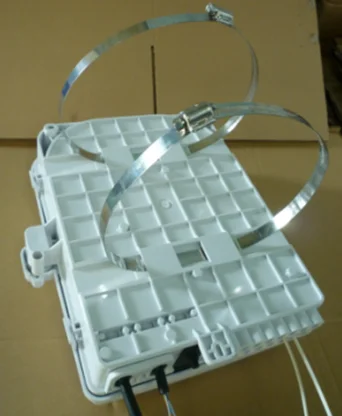

7. Pole mounting: use the hose clamp to fix it on the pole.

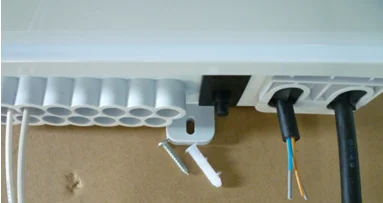

8Wall mounting: use the expansion screws to fix it on the wall. See Figure 10
