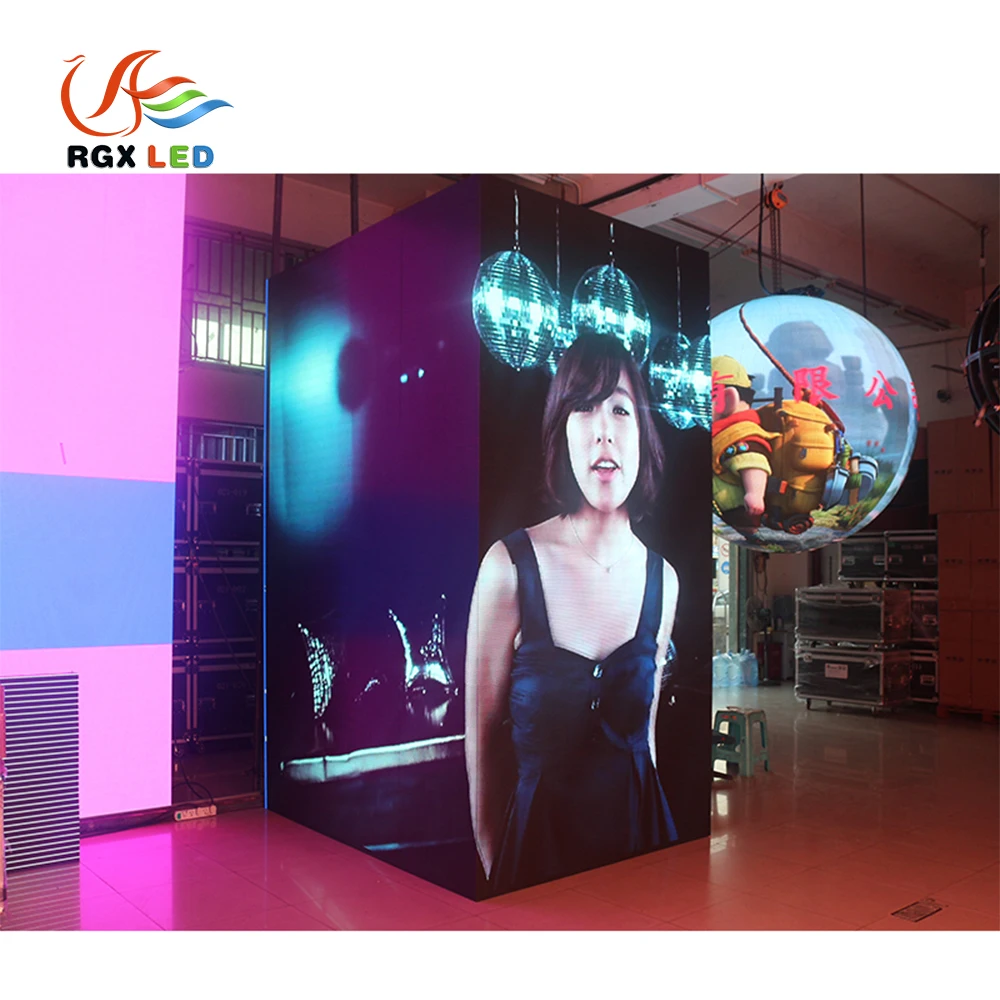

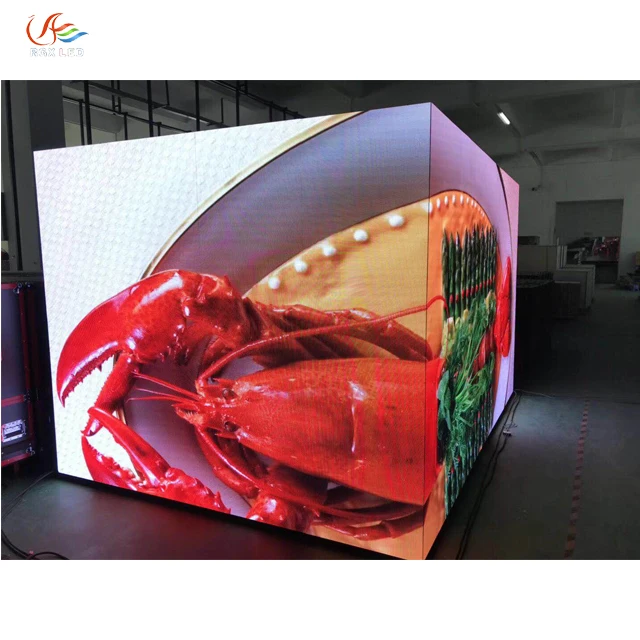

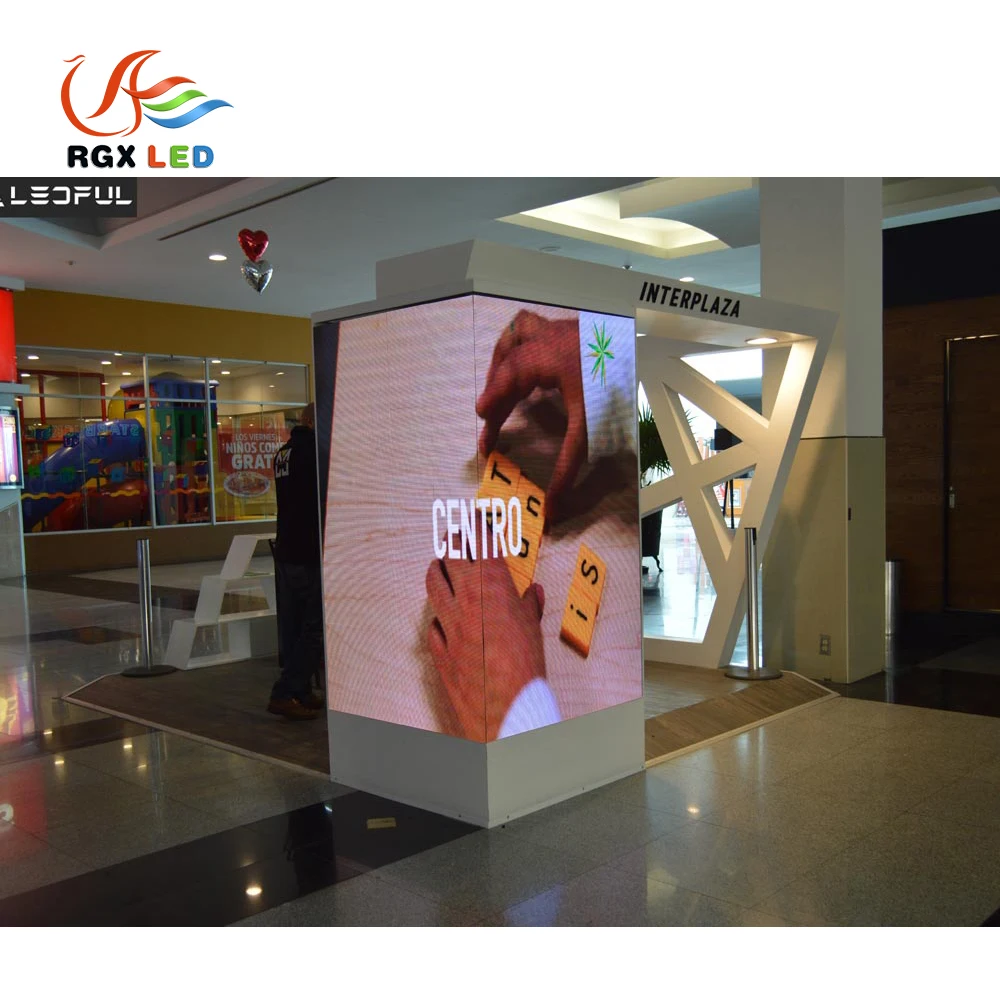

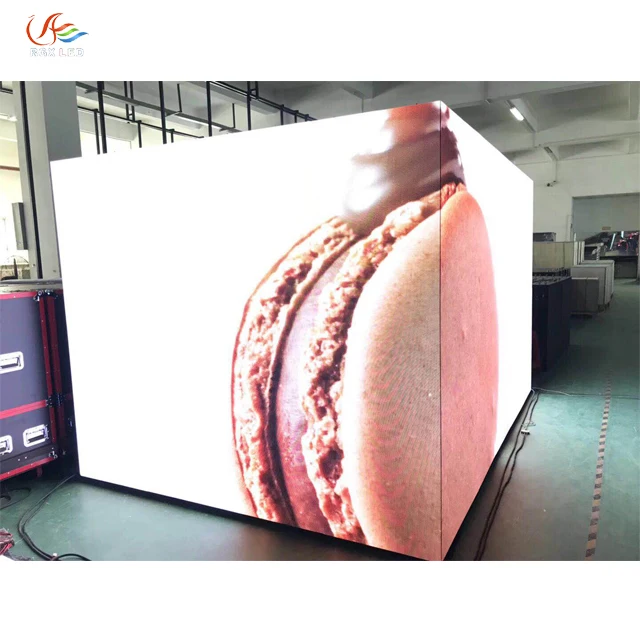

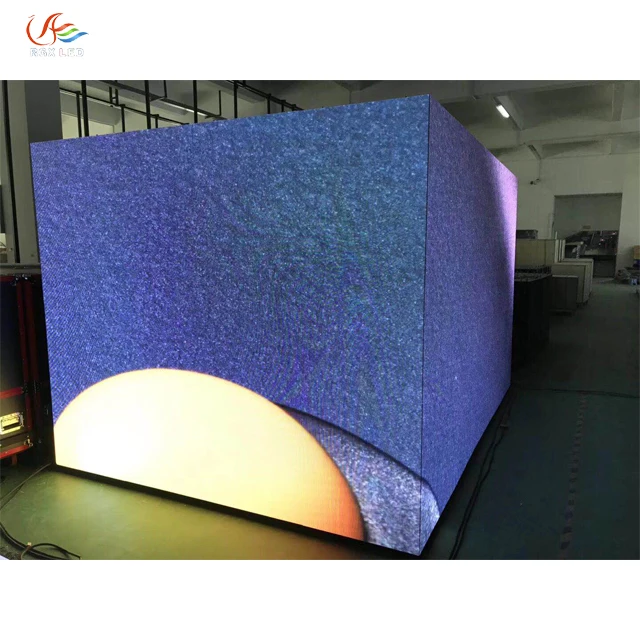

RGX indoor Cube LED display screen for column video wall P3 P4 P5
- Category: >>>
- Supplier: Shenzhen RGX Electronics Co. Ltd.
Share on (62044342029):
Product Overview
Description
RGX indoor Cube LED display screen for column video wall P3 P4 P5
>>Enery-saving
>>Easy installation
>>Environmental protection
>>High brightness and refresh 3840Hz
>>Using high reflesh IC, better viewing effect
>>Passed highest /lowest temperature testing
>>Larger viewing angle: Horizontal angle 160 degree, Vertical angle 120 degree
Product Description
| Unit Module Specifications | |||
| Item | P3 | P4 | P5 |
| Pixel Pitch | 3 mm | 4 mm | 5 mm |
| Pixel Configuration | 3in1 (1R1PG1B) | ||
| Module Size(MM) | 192*192 | 256*128 | 320*160 |
| Module Resolution(Dots) | 64*64 | 64*32 | 64*32 |
| Module Weight(Kg) | 0.3 | 0.2 | 0.37 |
| Package LED Mode | SMD2121 | SMD2121 | SMD3528 |
| Max Power(Watt) | 21 | 11 | 21.5 |
| Pixel Density(Dots/SQM) | 111'111 | 62'500 | 40'000 |
| Driving Method | Constant Current Driving | ||
| Scan Method(Scan) | 1/32 | 1/16 | 1/16 |
| Interface Way | HUB 75 | ||
| Brightness(CD/SQM) | ≥ 1200 | ≥ 1200 | ≥ 1200 |
| Unit Cabinet Specifications | |||
| Cabinet Size(MM) | 576*576 | 512*512 | 640*640 |
| Cabinet Composing(PCS) | 9 | 8 | 8 |
| Power Supply Mode(Per Cabinet) | 5V60A | 5V40A | 5V40A |
| Cabinet Resolution(Dots) | 192*192 | 128*128 | 128*128 |
| Optimal Viewing Distance(M) | 3-300 | 4-400 | 5-500 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree | ||
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree | ||
| Relative Humidity | 10% ~ 95% | ||
| Power Supply Specifications | |||
| Operating Voltage | AC:100V~120V AC:220~240V | ||
| Average Power(W/SQM) | 150-350 | 150-320 | 150-320 |
| Max Power Consumption(W/SQM) | ≤ 800 | ≤ 750 | ≤ 780 |
| Current | ≤ 20mA (single LED) | ||
| Control System Specifications | |||
| Computer | Pentium4 or above P4 or above | ||
| Operate System | Win7-11/2000/NT/XP | ||
| Control Mode | Synchronization with PC | ||

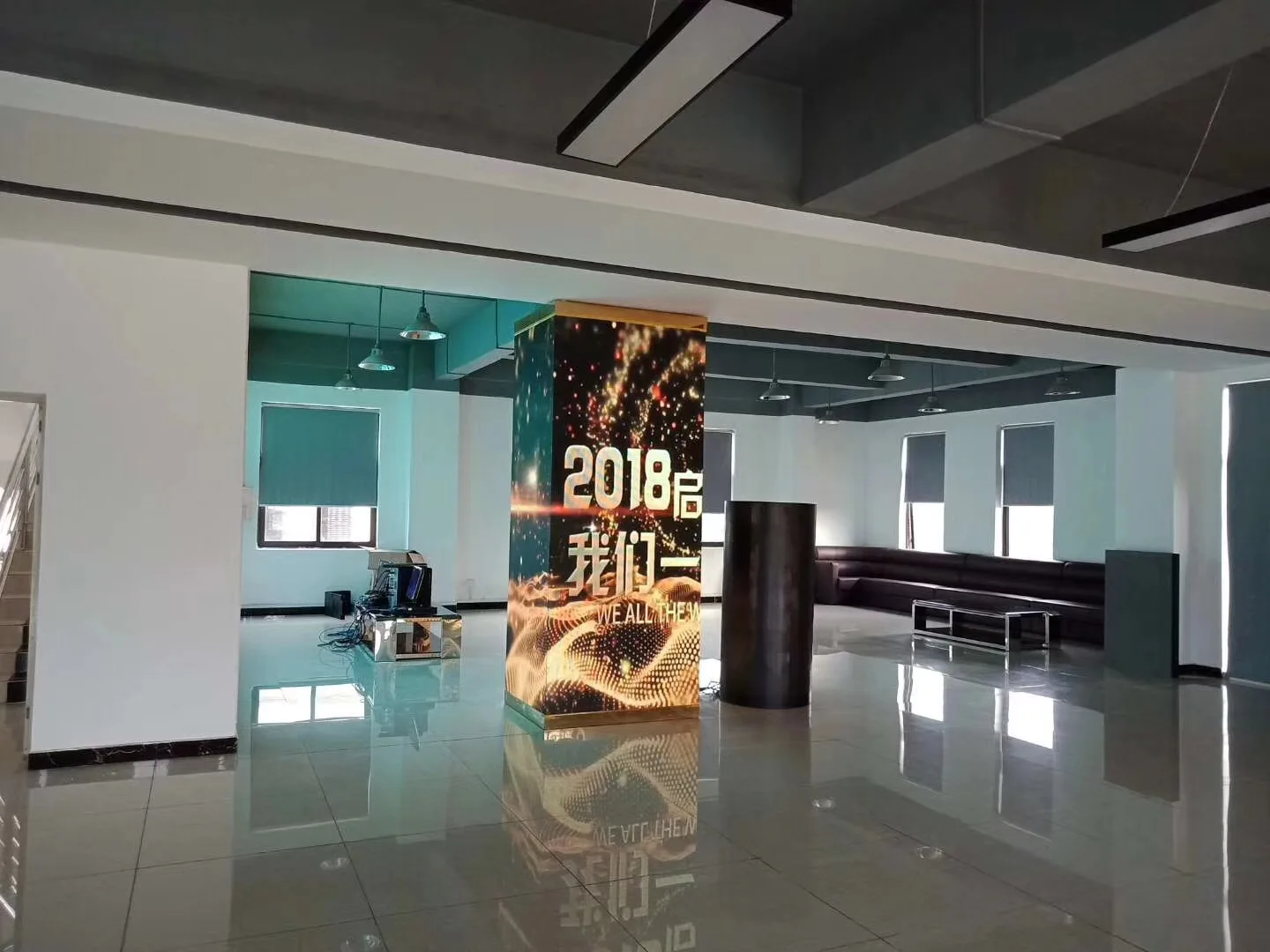

3. Application of indoor Cube LED display with Right angle cabinets P3 P4 P5
Related Products
All of our products can be customized. Any sizes, material, shape, logos, packaging meet
your requirement,before quote you the price, we will be appreciated if you can provide the
information below:
1. What will the LED display be used for? video, TV , graph or?
2. Where do you plan to install the LED display,indoor or outdoor or rental purpose?
If possible, please send me a picture about the installation environment.
3. What's the size do you need? the length and width?
If you are not clearly , we will recommend for you.
