12V 1.5W samsung led module Korea ce rohs injection lens led modules waterproof 5730 led modules with 3 chips

Product Overview

Description

12V 1.5W samsung led module Korea ce rohs injection lens led modules waterproof 5730 led modules with 3 chips



Product feature



Type: Module Samsung 5730 3LED Light

Input Voltage: DC12V

LED quantity: 3 PCS

Beam angle: 120 °

light:50lm/1led

Light Source Life: 50000H

Power: 1.5W

Size:(about) 66 * 16 * 6mm

Standard cascade: 50PCS

Adhesive fixed: 3M double-sided adhesive

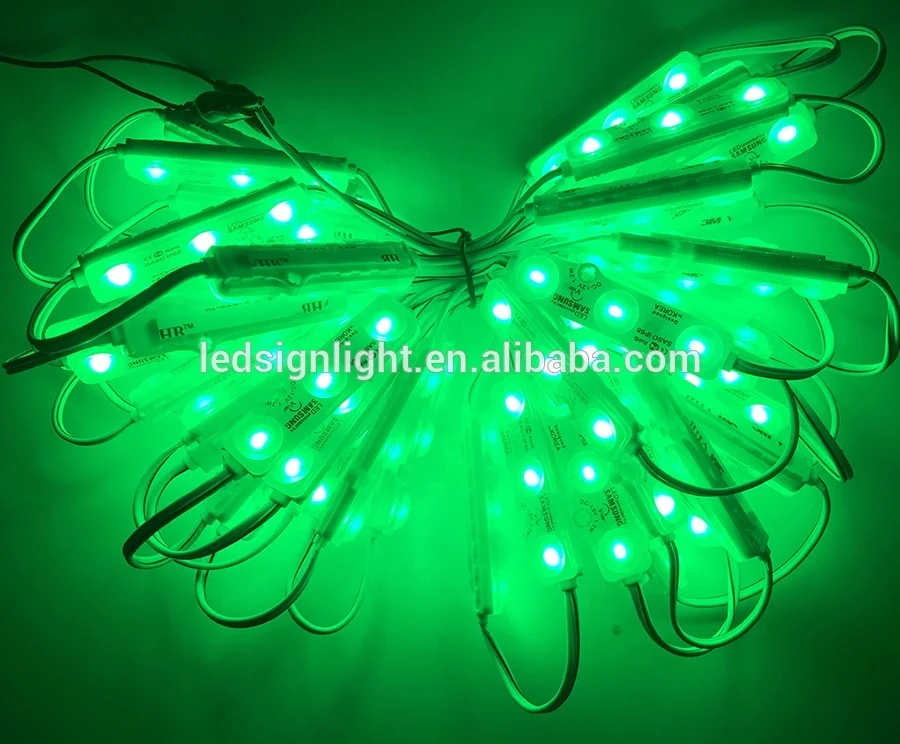

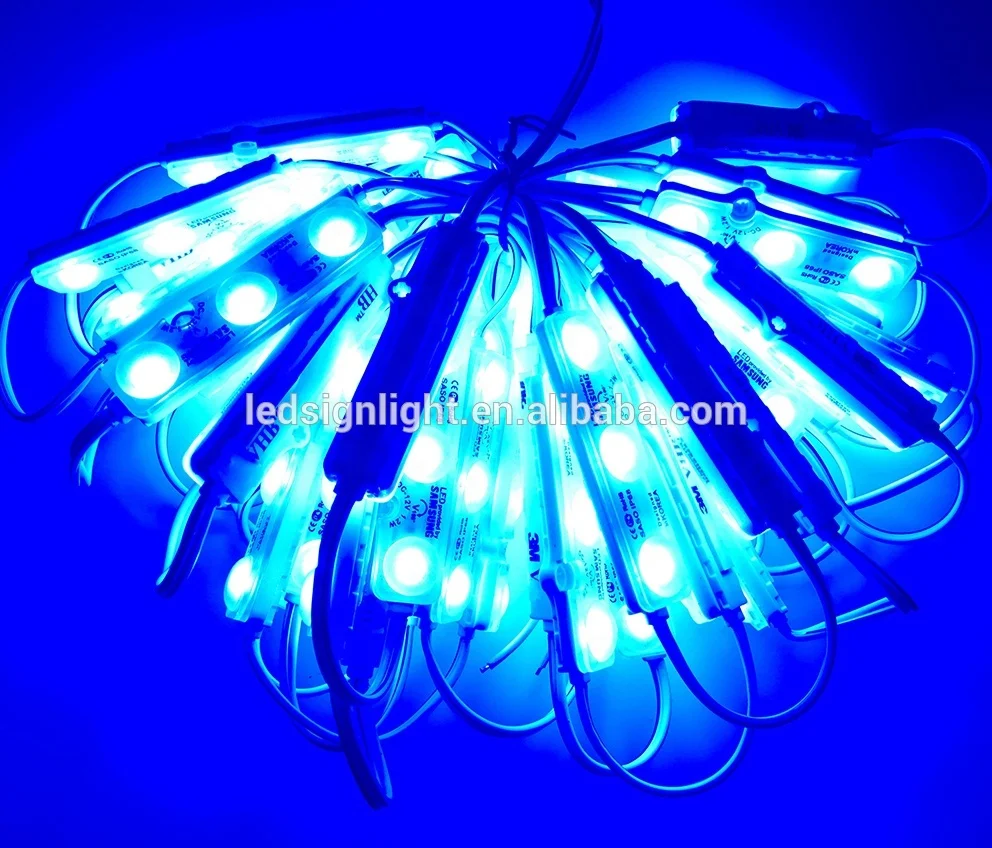

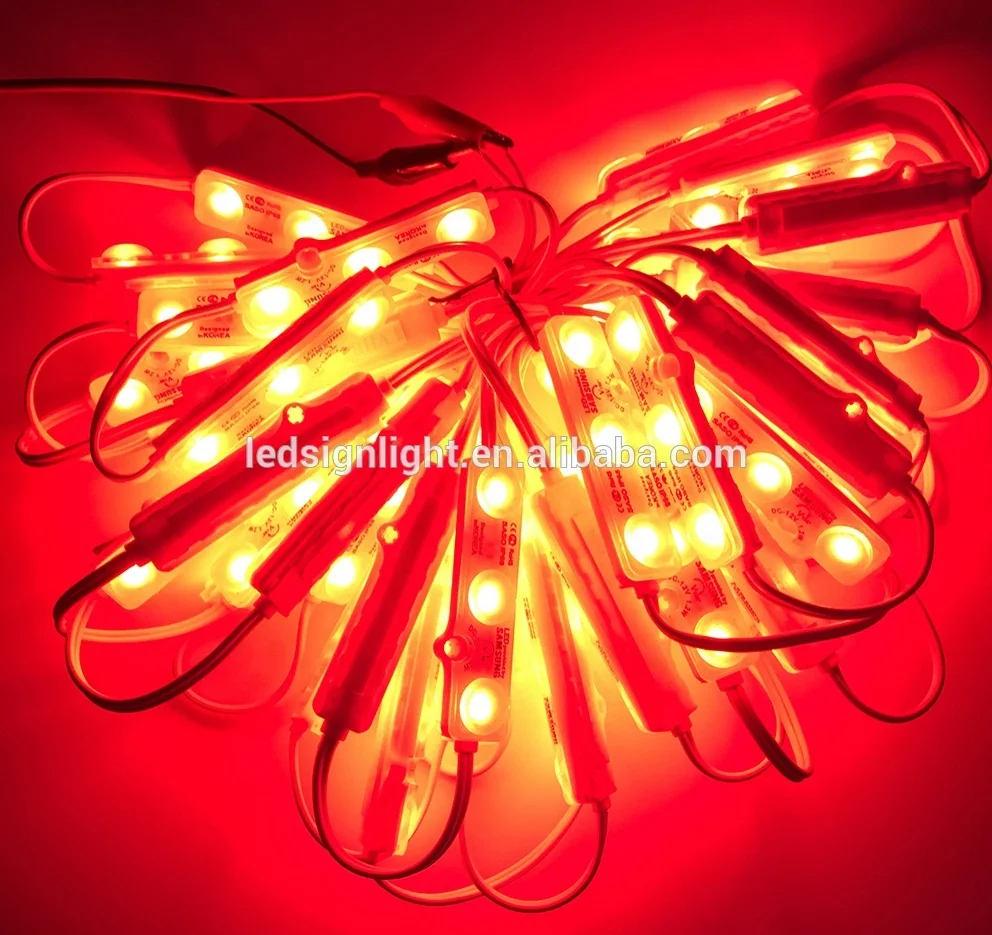

Optional color:red blue green white and warn white

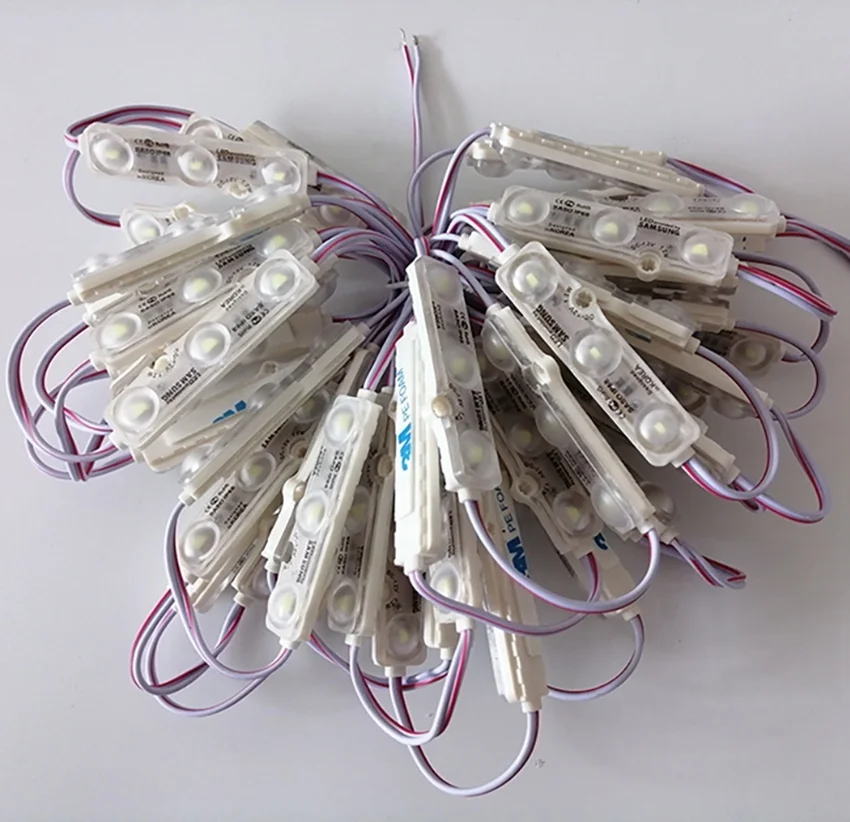

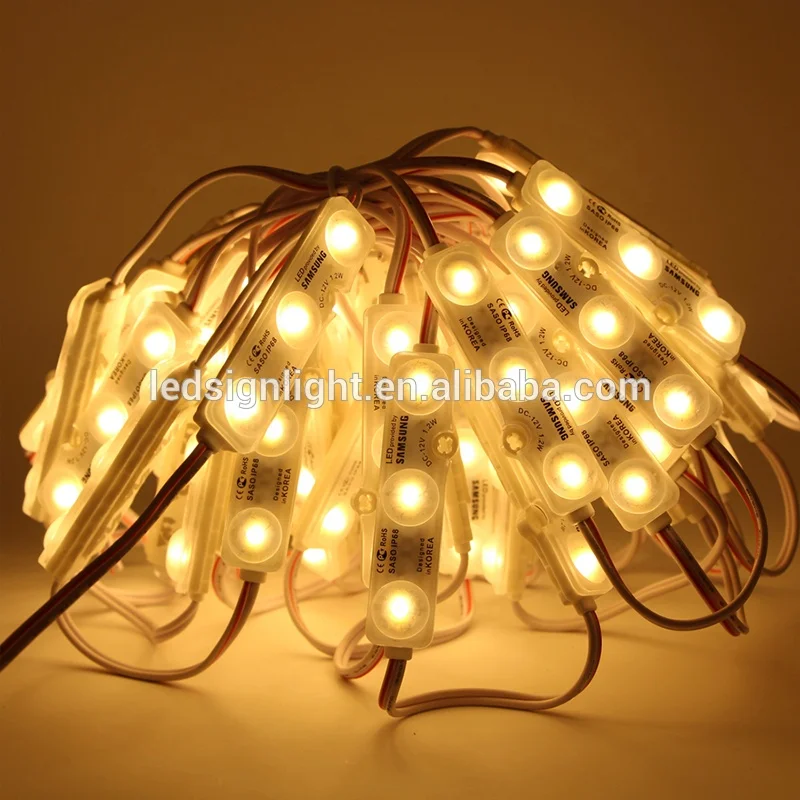

Product photos





Remark:

For internal illumination of channel letters or lightbox whose depth is 120mm to 200mm, cove lighting and edge lighting, long life span with lower power consumption, outdoor use.  Rated operating current is 150mA and rated power consumption is 0.5Watt with light flux at 25 lumens. Total light output of the module is 66~72 lumens. Powered by SamsungSMD5730 TopLED.



Electrical characteristics;



model no.	LL-F12T6616W3C-160
LED TYPE	SMD5730 LED
BEAM ANGLE	160degree
Emitting color	White
luminous flux (lm)	120-130Lm
color temperature	6000-7000k
operating voltage	12VDC+-0.5
operating current	120MA
Power	1.5watt



Physical Parameters:



led number	3pcs SMD5730 LEDs from Samsung
pcs per link	50pcs per string
ip grade	IP68
shell material	ABS injection molding & Aluminum PCB
driven by	constant voltage
positioning	screw& 3M autoadhesive tape
operating temperature	-30-+60degree
storage temperature	-40-+60degree

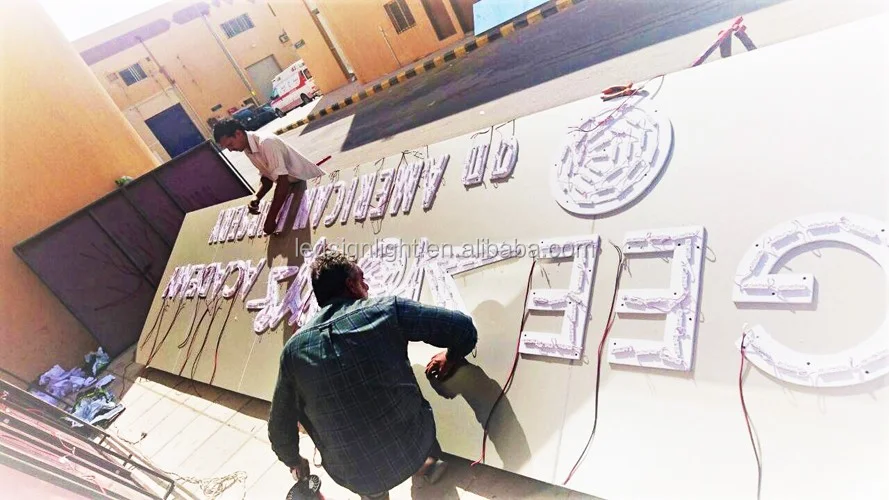

Installation

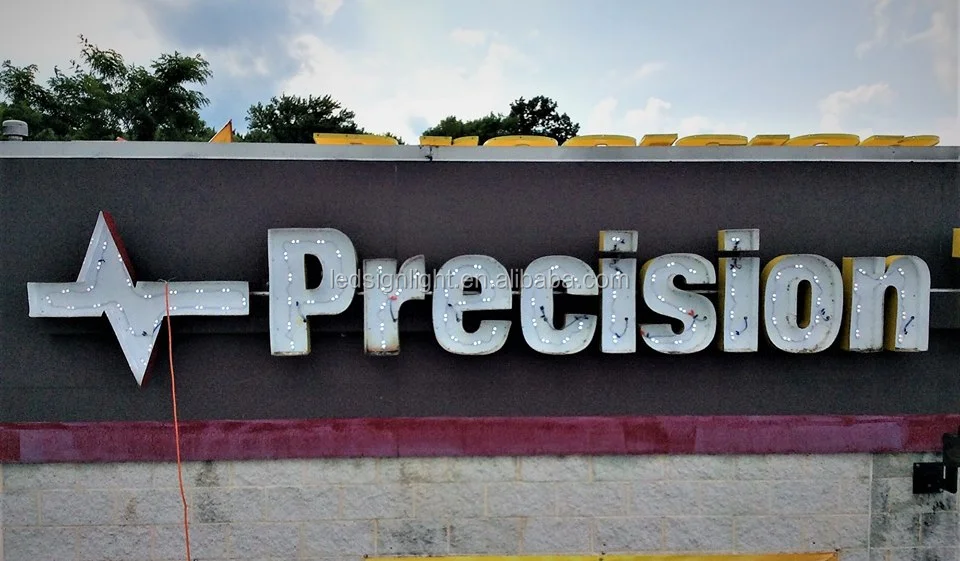

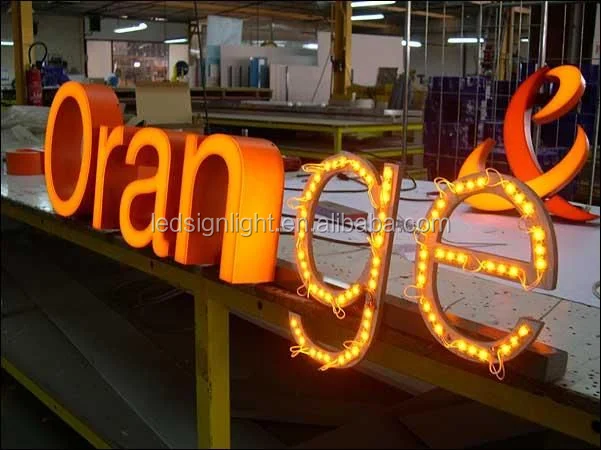

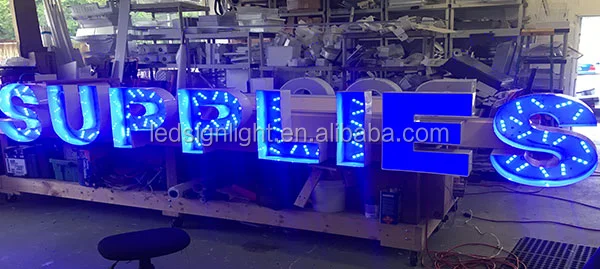

Application

a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. Signal Lamp for mini & slim Letter Channel.
e. Emergency / rescue signs
f. Edge lighting of transparent diffused materials



Why Choose LEDELS Lighting Co Ltd?

Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

 Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

Over 12 years experience in this industry,own lots of customer in home and abroad.good quality and innovation win good reputation.

High Quality: 5 years warranty



Packing Details:





Product certification:



Order infomation:

MOQ: 300pcs

Trade term: FOB Shenzhen

Delivery time: 3-5 working days for sample order, 7-10 working days for mass order



Warranty

Five years since the date of purchase



Trade Terms:

1. Lead time : normally in 5~10 days after deposit received

2. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .

4. Shipping port: Shenzhen , China

5. Discounts : We offer discount for big quantity .

Delivery detail: We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
