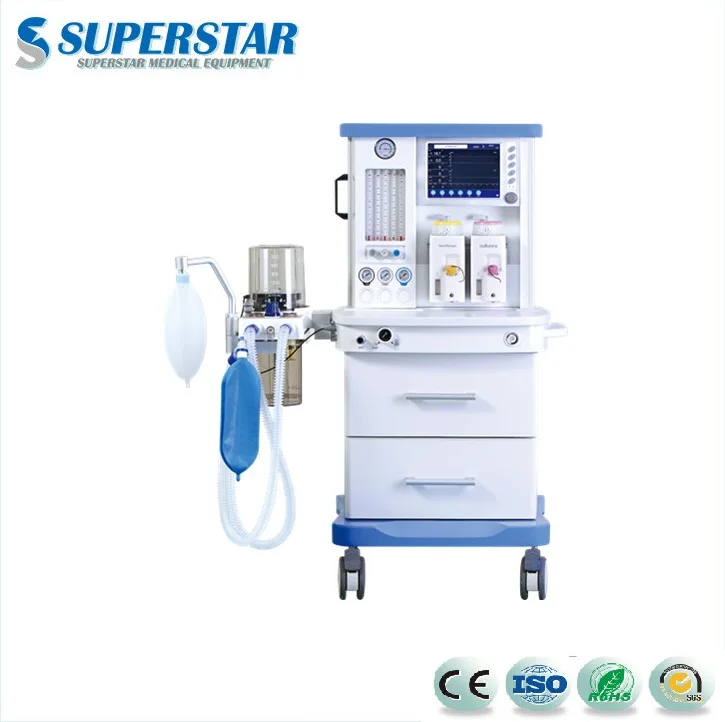

Hospital ICU Room Surgical Operation Equipment Surgery Medical Anesthesia Machine with Ventilator S6100
- Category: >>>
- Supplier: Nanjing Superstar Medical Equipment Co. Ltd.
Share on (62044370547):
Product Overview
Description
Hospital Portable Cheap Price Medical anesthesia machine S6100 with ventilator
Product Description
Application
The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments.
Professional design for adult, child and infant inhalation anesthesia and respiratory management, with advanced ventilation modes. Outstanding ergonomic design, it ranks high level in
safty, stability and convenience as well as user experiences.
S6100 comfortable classic model, easy to use and be designed together with experienced experts to streamline your anesthesia workflow.
Specifications
| Display | 10.4"Colorful TFT LCD display screen | |
| Valve | proportional valve | |
| Flow Meter | mechanical flow meter (5 tube) | |
| ACGO | YES | |
| Y0KE | YES,3(optional) | |
| Battery | YES,≥2 hours | |
| Top light | NO | |
| Absorber capacity | 1.5L | |
| Brake | Four castors | |
| Vaporizer | 2 position, 2 for standard | |
| Drawers | 2 | |
| Anesthetic module | Optional on monitor | |

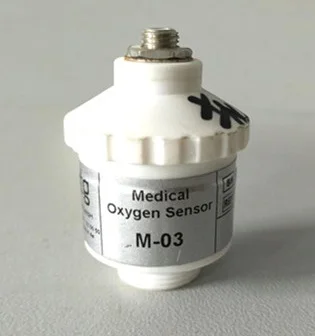

| Oxygen sensor | YES | |
| ETCO2 | optional hand held | |
| Working environment | Gas source | O2,N2O,AIR |
| Gas pressure | 280kPa - 600kPa | |
| Power supply voltage | 100V - 240V | |
| Frequency | 50/60Hz | |
| Input power | 85VA | |
| Ventilation mode | IPPV(VCV) A/C(SIPPV) PCV SIMV SIGH MAUN | |
| Adjustable parameters | Freq | 1bpm - 100bpm |
| Tinsp (inspiratory-to-expiratory ratio ) | 0s - 12s 4:1 - 1:8 | |
| VT | 0ml - 1500ml | |
| MV | ≥18L/min(Adult) ≥10L/min(Children) | |
| PEEP | 0cmH2O - 30cmH2O | |
| PTr | -20cmH2O - 20cmH2O | |
| FTr | OFF,1L/min - 30L/min | |
| Pc | 5cmH2O - 60cmH2O | |
| TIP | 0 - 6s | |
| Apnea Ventilation | OFF,5s - 60s | |
| SIGH | 1/100 - 5/100 | |
| Grafical display | 1.P-T(pressure – time) 2.F-T(flow – time) 3.P-V loop (pressure – volume loop) | |
Trust Points
Simplicity: 4 static casters with self-locking function.
Precision in an anesthesia ventilator with multiple ventilation modes: IPPV, A/C, PCV, SIMV,
SIGH and MANUAL.
Flexible configurations able to customize your requirements.
International standard and advanced technology suitable for wide range use.
Compact interface and big screen give you better operating experience.
Over 5,000 units are installed in more than 200 countries.
Designed and manufactured by Superstar Medical with over 25 years of experience in ICU field.
Features

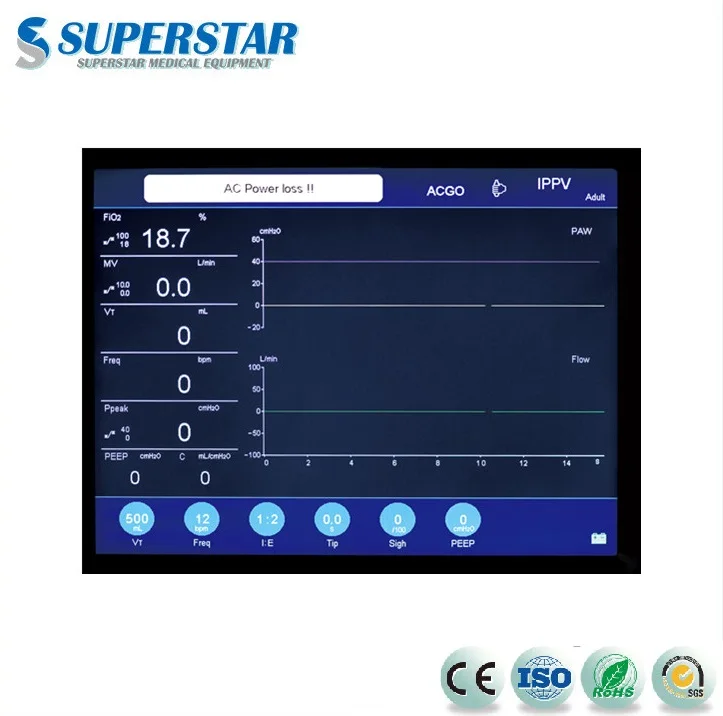

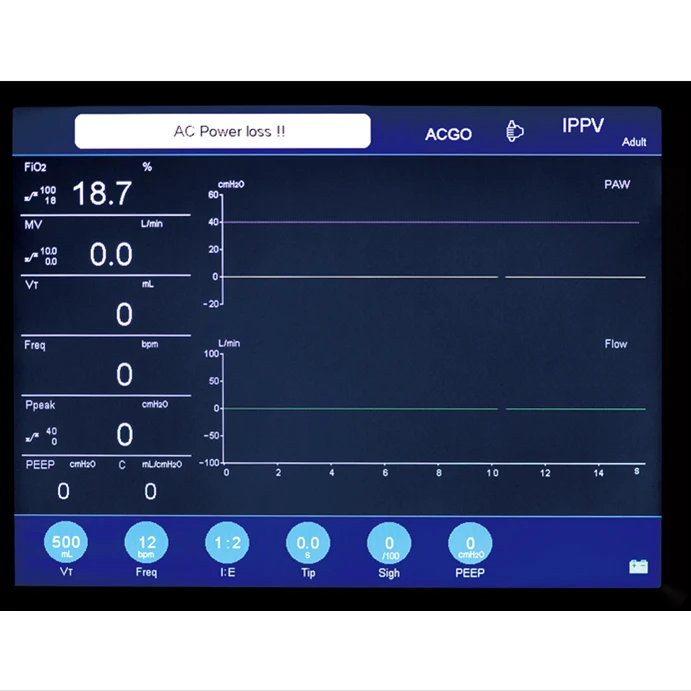

10.4” TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.

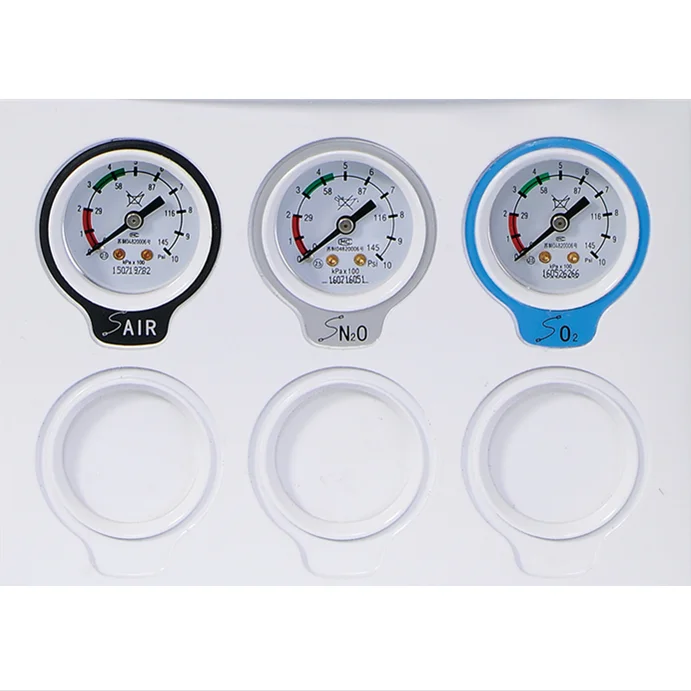

High precision flowmeter, instantly know the fresh gas flow to your patient.

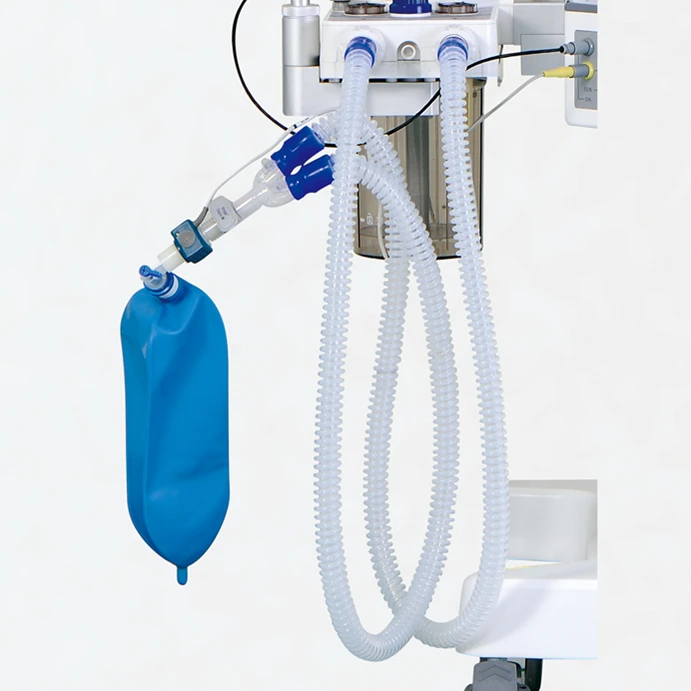

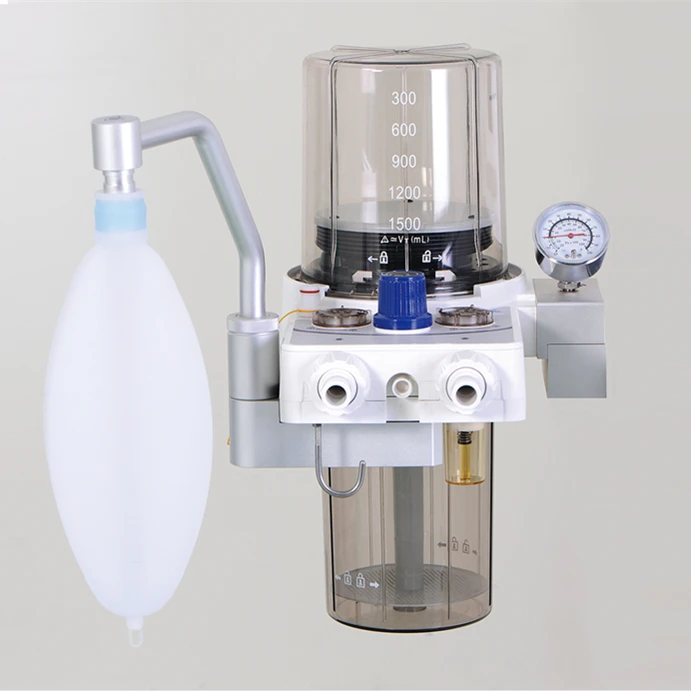

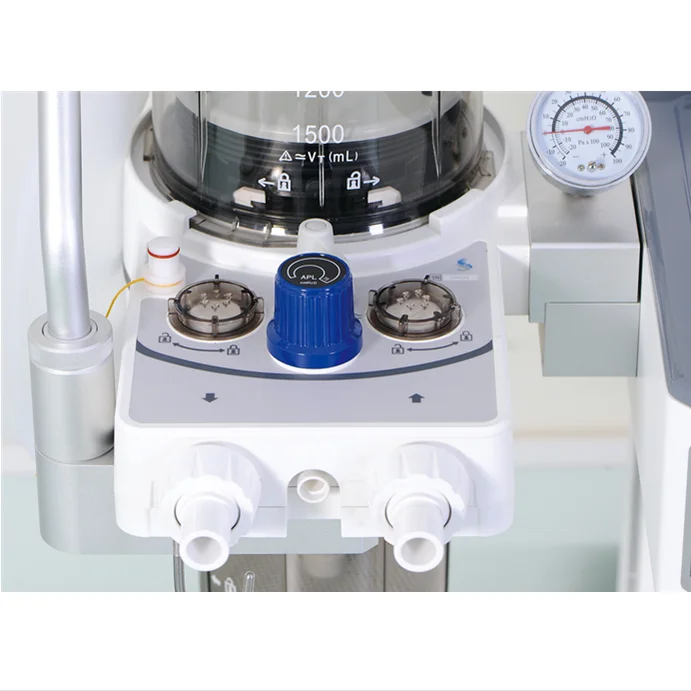

Integrated breathing circuit design, ensure easy operating and keep tidy.
Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
Multiple parameters monitoring interface, make every parameter clear, let users know the patient
conditions in all aspects.
Pressure-time, low-time loop oscillogram and high precision ETCO2, O2 concentration show in real
time.
Vital sign monitor and anesthetic gas monitor are optional.
ETCO2 module and Anesthesia Gas Scavenging System (AGSS) are optional
Safety
3 level alarm system, visual and sound alarm information.
With multiple type of alarm, reminder and protection functions.
Advanced power management control technology.
Built-in backup battery provide the emergency power supply to the unit.
Low O2 pressure alarm and N2O cut-off protection
Packaging & Shipping
Packing size
Wooden case packing size: L 870 * W 890 * H 1510 mm
G.W.: 195 KG
CBM: 1.17 m3
Anesthesia machine size: L 930 * W 750 * H 1405 mm
N.W.: 124 KG
contact information
Our Services
1.Good quality products with high technology and stable performance——We have the first batch engineer for ICU equipment in China.
2.Enough choices for customer——Our machine have different range from common level to high level.Every product series have at least 3 choices.
3.Maximize your benefit——We are manufacturer, so the price we give you is the first hand price,it can protect your benefit and your competitiveness in your market.
4.Fast delivery time——We locate in Nanjing which is very close to Shanghai, whenever you need the products, it will only spend one day to Shanghai port.
5.Great support to our customer——We will give 5-10 catalogs with small gift once you give order to us,everything will be delivered with products together.By the way,we can do OEM service for you for free if you need.
Company Information
Nanjing Superstar Medical Equipment Co.,Ltd. established in 2008.Superstar Medical has exclusively focused on ICU devices. Years of hundreds of excellent young engineers and experienced staffs’ efforts and hard working in research and development of medical equipment have achieved remarkable results. R&D department staffs are 40% of total staffs.Our products are praised as 0 after-sale problem products which have been installed in 200 countries.The production base covers an area of 3000 square meters.
Superstar Medical has been authorized at least 35 patents about ICU equipment. Our engineer attended the establishment and revision of the standard in GB9706.28,GB9706.29 and numbers of ICU equipment in China. Long-term cooperation with universities and hospitals,more young people join Superstar Medical. With strong team and excellent ability, we have won the "High-tech Enterprise", "Private Technology Enterprises in Jiangsu Province", various national patents etc. Our own developed products have proved to be popular with customers and gotten approved by authorities in medical industry, all of our products have been awarded IS09001 and IS013485 and more products get CE certificates.
Our business line:Anesthesia System, Ventilator, Nitrous Oxide Sedation system,CPAP system,Sleep Therapy System etc.
