Disinfection Germicidal 3W UV Mini Lamp For Fish Tank With Silicone Seal Head

Product Overview

Description

Speciality

  1. We use a creative and professionally designed capacitor that replaces the entire complex electronic start and ballast circuit of an ordinary fish tank germicidal lamp. The possibility of a system failure caused by improper matching or failure of a single component is greatly reduced.So its performance is very stable.

 2. Easy to achieve up to 800mA of lamp current, UV output strong, powerful disinfection.

 3. As low as 180V AC, up to 235V AC, the lamp can work stably.

 4. With the arc length of 30mm can achieve 8W of output power, the lamp power density is high, its strong penetration of ultraviolet liaht in the water.

 5. Ballast capacitors in the work only play a deterrent effect. It almost does not consume any power, not heat, and more energy efficient.

 6. Capacitor built in the quartz tube, the overall waterproof, impeccable, no leakage.

 7. It uses 17mm diameter high-quality quartz tube to replace the ordinary fish tank sterilization lamp in the 15mm quartz tube. UV lamp output is stronger, more stable and reliable.

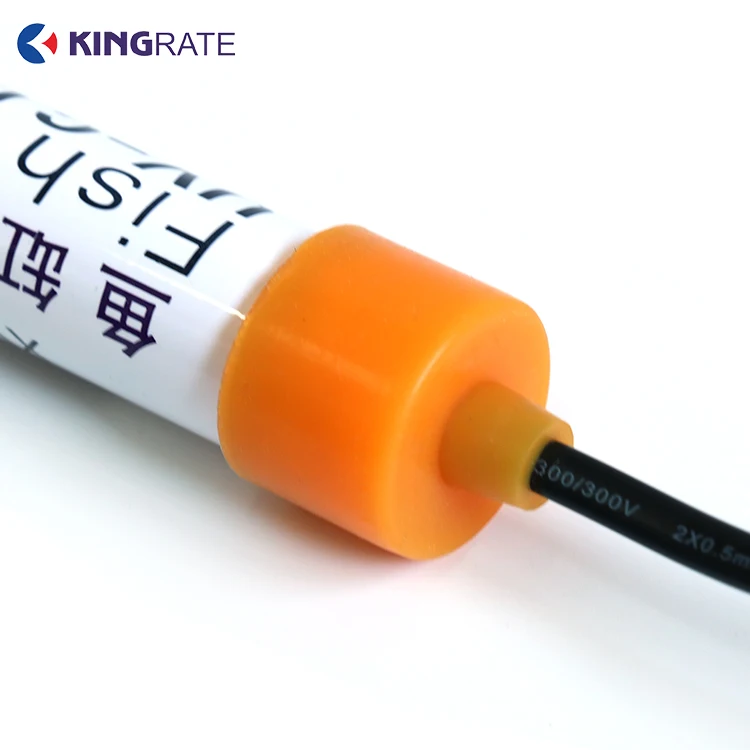

 8. We use a patented silicone seal head, which is inside and outside the double-tayer seal, and its sealing performance is stable and reliable.

 9. Overall performance is better, lower unit price.

Main Application

• Aquarium disinfection


• Water treatment


• Purifier

Type	Length	Capacity Volume	Orange Cap	Quartz Tube
	MM	M³	(MM)	(MM)
XYG-3W	141	0.5	27	23
XYG-8W	173	1.5	27	23
Remark:The product parameters and data are provided by Kingrate and for reference only.

For more product information, please click. Contact us

For more product, please click. Contact us



Q1:Can I have a sample first for the UV lamps?

A:Yes, we welcome sample order to test and check quality.

Q2:What's your lead time?

A:Samples would be need 5-7 days; mass production would be need 1-4 weeks according to the order quantities.

Q3: What is your shipping method and how long does it take to arrive?

A:We usually ship via DHL, UPS, FedEx or TNT and it usually takes 3-5 days to arrive. Both Air shipment and sea shipment are also optional.

Q4:Do you offer guarantee for the products?

A:Yes, we offer 1 years warranty to our most of our UV lamp, and half of one year warranty to the submersible UV lamp.

Q5:Can I use my own design package and logo on the products ?

A:Yes, We can accept OEM as per customers’requirements.
