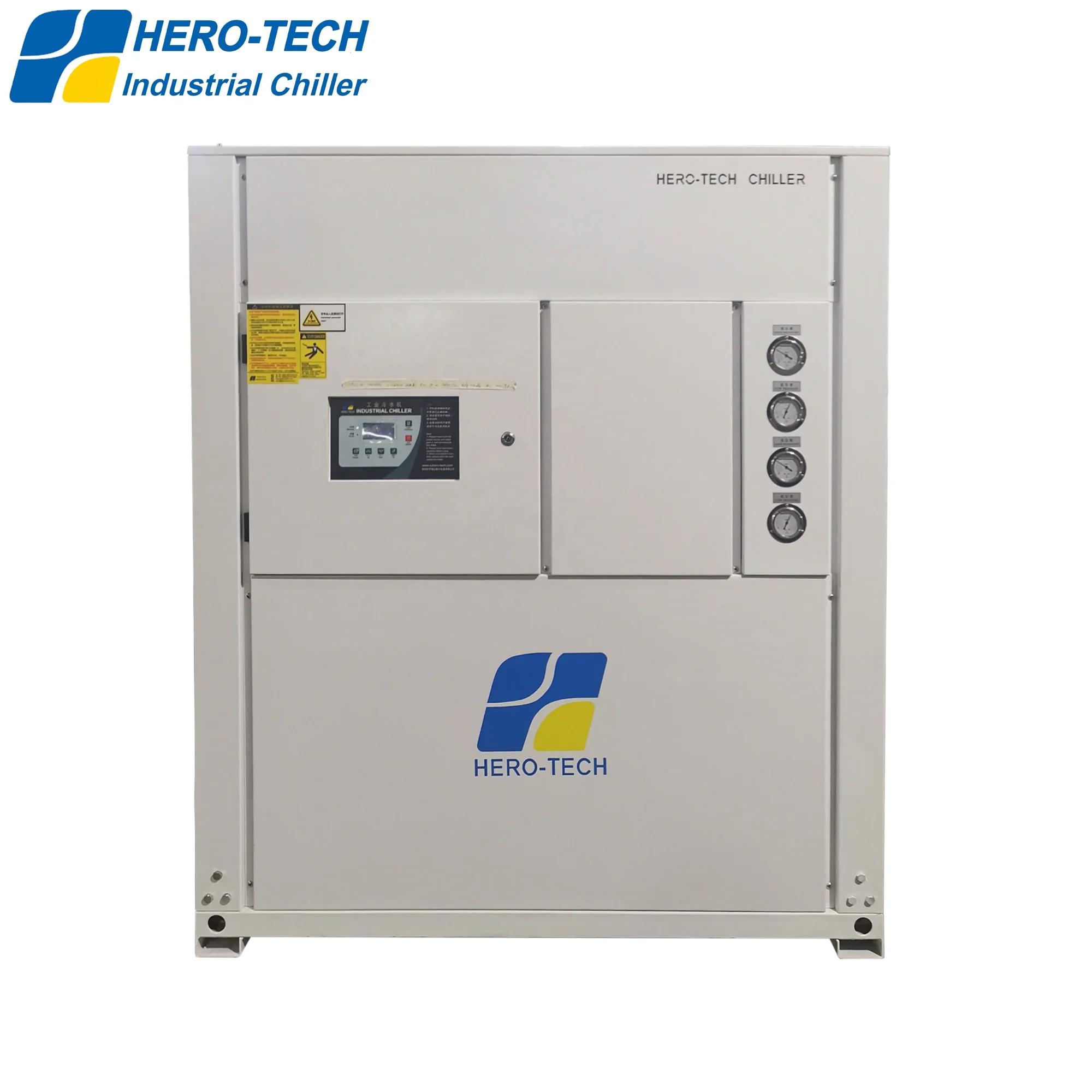

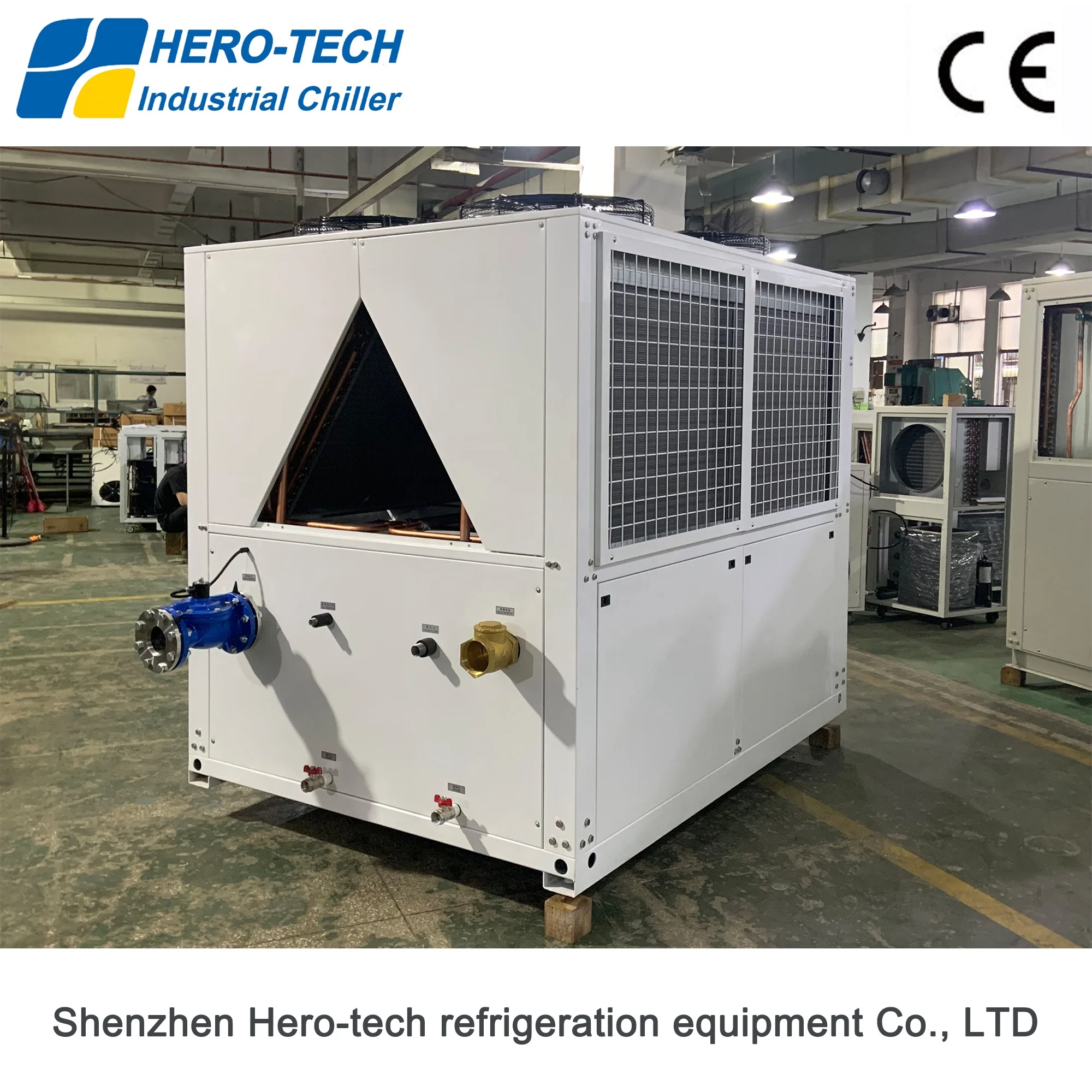

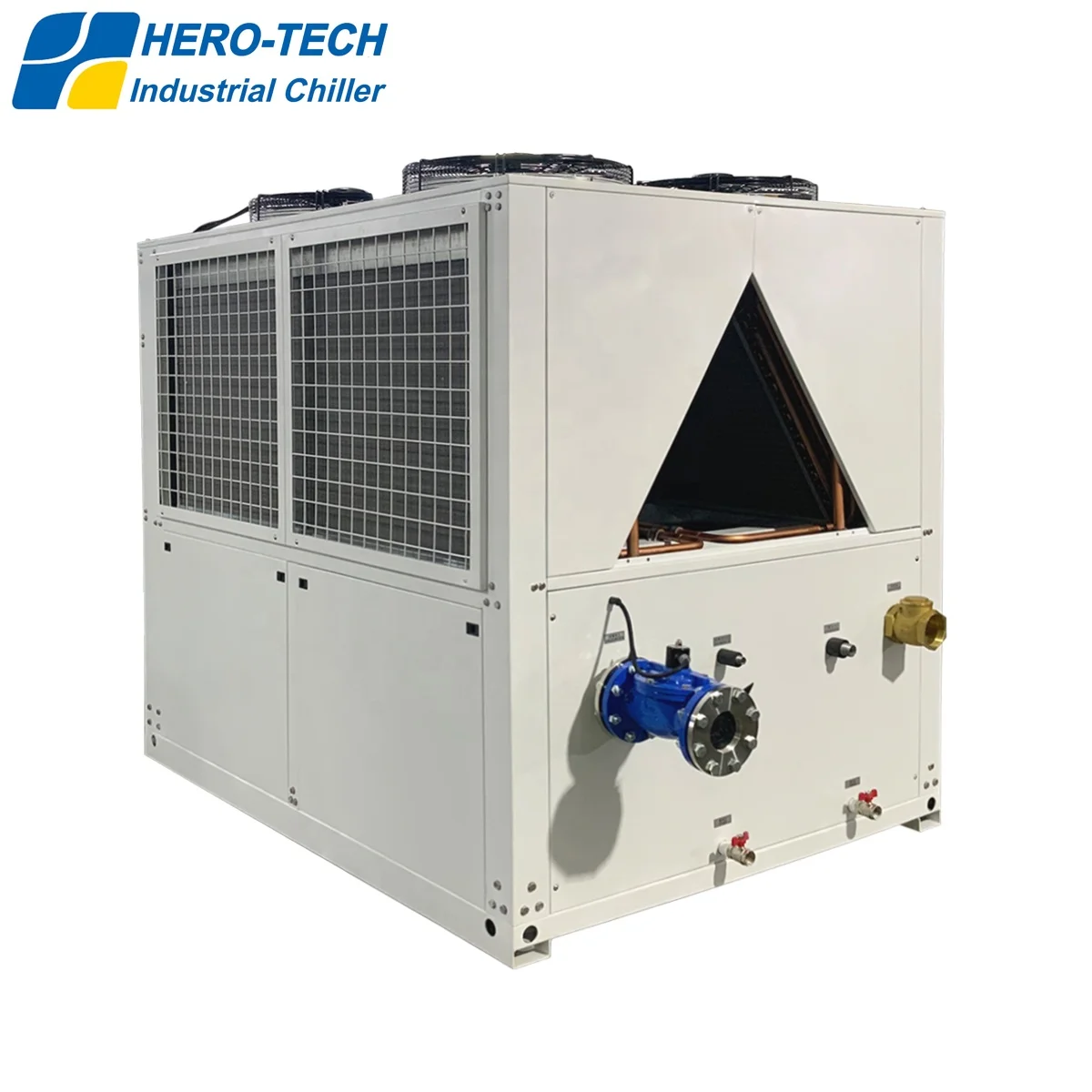

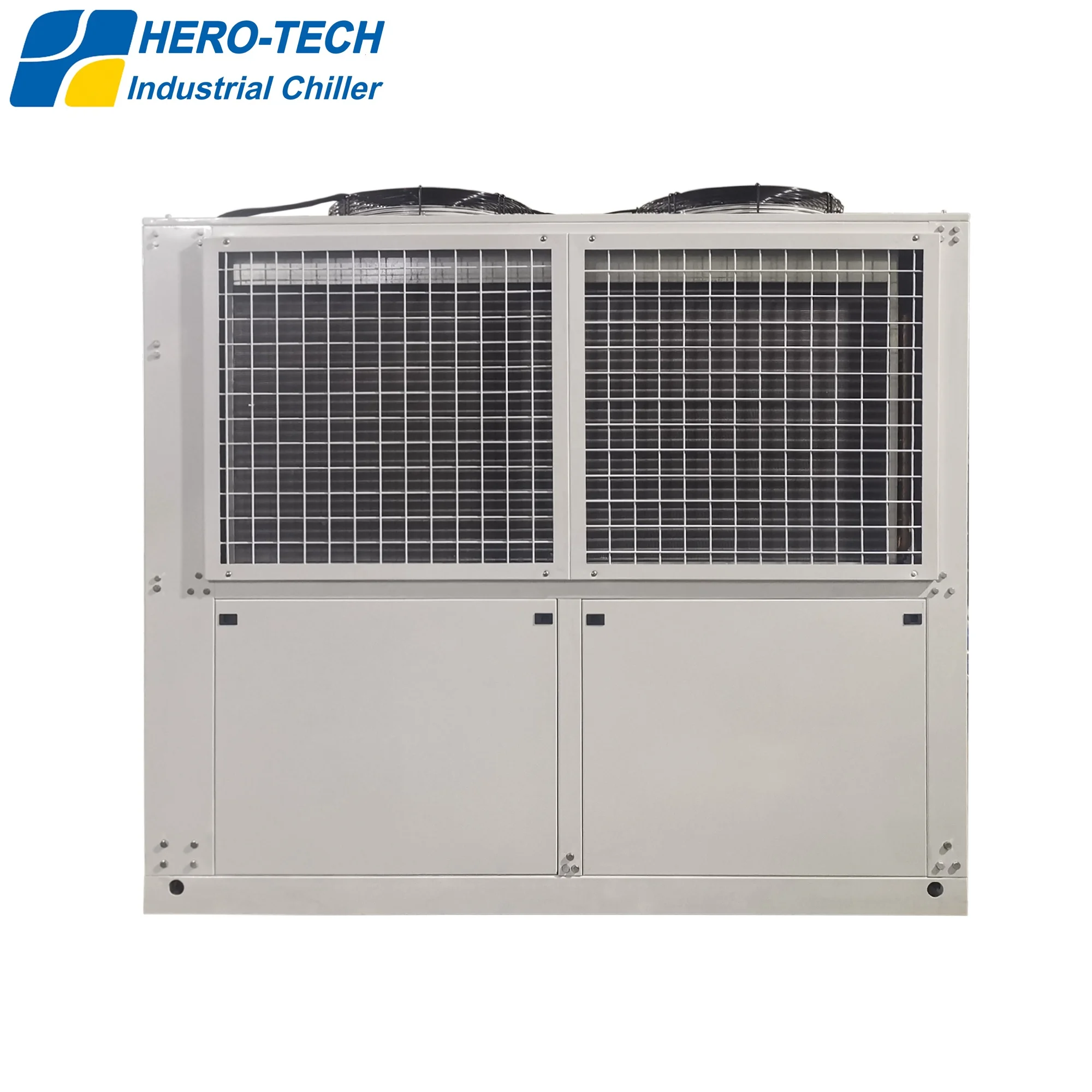

30HP air cooling Industrial low temp sub zero glycol water chiller

Share on (62044418472):


Price:$12,000.00 - $13,600.00

Quantity:


Product Overview

Description




Product Description


HTLT-A series low temperature industrial chiller is specially designed by HERO-TECH ,which is widely applied in pharmaceutical, chemical and bioengineering industry. The temperature is adjustable in the range of -35 to +5 . If you have a need for reliable low-temperature cooling for your industrial application, we have the equipment you need. Our scroll chillers are currently used around the world to guarantee a vast range of processes for many leading companies. We can create custom chilling solutions adapted to your specific cooling needs and find ways to add value to your process with our reliable and efficient low-temperature scroll chillers.




HERO-TECH products are designed to help lower environmental impact with next-generation, low Global Warming Potential (GWP) refrigerants and high-efficiency operation.





Product Parameters























































































































































Model



HTLT-30AD



Nominal cooling capacity



-10



KW






41.7



-20



26.48



-30



14.3



-35



10.1



Max power consumption



KW



29.4



Power source







3PH 380V~415V 50HZ/60HZ



Refrigerant



Type







R22/R404A



Control







Thermostatic expansion valve



Compressor



Type







hermetic scroll(semi-hermetic piston)



Motor Power



KW



12.4*2



Evaporator



Type







Shell and tube/ss plate heat exchanger



Chilled water volume



-10



m3/h



6.7



-20



4.2



-30



2.46



-35



1.74



Pipe connection



Inch



3



Pump



Power



Kw



2.2



Lift



m



20



Condenser



Type







Shell and tube



Safety devices



Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection



Dimension



Length



mm



2050



Width



mm



1500



Height



mm



2010



Net weight



KG



1080



The above specifications are according to the following design conditions:


1.    Condensing temperature 45


2.    Volume fraction of glycol water solution 47.8%


We reserve the right to modify the specifications without further notice






Application







Medical Processing


Certain medical fabrication processes and storage requires reliable cooling to guarantee safety and effectiveness. When cooling failure isn’t an option, you need a low-temperature scroll chiller you can count on for:


Transforming various medical ingredients and compounds


Manufacturing highly sensitive medicines


Storage of medicines and human tissues for surgery


Testing of new drugs and procedures in extreme cold conditions


Product and Material Testing


Many types of clothing, materials and equipment need to be tested to -35°C temperatures. Our low-temperature industrial scroll chillers can be used for a wide range of testing applications, such as:


Automotive and transport equipment verification


Fabric and cloth cold temperature resistance and protection


Plastic, rubber and metal strength at freezing temperatures


Cold temperature performance of coolants, oils and fluids





Design features

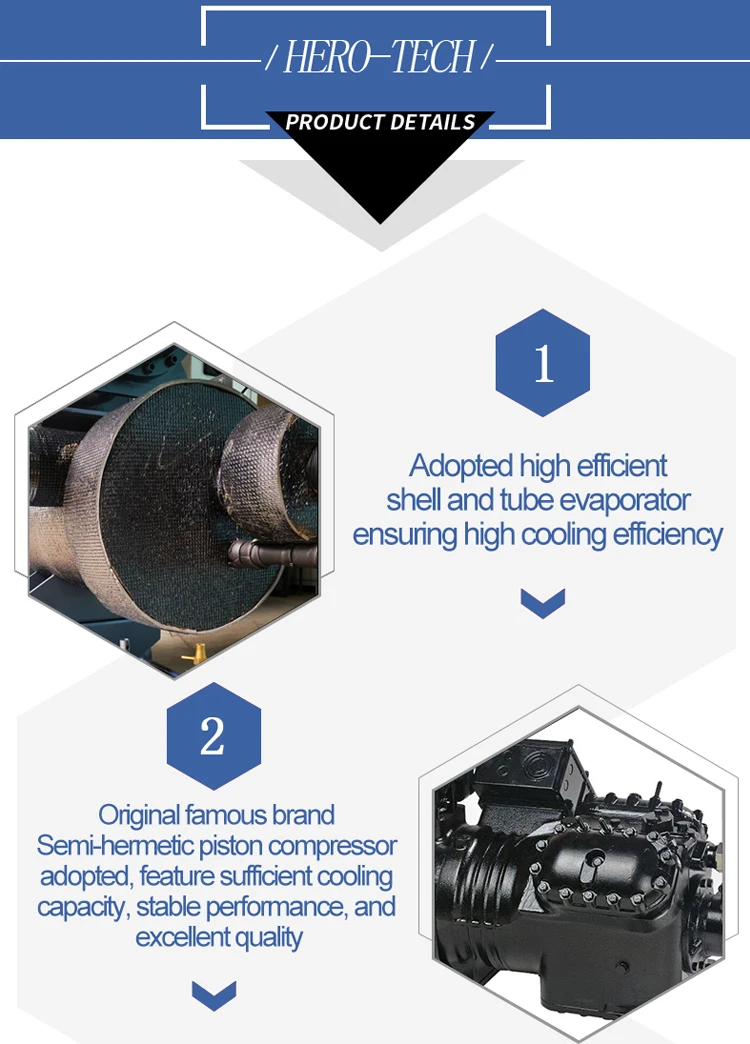

HTLT-A 1

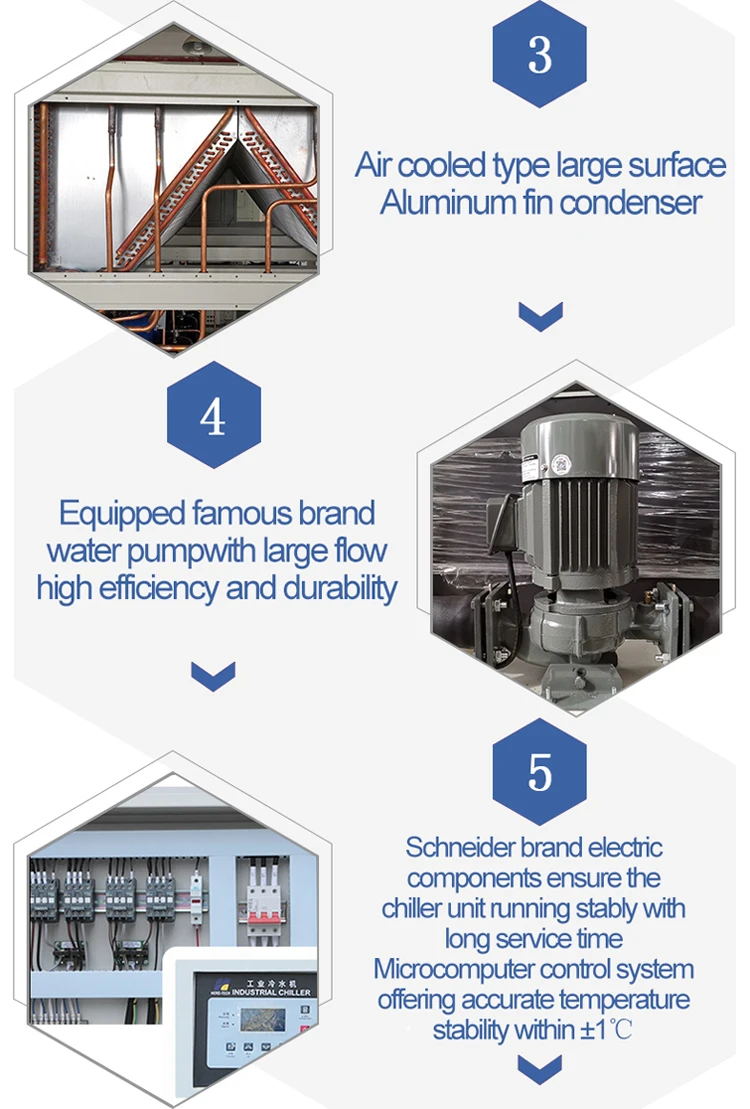

HTLT-A 2





Emerson expansion valve


Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.


Refrigerant: R22 charged, CFC free type R410A R407Cfor option.


Multi-protection devices ensure the chiller unit running safety. Control for set and actual temperatures and safety alarms.


3PH 380V-415 50HZ/60HZ for standard design. Different design available on request.


Removable side panels for ease of access.


Process circuit with thermal insulation.


Sight glass with low level switch.


Threaded couplings for prompt connection to the user’s plant.


Swivel wheels for easy positioning.


Refrigerant circuit with top brand semi-hermetic scroll compressor Control panel.


Complete with associated control equipment with digital microprocessor.


Compact design, easy to install and operate, convenient to clean and maintenance.


HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.


Dependable, versatile, high-efficiency cooling.



Why choose us ?


.jpg

Made by Tech , Made by Heart

1. Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.
2. Service call response within 1 hour, solution offered within 4hrs, and own oversea installation and maintenance team.
3. Factory has a professional R&D team.
4. Products have European CE certificate. Factory has more than 10 product patents.
5. Having our own ERP system to control our factory's procedures help us make sure our delivery times and product quality. Over 20 years of experience gives us the edge.
6. We could provide OEM/ODM services for many customers worldwide.

.jpg

.jpg




Company Information


.jpg


About us :


Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.


Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.


“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.










FAQ


Q1: Could you help us to recommend the model for our project?
A1: Yes, we have professional engineer to check the details and choose the correct model for you. Based on the following:


       Voltage;


       Cooling capacity, If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;


       Application industry;


       Environment temperature;


       Refrigerant type, R22, R407c or other, pls clarify;


       Pump flow and pressure requirements;


       Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.


The units will be fully tested before package and The packing will be carefully checked.





Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!

Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. We have patent on the chillers’ design. Our factory located in Shenzhen; Welcome to visit us at anytime.
