Регулируемый Высокоточный программируемый цифровой лабораторный источник питания постоянного тока KD3005D 30 в 5 А

Product Overview

Description

KD3005D Adjustable High Accuracy Programmable Digital Laboratory DC Power Supply 30V 5A



Programmable power

10mV/1mA high accuracy and resolution

Low noise and ripple

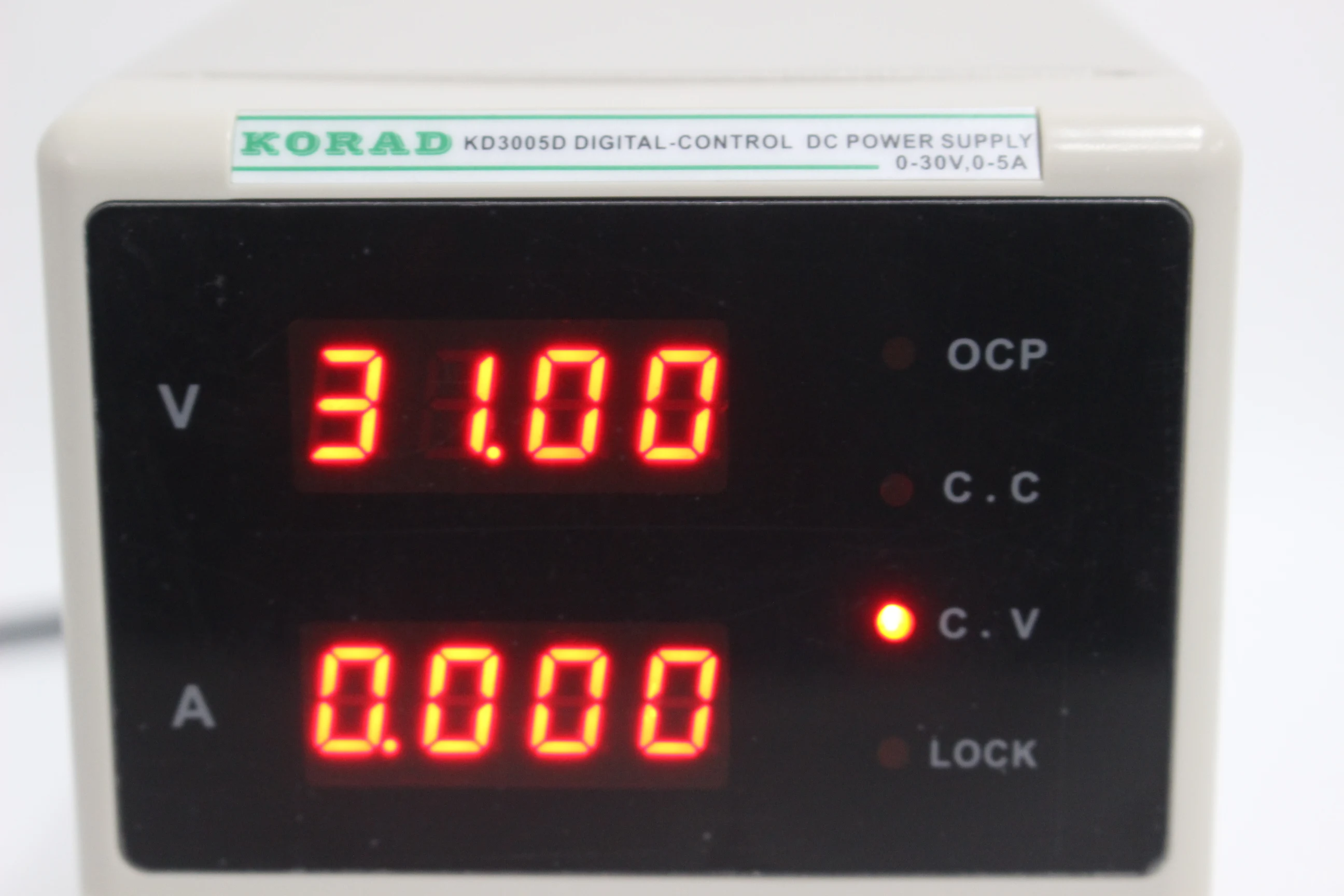

CV / CC given voltage and constant current mode

The highly reliable OCP, OVP, any set protection

Built-in set of parameters stored

Output switch control

Power and memory function

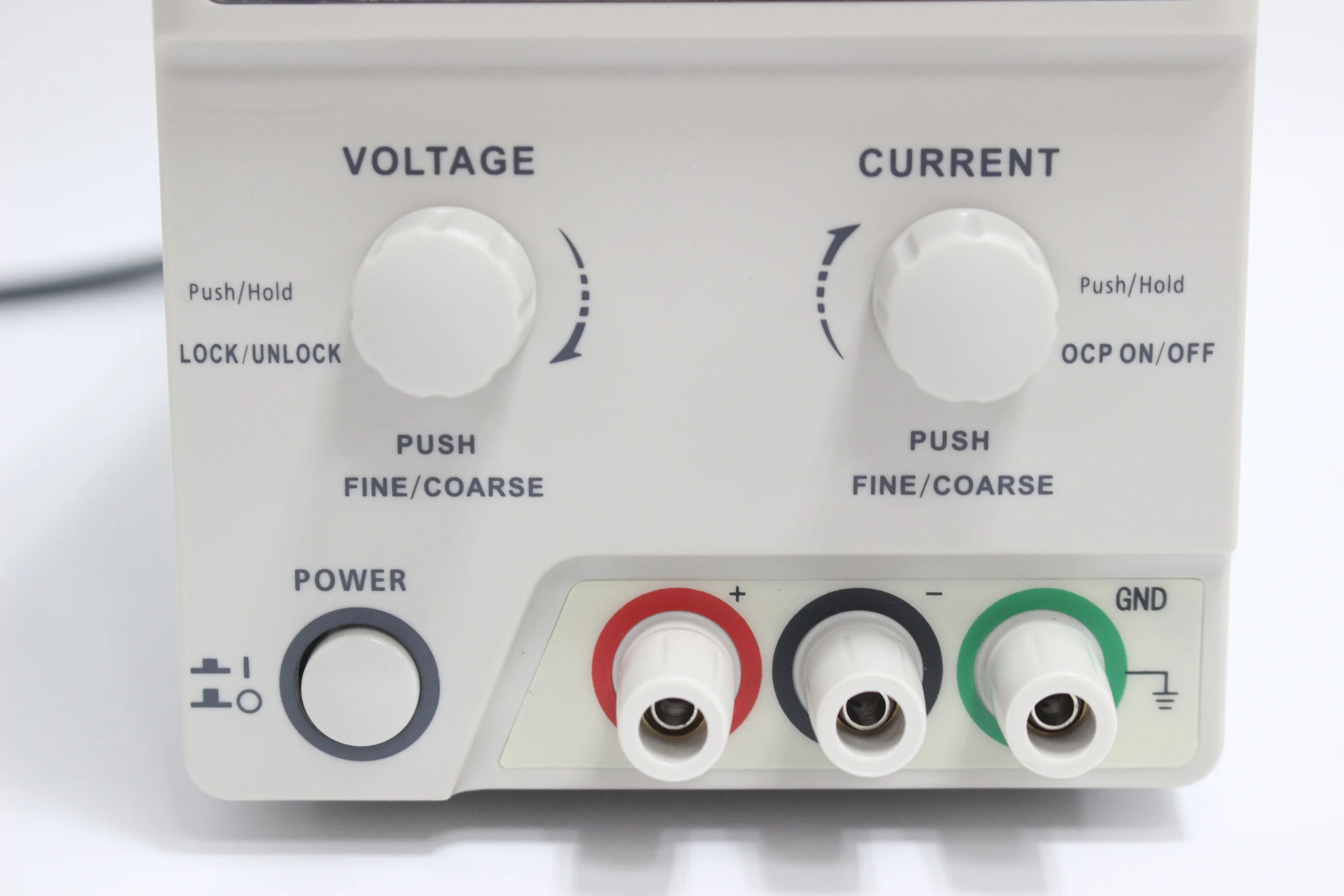

Keypad lock to prevent misuse

USB data storage, and automatic control functions

Optional quota RS232, USB interface

Easily replace traditional digital power



Precisely generate the required voltages and currents

The KA series power supply to provide a resolution from a wide range of 30V-60V output voltage 10mV and 10ma

Professional power supply design with intuitive operability

Simple and intuitive operation, fast and accurate selection of voltage and current can be realized

5 user-programmable preset settings

Just press the button to recall and save area a key to bring up the user to store the data and save user settings

To prevent damage to the load

Numerical overvoltage and overcurrent protection, and can be set to prevent the voltage regulator exceeds the threshold. Locking panel buttons, keyboard lock function to prevent undesirable results in the key test engineering.



Applications:

Research and development, quality control and testing, automated testing of the production line, school laboratories, and maintenance.



Technical parameters:

Model: KA3005P

Operating Voltage: 220V

Voltage / Current Range: 0-30V / 0-5A

Load Regulation

Voltage: ≤ 0.01% +2 mV / Current: ≤ 0.1% +5 mA

Linear Regulator

Voltage: ≤ 0.01% +3 mV / Current: ≤ 0.1% +3 mA

Set the Resolution

Voltage: 10mV / Current: 1mA

Setting accuracy (25  + - 5 )

Voltage: ≤ 0.5% +20 mV / Current: ≤ 0.5% +10 mA

Ripple (20hz-20M)

Voltage: ≤ 2mVrms / Current: ≤ 5mArms

Temperature Coefficient

Voltage: ≤ 100ppm +10 mV / Current: ≤ 100ppm +5 mA

Readback Resolution

Voltage: 10mV / Current: 1mA

Readback Temperature Coefficient

Voltage: ≤ 100ppm +10 mv / Current: ≤ 100ppm +5 mA

Reaction Time (10% of the rated load)

Voltage: ≤ 100mS / Current: ≤ 100mS



Operating Environment

Indoor use;

Altitude≤ 2000m;

0 -40 ambient temperature;

≤ 80% relative humidity.

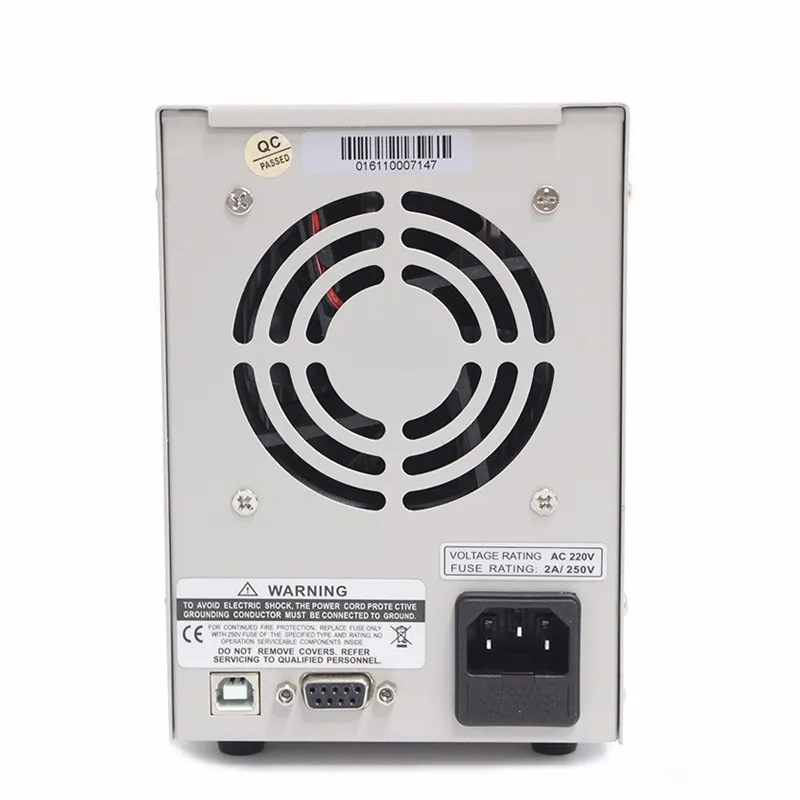

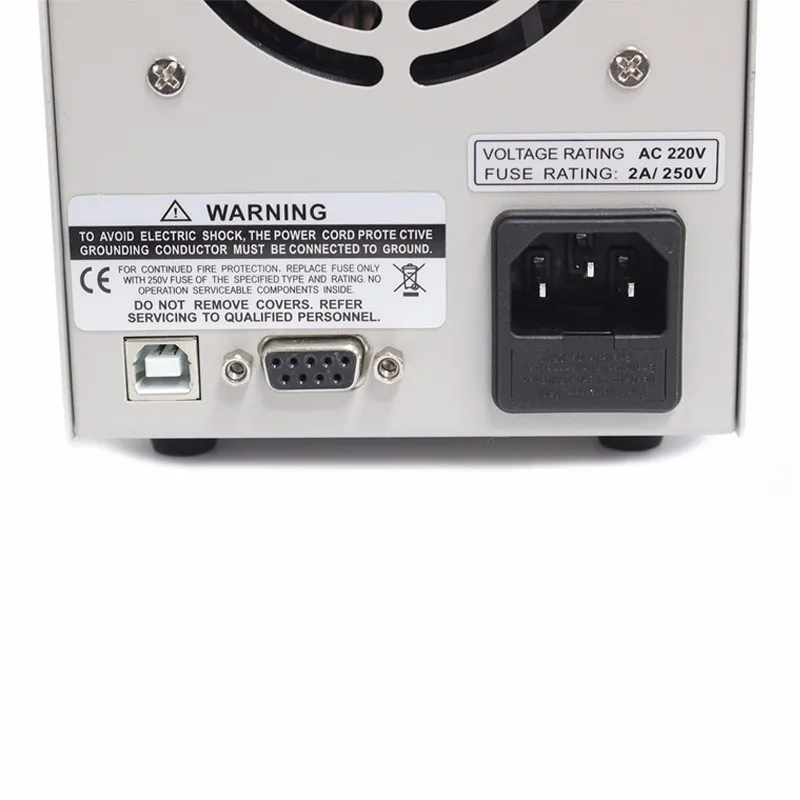

Interface

Optional interfaces: RS232, USB

Fitting

Manual, power cord (1.2M), USB Cable (1.2M)

Weight and Dimensions

4.3 kg / 110 (W) X156 (H) X 260 (D)

Storage Environment

Ambient Temperature -10  - 70

Relative Humidity ≤ 70%



Package Lists:
1 * DC Power Supply
1 * Power Cord
1 * Instruction Book

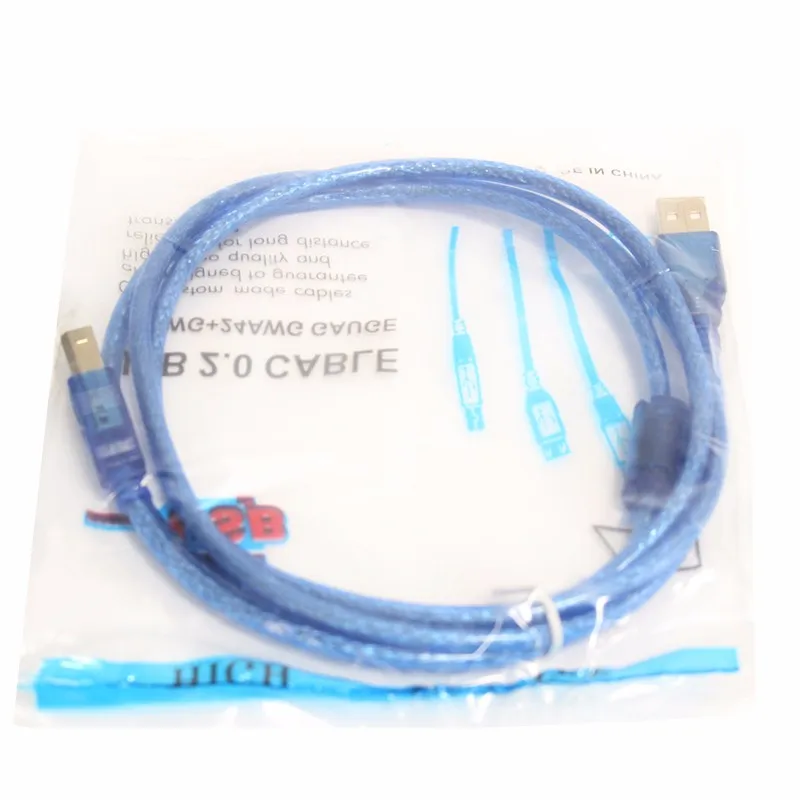

1 * USB Cable
