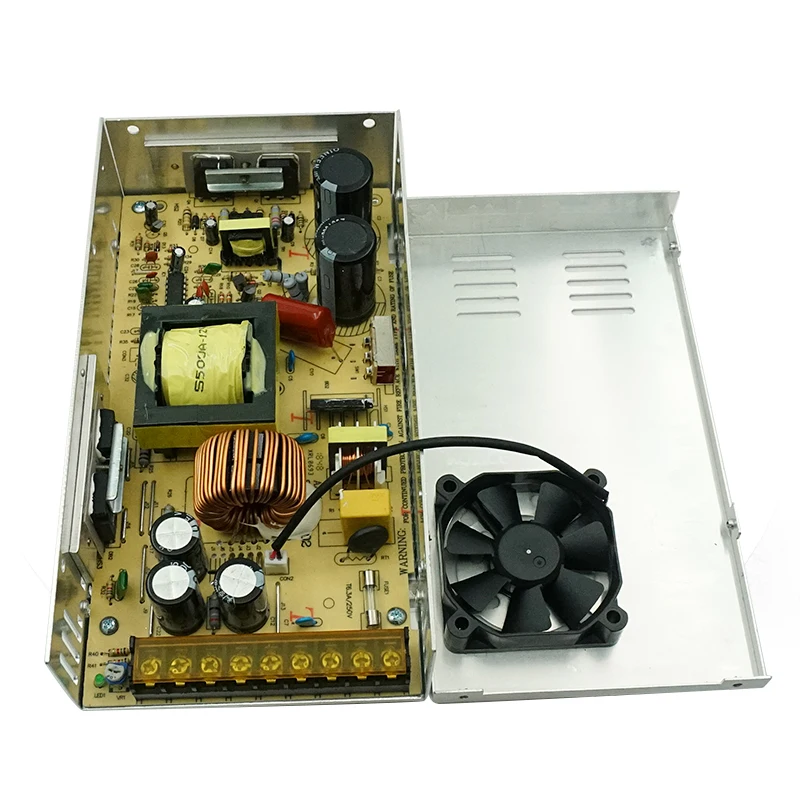

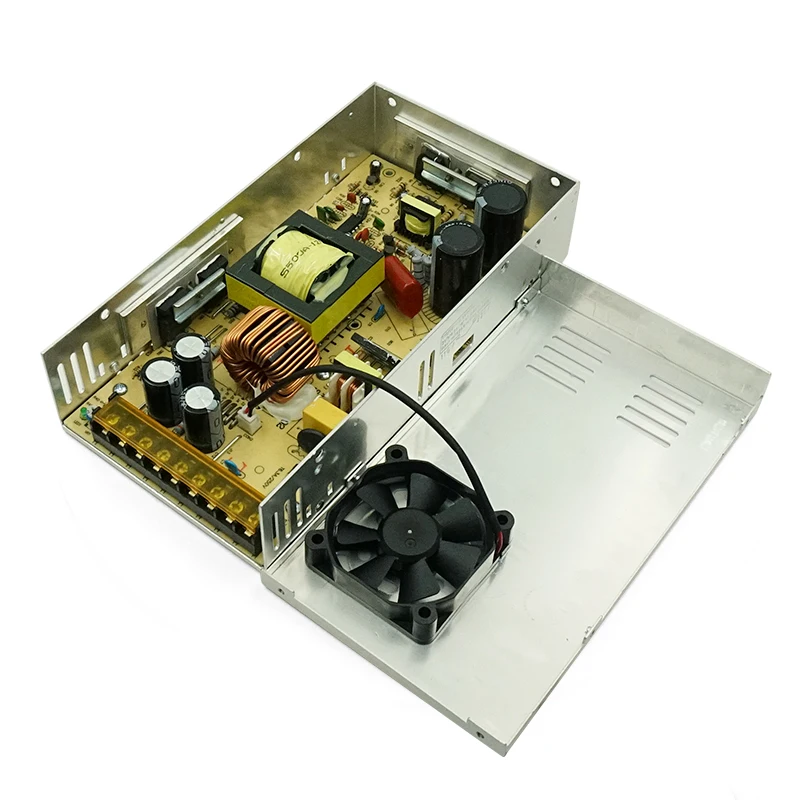

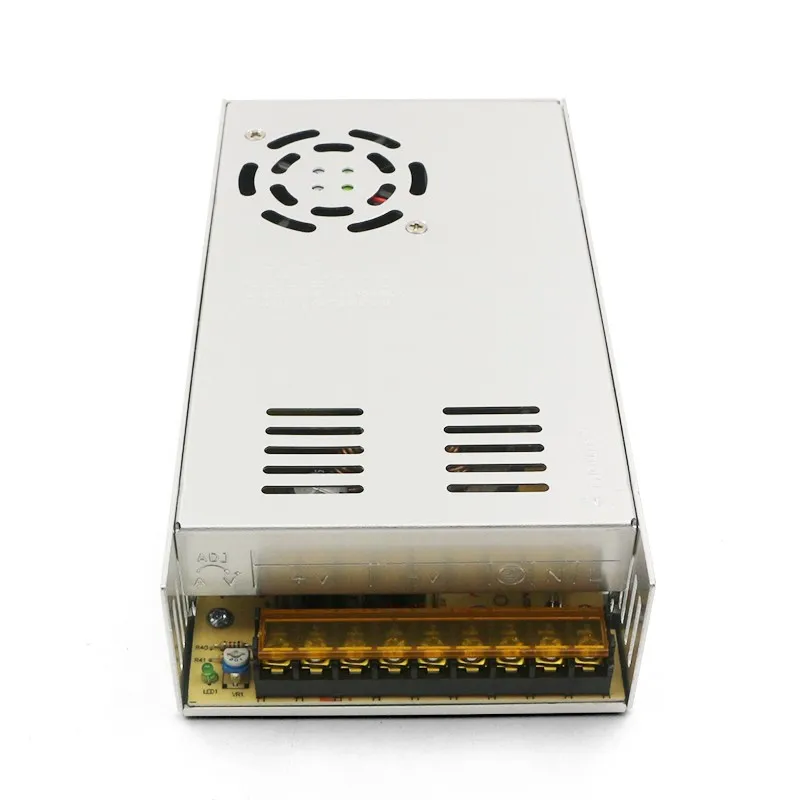

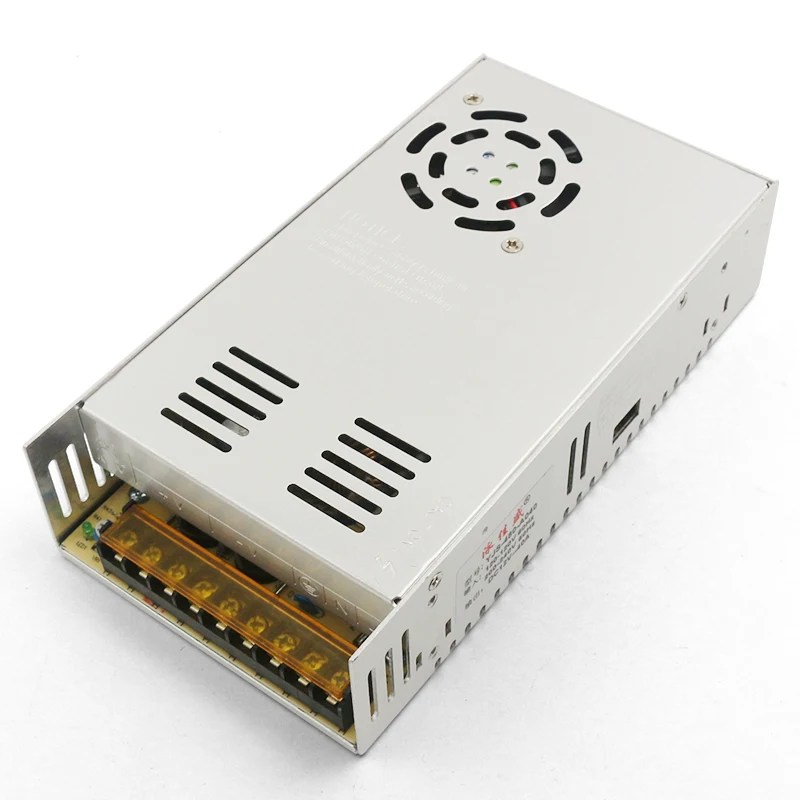

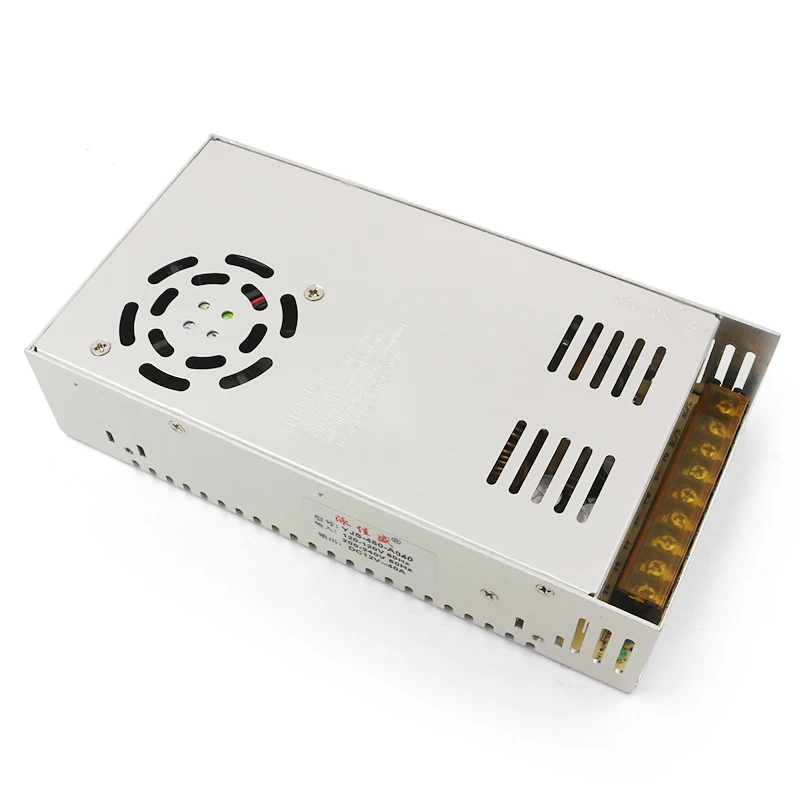

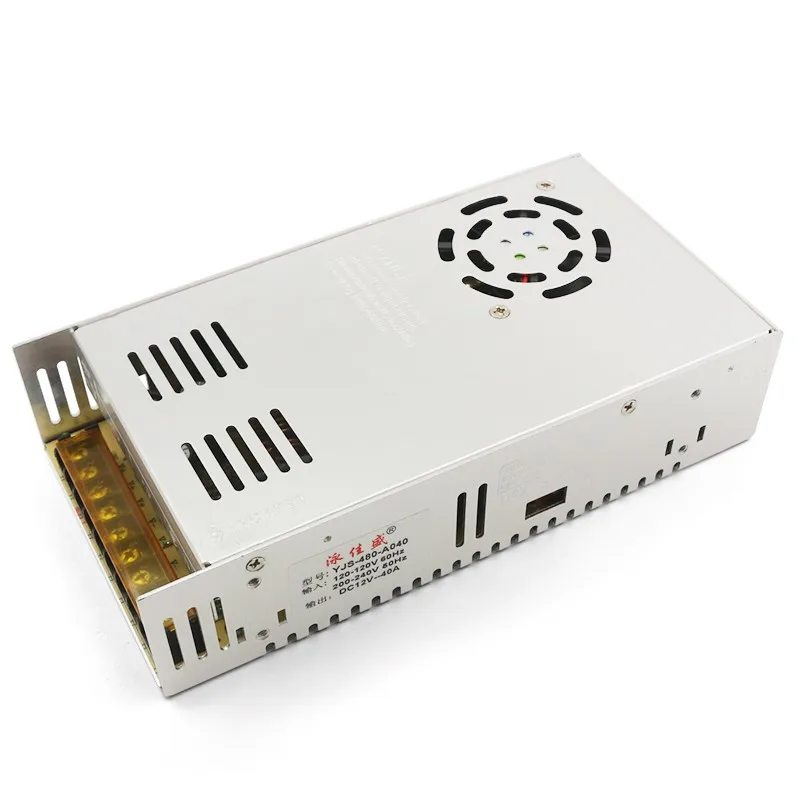

480W 12V 40A Switching power supply high quality 2 years warranty
- Category: >>>
- Supplier: Shenzhen Yongjiasheng Technologies Co. Ltd.
Share on (62044572005):
Product Overview
Description
Product Description
CCTV accessories 12V 40A switching power supply
Product Parameter | ||||||
AC input Voltage Range | 85-264VAC 47-63Hz | |||||
Input current | 4A/115V 2A/230V | |||||
AC inrush current | Cold-start currebt 20A/115A 40A/230V | |||||
Leakage current | <1mA/240VAC | |||||
DC adjustable range | ±10% rated output voltage | |||||
Ovwe load protection | 105%-150% hiccup mode,auto-recovery | |||||
Over load protection | 115%-135% cut off the output,auto-recovery | |||||
Setup rise hold up time | 200ms,50ms,20ms | |||||
Withstand voltage | I/P-O/P:1.5KvAc 1 mintute I/P-FG:1.5KvAc 1 mintute I/P-O/P:0.5KvAC 1 mintute | |||||
Working temperature | -10℃~+60℃,20%~90RH | |||||
Weight/Packing/size | 820g 22.5*12.5*6cm | |||||
Load stability | ±1% | |||||
Ripple And Noise | 50mV | |||||
Efficiency | 83% | |||||
