Product Overview
Description
Brazil Anatel FTTH Drop Cable Singldemode FRP/Steel Strength Member Fiber Optic Cable
Product Description

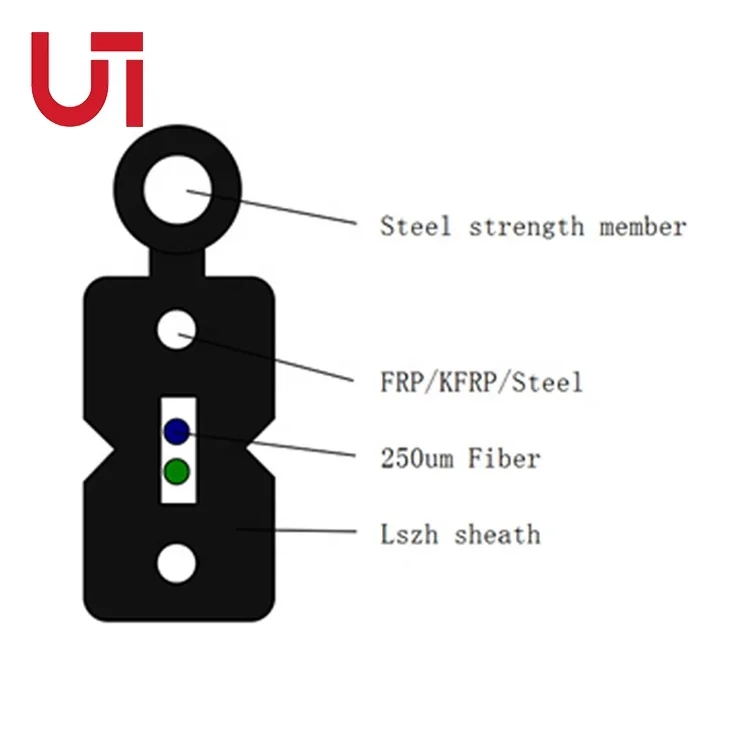

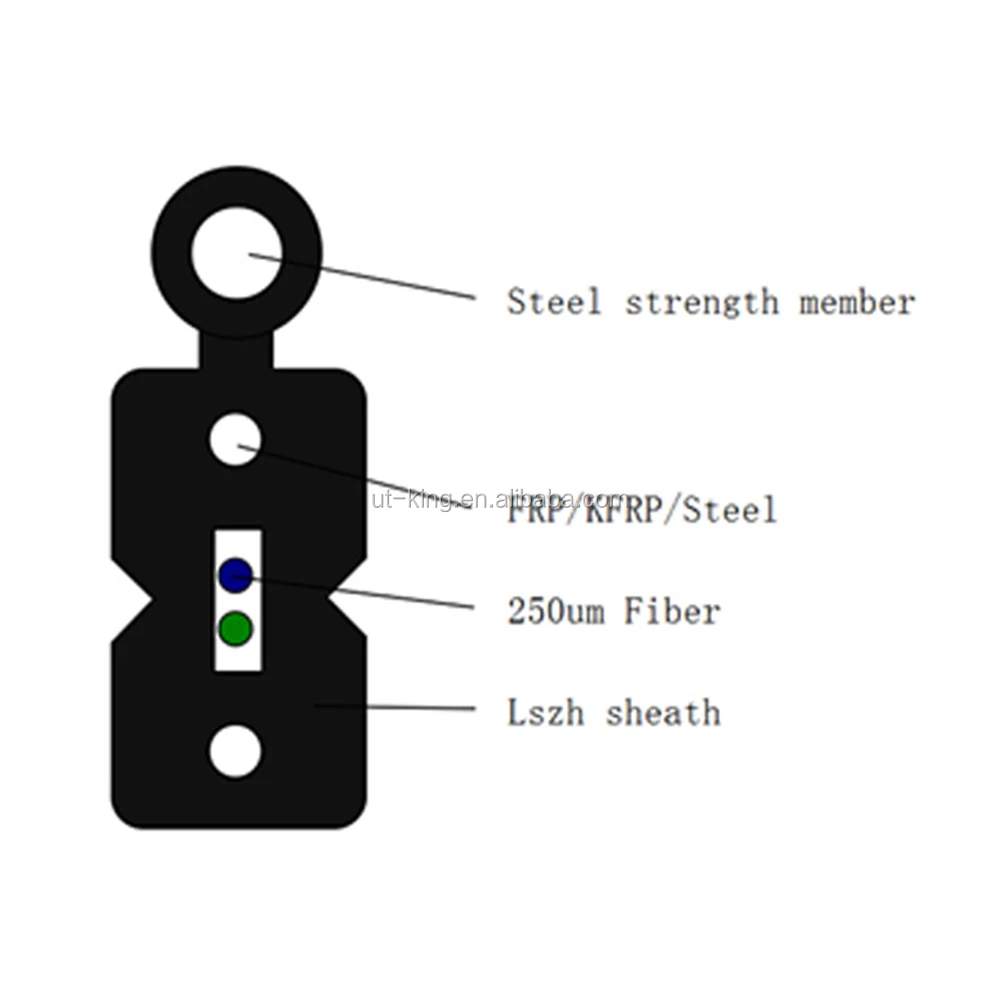

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black HDPE sheath.
Characteristics
· Good mechanical and enviromental characteristic
· Anti-UV charateristics meet the requirements of relevant standards
· The mechanical charateristics meet the requirements of relevant standards
· Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
· Meet various requirements of market and clients
Specifications
Cable construction details :
| Numberof fiber | 1~24core | |||||||
| strength member | Material | Galvanized steel wire/FRP/KFRP | ||||||
| diameter | 2*(0.5~0.8)mm | |||||||
| Self support Messenger wire | Material | Galvanized steel wire | ||||||
| diameter | 1.0mm | |||||||
| Outer sheath | material | LSZH | ||||||
| diameter | 1.8±0.2mm | |||||||
| Cable size (Height * width) | 2.0(±0.1) mm × 5.2(±0.2)mm | |||||||
| Cable sheath thickness | Max. 0.8mm/Min. 0.4mm | |||||||
| Messenger sheath thickness | 0.5~0.7mm | |||||||
| Cable weight | 1~2core | 18.2KG | ||||||
| 4~6core | 18.5KG | |||||||
| 8~24core | 54.0KG | |||||||
Cable Mechanical characteristic
| Items | Description | ||||||
| Installation Temperature range(℃) | -20+60 | ||||||
| Operation and transport temperature(℃) | -40+70 | ||||||
| Min Bending Radius(mm) | Long term | 15D | |||||
| Min Bending Radius(mm) | Short term | 30D | |||||
| Min allowable Tensile Strength(N) | Long term | 300 | |||||
| Min allowable Tensile Strength(N) | Short term | 600 | |||||
| Crush Load (N/100mm) | Long term | 1000 | |||||
| Crush Load (N/100mm) | short term | 2200 | |||||

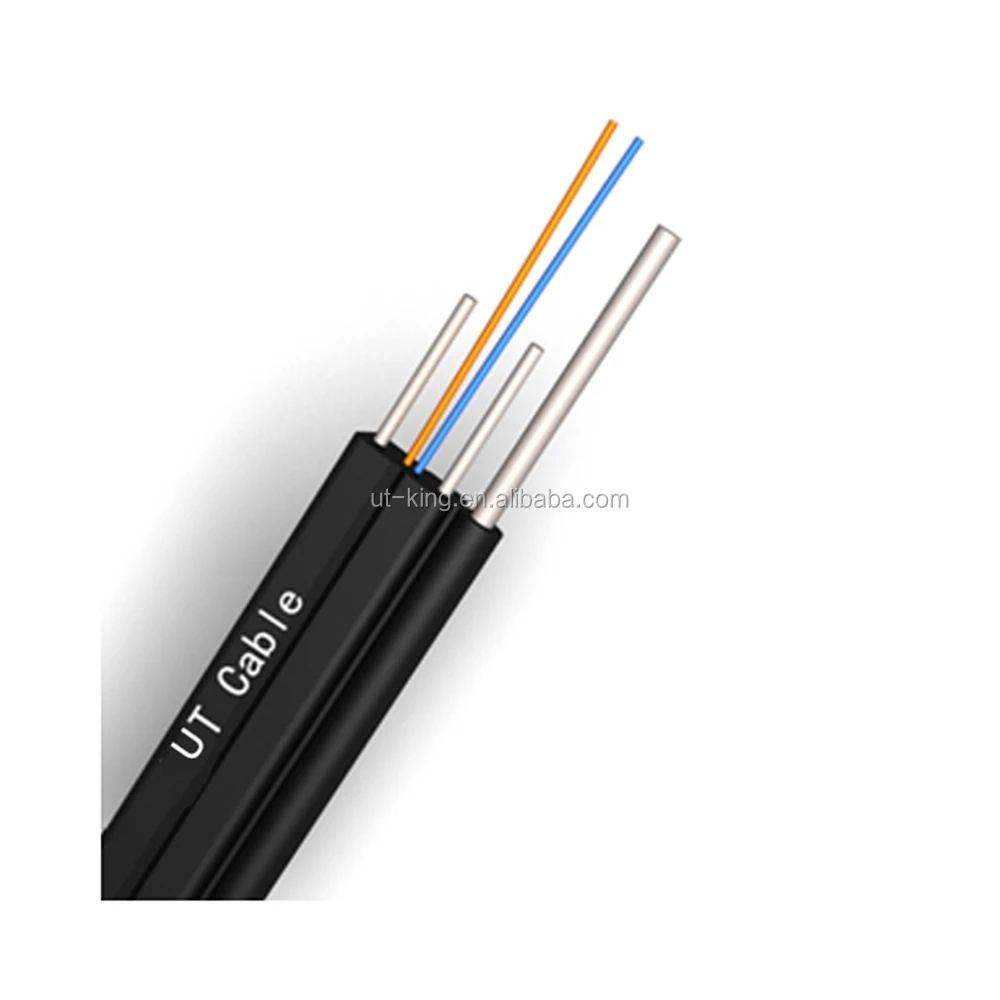

Detailed Images
Related Products
Our Services
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
