Automatic Corrugated Board Cardboard Die Cutter Die Cutting Machine for Cardboard and Papers
- Category: >>>
- Supplier: Shanghai Asianray Industry Development Co. Ltd.
Share on (62044716008):
Product Overview
Description
Product Description
Features of CHC-1060 series include:
1. CE approved
2. Center line system
3. Non-stop feeding device and not-stop collecting device
4. Human machine interface
5. Micro-adjustment of the feeding platform
6. Wide stock range for corrugated board and card paper
7. Photoelectrical device for safe operation
8. High speed and precision feeder equipped
9. ISO9001 and CE approved manufacturing process.
10. European, Taiwan and Japanese standard spare parts
Specification
Max. sheet size | 1060×760mm |
Min. sheet size | 400×350mm |
Max. die cutting size | 1050×750mm |
Min.gripper margin | 9-17mm |
Inner chase size | 1120mm×786mm |
Stock range | 90~2000g/m(card paper) 0.1~2mm(paper) lower than 4mm(corrugated paper) |
Die cutting accuracy | lower than±0.1mm |
Max. working pressure | 300T |
Max. working speed | 7500s/h |
Max. paper feeding stacking height | 1600mm(including wooden pallet) |
Max. paper collecting stacking height | 1400mm(including wooden pallet) |
Main motor power | 11kw |
Overal dimension(length: including pre-feeding track)(width: including the pedal) | 6800mm×4300mm×2310mm |
Total weight of machine | 17ton |
Full-load wattage | 16.9kw |
Air pump displacement | 0.6~0.7Mpa,≥0.37m3/min |
Packaging & Shipping
Our Services

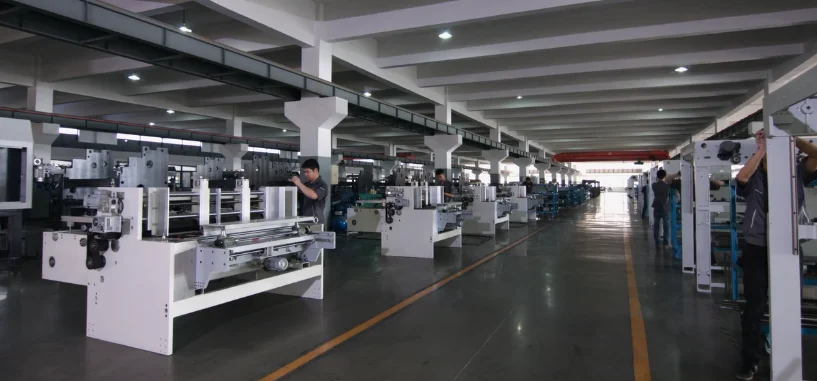

Company Information
