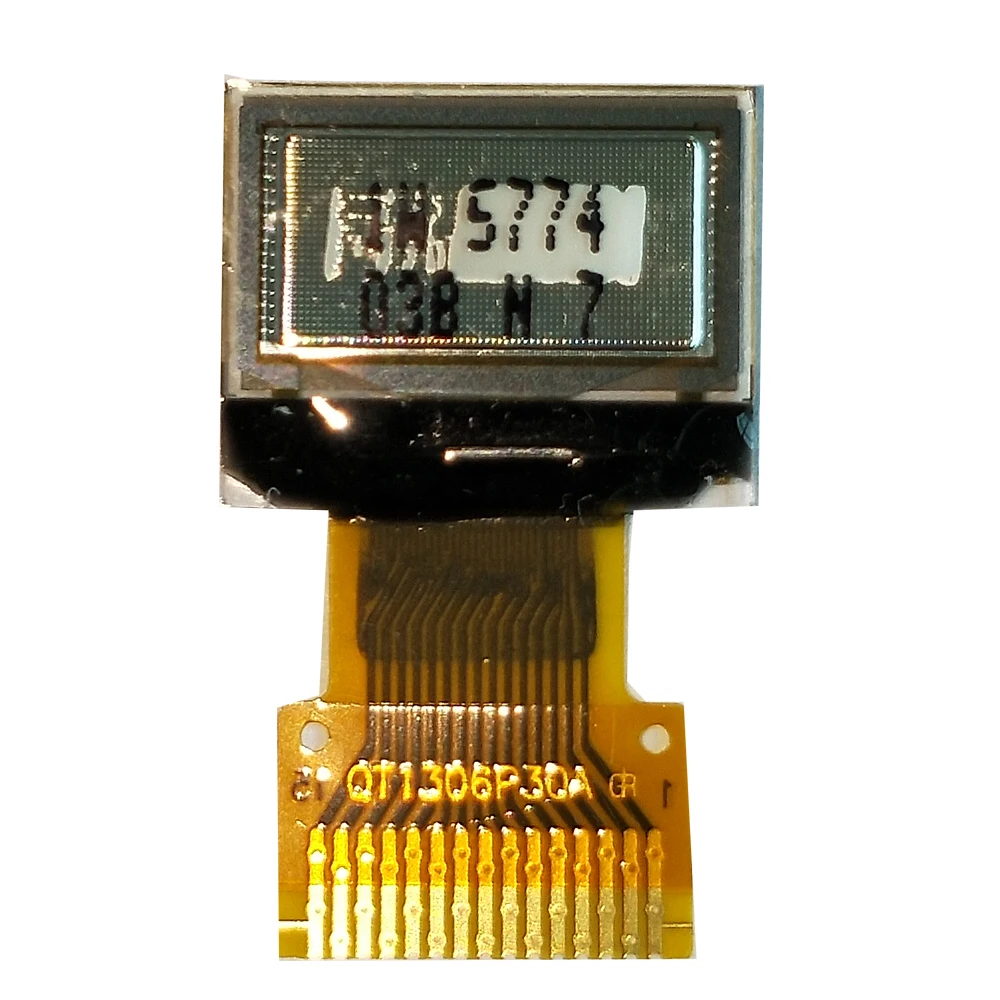

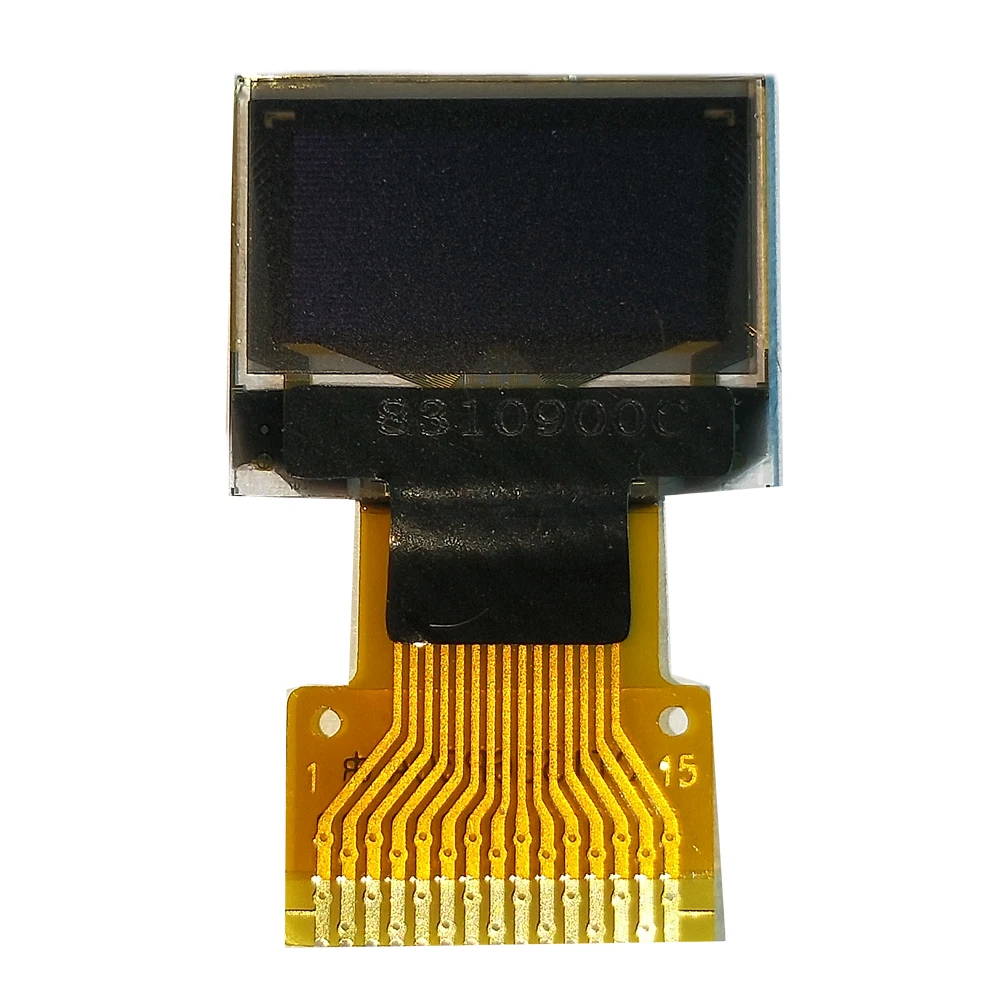

0.49 Inch small size OLED Thin LCD OLED Screen Display

0.49 Inch small size OLED Thin LCD OLED Screen Display

Category: Display Modules >>>
Supplier: Dongguan Shineworld Innovations Co. Limited

Price:$0.83 - $1.32

Quantity:

Product Overview

Description

Product Description

0.49 Inch OLED Paper Thin LCD OLED Touch Screen Display
Diagonal Screen Size	0.49 Inch
Color	Monochrome (white)
Number of Pixels	64X32
Module Construction	COG

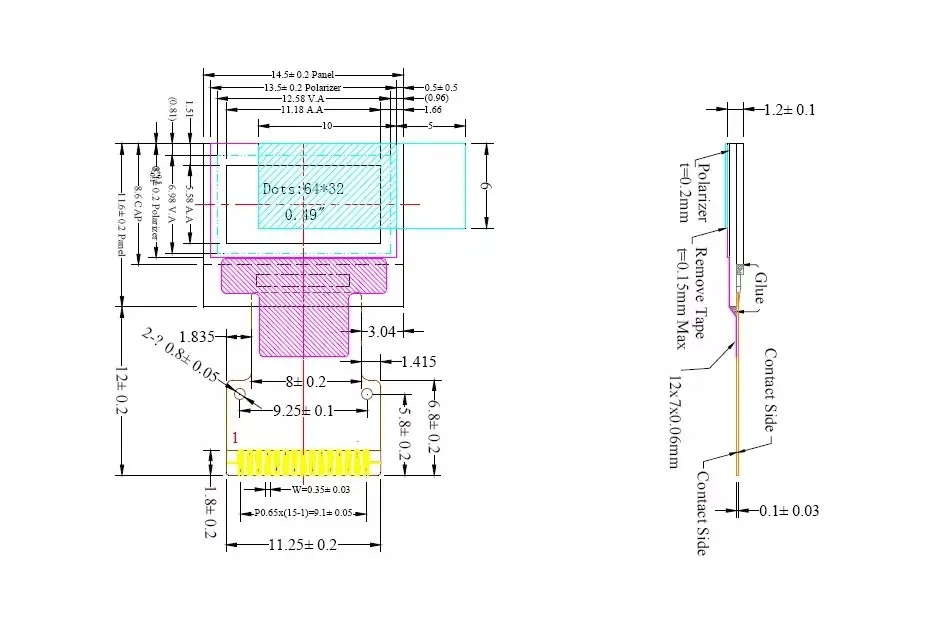

Panel Size	14.511.61.2mm
Active Area	11.18x5.58mm
Pins	15
Drive IC	SSD1306
Interface	4- wire SPI
Pixel pitch	0.175 x 0.175mm
Assembly	Soldering
FPC Length	12 mm

Temperature Range
Item	Min.	Max.
Operating Temperature (°C)	-30	70
Storage Temperature (°C)	-40	80

\t\t\t\t\t\t\t\t\tMore Products \t\t\t\t\t\t\t

Screen Size	Item No.	Number of Pixels	Pins	Interface	Drive IC
0.42" OLED Display	GLO042-D-M2001	72x40	16-pin	SPI/I2C	SSD1306
0.48" OLED Display	GLO048-D-M2001	72x32	11-pin	4 wire SPI	SPD0301
0.49" OLED Display	JHO049-D20065	64x32	14-pin	4 wire SPI	CH1116
0.5" OLED Display	GLO050-D-M2001	48x88	14-pin	I2C	CH1115
0.66" OLED Display	GLO066-D-M2005	64X48	28-pin	Parallel/I2C/SPI	SSD1306
0.69" OLED Display	JHO069-D20088	96X16	14-pin	I2C	SSD1306
0.73" OLED Display	GLO073-D-M2002	128 x 88	10-pin	4 wire SPI	SH1107
0.75" OLED Display	GLO075-D-M2001	128x128	15-pin	I2C/4 wire SPI	SSD1327
0.96" OLED Display	GLO096-D-M2011	128X64	30-pin	I2C/4 wire SPI	SSD1315
0.91" OLED Display	GLO091-D-M2019	128x32	14-pin	I2C	SSD1306
1.3” OLED Display	GLO13-D-M2001	128X64	30-pin	Parallel/I2C/SPI	SH1106
1.54" OLED Display	GLO154-D-M2003	128X64	24-pin	Parallel/I2C/SPI	SPD0301
