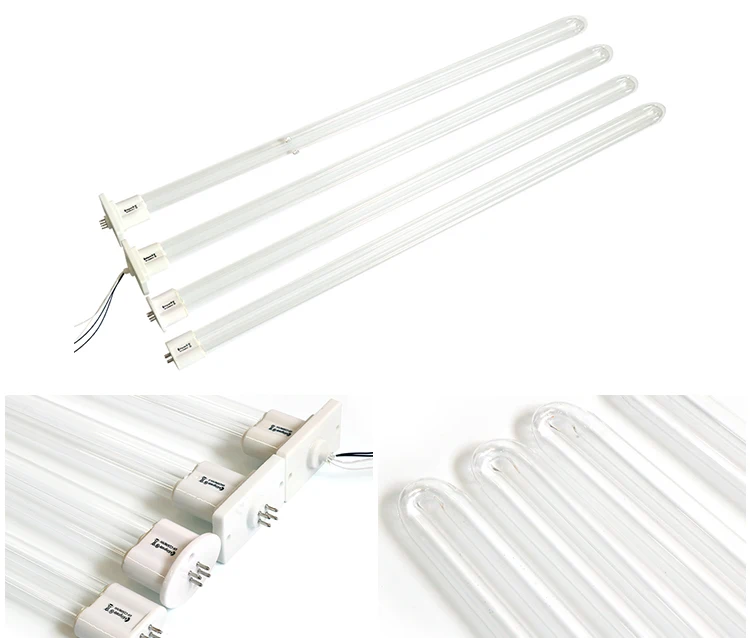

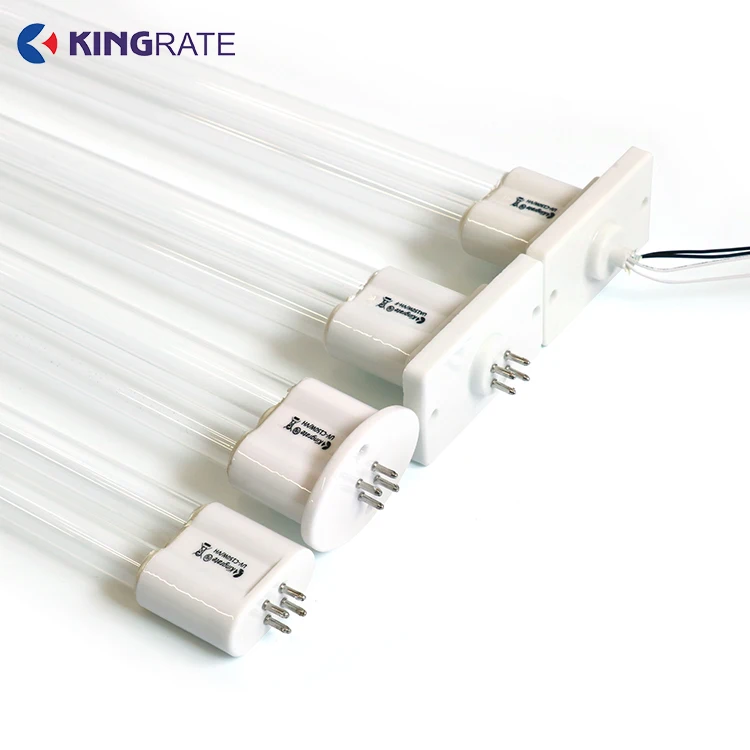

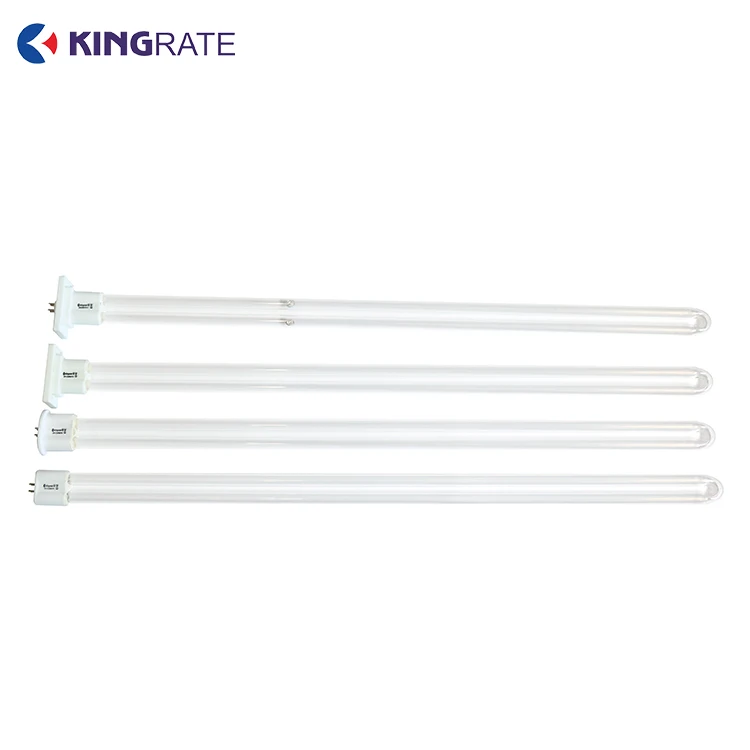

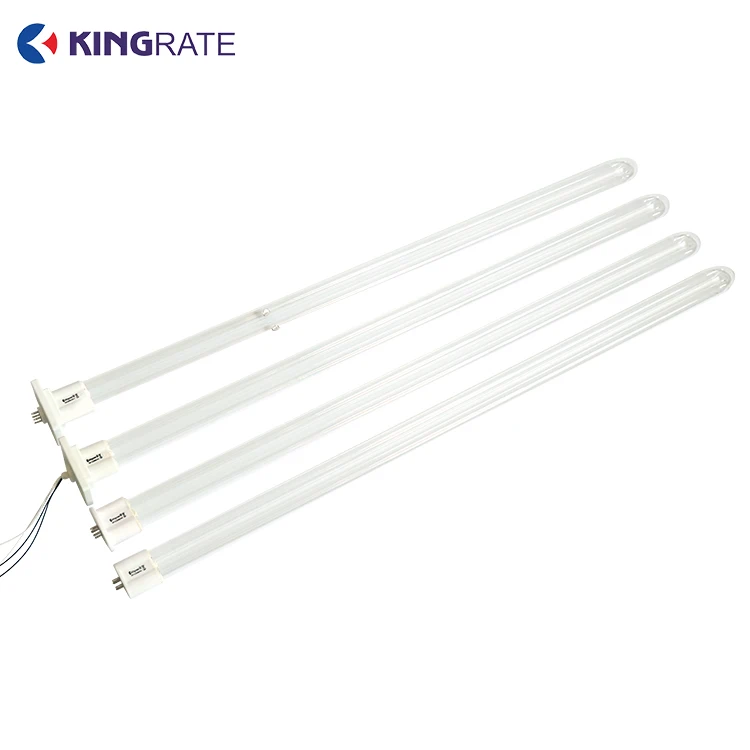

U Shape 75W/150W Photolysis 185NM 254NM UV Germicidal Lamp For Waste Air Treatment

Product Overview

Description

Speciality

   1, The high purity quartz glass tube is adopted and treated with special technology,

       which further reduces the impurity content and makes the efficiency of lamp tube

       more stable.

   2, Advance technology enables our lamp with high initial uv radiation and low uv light

      decay.

   3, Ozone type and non-ozone type are available.

   4, High output UV lamp is a better choice for reducing system size and maintaining

       uv output.

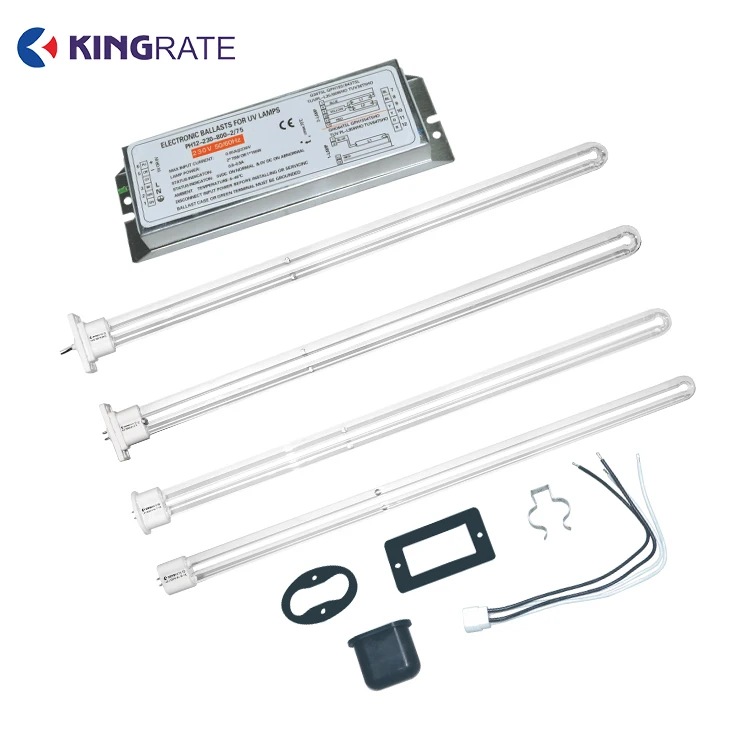

   5, Corresponding quartz sleeve and ballast are available.

Main Application

• Aquarium disinfection


• Water treatment


• Air cleaning and disinfection


• Air conditioning pipe disinfection


• Purifier

Type	Tube Diameter	Length	Power	Current	Voltage at High Freq	UV Output at 254NM		Standard Life	Long Life
	MM	MM	W	MA	V	uw/cm²	W	H	H
G39 T5/VN	15	865	39	425	98	130	15	10000	13000
G79 75/VN	15	1630	79	425	189	225	32	10000	13000
G150 T5/VN	15	1630	450	800	195	400	45	10000	13000
UA75W/VH-B*	15	140	75	800	98	200	28	10000	13000
UA150W/VH-B*	15	810	150	800	195	400	56	10000	13000
UA150W/VH-T*	15	810	150	800	195	400	56	10000	13000
UA150W/VH-F*	15	810	150	800	195	400	56	10000	13000
Remark:The product parameters and data are provided by Kingrate and for reference only.

For more product information, please click. Contact us

For more product, please click. Contact us



Q1:Can I have a sample first for the UV lamps?

A:Yes, we welcome sample order to test and check quality.

Q2:What's your lead time?

A:Samples would be need 5-7 days; mass production would be need 1-4 weeks according to the order quantities.

Q3: What is your shipping method and how long does it take to arrive?

A:We usually ship via DHL, UPS, FedEx or TNT and it usually takes 3-5 days to arrive. Both Air shipment and sea shipment are also optional.

Q4:Do you offer guarantee for the products?

A:Yes, we offer 1 years warranty to our most of our UV lamp, and half of one year warranty to the submersible UV lamp.

Q5:Can I use my own design package and logo on the products ?

A:Yes, We can accept OEM as per customers’requirements.
