2019 New products portable cnc plasma cutting machine

2019 New products portable cnc plasma cutting machine

Category: >>>
Supplier: Shanghai Zhaozhan Automation Equipment Co. Ltd.

Price:

Quantity:

Product Overview

Description

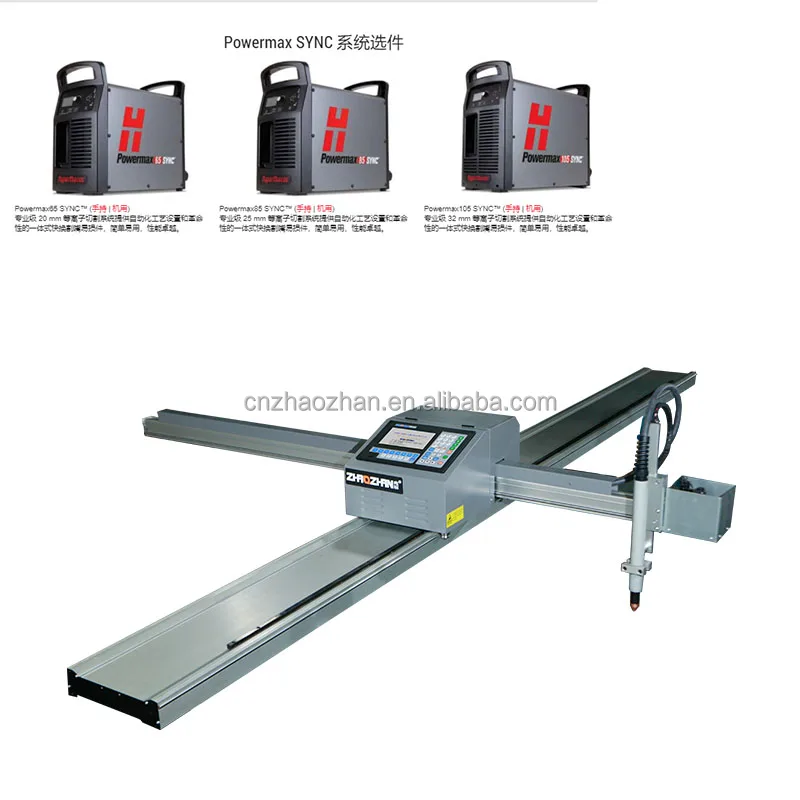

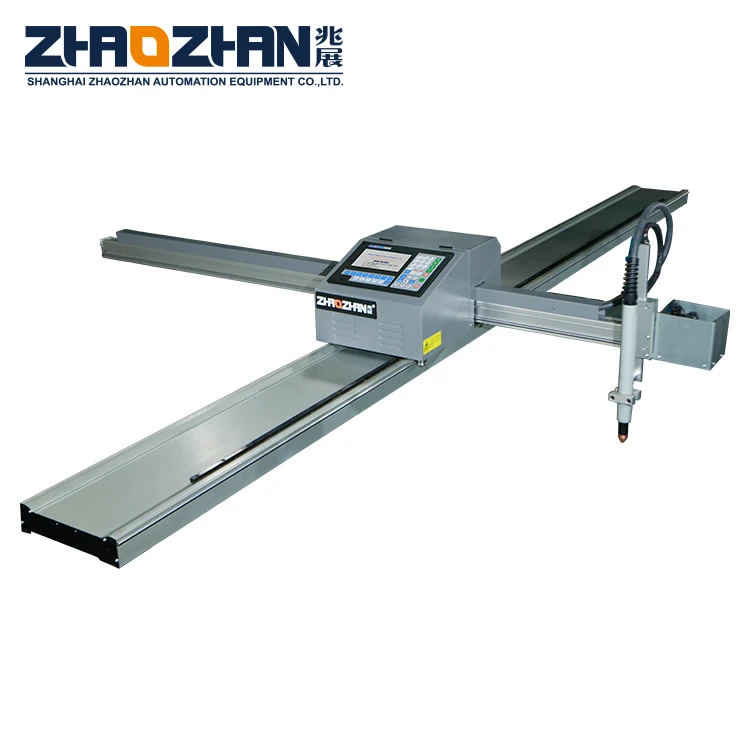

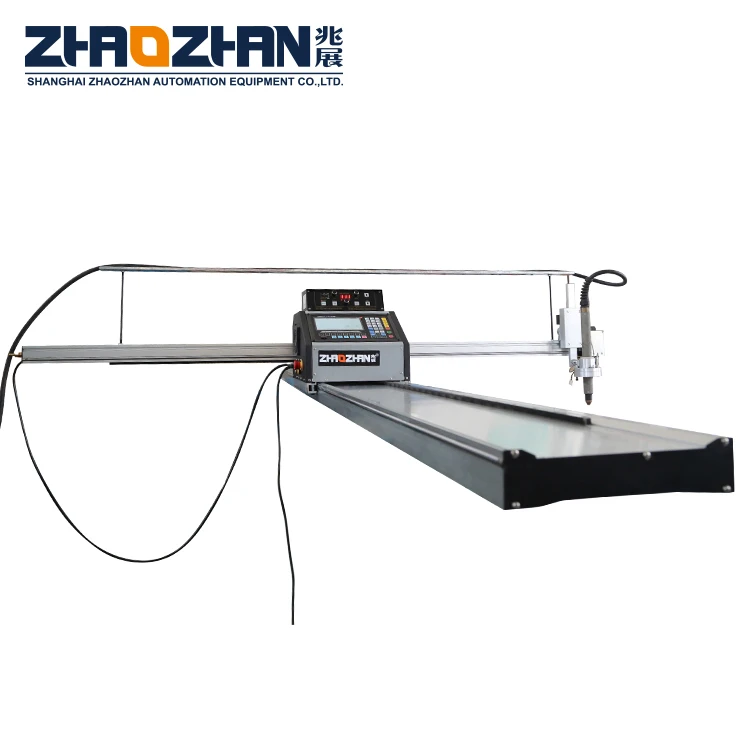

Light weight portable cnc plasma cutting machine with low cost

Product Description

1.It is cantilever style, with simplification designed. It is easy to move and easy to install and easy to use. Machine need not big space for working, and fit for moving to cut.

2.It can work with regular plasma or flame, do CNC cutting any shapes.

3.It is in low price and with almost full functions.

Name	PORTABLE CNC FLAME PLASMA CUTTING MACHINE
Model No.	ZZ-1530XF	ZZ-1530XH
Effective Cutting Rangge X*Y	1500*3000mm
Customized Information	Length of Y axis rails can be customized extending
Driving Configuration	Single drive 57 series step motors
Tool And Torch Quantity	Single tool with flame torch	Single tool, and with both plasma and flame torch

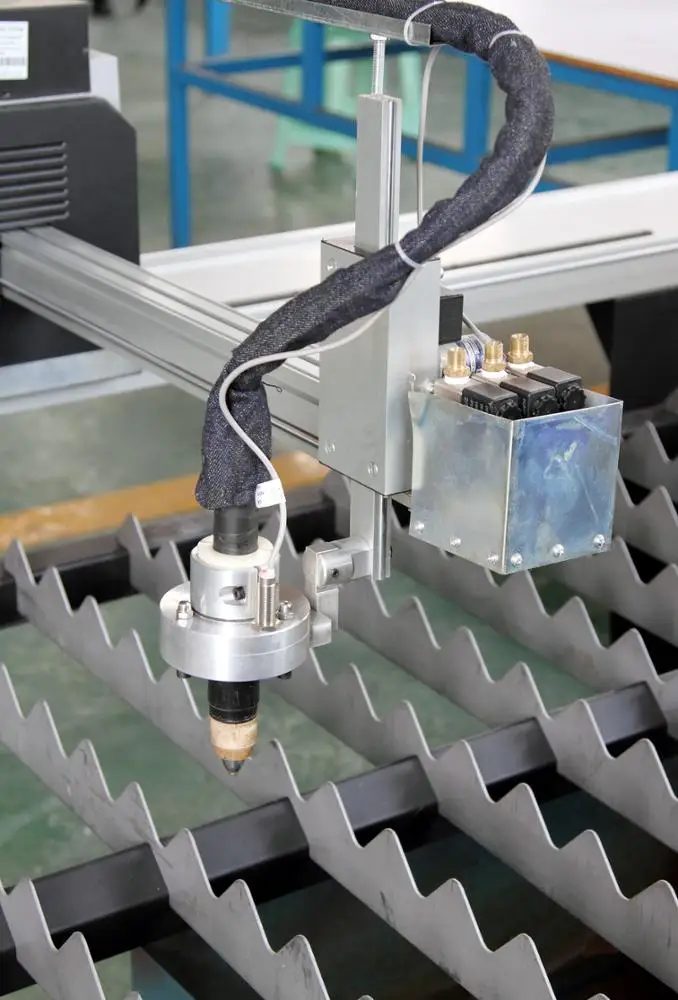

Torch Height Control	Manual control motor up and down	Plasma arc voltage auto torch height control
Max. Working Speed	3000mm/min
Input Power	Single phase AC 220V 220W
Torch Lifting Distance(Z)	≤100mm
Working precision	± 0.2 mm / m

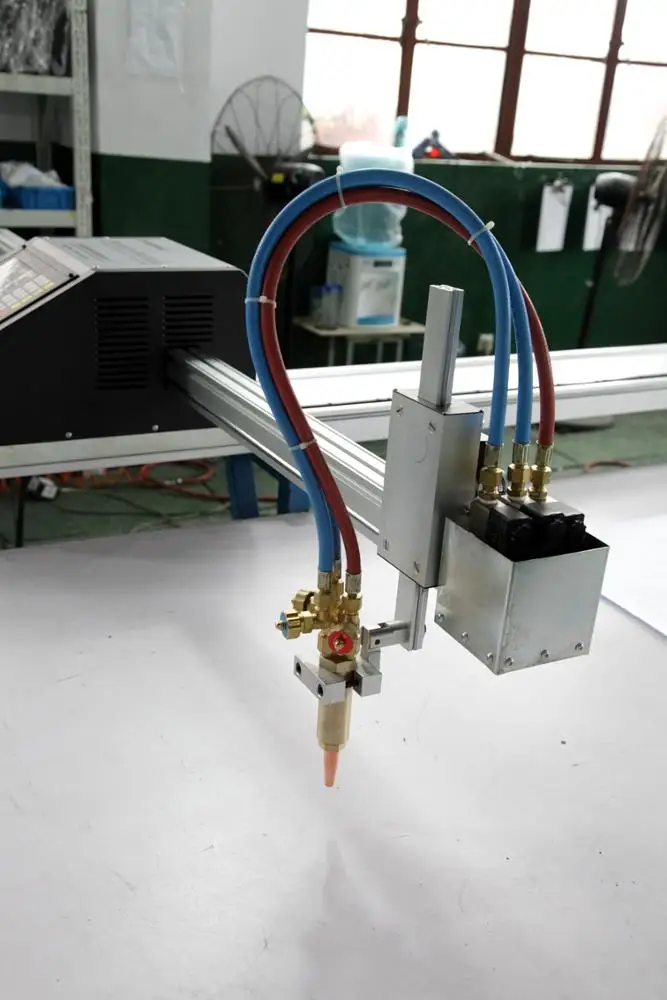

Flame (Gas) Cutting Capacity	Piercing capacity: 5-60 mm Edge start cutting: 5-120mm
Plasma Cutting Capacity	Depends on the plasma source's cutting capacity
Controller, Software And Torch Height Control	ZZ-7B 7 inch controller,FASTCAM mini pro.software, inner plasma THC
Cutting Table and Base	Cutting table need supplied by user, and we can supply drawing for reference
Needed Installation Area (Considered Beam Moving space )	W 3.7m * L 3.6m * H 0.6m
Packing Size	CNC: 560460530mm Rails:3650400300mm
