On Sale LNPE LNJ 120A Coal Crusher Size Reduction Equipments Air Classifying Mechanical Milling Process Fluidized Bed Jet Mill

Product Application

We Can  Provide Plastic Products,If You Would Like To Send Samples for Testing, Please Contact Us

Theory of Work:LNJ Jet Mill is a device as using multiple nozzles to form sonicspeed air flow to perform superfine pulverizing. The ground materials will be brought to higt-efficient turbine classifier, the corarser particles will be swirled back to griding chamber for further grinding.

LNJ Jet Mill is a superfinr grinding equipment based on the theoretical research and numerical simulation,combined domestic and foreign advanced technology.

Perfect structure and flow field design,greatly improving the high-speed airflow and classifier efficiency.

Customized design to solve different affairs.

Feature:

 1.LOW energy consumption.

2.Materials collision esch other without contamination,effective for Mohs1-10 hard material.

3.fully automatic control,easy to operate.

4.Omniseal negative pressure operation,no contamination.

Components:

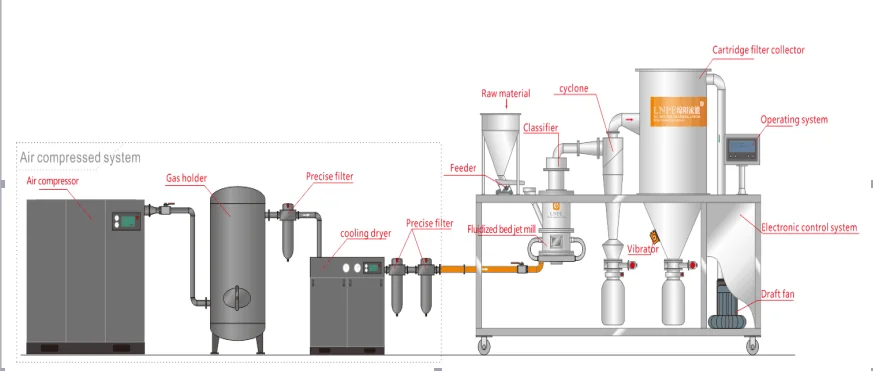

Turbine Classifier (stage 1), Turbine Classifier (stage 2), High Efficiency Filter Cylinder Collector, Silencer,High-Pressure Induced Draft Fan, Air Vibrator, Jet Pulverizer, Vibration Feeder, Air Source System

◆Chemical Materials

Aluminum oxide, aluminum hydroxide, magnesium oxide, magnesium hydroxide, zinc oxide, precipitated barium sulfate, flame retardant, cellulose, calcium phosphate, yttrium oxide, foaming agent, silica gel, strontium carbonate, aluminum silicate, silicate, activated carbon, polypropylene, petroleum carbon, plastic additives, copper oxalate etc.

◆Non-metallic mineral

Graphite, heavy calcium, light calcium oxide, kaolin, barite, quartz, talc, wollastonite, mica, bentonite, potassium feldspar, andalusite, brucite, montmorillonite, diatomite, bauxite, petroleum coke, coal powder, perlite, tourmaline, clay, limestone etc.

◆The new material

Functional ceramic materials, high purity silicon materials, phosphors, glass beads reflective materials, point luminous powder etc.

◆pesticide

Herbicides, fungicides, insecticides, wettable powders, fungicides, fungicides, chlorphenidine, chlorphenidine, chlorphenidine etc.

◆Superhard material

silicon carbide (black, green),Boron carbide, diamond, white corundum, rare earth polishing material, tungsten carbide, grinding wheel material, pure natural colored sand etc.

◆Metal powder

Aluminum powder, copper powder, zinc powder, iron powder, tin powder, cobalt powder, silver powder, copper lead powder, magnesium alloy, copper oxide, metal silicon, ferrosilicon etc.

◆Other materials

Fluorescent pigments, iron oxide red, cobalt blue, zinc oxide, toluidine red, vermillion, dyes, fluorescent brighteners, waxes, electronic waste, garbage, soap etc.

Machine

Name: Impact Mill

1.High fineness, narrow particle size distribution without oversize, and particle size can be controlled between 100~1500 mesh.
2.Application with air-cooled design with large air flow makes it possible to process heat-sensitive materials in low temperature condition.

Name: LNJP Jet Pulverizer
1) Fluid dynamics software is developed by our independent R&D, calculated the perfect flow and ideal pressure distribution, combined the advantages of fluid dynamics technology and crushing strength control technology, greatly improve grinding efficiency and reducing energy consumption.

2)High capacity: compare with other grinding machine, the output of this equipment has improved 8~15 percentage.

3)Low energy consumption: Low energy consumption power, saving 40% over the equipments

4)Wear-resistance, secondary air entry keeps the cleaning flow stability, greatly reduce the wear.

Jet Mill Shaper

Partial partners

Main industries: medicine, food, machinery, rare metals, aerospace, new materials, chemicals, superhard materials, metal powder, ceramic building materials, other materials (fluorescent pigment, cobalt blue, dye, clay, electronic waste, garbage, soap, wax)

t\\Technique and Service

Customized selection and flowsheet design,provide equipment layout and factory consultation.

supply expert consultation and detection ensure the equipment operation normally,and get feedback from customers regularly.
Provide installation, commissioning and training services to technical engineers remotely.
long-term technology support for upgrading and solving difficulties.Long - term supply of consumable parts at cost.
one year of warranty period.
