Pharmaceutical Blistr Packing Dpp 88 Small Blister Packing Machine
- Category: >>>
- Supplier: Minhua Pharmaceutical Machinery Co. Limited
Share on (62044984957):
Product Overview
Description
Product Description

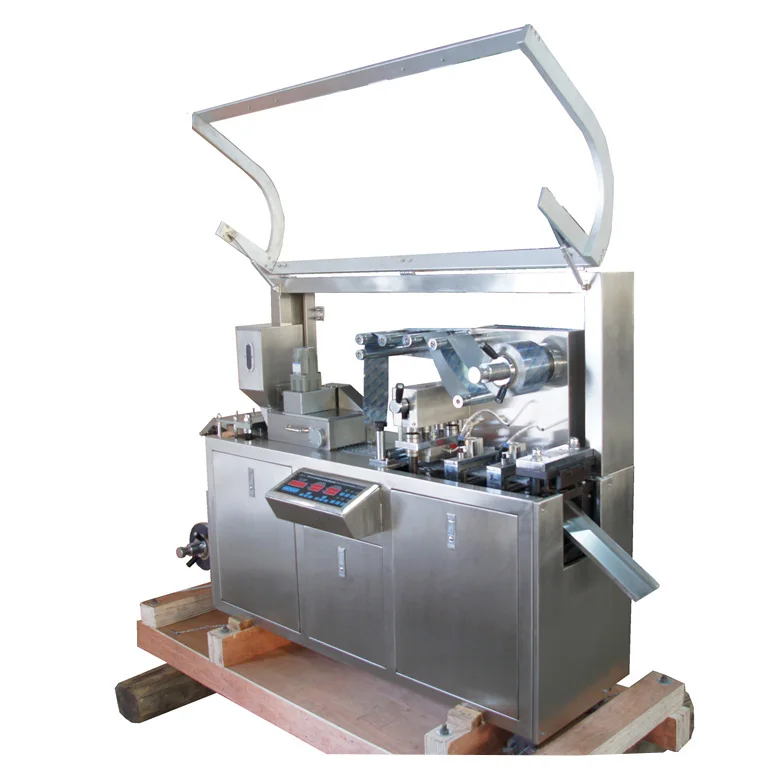

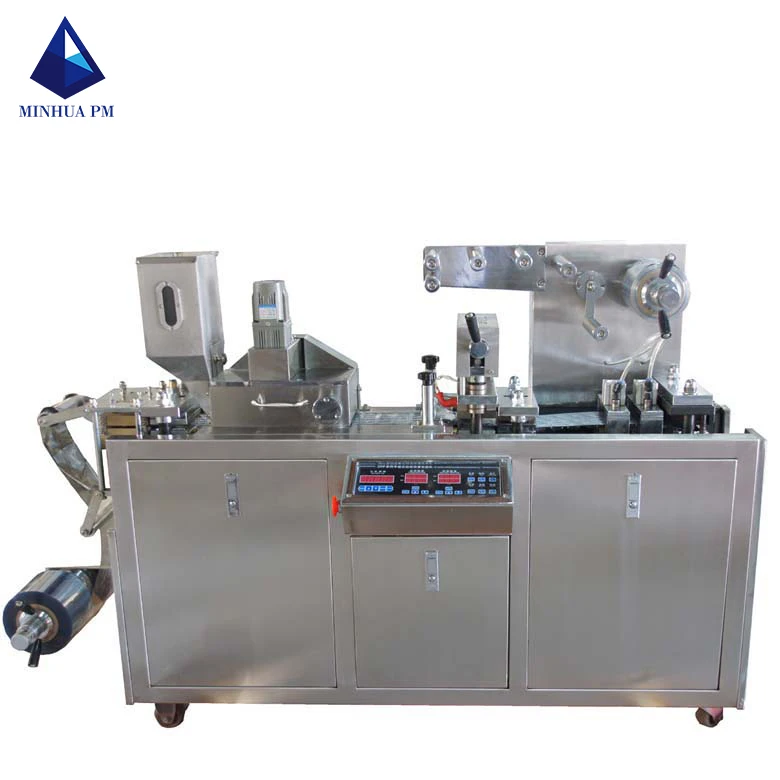

DPP-88 blister packing machine
———Descriptions———

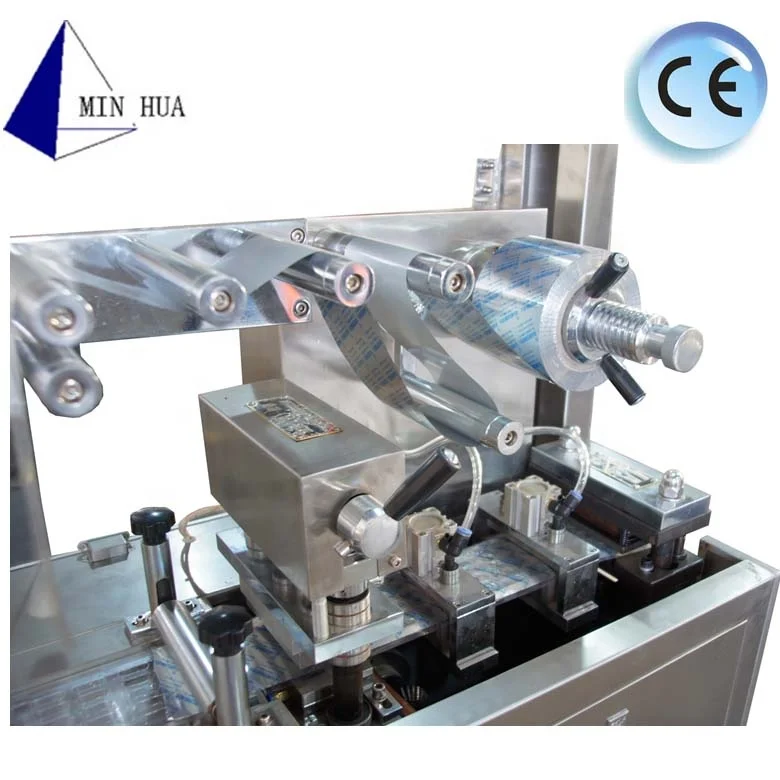

This machine can continually and automatically complete the packing proceedings, is blister cap form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It has advantage as compact structure, full function, gear wheel working, and accurate synchroni-zation, stable cooperation, easy to replace the mould, low cost and needn’t to equip auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.
The machine is widely used in the vocation of medicine, foodstuff, electron, hardware for Alu/PVC blister packing of various nubby objects, such as capsule, tablet, pill and electronic part.
———Technical Parameters———
Item/model | DPP-88 |
Capacity | 1200-2100 plates/hour |
Punching frequency | 20-35 times/min |
Maximum forming area and depth | 100x80x16 mm |
Adjustable scope of travel | 30-90 mm |
Packing material | PVC: 88 x 0.25(0.15-0.5) mm PTP: 88 x 0.02 mm |
Power | 3 KW |
Power supply | AC, 220V/50-60 HZ, 1 phase |
Air compressor | ≥0.1 M3/min ( provide for oneself) |
Air pressure | 0.5 MPa |
Overall size | 1770(L)x770(W)x1250(H) mm |
Weight | 450 kg |
———Product image———
Features
——Features——

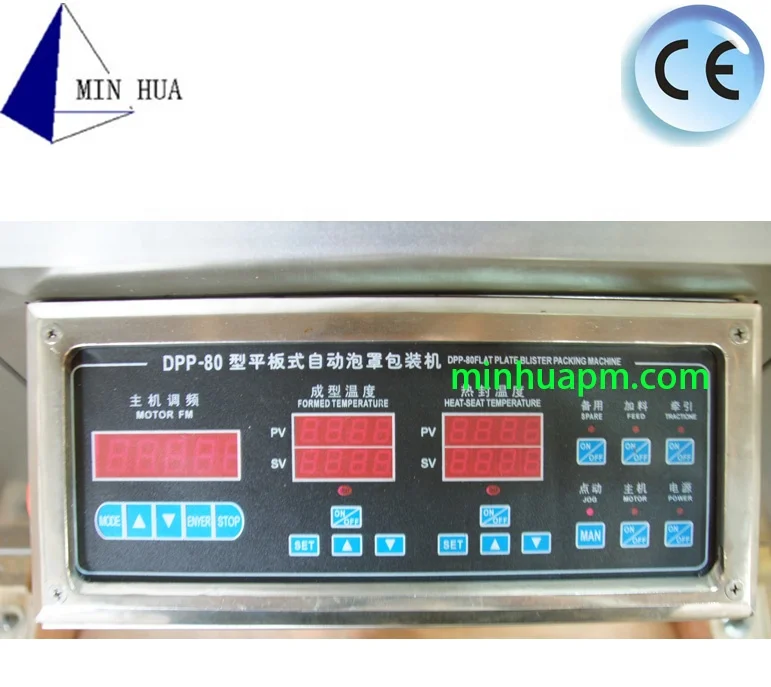

Variable frequency speed regulating, PC circuit control panel.
Adjustable travel adopts manipulator grip equipped with inching device, which has accurate
Synchronization.
Travel-type feeder is suitable for feeding capsules and tablets.

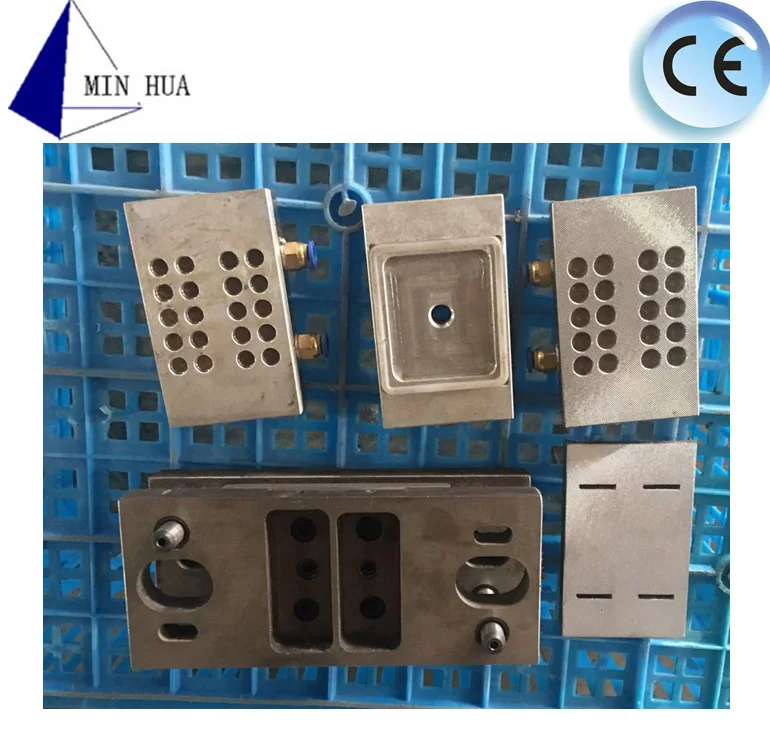

Mould spout location is convenient for replacing mould.
Exquisite machine is suitable for small-scale production and laboratory.
