ElectricianTrailer Builder Trailer Tradesman Top Trailer
- Category: >>>
- Supplier: Zhenjiang Swt Metal Product Co. Ltd.
Share on (62044985515):
Product Overview
Description
Product Description

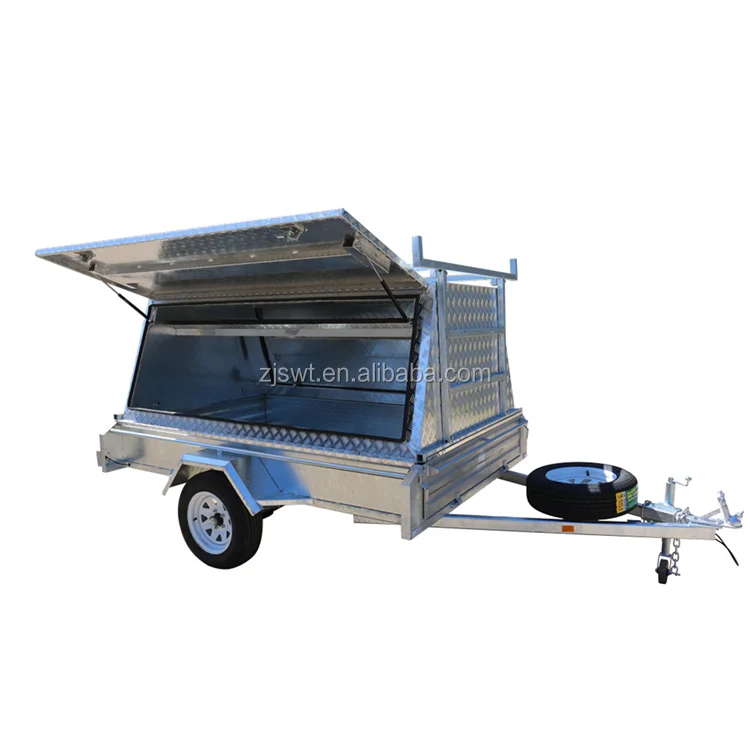

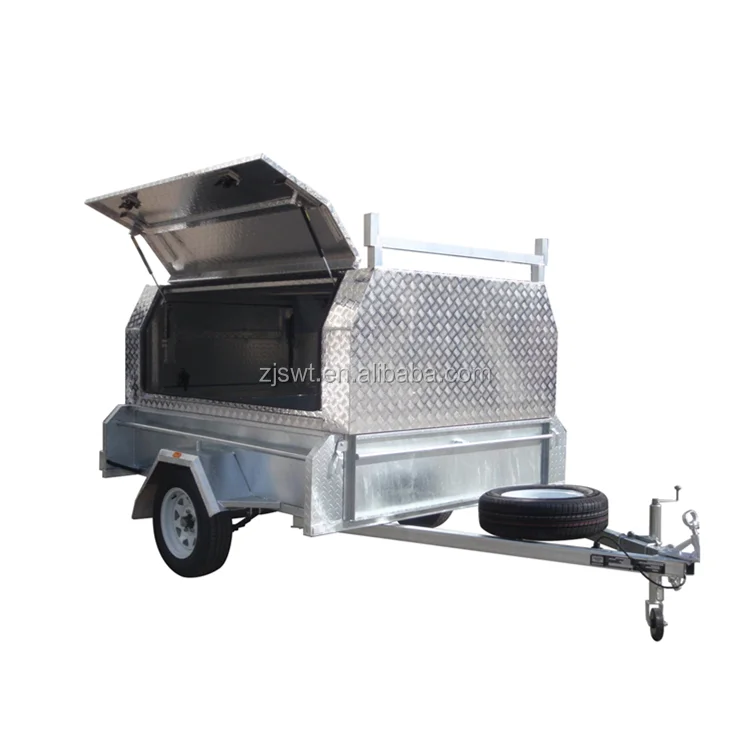

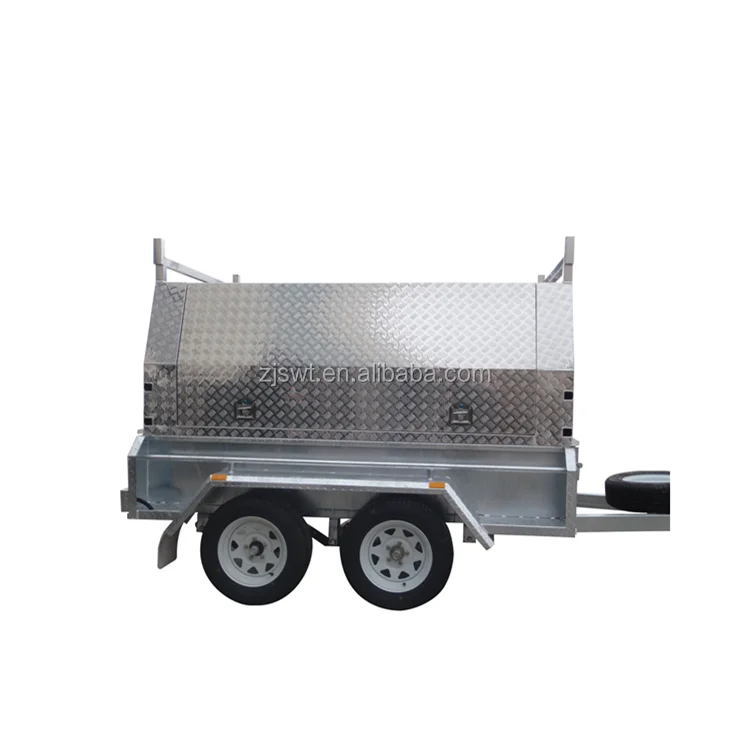

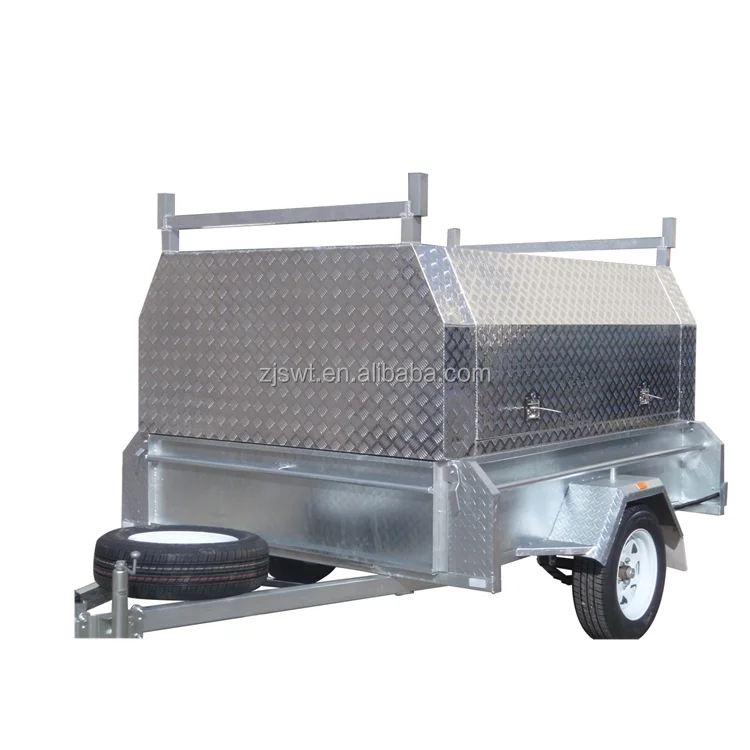

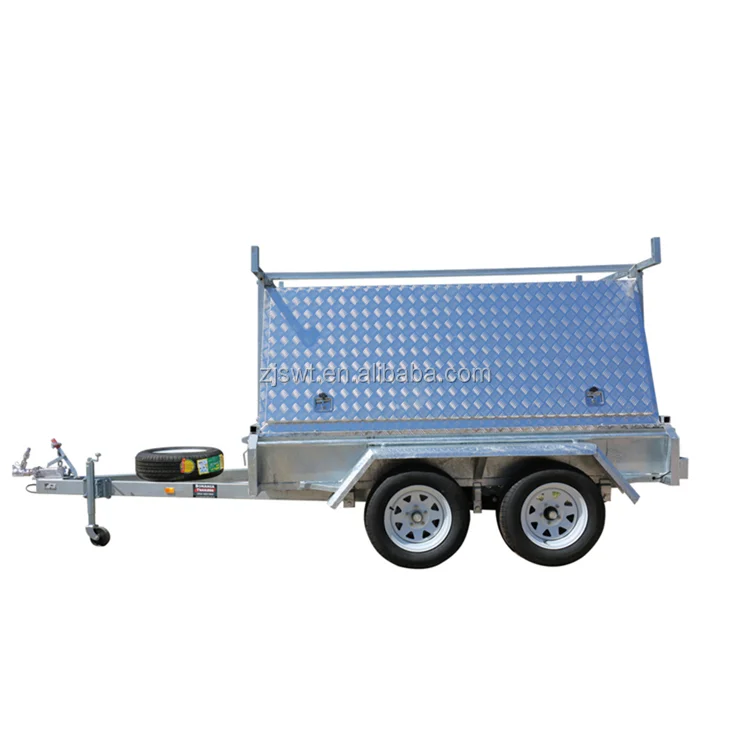

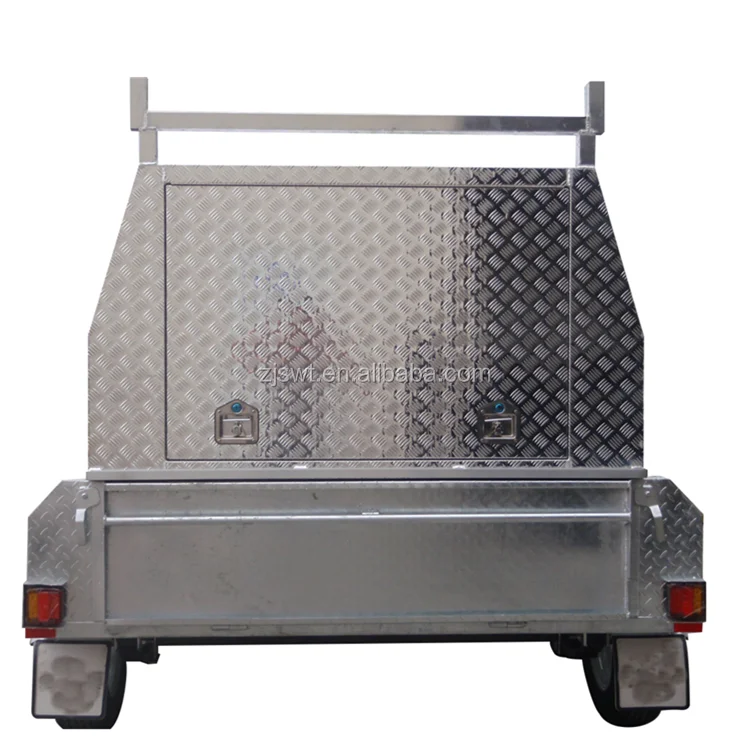

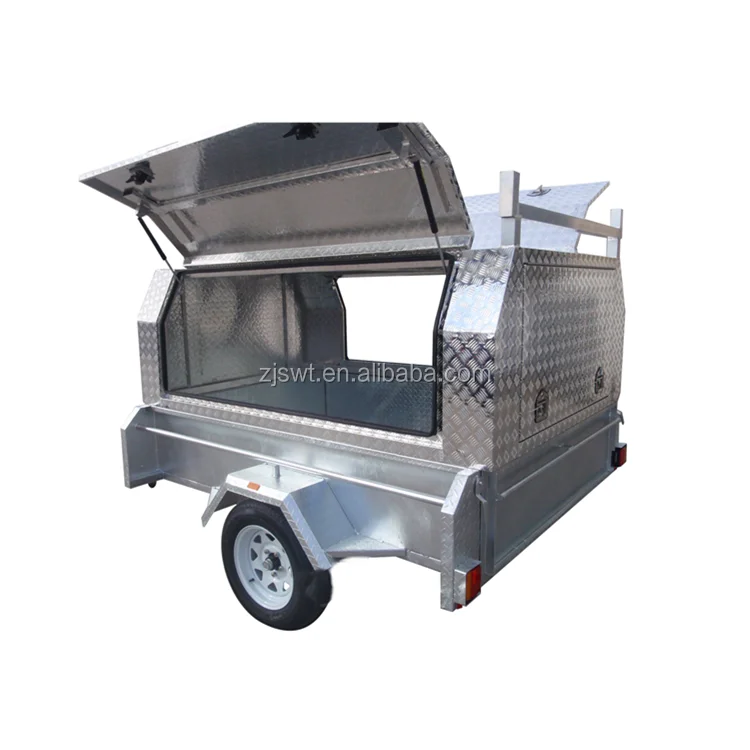

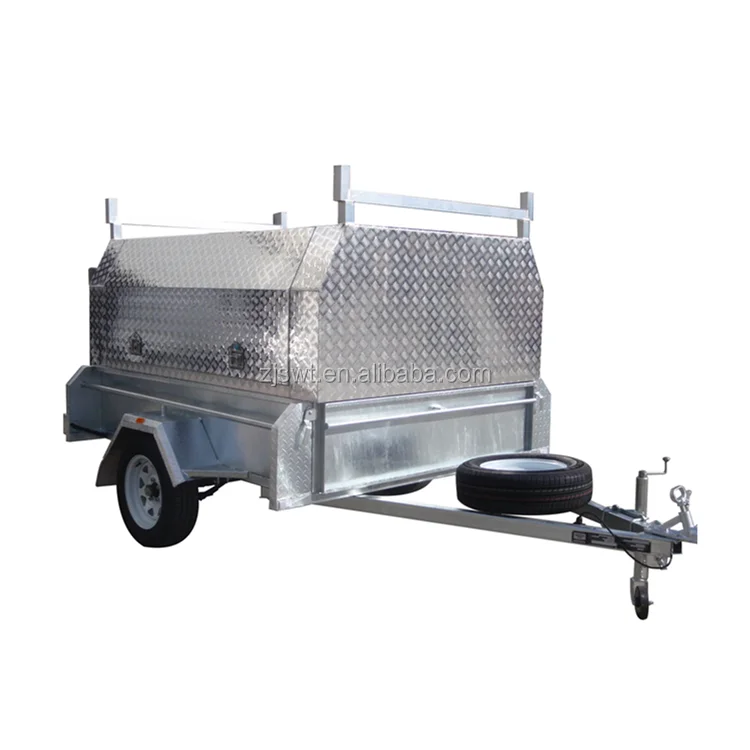

ElectricianTrailer Builder Trailer Tradesman Top Trailer
Different Sizes For Tandem Axle Tradesman Trailer | |||||||
SIZE | MODEL NO | OVERALL SIZE | INNER BOX SIZE | SPRING | WHEEL | SURFACE TREATMENT | ATM |
8x5Ft | SWT-TT85 | 4150x2025x1700mm | 2440x1525mm | 6 leaf | 185 x 14" | Hot Gal | 1990KG |
9x5Ft | SWT-TT95 | 4410x2025x1700mm | 2700x1525mm | 6 leaf | 185 x 14" | Hot Gal | 1990KG |
10x5Ft
| SWT-TT105 | 4760x2025x1700mm | 3050x1525mm | 6 leaf | 185 x 14" | Hot Gal | 1990KG |
Description For 8x5 Tandem Tradesman Trailer | |
Drawbar | 100x50 RHS. 1600mm long with 10mm safety chain AS4177 stamp) |
Chassis | 50X50 RHS (Not angle) |
Floor & Sides | Checker plate (Not cheap Ribbed zinc plate) |
Axle | 40mm Solid Square axle |
Spring | 6leafs rocker roller suspension (not 4leafs or 5leafs cheap and light spring) |
Wheel | 185/70R14 wheel with 14inch white painted rim |
Jockey wheel | 6inch top wind heavy duty jockey wheel. |
Coupling | 50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling |
Lights | LED Lights with 7pin plug and 7 core wiring. |
Surface Treatment | Hot dipped galvanized |
