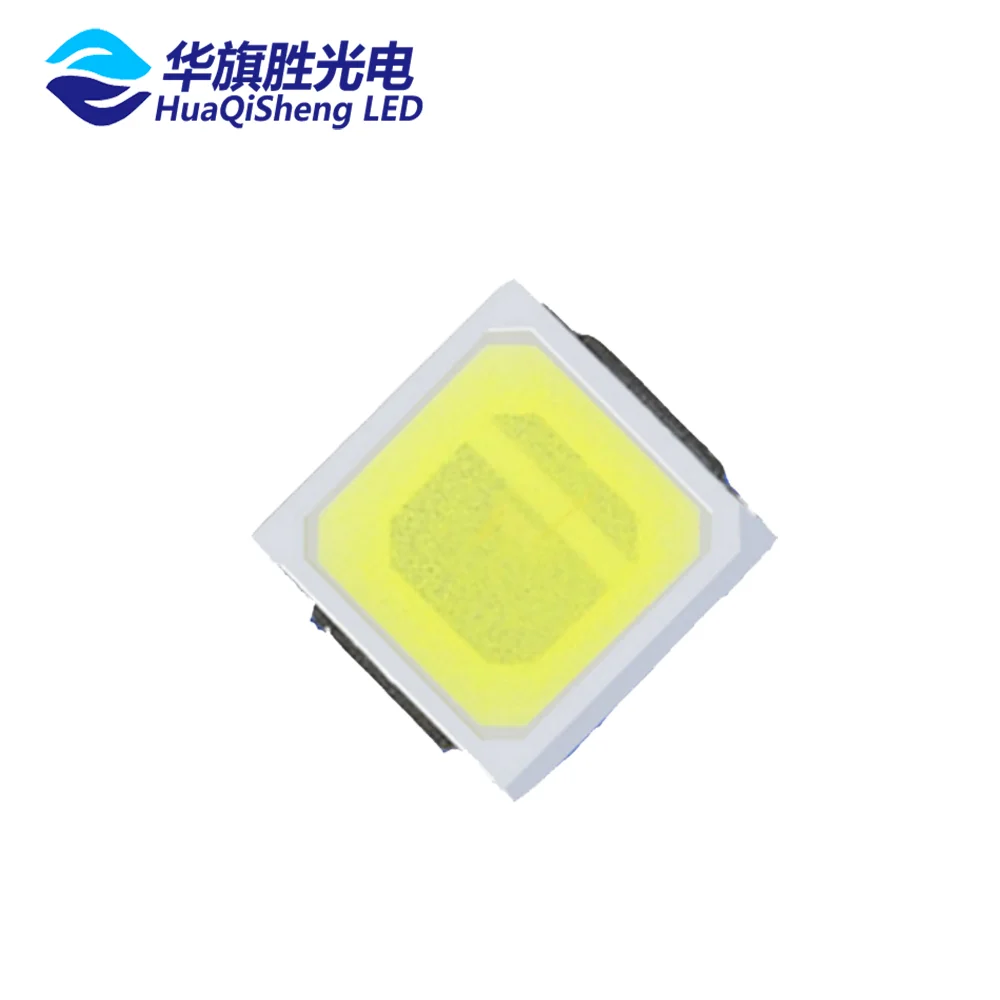

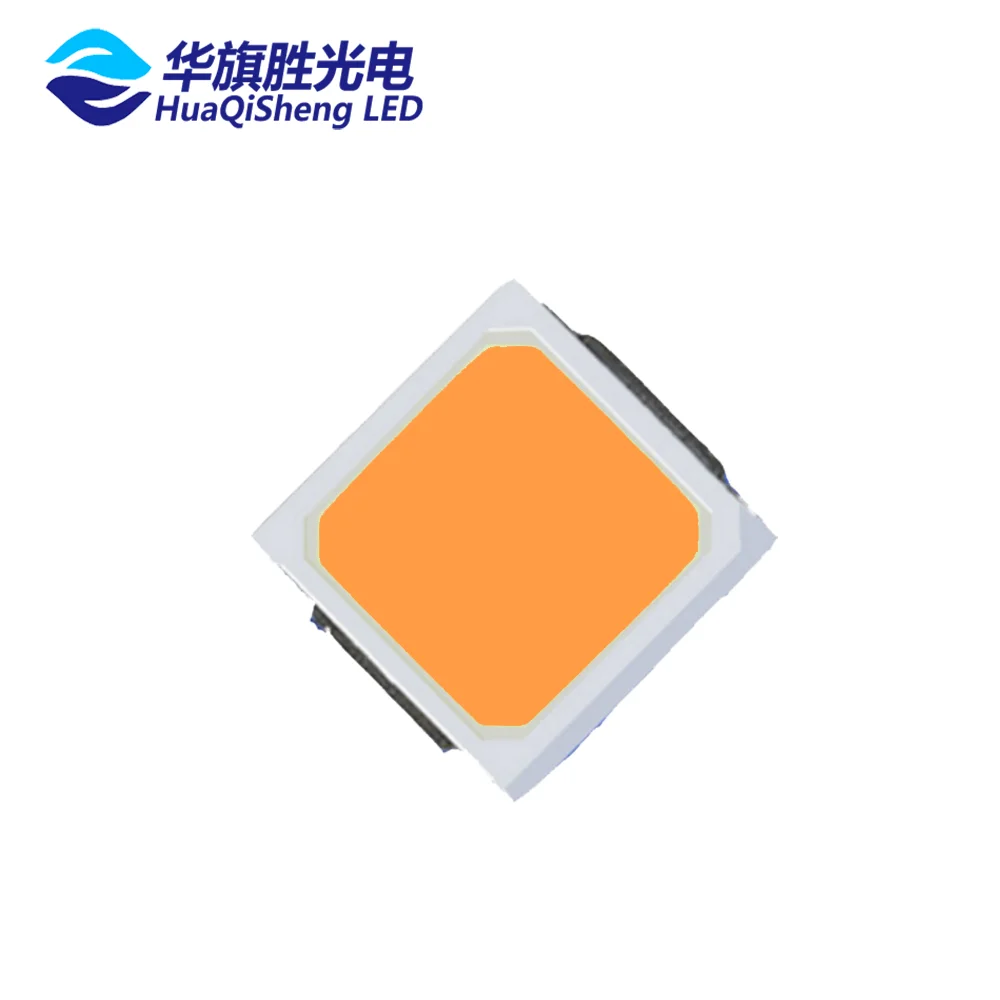

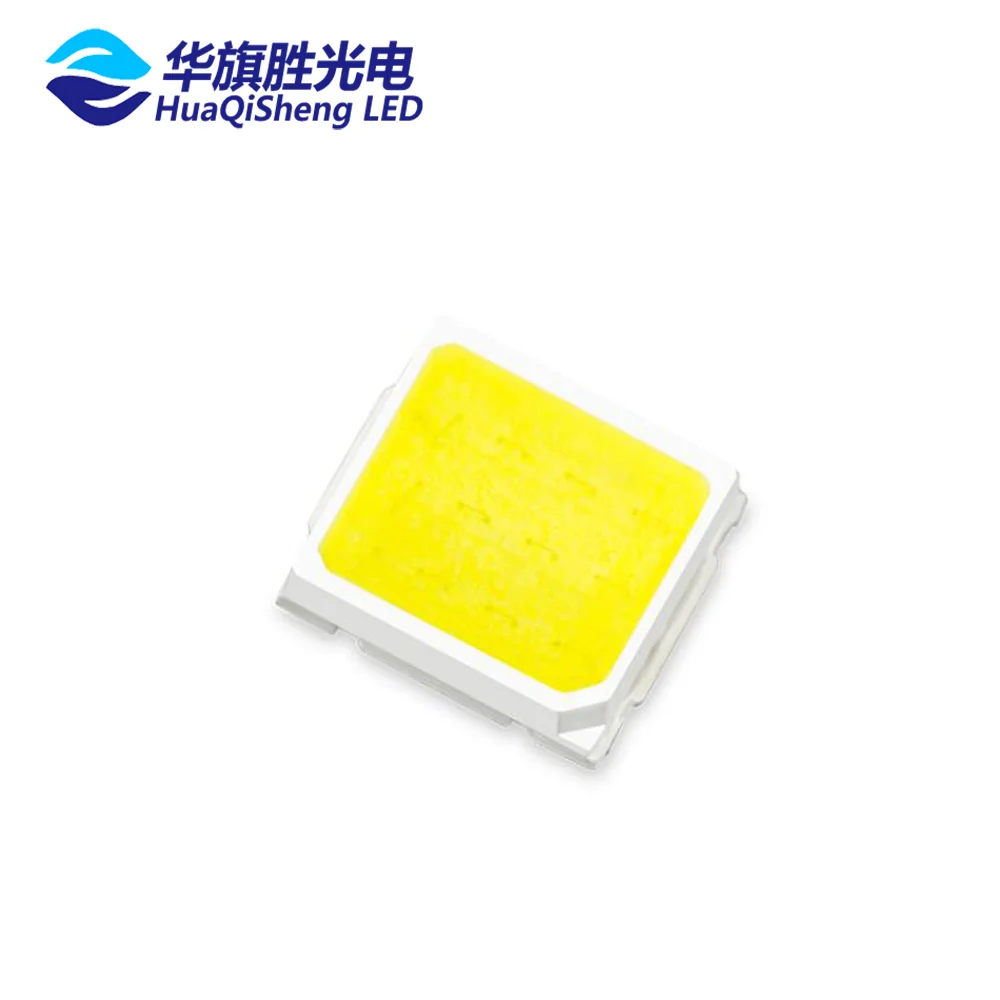

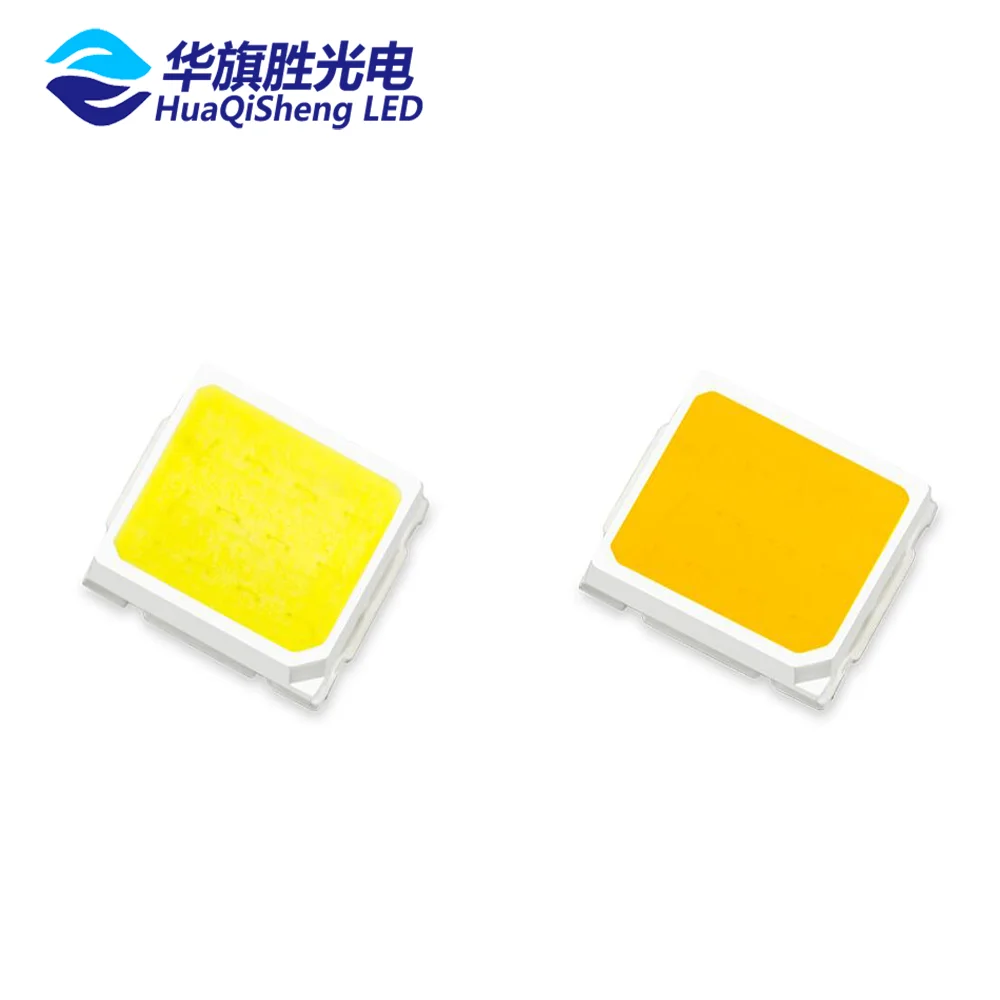

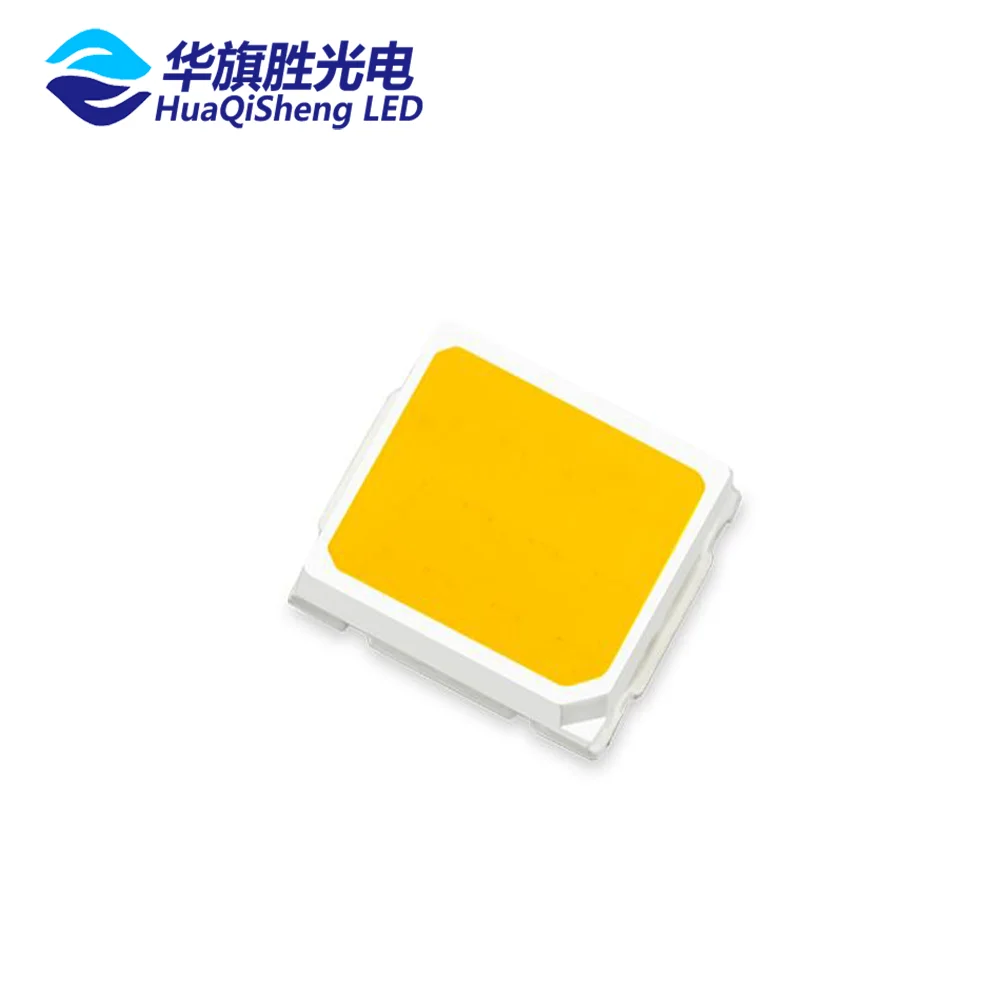

High Power Intensity SMD Type Package LED SMD 5W 5054 LED

Product Overview

Description

Product Name	SMD 5W 5054 LED	Product Model	HQS-5054
Power Dissipation	5W	Color Rendering Index	80
Forward Voltage	8.0-9.0V	Viewing Angle	120°
Forward Current	550mA	Operating Temperature	-40~+60 ℃
Luminous Flux	670-700LM	Storage Temperature	-40~+85 ℃
Color Temperature	6000-6500K	Soldering Temperature	260℃





5054 LED SERIES SPECIFICATION
Product Name	Light Color	CCT/Wavelength	Voltage	Current	Lumen	Light Efficacy
1W 5054 LED	White	2900-6500K	7.0-8.0V	110mA	160-200LM	190-230LM/W
2W 5054 LED	White	2900-6500K	8.0-9.0V	220mA	320-400LM	180-220LM/W
3W 5054 LED	White	2900-6500K	8.0-9.0V	330mA	450-550LM	180-200LM/W
4W 5054 LED	White	2900-6500K	8.0-9.0V	440mA	580-680LM	160-190LM/W
5W 5054 LED	White	2900-6500K	8.0-9.0V	550mA	670-770LM	140-160LM/W
3W 5054 LED	White	2900-6500K	22-27V	130mA	400-600LM	150-170LM/W
4W 5054 LED	White	2900-6500K	22-27V	160mA	550-700LM	140-160LM/W
