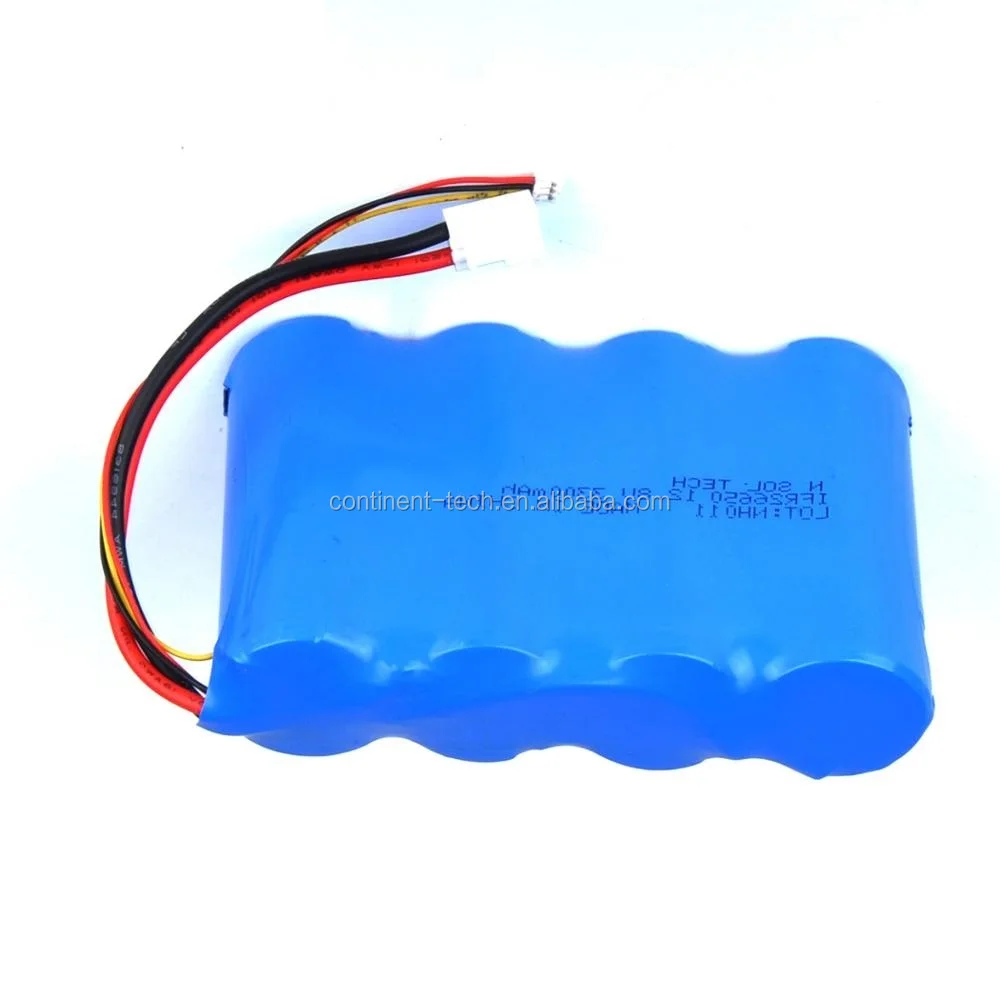

Lithium Iron Phosphate Battery Pack 12.8V 3300mAh with Protection Deep Cycle 12V LiFePO4 Batteries Long Cycle Life A Grade

Product Overview

Description

LiFePO4 battery Specification:

Model	CTLF26650-3300\\4S
Battery Type	LiFePO4 Battery
Power Wh:	42.24Wh
Accembly Composed Type	1S/ 1 cell
Nominal Capacity	3300mAh	@0.2C discharge
Nominal Voltage	3.2 V
Charge Voltage	3.65±0.12 V
Cut-off Voltage	2.5 V
Standard charge Current	660mA	@0.2C charge
Max. charge current	3300mA	@1C charge
Standard Discharge Current	660mA	@0.2C discharge
Max. Discharge Current	10A	@3C discharge
Pulse Current	15A	@5C discharge
Resistance	≤80mΩ
Cycle Life:	Over 2000 times
Weight (Approx.)	250g
Dimensions(T.W.L.)	26*65*110 (mm)
Self-discharge Rate	Residual capacity: ≤5%/month
Charge Temperature	0 ~ 45℃
Discharge Temperature	-20 ~ 60℃
Storage Temperature	0~40℃	Less than one month
	0~30℃	More than one month

Battery OEM Service:

-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label are welcomed

Advantages:
1, High energy density
2, Factory price& High quality
4, Pollution-free
6, Good consistency, low self discharge
2, High working voltage for single battery cells
5, Safe and reliable, With short-circuit protection function,

Battery Warranty:
The period of warranty is TWO years from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Our services:

1.Your enquiry will be replied in 8 working hours.
3.Professional engineers & Exclusive and unique battery solution
5.Good sales: From begining to end,any quality problem with our products,new free one will be replaced.
4.Good quality assurance:All the cells are A grade cells,100% quality check and full one year warranty.
