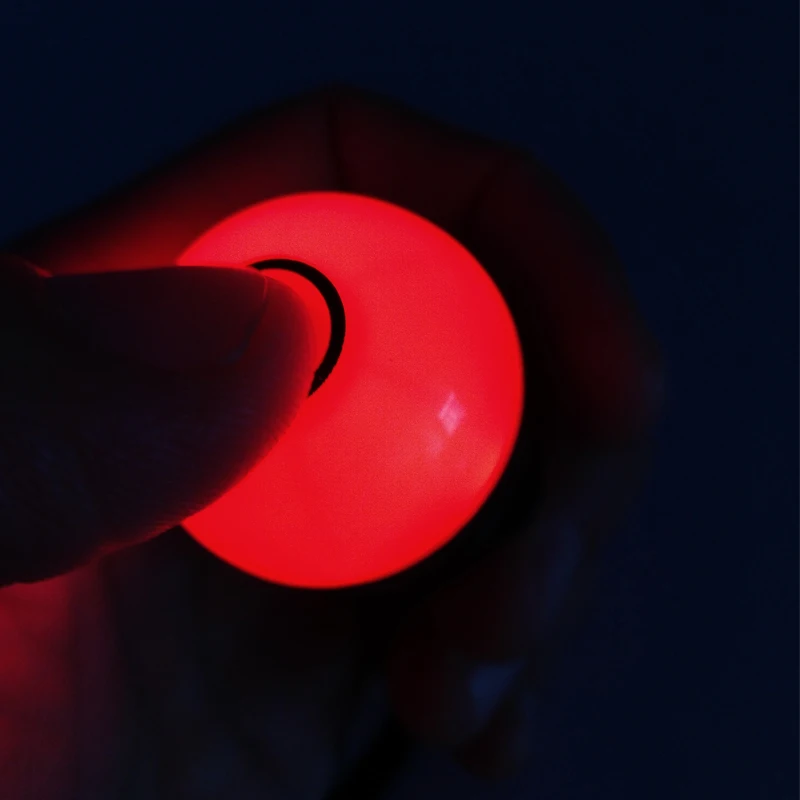

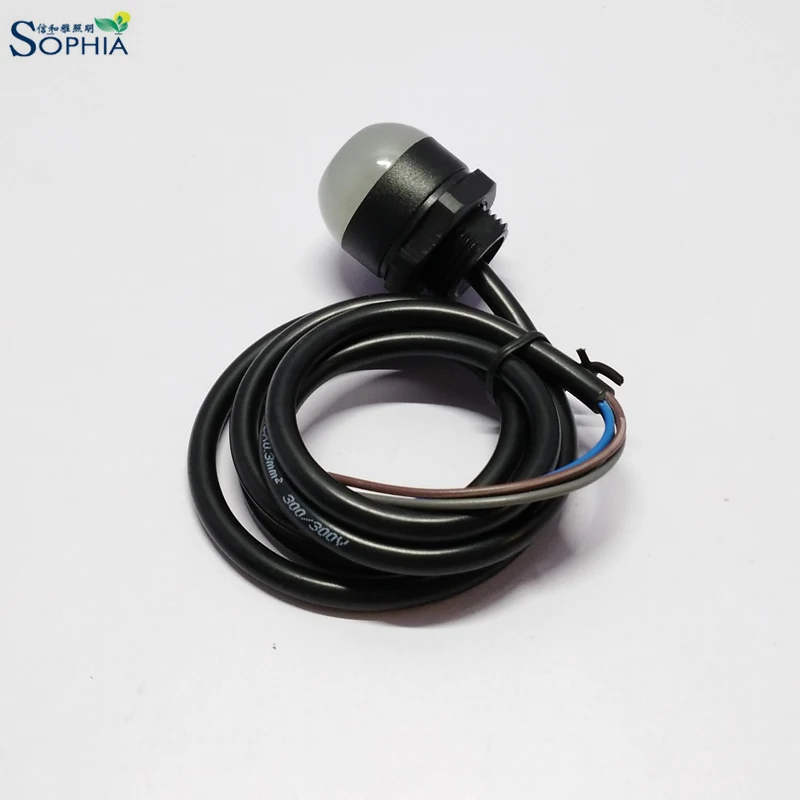

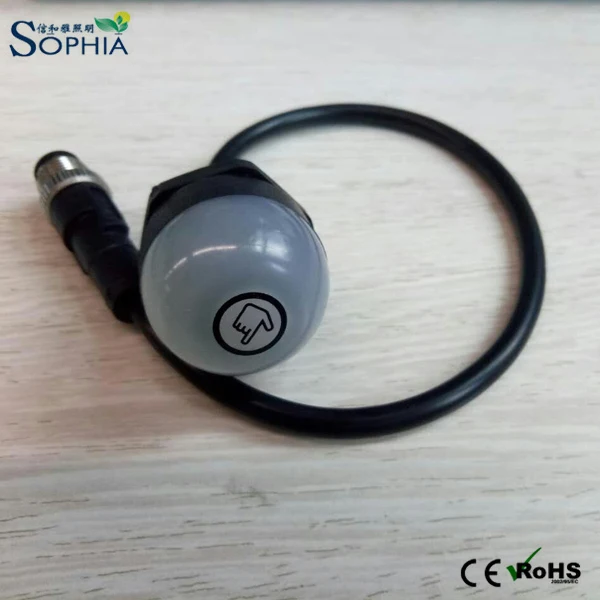

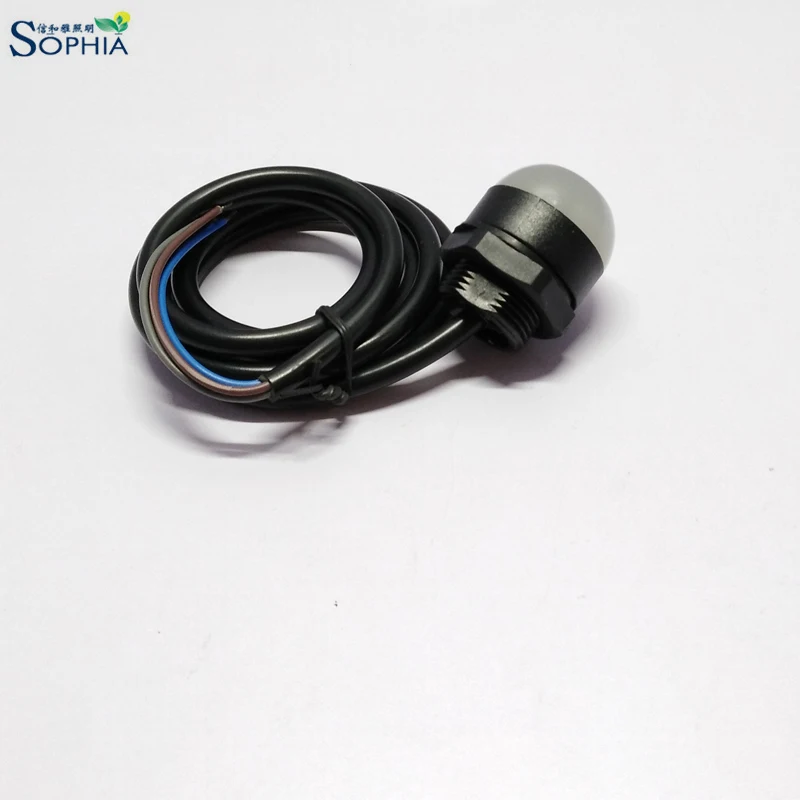

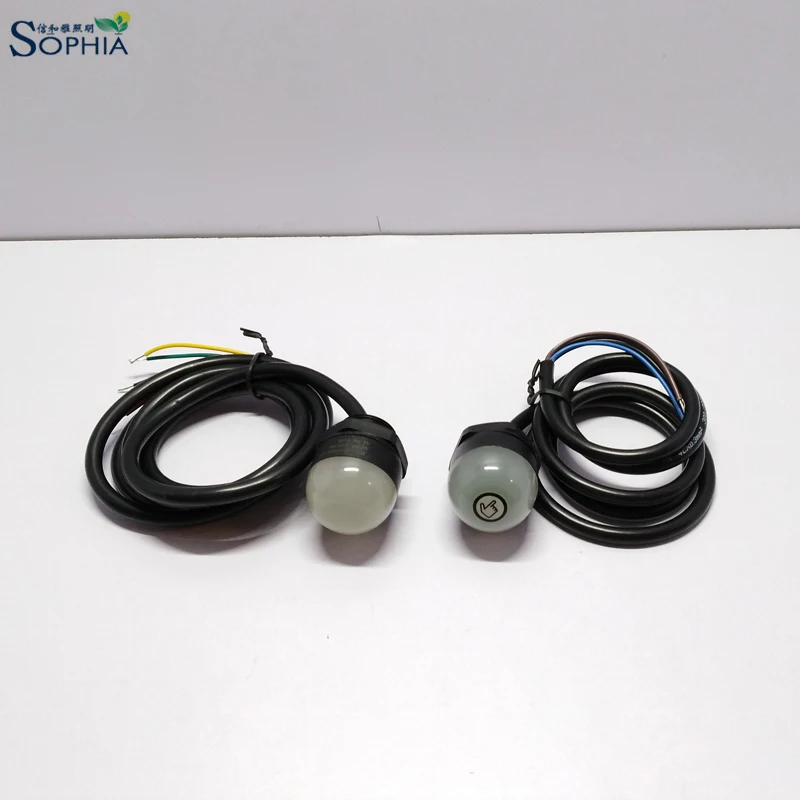

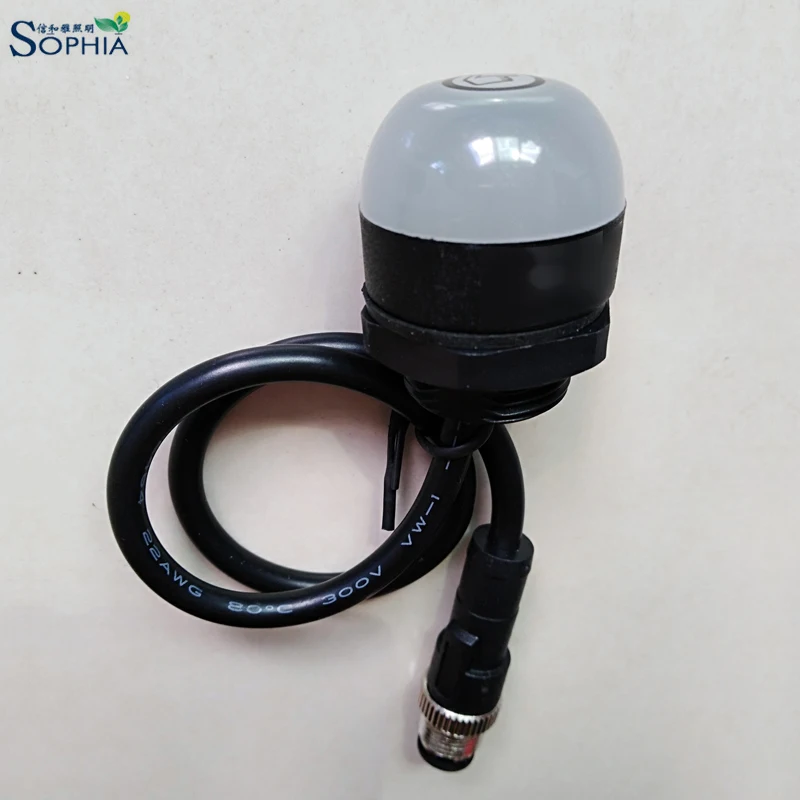

Sophia K30 30mm push button switch pick to light

Item No.

RL30T Touch sensor

Supply Voltage

24Vdc±10%

Supply Current

Red, Green, Blue, Yellow: <50mA@24Vdc

Output Rating:

a, Maximum Load

150mA, with PTC protection

b, On-State Saturation Voltage

<about 24V

c, Off-State Leakage Current

<10uA(30Vdc)

Indicators

Two colors of red, green, yellow, blue etc

Job inactivity

Job inactivity-red, job activity- green

Electronic Protection

Protected against over current

Output Response Time

25 milliseconds(max.) On and Off

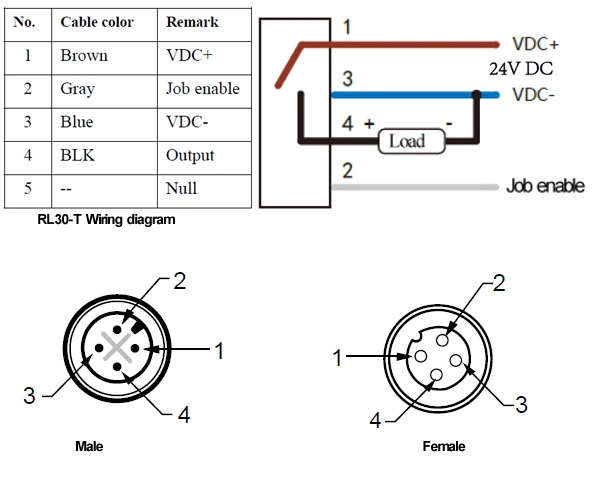

Connections

Integral 4-pin M12 QD wth 0.3m cable, or 1m integral cable

Working temperature (℃)

-40℃~50℃

Humidity

95% at 50℃

IP rating

IP69K

Dimension

30mmx38mm(ODxH)

Mounting thread

M22x1.5mm

Material

ABS and Polycarbonate

Approval

CE    FCC
