Smart security Rs485 Keyboard Controller for Sony, Polycome, Panasonic Video conference system camera from IGEECOO
- Category: >>>
- Supplier: Shenzhen Ezolen Technology Ltd
Share on (62045246710):
Product Overview
Description
Product Description

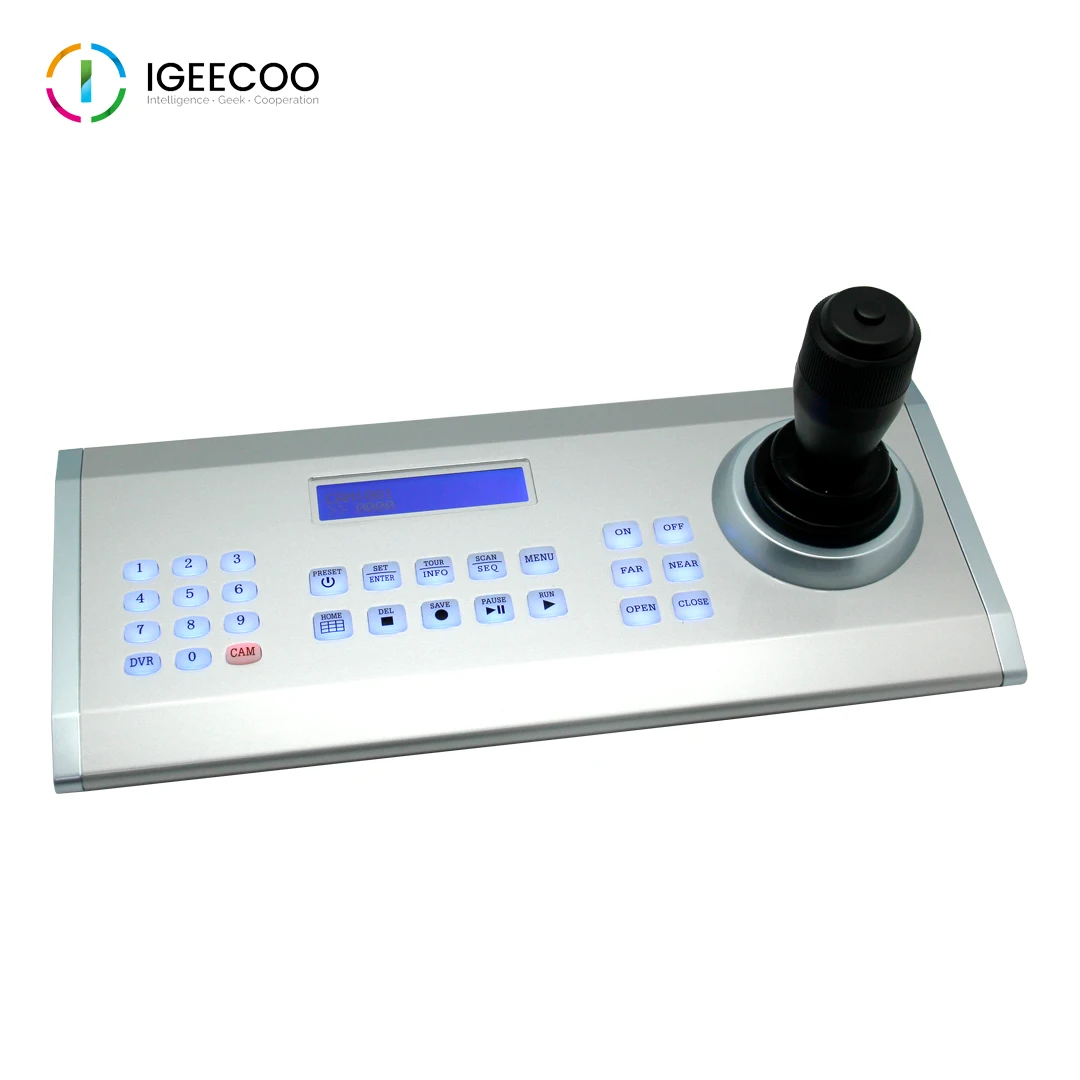

RS485 PTZ Joystick from IGEECOO
IGEECOO TECHNOLOGY,
World's famous manufactuer for all kinds of video conference equipment: PTZ Video Conference Camera, USB HD PTZ conference cameras, Video Conference CODEC, MCU, Recording and Broadcasting System
Appointed as Official supplier HUAWEI.
Supply the OEM and ODM service for Polycom
Wish can have a chance to be your trustworthy friend.
1.\tSupport SONY VISCA, PELCO-D, PELCO-P, CISCO, POLYCOM, CANON, PANISONIC and other video conference cameras
2.\tCan control 64 video conference cameras, Each protocol and baud rate independent setting, support multiple brands controlling simultaneously
3.\tSupport VISCA, CISCO, POLYCOM protocol, support preset position storing, 8 preset positions for each channel
4.\tThe address of VISCA, CISCO protocol can be automatically assigned by the keyboard controller.
5.\tUse the high-end joystick, flexible manipulation, perfect feeling, high accuracy, just the same as SONY original
6.\tBacklight of the keys is adjustable with 10 grades
7.\tSupport video switcher switch simultaneously, Communication converter switch simultaneously
8.\tSupport central forwarding function, Support central Controller and the keyboard control the camera simultaneously
9.\t1*RS232,1*RS485/422
Simple Introduction Parameter | ||
Protocol | VISCA, PELCOP/D, Polycom, Cisco, Canon, Panisonic | |
Baud Rate | 1200, 2400, 4800, 9600, 19200 | |

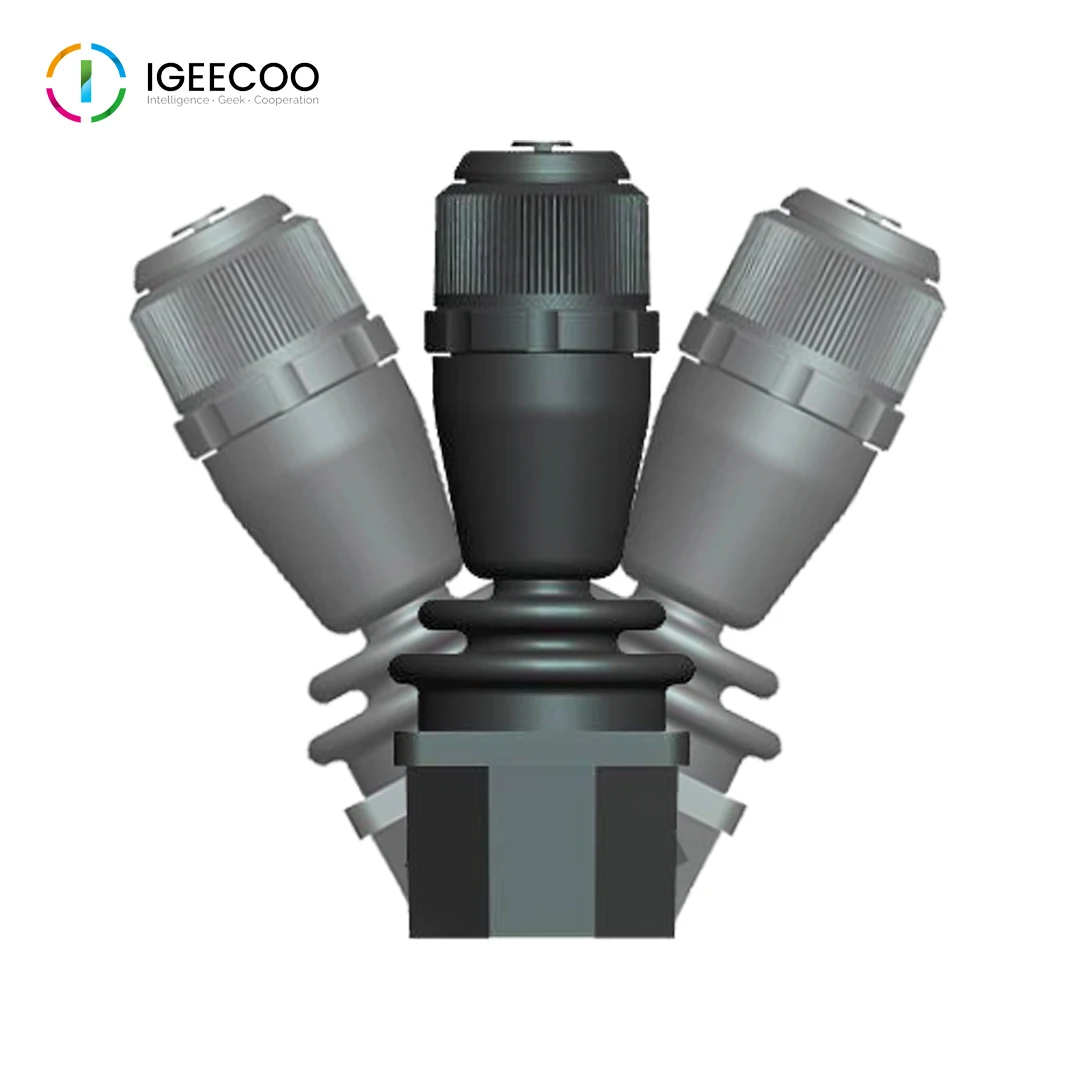

Joystick | Three-Dimension+button, light coding, accuracy ±80 level | |
LCD Display Screen | English character version, blue backlight, 20 characters, 2lines | |
Button | 28 keys, Double color backlight, 10 level of brightness | |
Control Cameras | 64 | |
Switching Matrix | Can control 1 video matrix with 8 inputs and 4 outputs | |
Communication Dispatcher | 16X4=64, can control 16 communication dispatchers, each one divides into 4 | |
Interface | ||

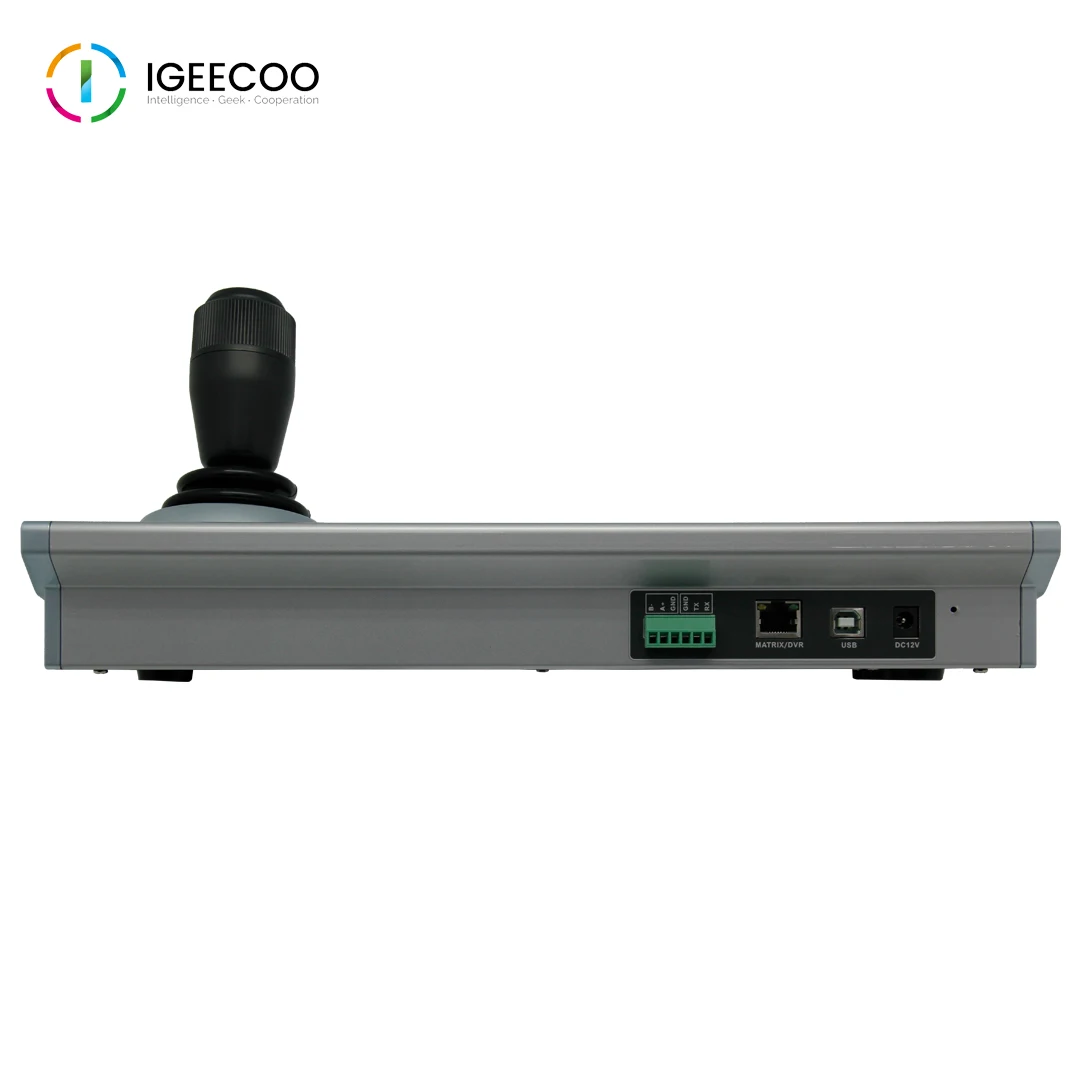

Interface | 1*RS485 interface, 2000 meters distance for camera controlling; 1*RS232 interface, Support communication dispatcher serial port expansion(max. 64) for camera controlling; 1*RJ45(RS485/RS232) for Video communication matrix; 1*USB connect to PC host for system controlling; | |
Power Supply | DC12V/500mA | |
Model | IGC-JK101KB | IGC-JK104KB | IGC-JK104NKB | IGC-JKS700 | |
VISCA | Yes | Yes | Yes | Yes | |
PELCO P/D | Yes | Yes | Yes | Yes | |
IP ONVIF | Yes | ||||
Broadcasting | Yes |
Installation Process
Applications
Certifications
Company Information
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 5-10 days for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will supply replacement or repair services according to real situation.
