High Performance FTTH 4 PON Ports EPON OLT with 10G uplink EPON OLT
- Category: >>>
- Supplier: Shanghai Baudcom Communication Device Co. Ltd.
Share on (62045268122):
Product Overview
Description
Product Description

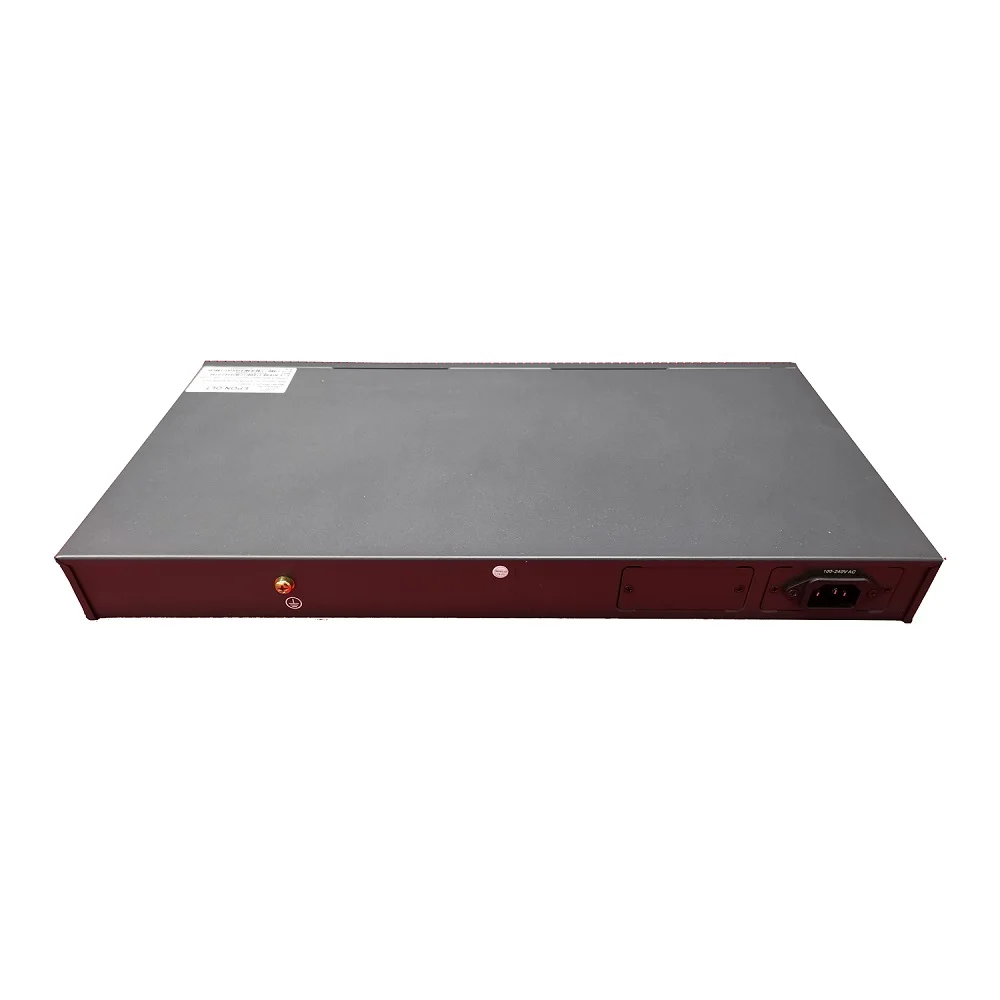

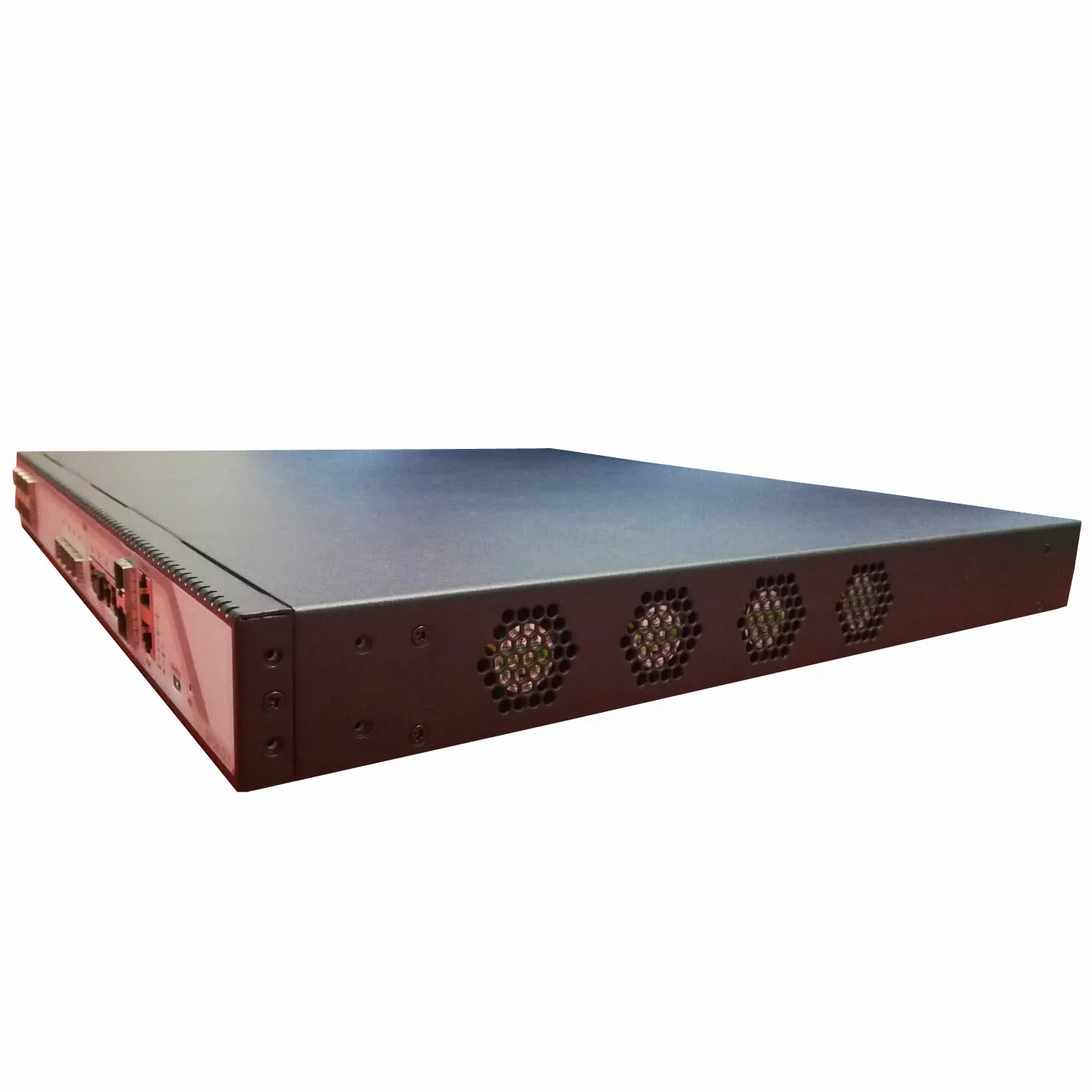

Pizza-Box EPON OLT series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment.

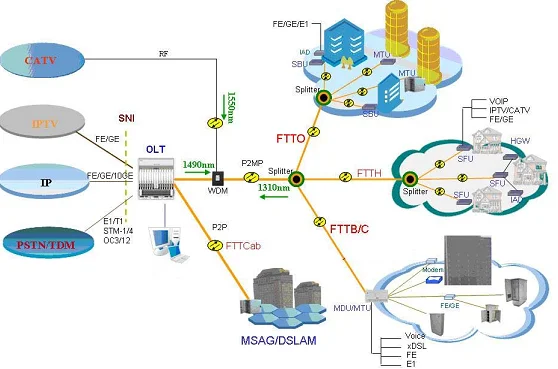

The EPON OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.
BD-OLT-4000U EPON OLT provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 4 EPON ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.
Ordering Information
| PON SFP module | EPON OLT SFP module, 20KM/10KM,1490nm TX,1310nm RX,SC/PC |
| BD-OLT-4000U | EPON OLT, 4EPON ports,4GE(copper)+4GE optical SFP+2*10Gb uplink interface, advanced EMS management, power AC 220V or DC48V |
Specification
Item | BD-OLT-4000U EPON OLT | |
Chassis | Rack | 1U 19 inch standard box |
Uplink Port | QTY | 10 |
Copper | 10/100/1000M auto-negotiable,RJ45:4pcs | |
Optical interface | 4 GE | |
10Gb uplink interface | 2*10Gb | |
PON Port | QTY | 4 |
Physical Interface | SFP Slots | |
Connector Type | 1000BASE-PX20+ | |
Max splitting ratio | 1:64 | |
USB Port | QTY | 1 |
Connector Type | Type-C | |
Management Ports | 1*100BASE-TX outband port; 1 CONSOLE port | |
PON Port Specification (Apply to Baudcom PON module) | Transmission Distance | 20KM |
PON port speed | Symmetrical 1.25Gbps | |
Wavelength | 1490nm TX,1310nm RX | |
Connector | SC/PC | |
Fiber Type | 9/125μm SMF | |
TX Power | +2.5~+7dBm | |
Rx Sensitivity | -27dBm | |
Saturation Optical Power | -6dBm | |
10Gb SFP+ Port Specification (Apply to Baudcom 10Gb module) | Transmission Distance | 10KM |
PON port speed | 8.5-10.51875Gbps | |
Wavelength | 1310nmTX,1310nmRX | |
Connector | LC | |
Fiber Type | Single mode with dual fiber | |
TX Power | -8.2~+0.5 dBm | |
Rx Sensitivity | -12.6dBm | |
Management Mode | SNMP, Telnet, CLI management mode. | |
Management Function | Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management | |
Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and monitoring | |
EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy | |
Layer-three Route | Support static unicast Support static multicast Support RIP routing protocol Support dynamic multicast protocol with active source | |
Backplane Bandwidth | 64G | |
Dimension | 440*350*44(mm*mm*mm) | |
Gorss Weight | 7.5kg | |
Power Supply | 220VAC | AC: 90V~240V,47/63Hz |
-48DC | DC:-36V~-72V | |
Power Consumption | 50W | |
Operating Environment | Working Temperature | 0~50℃ |
Storage Temperature | -40~85℃ | |
Relative Humidity | 5~90%(non-condensing) | |
Related Products
FAQ
1.How can I get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit), we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for ?
For small orders, we will send the goods by International Express like Fedex/DHL/TNT/UPS(Also you can use your existing DHL/Fedex/UPS accounts for shipping). Usually it takes about 7work days to arrive.
If big quantity we will ship by Ocean transportation, it takes one month to arrive.
if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping

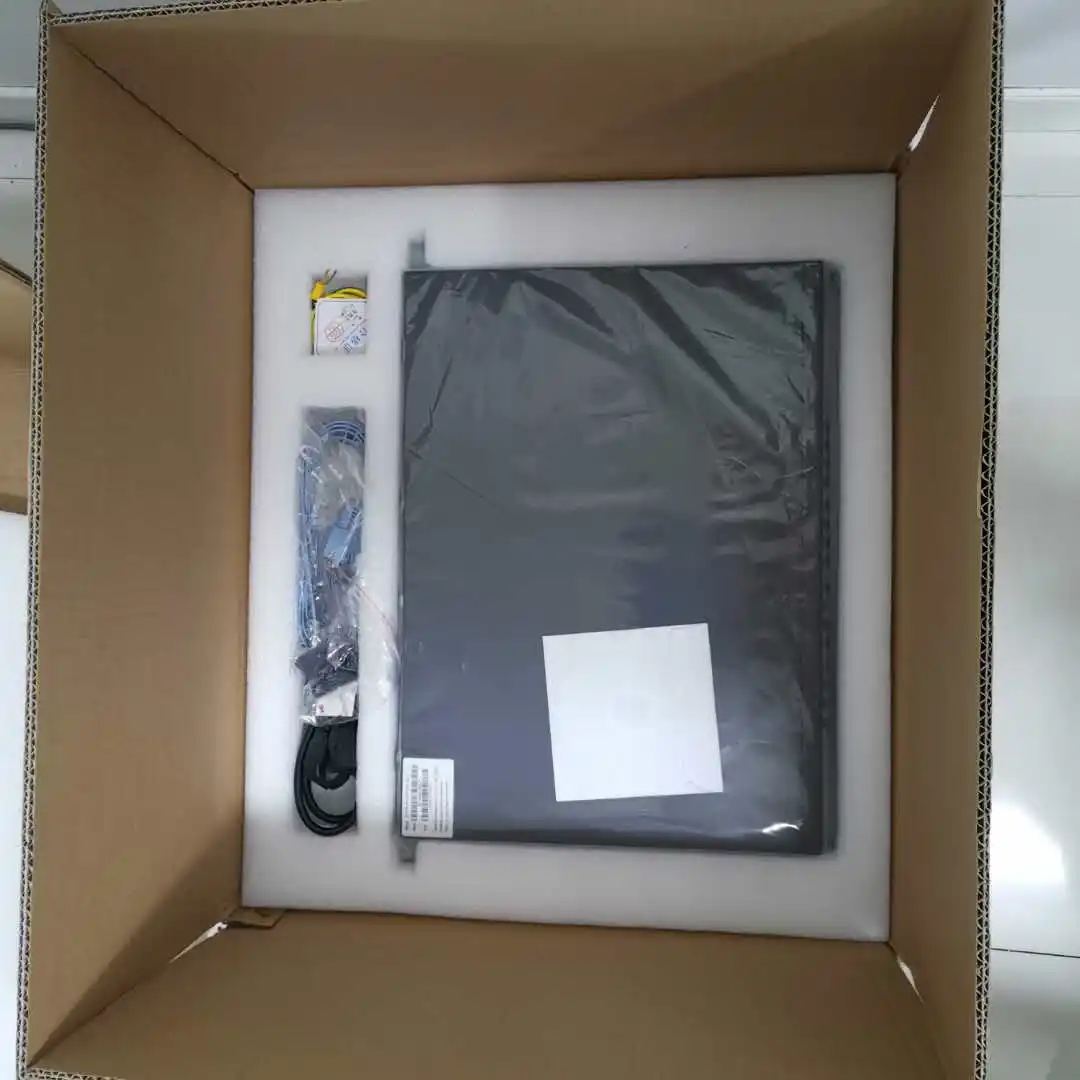

The devices will be well packaged by carton with Foam or other shock proof materials.
