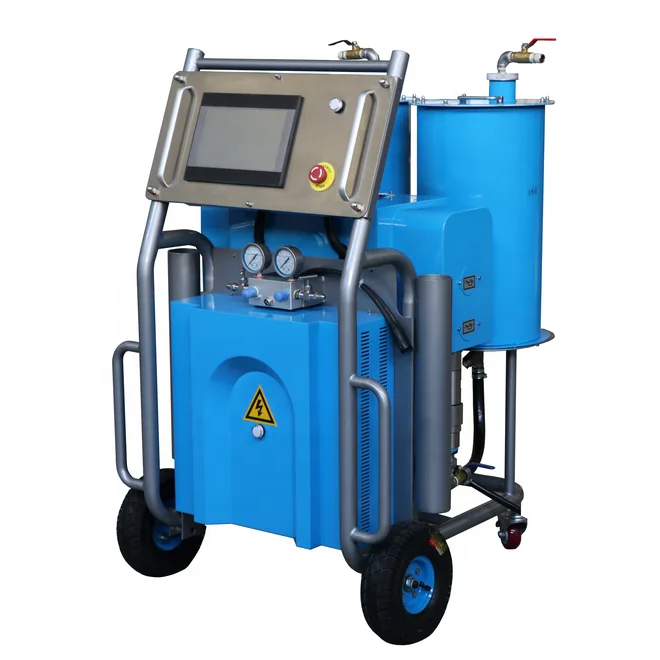

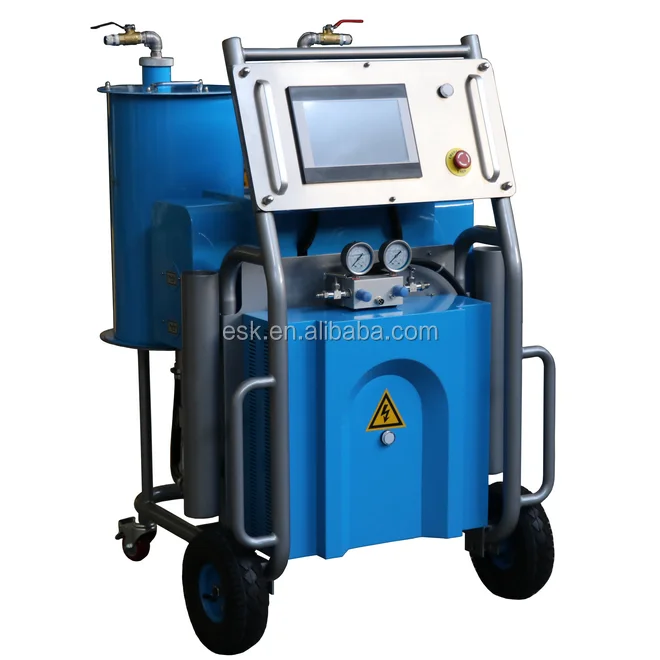

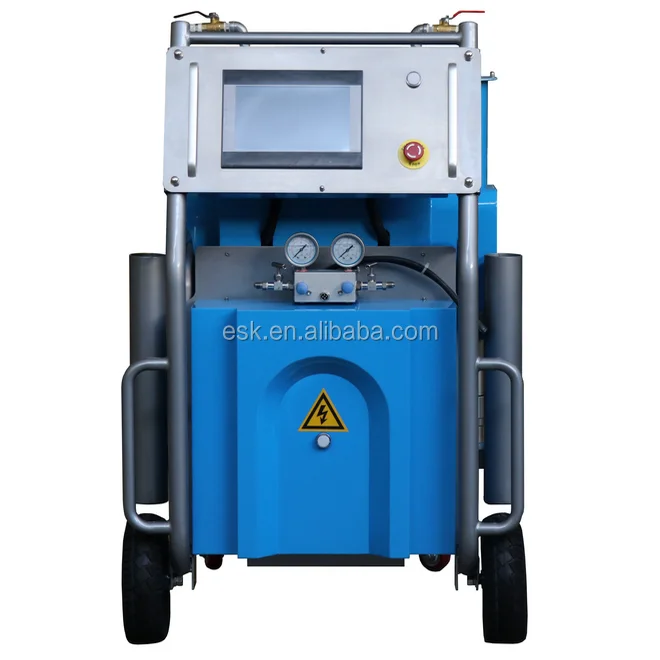

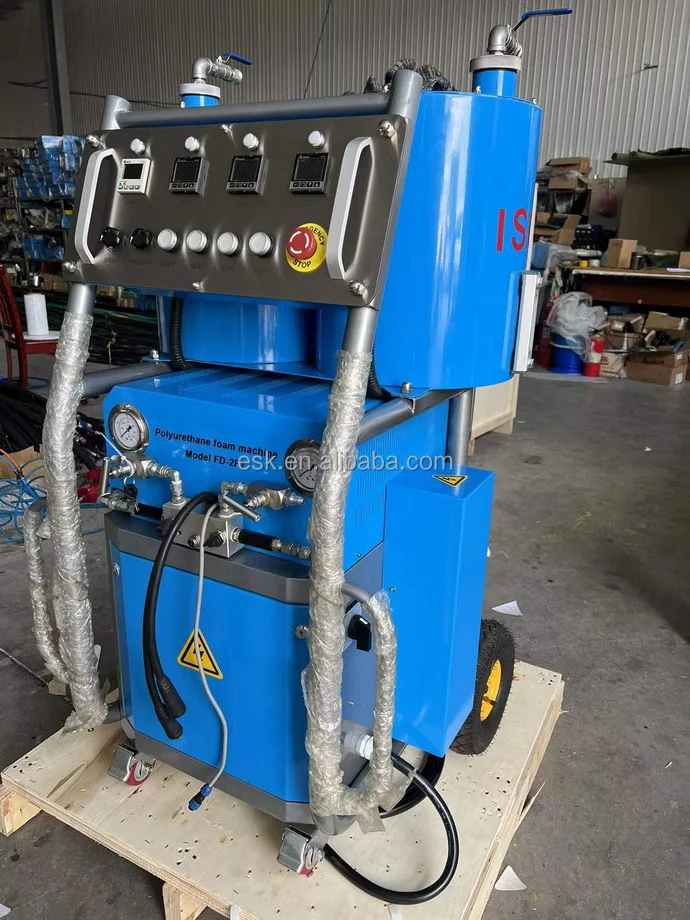

high pressure polyurea spray coating machine FD 2F for waterproofing
- Category: >>>
- Supplier: Taian E.S.K. International Co. Ltd.
Share on (62045347522):
Product Overview
Description
Product Description
Polyurea spray foaming machine used for:
- Polyurea spraying foam
- polyurea coating
- Waterproof, anti corrosive and wear resistant subject spray coating
Advantage:
· portable compact design, can move everywhere easy.
· electricity driven guarantee more steady pressure and output.
· Energy saving 30% than others, only 12000w whole equiment
· high efficiency 12kg output capacity per minute
· high pressure heat hose can up to 90 meters long

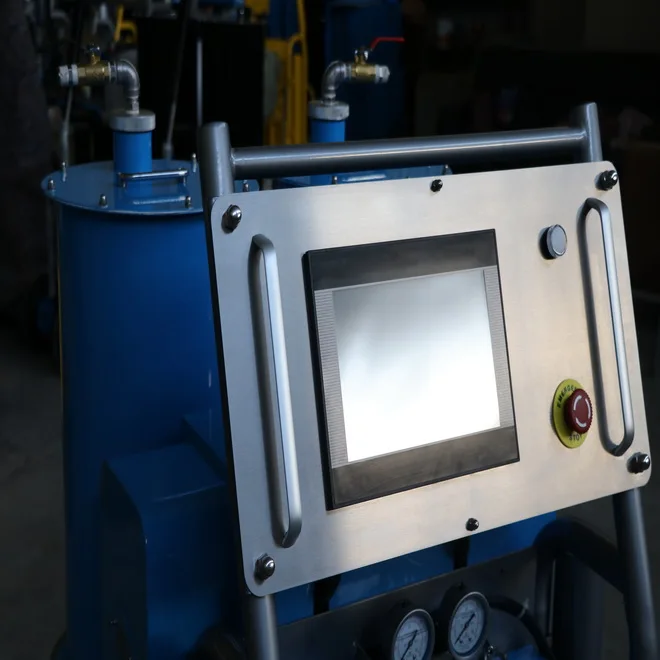

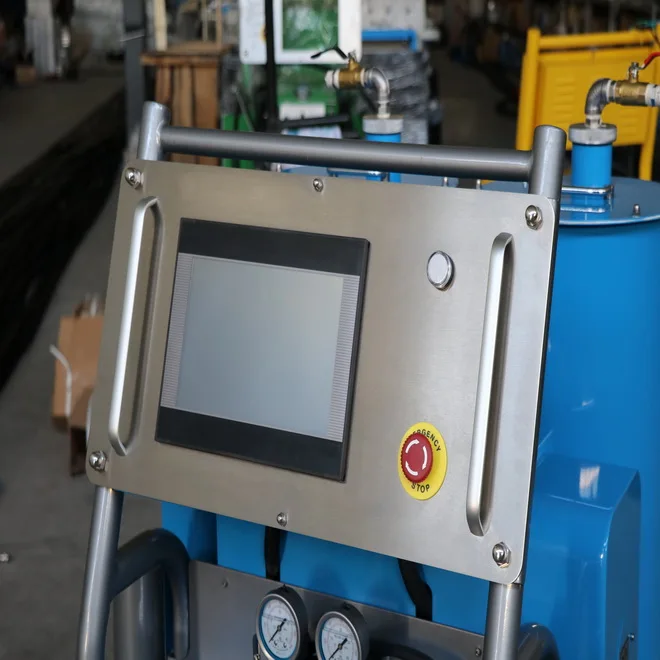

· Diugital Computer operation system easy setting
Technical data:
Item | FD-2F Polyurea spray foaming machine. |
Price term | FOB QINGDAO USD |
Terms of Payment | 100% T/T in advance. |
MOQ | 1 set. |
Delivery time | Within 20 days after receipt of your T/T payment. |
Warranty | 18 months. |
Standard configuration | Proportion Fixed Mainframe 1 set |
Self-cleaning foaming gun 1 set | |
40L material steel drum 2 sets | |
Heating hose 49.2 feet (15m) | |
Connecting hose from feeding pump to machine 10 feet(3m) | |
Connecting hose from heating hose to gun 5 feet(1.5m) | |
Rings and Tools | |
Technical Data | The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Max working pressure 23 MPa (230 bar) | |
Max fluid temperature 88°C (190°F) | |
Max output 12kg/min (27 lb/min) | |
Heater power 4500W each one | |
Heating hose power 1000W/15m | |
Whole power 12000W | |
Voltage 230V /400V 3-ph | |
Operate temperature 0°C-70°C | |
Clean mode Self-clean by air | |
Max heating hose length 300 feet (90m) | |
Pneumatic source 0.2Mpa | |
machine size 804mm*842mm*1230mm | |
Net weight 220kgs/ Gross weight 284KG |

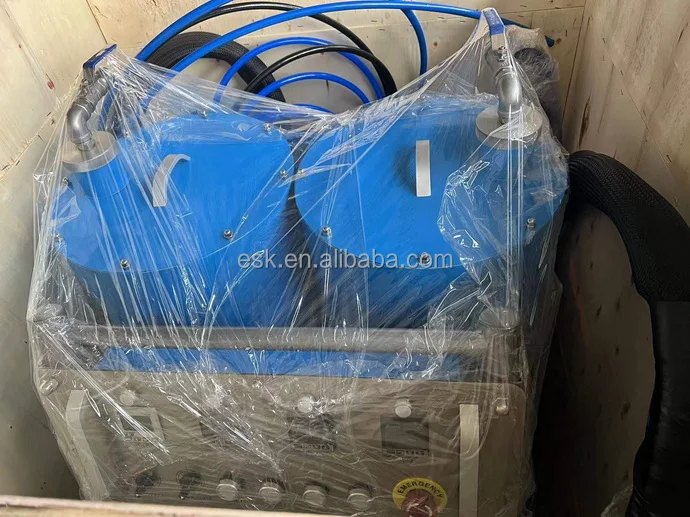

Packaging & Shipping
Our Services

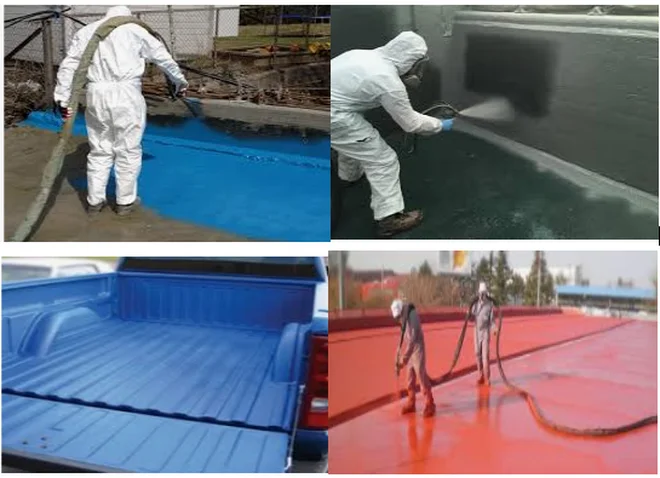

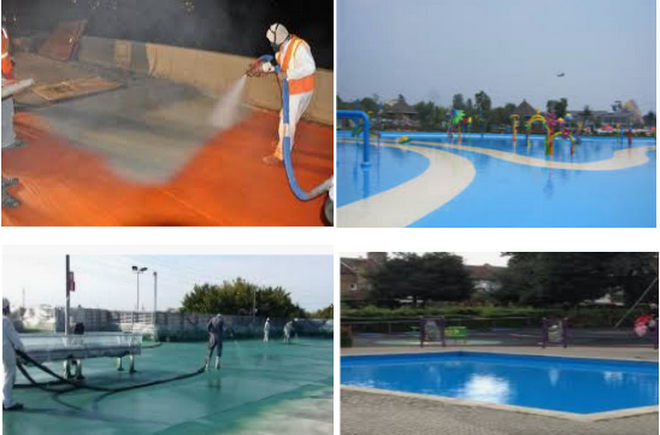

APPLICATION SCOPE

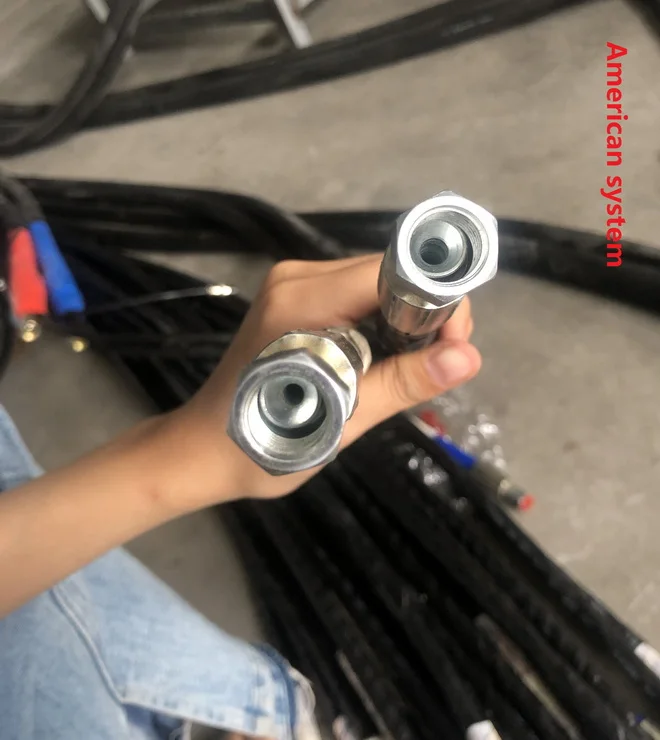

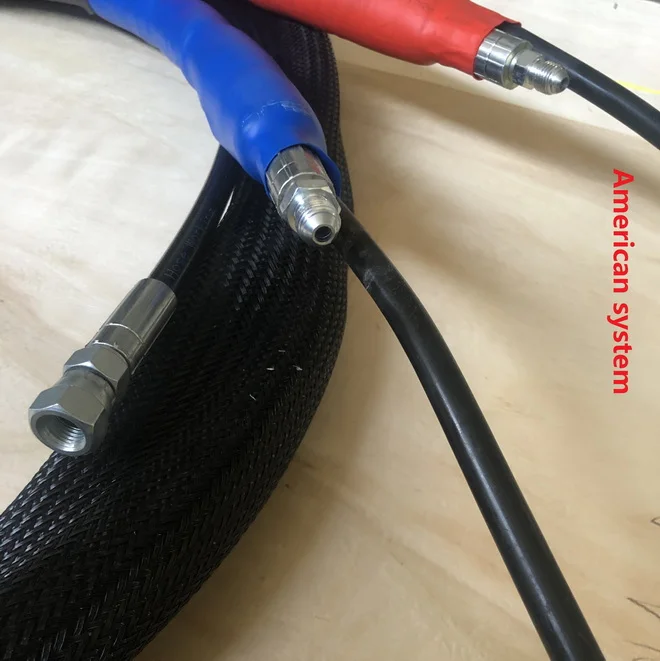

CONNECTING HOSE

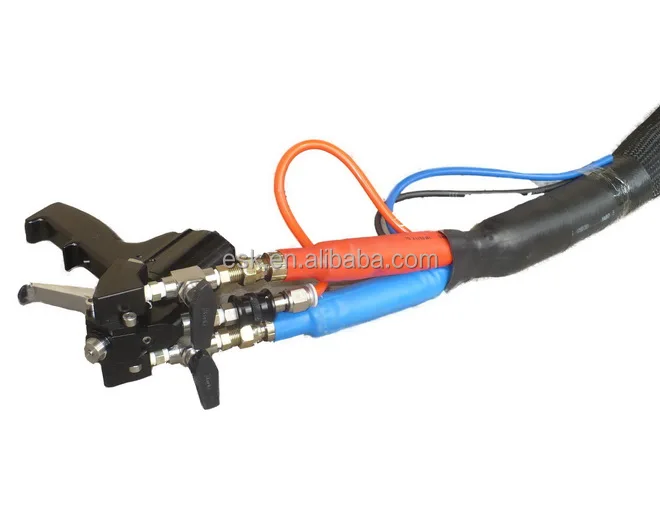

SPRAY GUN

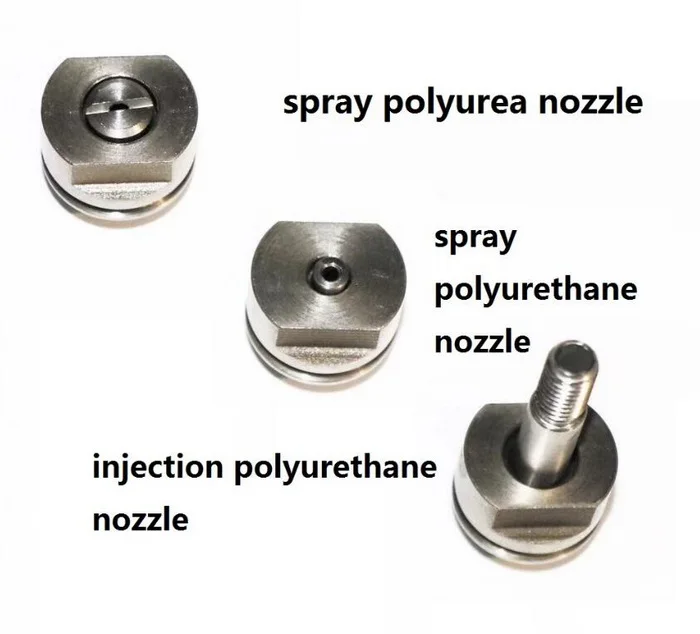

SPARE PARTS FREE
Company Information
FAQ
Q: what is warranty time ?
A: 18 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 20 days
Q: what is your minimum order ?
A: 1 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.
