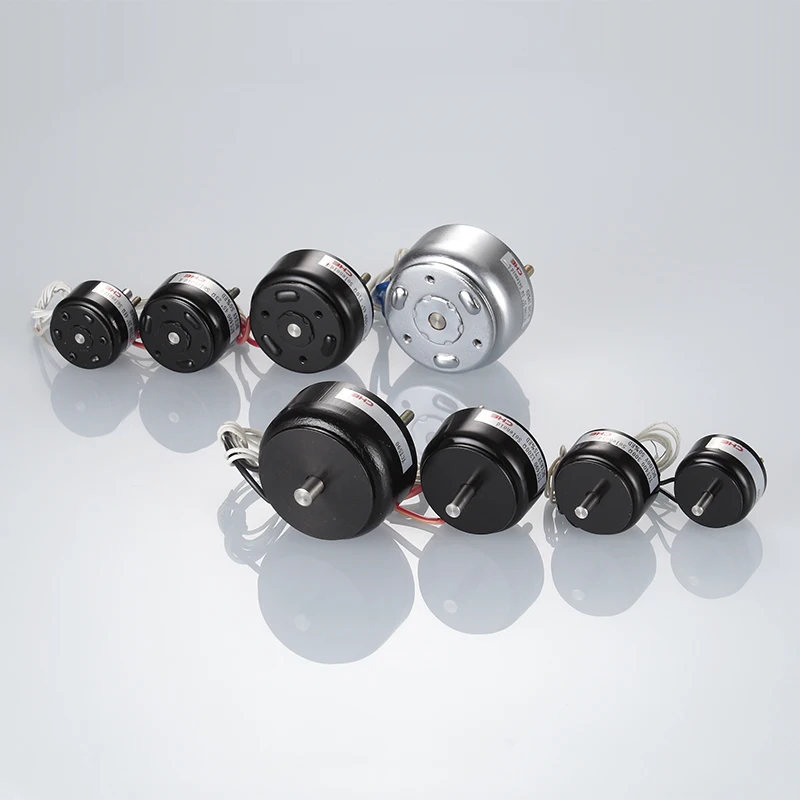

SXCT38 15/18 6ohm DC Bistable вращающийся Электромагнит

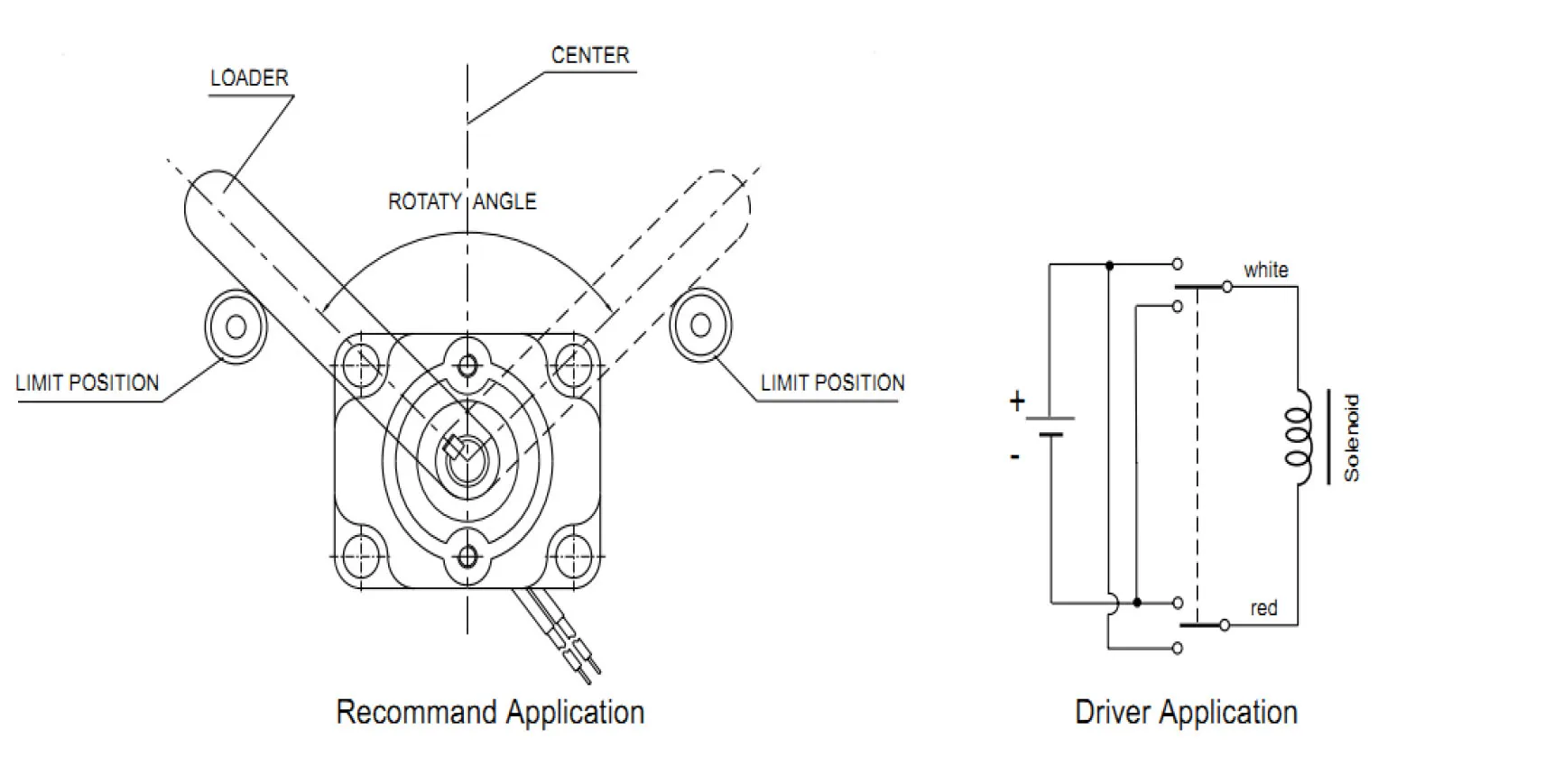

Bi-stable rotary solenoid (also called bi-stable rotation angle motor) in performance covers the main function of rotating solenoid and bi-stable self holding solenoid. Due to the high performance permanent magnet and the grain orientation high silicon steel as main material of magnetic circuit, the coil winding adopts pass through winding type, make the main characteristic of the electromagnet parameter "number of ampere turns" and "magnetic power" in the best condition, when the coil is electrified, the shaft core can immediately produce rotation displacement, after power off, in the effect of magnetic field of permanent magnet, can keep the shaft core at the position of after electric displacement without the need for power input. Rotation and reset is drived by the forward and reverse pulse power supply.

Bi-stable rotary solenoid can make the shaft core remain at the beginning and the end of the stroke in two different positions, and two different positions with the equal output torque (with bi-stable characteristics). So compared with similar size rotating solenoid, with large rotation angle (action angle can reach 100°), bidirectional rotation (left and right, can be), fast response time, electricity saving, small temperature rise, big power and other significant characteristics.

  Wenzhou CHEN Intelligent Technology Co., Ltd is a manufacturer of solenoid, timer, kwh meter, fuse base, ac contactor, circuit breaker, sensor, switch and so on with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in automatic control system, industrial automation control, office automation, medical equipment and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

1. Q : Can I get some samples?

      A : Yes. But you have to pay the samples and the express cost.

2 . Q : How about your delivery time?

      A : Generally, we have standard models  in stock and will arrange delivery to you as soon as possible. The specific delivery time depends on the items and the quantity of your order. ( Within 30 days )

3 . Q : Is it possible to customize the product?

      A : Yes. Customize according to your needs or produce by your samples.

4 . Q : What's the payment terms?

      A : 100% payment in advance for customized products,

            30% in advance, 70% before shipment for standard models. (Could be negotiated )
