CZJB 90T лучший 36v 350w электрический велосипед, электрический Байк велосипед, моторный конверсионный набор
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (62045436694):
Product Overview
Description
Product Description
Rated Voltage(V) | 24v/36v/48v |
Rated Power(W) | 180w-350w |
Wheel Size | 16''-28'' |
Rated Speed(km/h) | 25km/h |
Rated Efficiency (%) | >82% |
Reduction Ratio | 1:5.2 |
Weight (Kg) | 3kg |
Open Size(mm) | 137mm |
Drive and Freewheel | 6-7s |
Cable Location | Shaft Center Right |
Spoke Specification | 36H*12g/13g |
Hall Sensor/speed sensor | has |
Surface | Black/Silver/Shining |
Brake Type | V brake/Disc |
Salt Fog Test(h) | 24/96 |
Noise(db) | <55db |
Waterproof Grade | IP65 |
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.

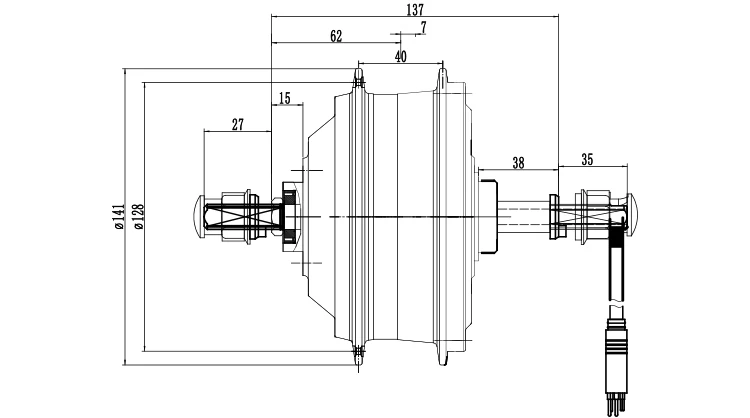

Installation specifications:
Our Advantages

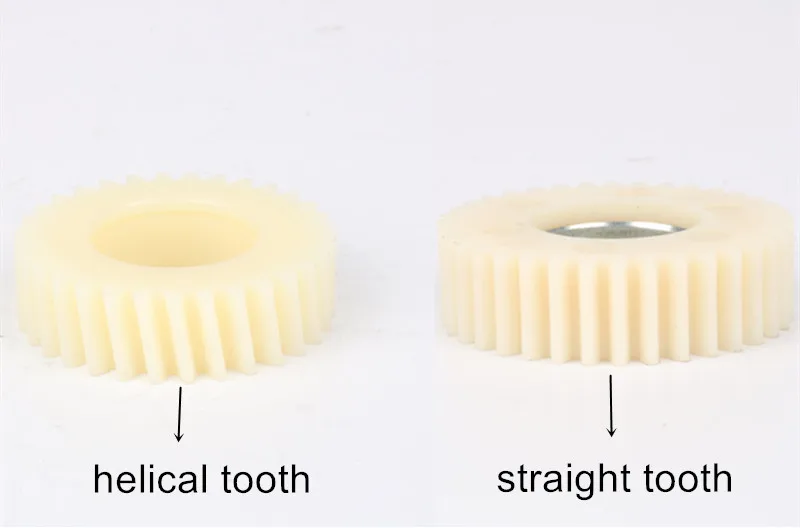

Why we use helical tooth instead of straight tooth ?
1.Use Helical tooth which can effective for reduce the gear friction
2.When we are climbing,riding motivation is better than useing straight tooth
Product Application
