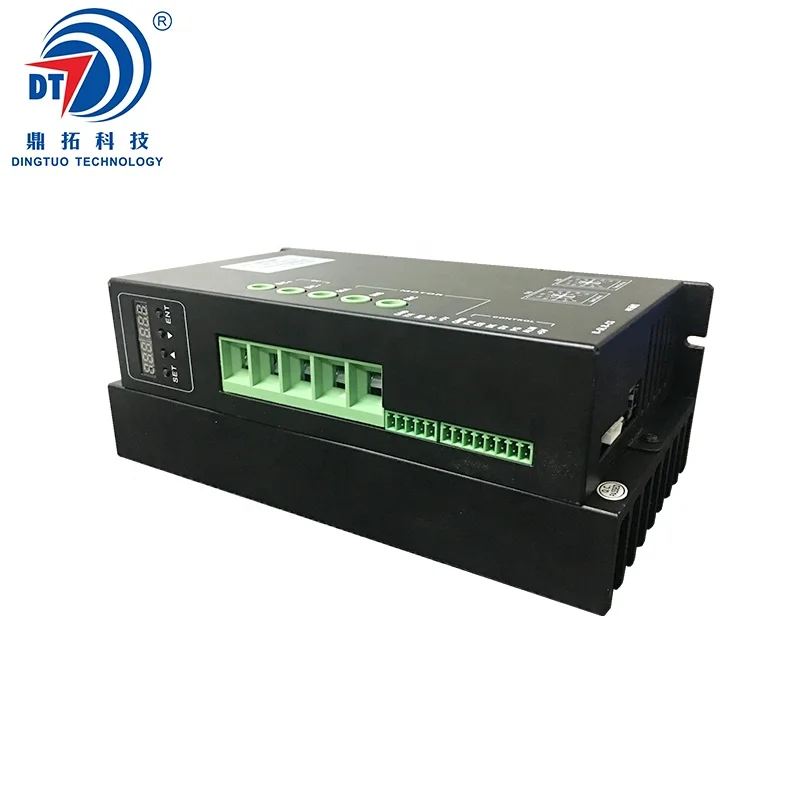

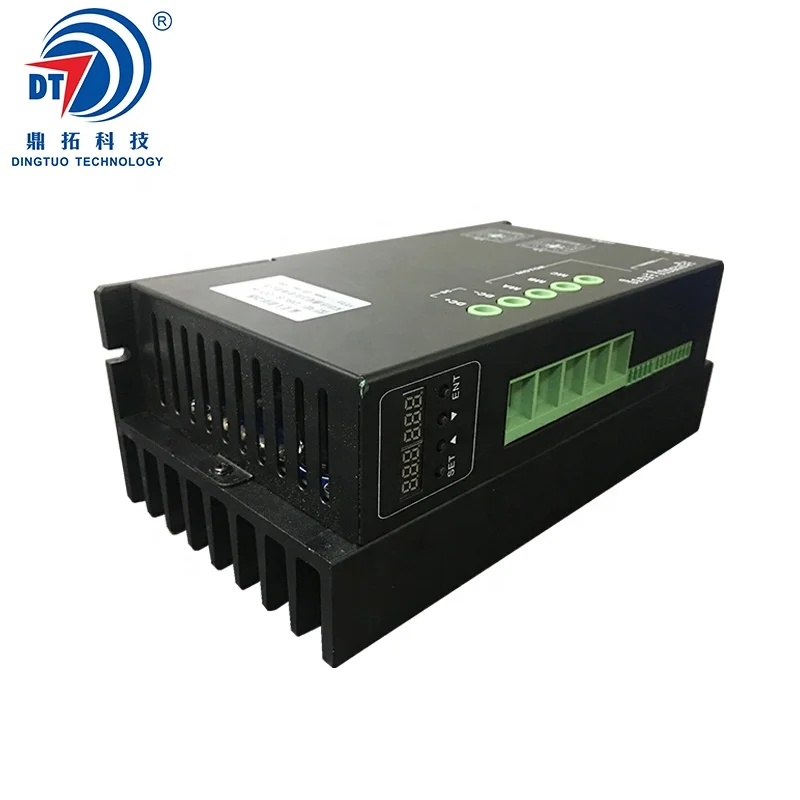

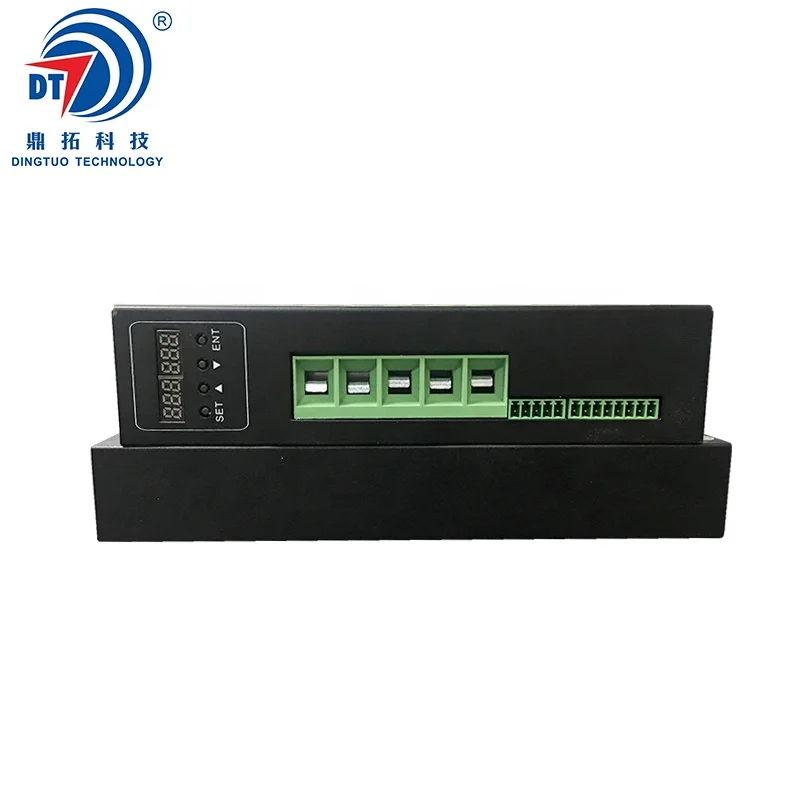

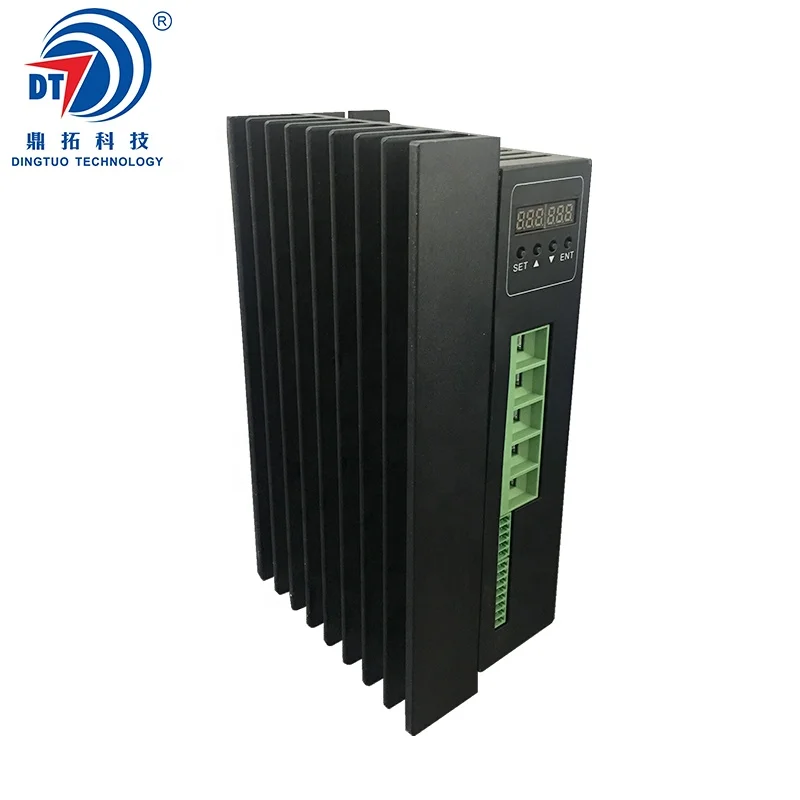

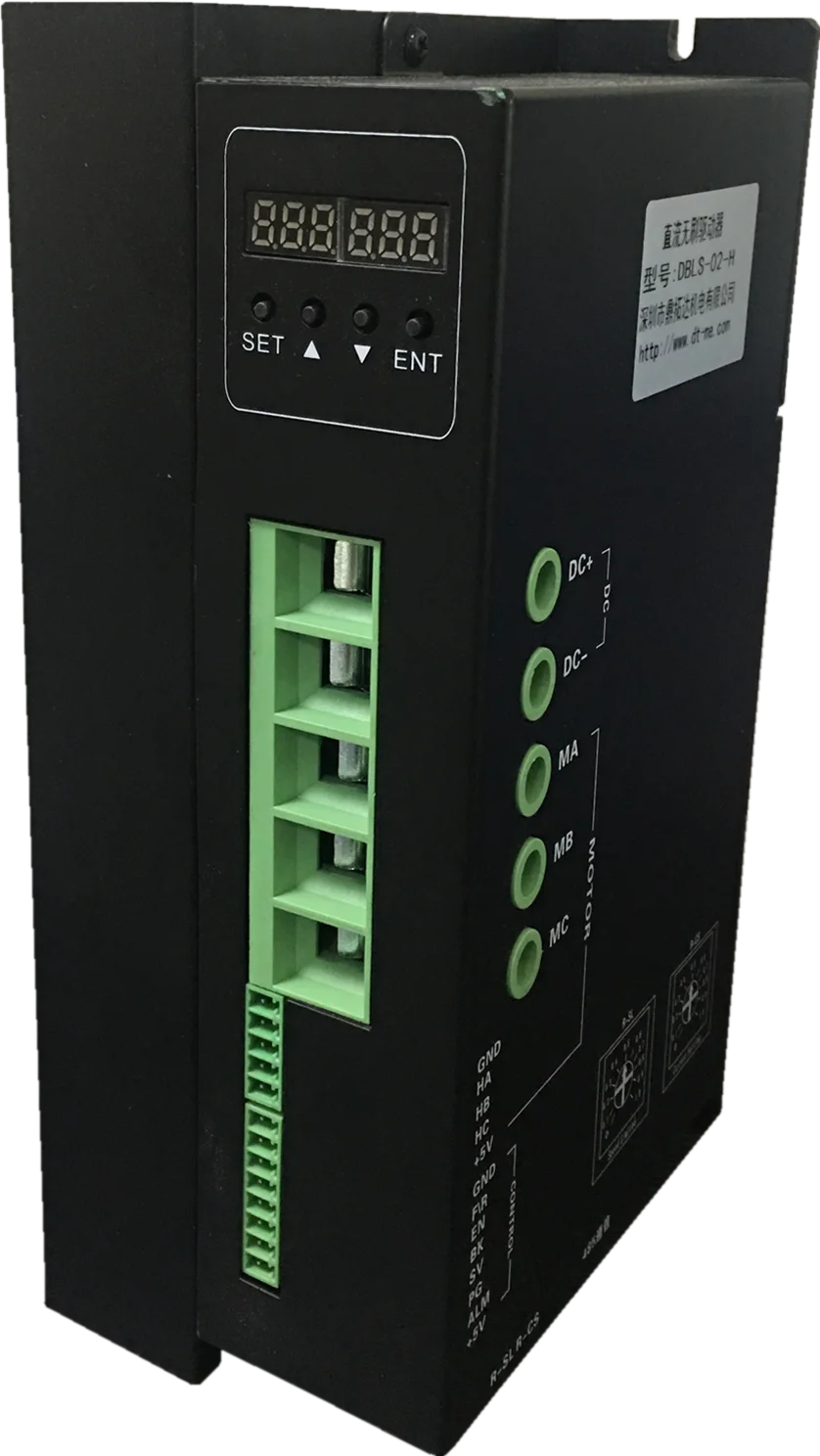

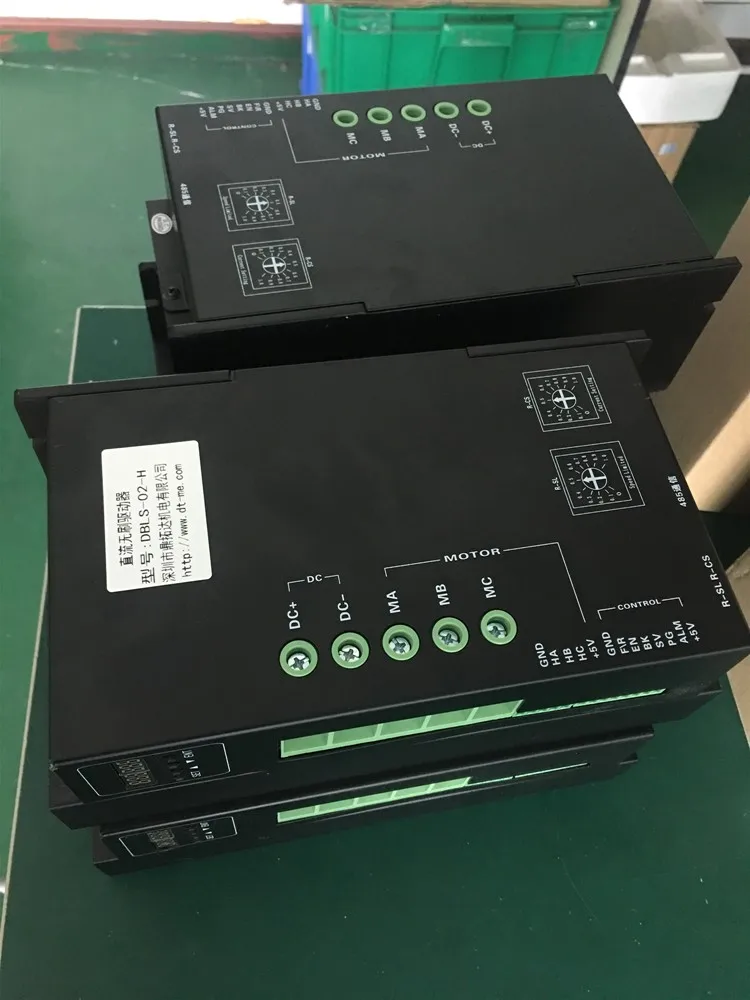

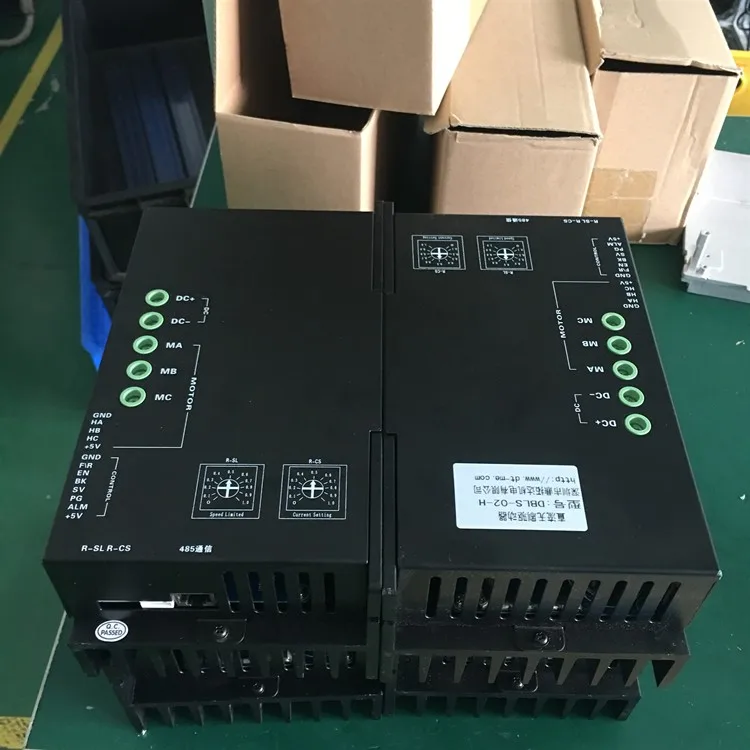

50A 1500W Brushless DC Motor Motor Type and Black Color DC Motor Speed Controller

50A 1500W Brushless DC Motor Motor Type and Black Color DC Motor Speed Controller

Summary

DBLS-02-H BLDC motor driver is designed by Dingtuo Technology independence which is assorted with the advanced motion control industrial. It is suitable for BLDC motor with the power under 400W. The driver adopts the latest high performance digital logic chips specialized for brushless motors, has the advantage on high integration, small volume, well protection, high reliability etc. The driver uses a new type of PWM technology that enable the motor running high speed, small vibration, low noise, good stability and high reliability.

Product Characteristic

System Characteristic

Input voltage: 24~48VDC. (Under the power<1500W)

When 24VDC input, Max.continuous current 75A

When 48VDC input, Max. Current 50A

Low voltage protection: 10VDC2

Over voltage protection: 60VDC2

Working temp.: 0~+45°C

Storage temp.: -20~+85°C

Working & storage humidity: <85% (no frosting)

Structure: wall-mountable box type

Cooling: Radiator

Control terminals: Isolation

Protection: Over load, over heat, over speed, over voltage, lost voltage, power abnormal.

Panel: 6 digit LED display, 4 digit keypad operation

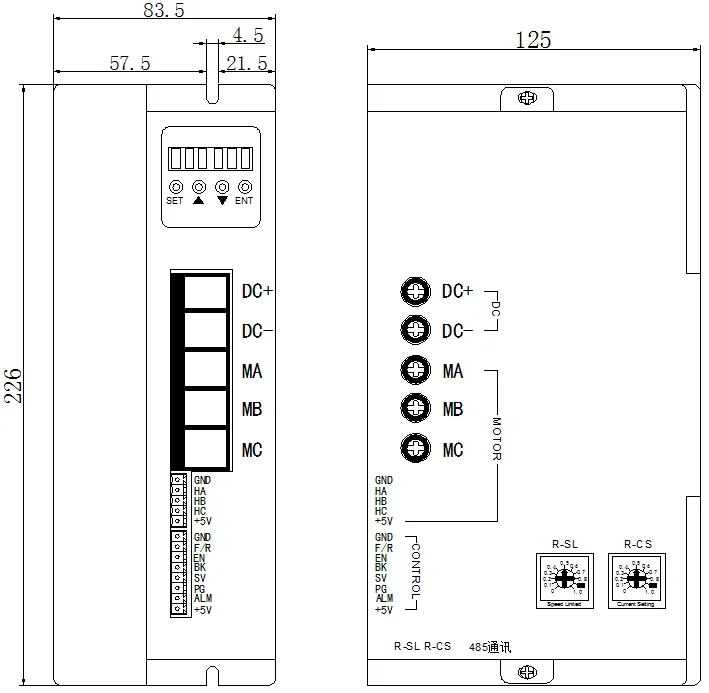

Terminal Connection

Control Terminal

Hall Signal Terminal

Motor Connection Terminal

Connection Diagram of Motor and Driver

Parameter Setting Sequence

Please insure that the motor is under the stop situation when set the parameter. That is, in the case of panel mode, the motor is in the stop state or an external port mode, the motor is enabled to disconnect

1. In standby condition, press "ENTER" to call out the system parameters, press "ENTER" again, it will call out the parameter value.

2. Press "△"or "▽"to the parameter number. Press "SET" to return to standby mode if there is no value need to change.

3. Press "ENTER" to show the parameter setting value. Press "SET" to return to standby mode if there is no need to change value.

4. Press"△"or "▽" to change the value demanded.

5. Press "ENTER" to save the changes, then press "SET" to return to standby mode.

Note: At setting mode, it will return to display interface if there is no press within one minute.

Working Mode

Motor works at two modes. One is the panel mode, the other is external terminal control. The motor runs as the setting, LED digital display shows the speed of motor. Under the panel mode, Press "SET" to start/stop the motor, long press "△"or "▽" to acceleration or deceleration speed, press "ENTER" to insure and know the running speed. The motor runs as setting speed.

Protect Mode

While Motor operates abnormally, display will show ERR×

\t(1) Err-01: motor stall

\t(2) Err-02: over current

\t(3) Err-04: hall fault

\t(4) Err-05: motor stall and hall fault

(5)Err-08: under-voltage

(6)Err-10: over-voltage

(7)Err-20: peak current alarm

(8)Err-40: temperature alarm

Communication wires connection

RS-485 communication can be carried out by using the RJ45 cable connector

The RJ45 connector pins are defined as follows:
