Product Overview

Description


Product Description

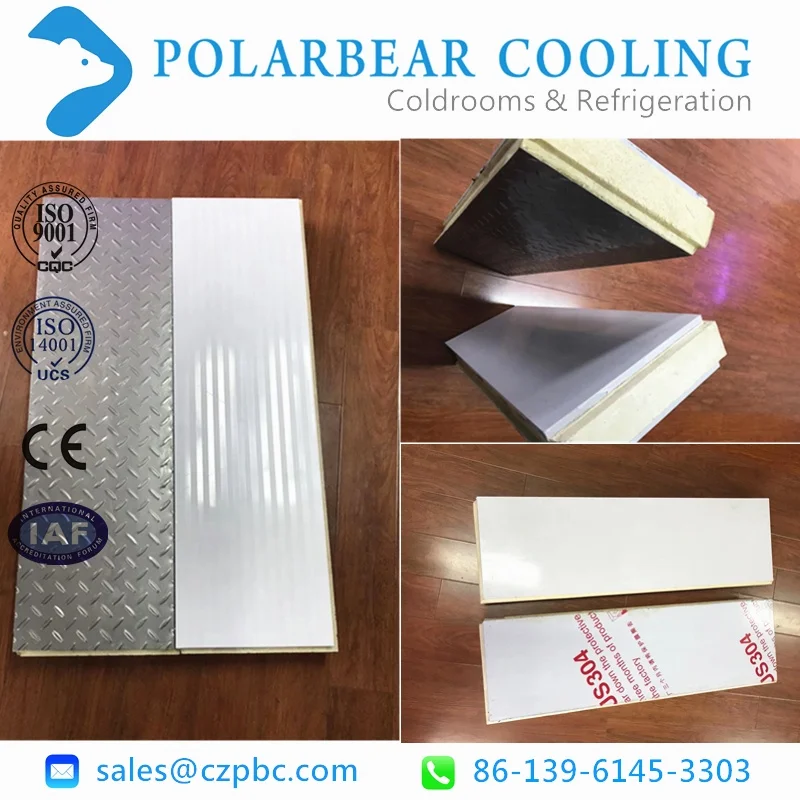

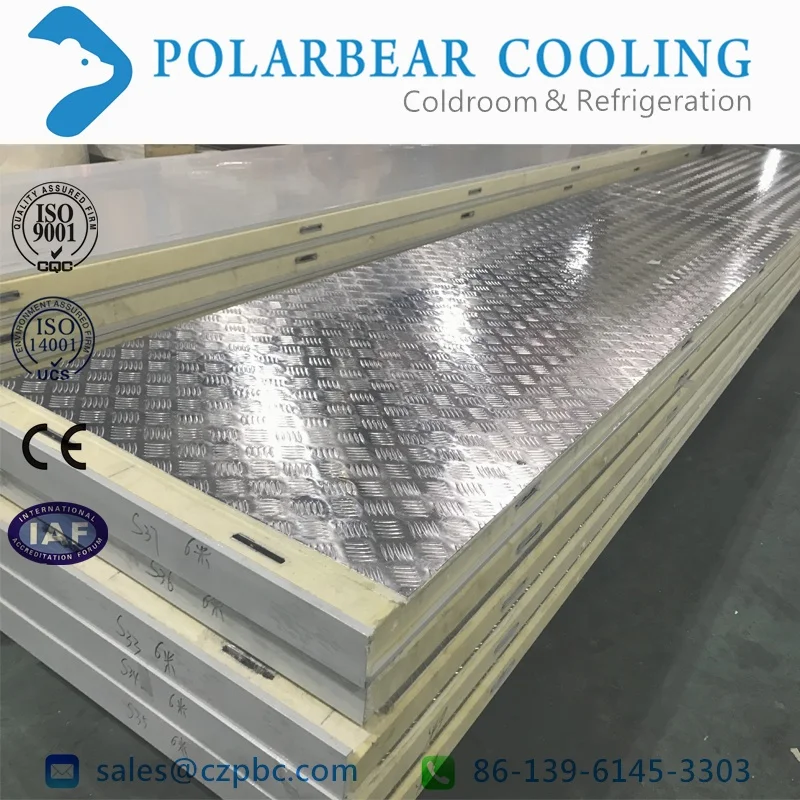

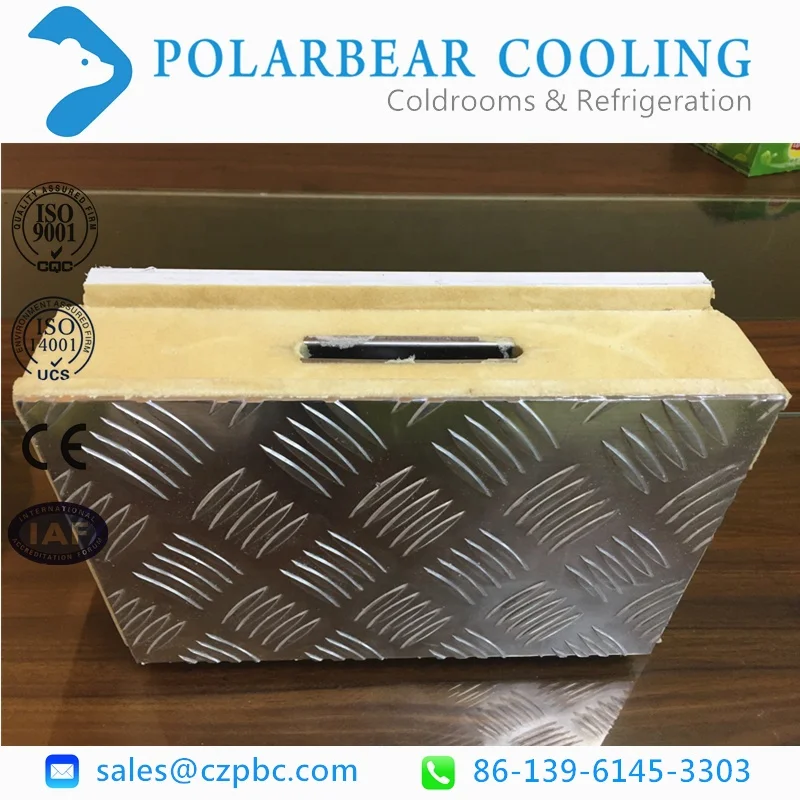

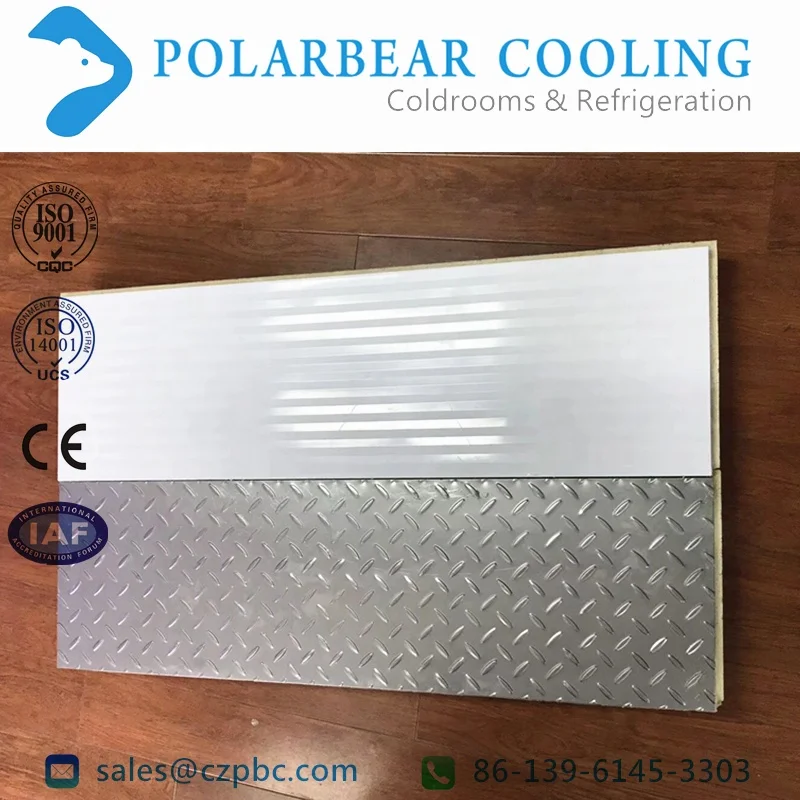

Anti-slip aluminum pu sandwich panel for cold room floor

PU polyurethane sandwich panels usually are using metal sheet as finishing surface, and polyurethane (PU), or polyisocyanate (PUR), or polyisocyanurate (PIR) as core material.

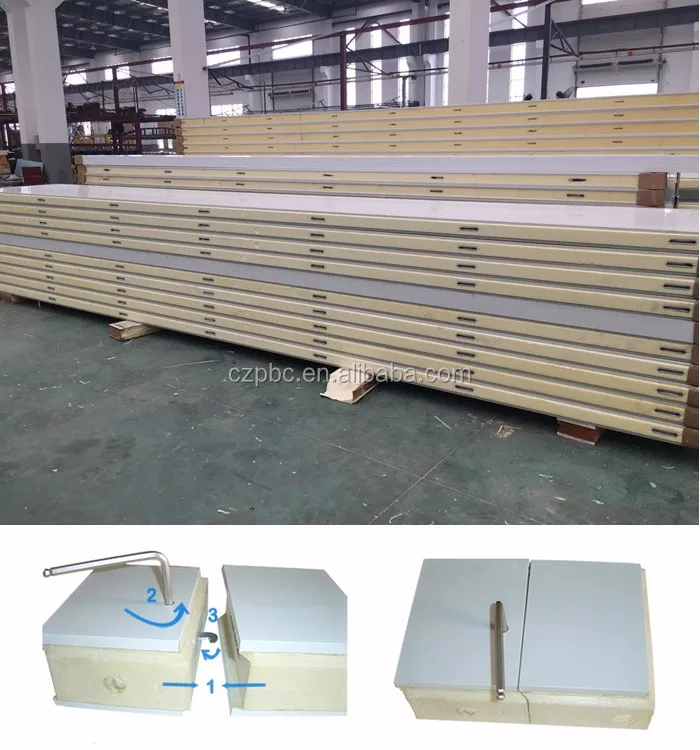

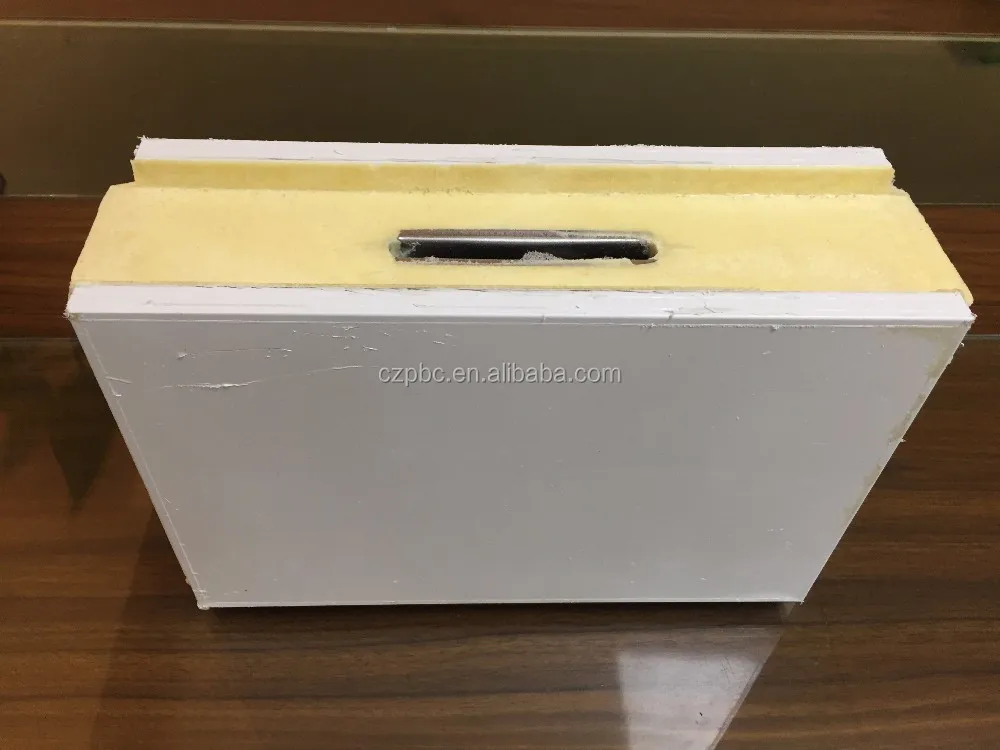

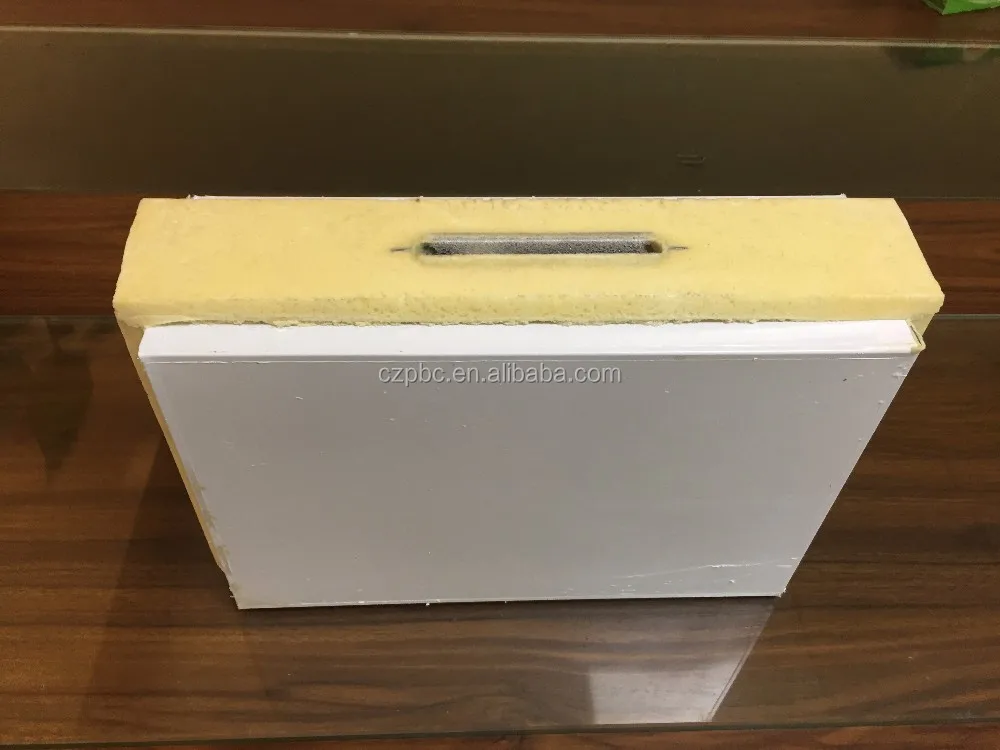

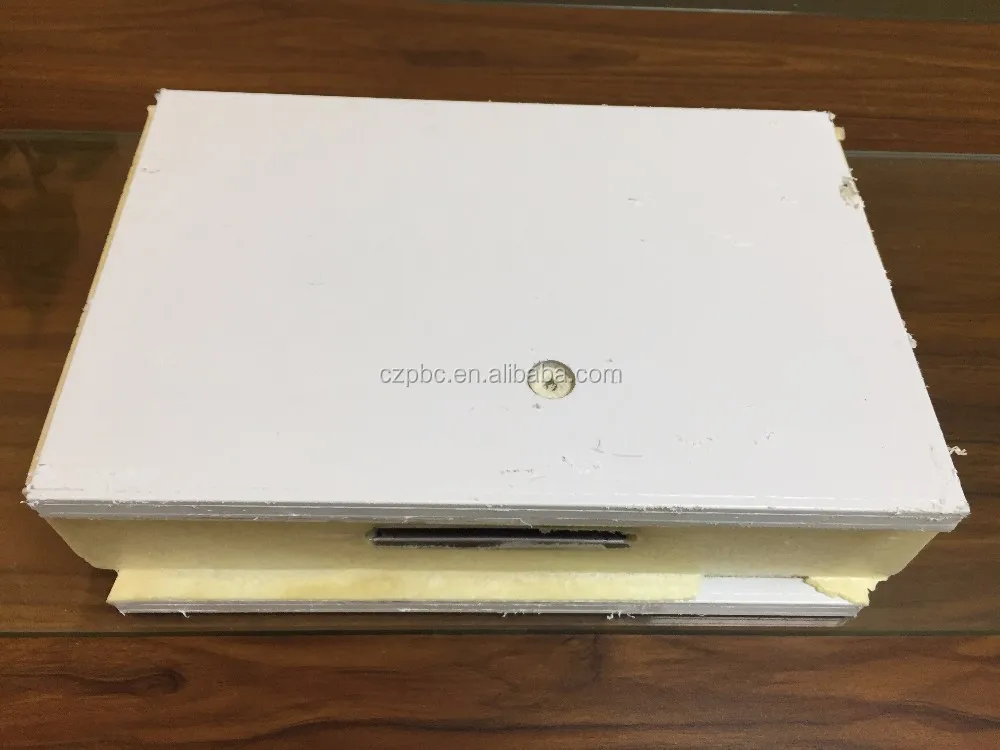

They are locked together by cam-lock on each side of the panels to ensure airtight joints. Cam-lock design can help to install with the cold rooms tightly and strongly.

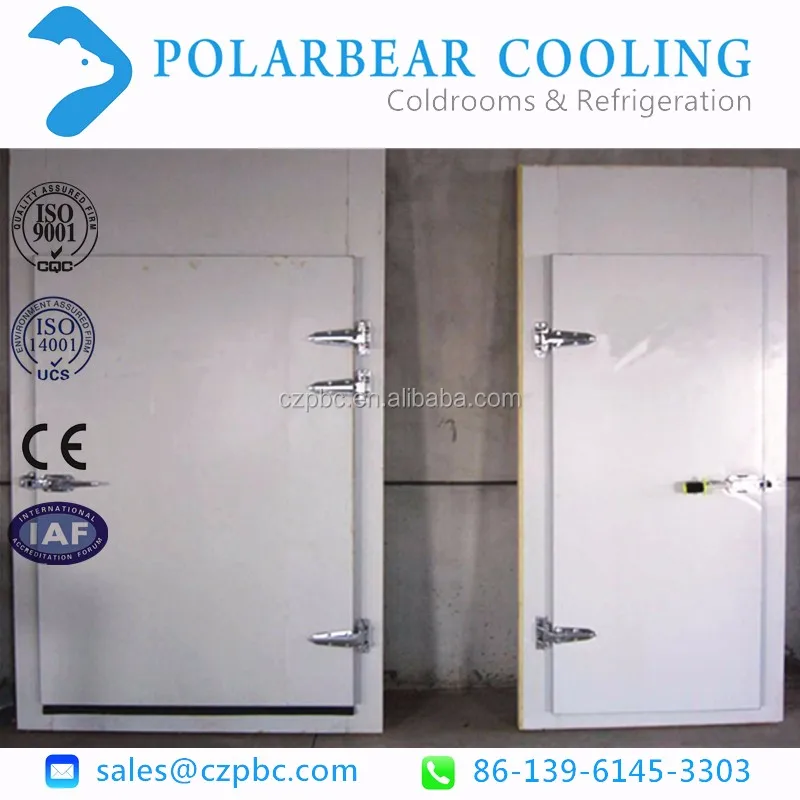

Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the insulated panel for the best refrigeration and frozen storage result.

Main Features

1) Customized design.

2) Fire retardant.

3) Meets safety requirements

4) Energy saving.

5) Longer lifetime.

6) Resistant to termites and rodents.

7) Easy to install – saving cost of installation time • High performance on insulated panel.

Specification
\t
Specification
\t
Width
\t
Standard width 960mm, or customized and maximum 1200mm.
\t
Length
\t
As customers' requirements, maximum 12000mm.
\t
Thickness
\t
50 mm
\t
≥ 15ºC
\t
75 mm
\t
≥ 10ºC
\t
100 mm
\t
≥ -15ºC
\t
150 mm
\t
≥ -25ºC
\t
200 mm
\t
≥ -35ºC
\t
250 mm
\t
≥ -45ºC
\t
The most suitable thickness will be suggested according to the size and temperature requirements, or customers’ requirements.
\t
Surface material
\t
0.3~1mm Color steel sheet(pre-painted iron sheet)

\t
0.4~1mm stainless steel sheet
\t
0.5~3mm aluminum sheet
\t
0.5~2mm galvanized steel sheet
\t
Core material
\t
PU(polyurethane ) / PUR(polyisocyanate ) / PIR(polyisocyanurate)
\t
Joint system
\t
Cam lock, tongue & groove, hook & pin
\t
Technical Standard
\t
Core material
\t
PU
\t
PUR
\t
PIR
\t
Density
\t
40±2 kg/m3
\t
40±2 kg/m3
\t
45±2 kg/m3
\t
Heat Conductivity
\t
≤0.024 W/m. k
\t
≤0.024 W/m. k
\t
≤0.022 W/m. k
\t
Compressive Strength
\t
≥150 N/cm2
\t
≥150 N/cm2
\t
≥160 N/cm2
\t
Combustion performance
\t
B2 grade
\t
B2 grade
\t
B1 grade
\t
The bond strength between sandwich core layer and panel
\t
＞0.1
\t
＞0.1
\t
＞0.1

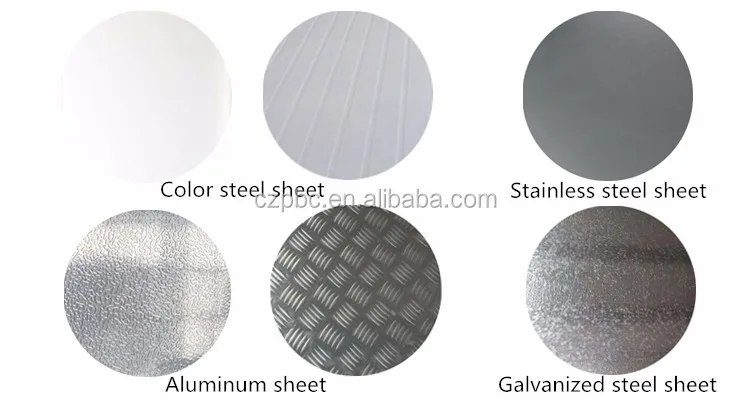

Panel surface

1. Regular surface metal: Color steel sheet / stainless steel sheet  /aluminum sheet / galvanized steel sheet.

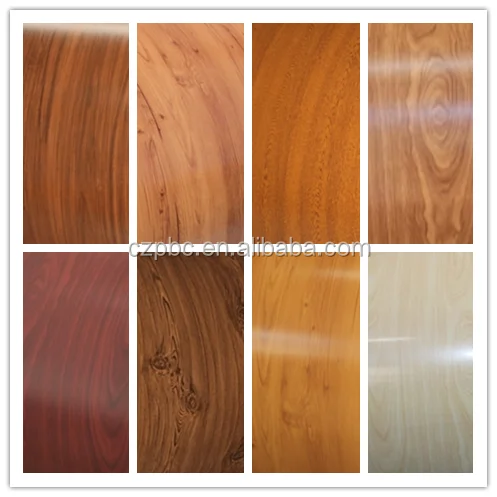

2. Other beautiful / customzied surface of color steel sheet.

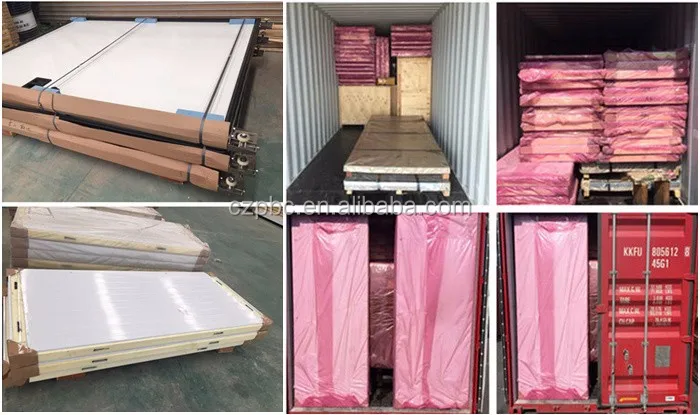

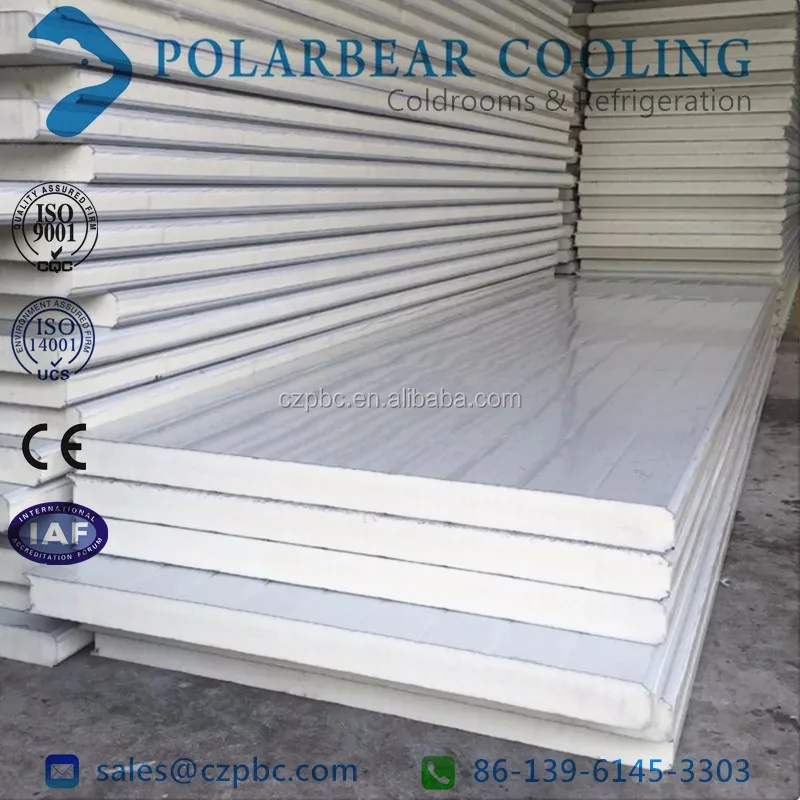

Packing & Delivery

Packaging Details.

1) Free packing (with normal pallet and packing belt).


2) Standard exporting packing (wrapped with plastic thin film, wedge protect and good pallet or as customer’ requirements).

Delivery time.

1) Off season lead time: 7days.


2) Peak season lead time: 15days.

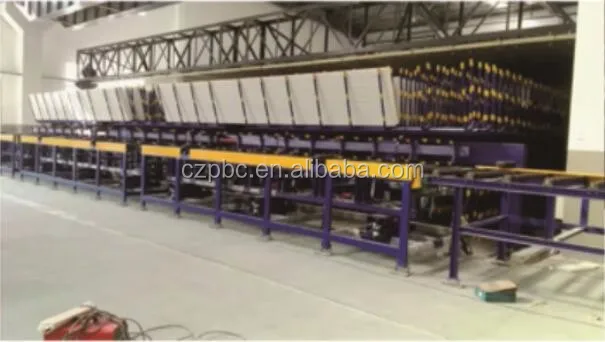

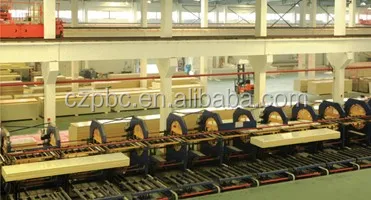

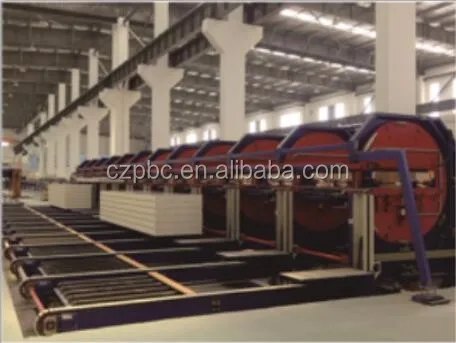

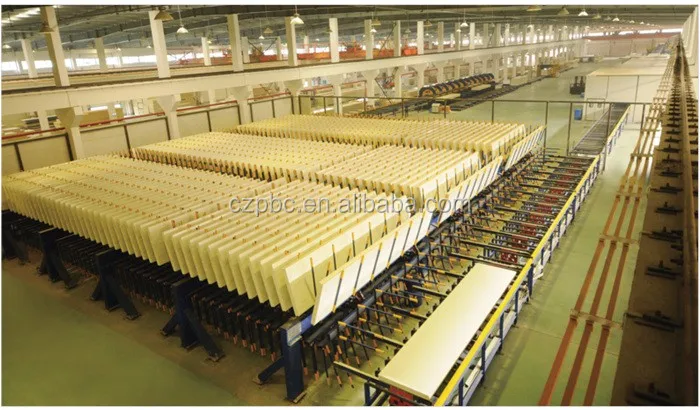

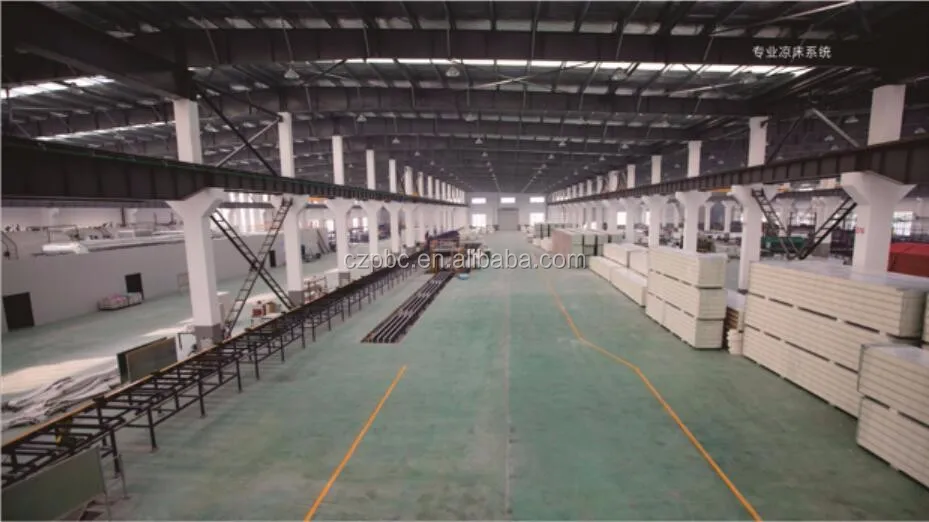

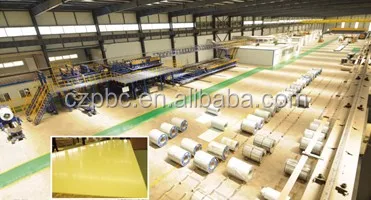

Production flow

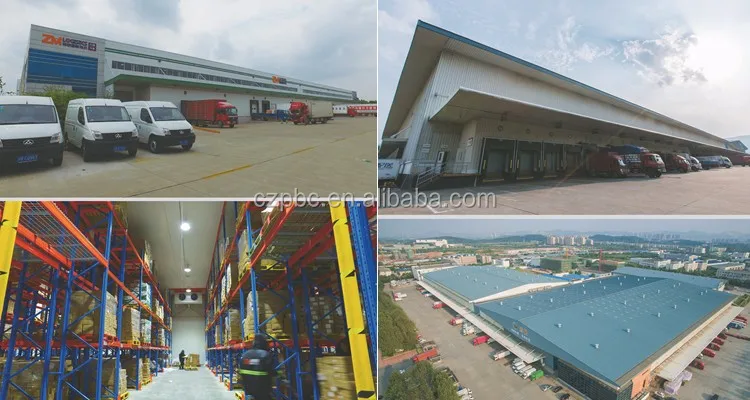

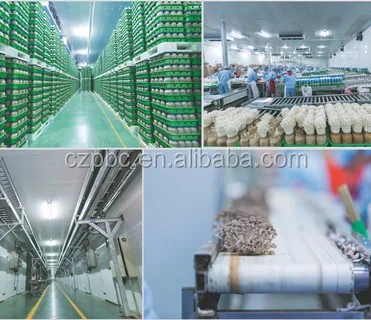

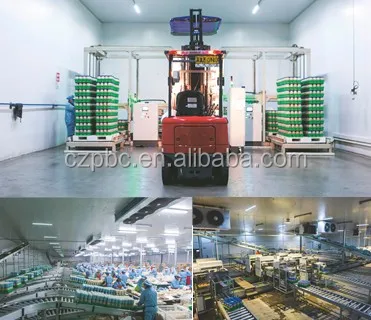

Case display
