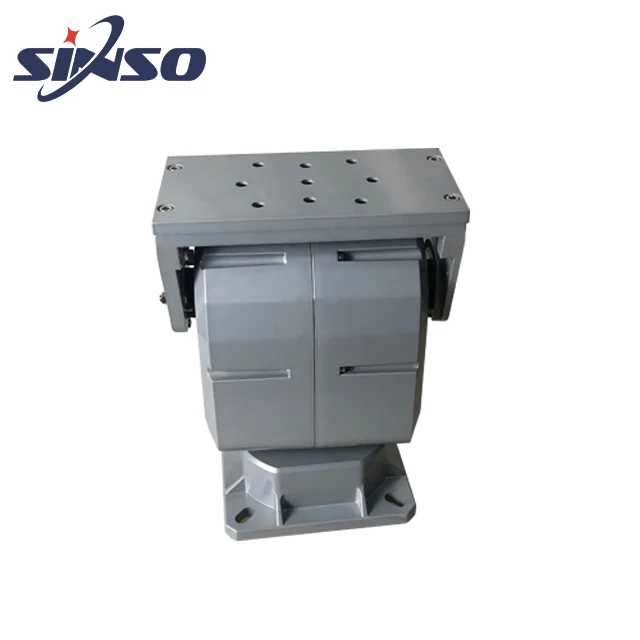

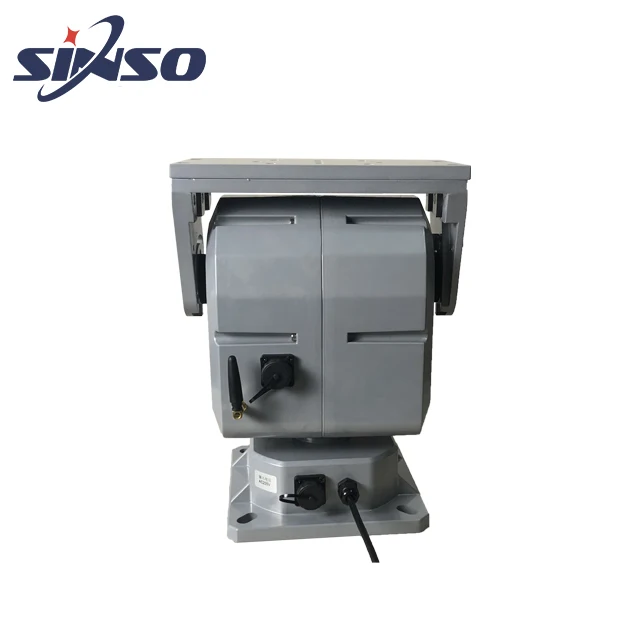

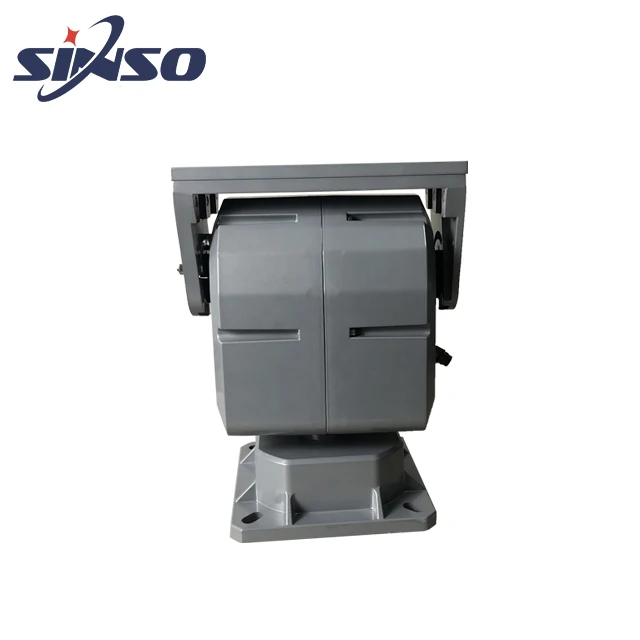

Sinso indoor/outdoor RS485 cctv motor pan tilt 12VDC 24VDC motorized pan tilt head
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (62045544627):
Product Overview
Description
Products Description
Function:
1)Automatic cruise: vertical ,horizontal,vertical and horizontal automatic rotation
2)Three gears of high, medium and low switching in vertical ,horizontal
3)Memory function:remember the cruise mode and speed settings before turn off
4)Time Switch:Automatic off/on and automatic running with control switch,achieve unattended
Feature:
· AC220V or DC12V /DC24V power supply
· A specially designed worm gear, waterproof,
· High-efficiency motor, runs smooth
· Built-in stability device to overcome the shortcomings of the vertical rotation and natural droop
· Pan tilt with excellent anti-aging and anti-corrosion material make it applicable to a variety of climatic conditions
1)Automatic cruise: vertical ,horizontal,vertical and horizontal automatic rotation
2)Three gears of high, medium and low switching in vertical ,horizontal
3)Memory function:remember the cruise mode and speed settings before turn off
4)Time Switch:Automatic off/on and automatic running with control switch,achieve unattended
Feature:
· AC220V or DC12V /DC24V power supply
· A specially designed worm gear, waterproof,
· High-efficiency motor, runs smooth
· Built-in stability device to overcome the shortcomings of the vertical rotation and natural droop
· Pan tilt with excellent anti-aging and anti-corrosion material make it applicable to a variety of climatic conditions
remote control
wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M ,
adjustment in 4 directions and to be
able to adjust the direction of freedom
adjustment in 4 directions and to be
able to adjust the direction of freedom
Keyboard control
One keyboard can be control up to 10 pan tilts, One/multiple keyboard for one /multiple pan tilts
Control range up to 1200 Meters,keyboard with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom
Control range up to 1200 Meters,keyboard with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom
Software control
RS485 interface,PELCO-D,9600bps one software can control multiple pan tilts
pan tilt with 8 directions adjustment
,autocruise,speed adjustment,8 presets
software can be offer for free
pan tilt with 8 directions adjustment
,autocruise,speed adjustment,8 presets
software can be offer for free
Auto Cruise/Variable Speed Function
Autocruise Function:pan tilt reciprocating motion during limits,there are three cruise modes for auto cruise function :horizontal
mode,vertical mode,horizontal vertical mode.
Three speed adjustment:Arbitrary switching High speed, Medium speed,low speed.
H:pan:30°/sec, tilt:10°/s,
M:pan:16°/sec,tilt:5°/s,
L:pan:10°/sec, tilt: 3°/s
mode,vertical mode,horizontal vertical mode.
Three speed adjustment:Arbitrary switching High speed, Medium speed,low speed.
H:pan:30°/sec, tilt:10°/s,
M:pan:16°/sec,tilt:5°/s,
L:pan:10°/sec, tilt: 3°/s
Preset/Auto Scan/Guard Function
Guard Function:pan tilt automatically to guard protected position after power on Preset function:One-click Move to main area,
quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control Auto Scan(keyboard):stop and
cruise between the presets ,residence time can be set
quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control Auto Scan(keyboard):stop and
cruise between the presets ,residence time can be set
Material
IP66 protection grade,waterproof and dustproof,No fear of sun and rain;Aluminum material,stable and durable
limits in horizontal is and vertical is Photoelectric positioning and mechanical limi one vertical,So the rotation range can be adjusted
limits in horizontal is and vertical is Photoelectric positioning and mechanical limi one vertical,So the rotation range can be adjusted
Product Paramenters
Item NO. | SN-3025FB-B |
Payload | 8Kg |
Control mode | wireless remote+ RS485+wired keyboard |
Control range | remote:50~100M,RS485/keyboard:1200M |
Input Voltage | 12VDC,24VDC,220VAC, custom made also acceptable |
Rotation angle | Pan:360°,continuous;Tilt:±45° |
Rotation speed | Pan:0~30°/s，Tilt:0~10°s |
IP rate | IP66 |
Weight | 6.7Kg |
Dimension | 290(H)*181(W)*235(L)mm |
Lifespan | 20000h |
Working tempreture | Normal version:-10℃~+50℃ ,Heat version: -30℃~+50℃ |
Recommend Products
301 series pan tilt
Load:5kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
303 series pan tilt
Load:5kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Heavy duty pan tilt
Load:10Kg/25kg/45kg Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Application
Application:CCTV camera,Lighting,Laser,Bird Repellent System,Physiotherapy Instrument
Why Choose Us
Trade assurance agreement&5% discount for each week delay delivery time
Free hotel during visiting our factory
we accept small order to check quality&support OEC designs
24H/7D afiter services
we support customers by HD PHOTO & HD VIDEOS to help you grew up
We had the honor to serve some FAMOUS company over the world
Free hotel during visiting our factory
we accept small order to check quality&support OEC designs
24H/7D afiter services
we support customers by HD PHOTO & HD VIDEOS to help you grew up
We had the honor to serve some FAMOUS company over the world
Our Company
A Partner You Can Trust For outdoor security lighting and CCTV pan tilt Fixtures!
Sinso Lighting ltd is a High-tech Enterprise, and has been a R&D and manufacturing leader in outdoor HID xenon lighting and CCTV pan tilt head since 2014. We pride ourselves on manufacturing high-end HID xenon lighting, including jail/border/guard tower lighting, high mast lighting, etc. Through the years, Sinso has won a good reputation with high-quality products and great customer service.
We have professional engineer team which are with long years of R&D experience in surveillance industry. They are always staying at the forefront of surveillance technology, and working closely with the customers throughout the design process to meet varying demands, with innovation and fast response speed. We will continue to excel in the development of innovative and energy saving solutions for our customers.
Sinso Lighting ltd is a High-tech Enterprise, and has been a R&D and manufacturing leader in outdoor HID xenon lighting and CCTV pan tilt head since 2014. We pride ourselves on manufacturing high-end HID xenon lighting, including jail/border/guard tower lighting, high mast lighting, etc. Through the years, Sinso has won a good reputation with high-quality products and great customer service.
We have professional engineer team which are with long years of R&D experience in surveillance industry. They are always staying at the forefront of surveillance technology, and working closely with the customers throughout the design process to meet varying demands, with innovation and fast response speed. We will continue to excel in the development of innovative and energy saving solutions for our customers.
FAQ
Q1. Can I have a sample order for pan tilt?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for pan tilt order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pan tilt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pan tilt product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1year warranty to our products.
