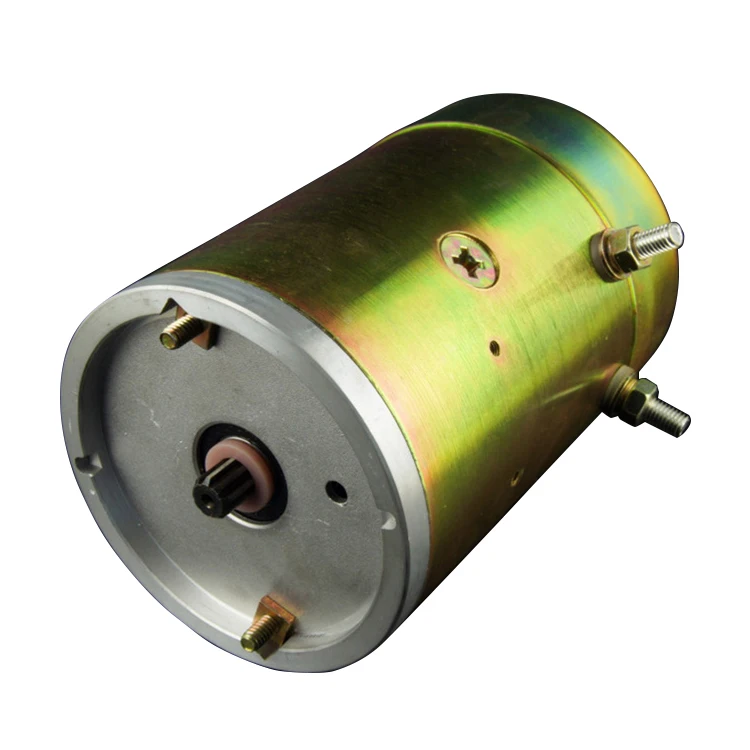

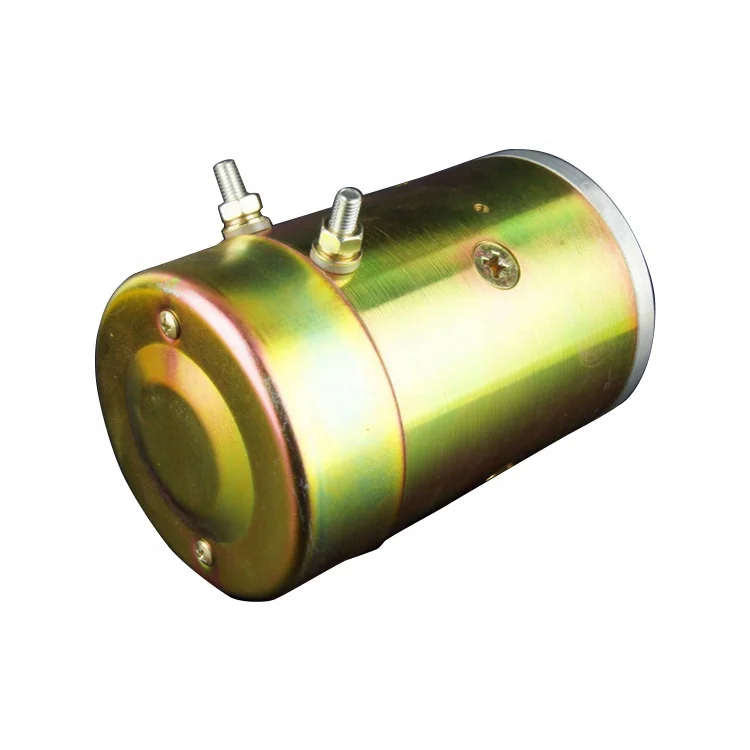

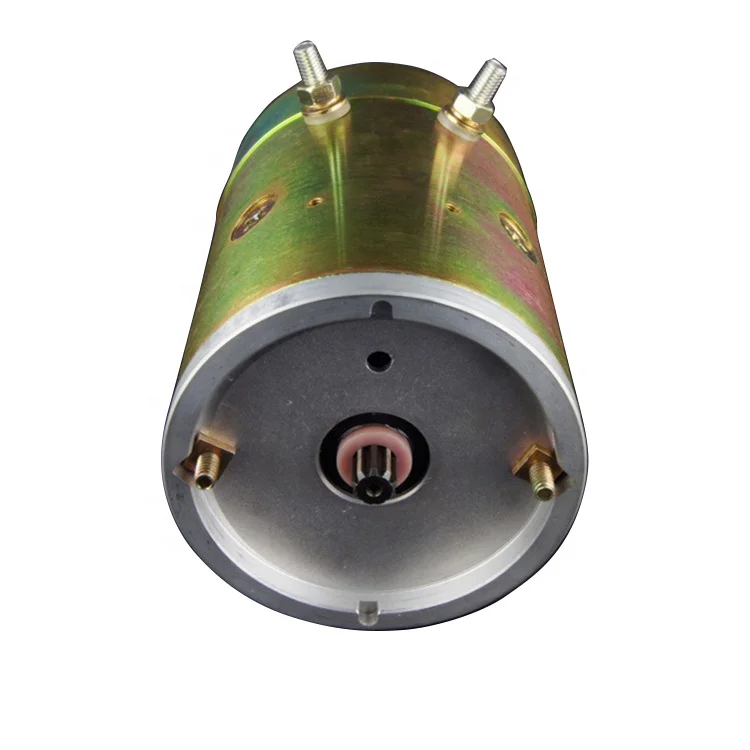

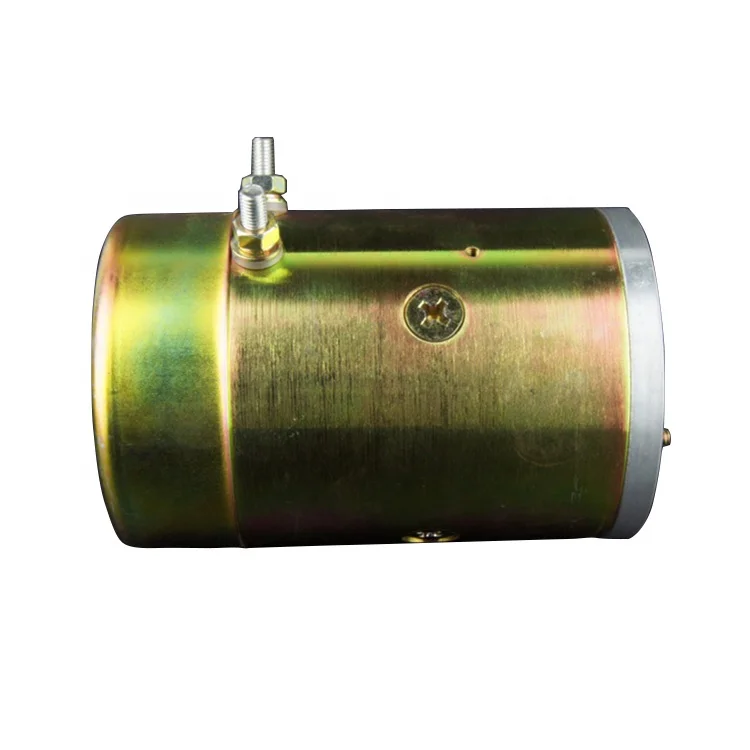

Lifting Equipment brushed Motor Nine Teeth Hydraulic DC Pump Spline Shaft

Product Overview

Description

Lifting Equipment brushed Motor Nine Teeth Hydraulic DC Pump Spline Shaft

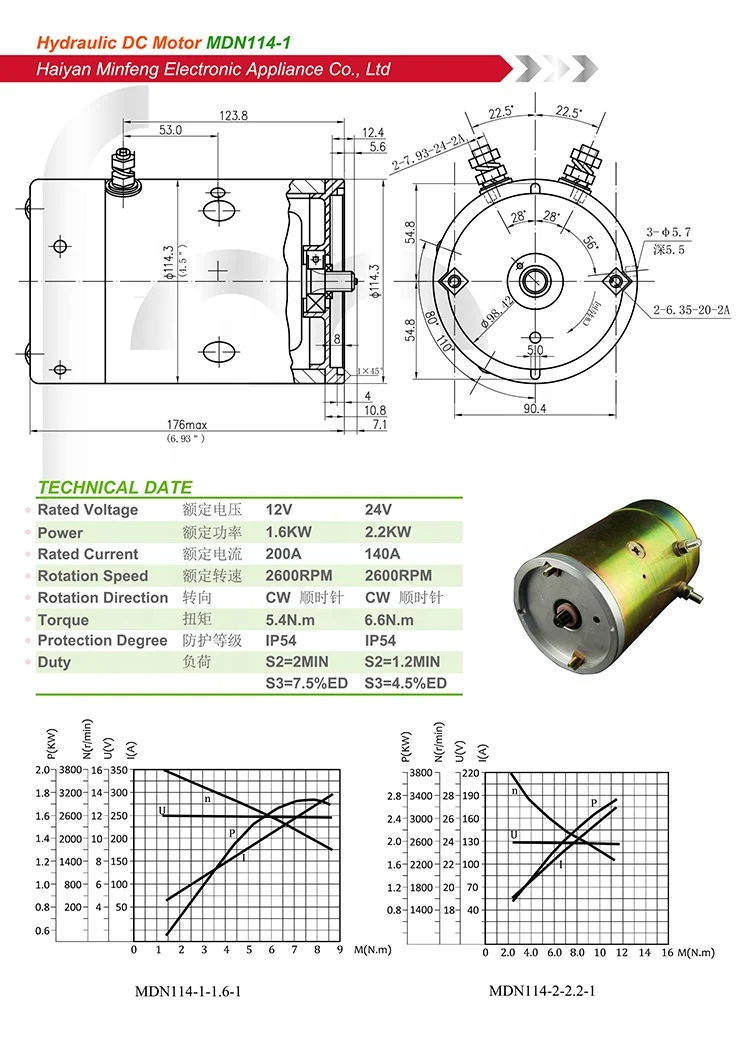

TYPE	Rated Voltage	Norminal power	Reted Current	Rotation Speed	Torque	Rotation Direction	Surface Color
MDN114-1	24V	2KW	≤136A	≥2900rpm	≥6.6N.m	CW	GOLDEN



















High efficiency DC motors type MD serve to drive hydraulic pumps, automotive power winch and different other drives.



According to the different requirements of customers, our DC motors have been broadly used in the fork-lift, container van tail-board, van door system, jumping car, snow-sweeper, etc.

 Motor’ type can be divided into 12V,24V voltage system.

Output power ranges from 0.5 KW-4.5 KW.

Outside diameter covers 3 inch, 4.5 inch ,5 inch.

Motors have different adaptor to match various of pump connectors.

Motors’ surface treatment can be chosen by customer, and we have the technique method such as zinc plated, chromium plated, powder coated with different color (e.g. black, red, grey) on heavy duty motors.

















DESCRIPTION:

1	Material:	100%
2	Color:	Any partone or multi-colors can be customized.
3	Size:	Customized size
4	Logo:	Your Brand Prints
5	MOQ:	20pcs
6	Samples Time:	(1)3-5 days - if you want to customize your logo. (2)1 day- For our existing samples for reference.
7	OEM accepted:	Yes.
8	Certification available:	Yes.
9	Packing Details:	N.w.: 2.5KGS-3 inch; 7KGS-4.5 inch.
10	Production capacity:	10000 per month
11	Pay time:	(1) L/C.T/T.D/P.D/A.PAYPAL WESTERN UNION MONEY GRAM (2)We also can provide a month's statsment payment service.







1	DC motor for Pump
2	DC motor for power unit
3	DC motor for oil pump
4	DC motor for Automation
5	DC motor for Agricultural Machinery/Farm machinery
6	DC motor for Lift
7	DC motor for Dump Truck/Tipper/tip truck
8	DC motor for Hydraulic
9	DC motor for hospital bed/hospital cot
10	DC motor for garbage truck/dustbin lorry/waste collection vehicle /refuse collection    vehicle
11	DC motor for liftgate/tail lift/Tailgate
12	DC motor for Forklift truck/lift truck/fork truck/forklift
13	DC motor for truck/Lorry
14	DC motor for winter service vehicle/snow removal vehicle
15	DC motor for Tractor
16	DC motor for Oil Pressure
17	DC motor for Mechanical equipment
18	DC motor for Industrial Machinery
19	DC motor for Lifting Equipment
20	DC motor for Construction
21	DC motor for Muck truck
22	DC motor for Jack



Lifting Equipment brushed Motor Nine Teeth Hydraulic DC Pump Spline Shaft

1.good quality
2.Power Unit use
3.Motor pump
4.dc motor
