Product Overview

Description

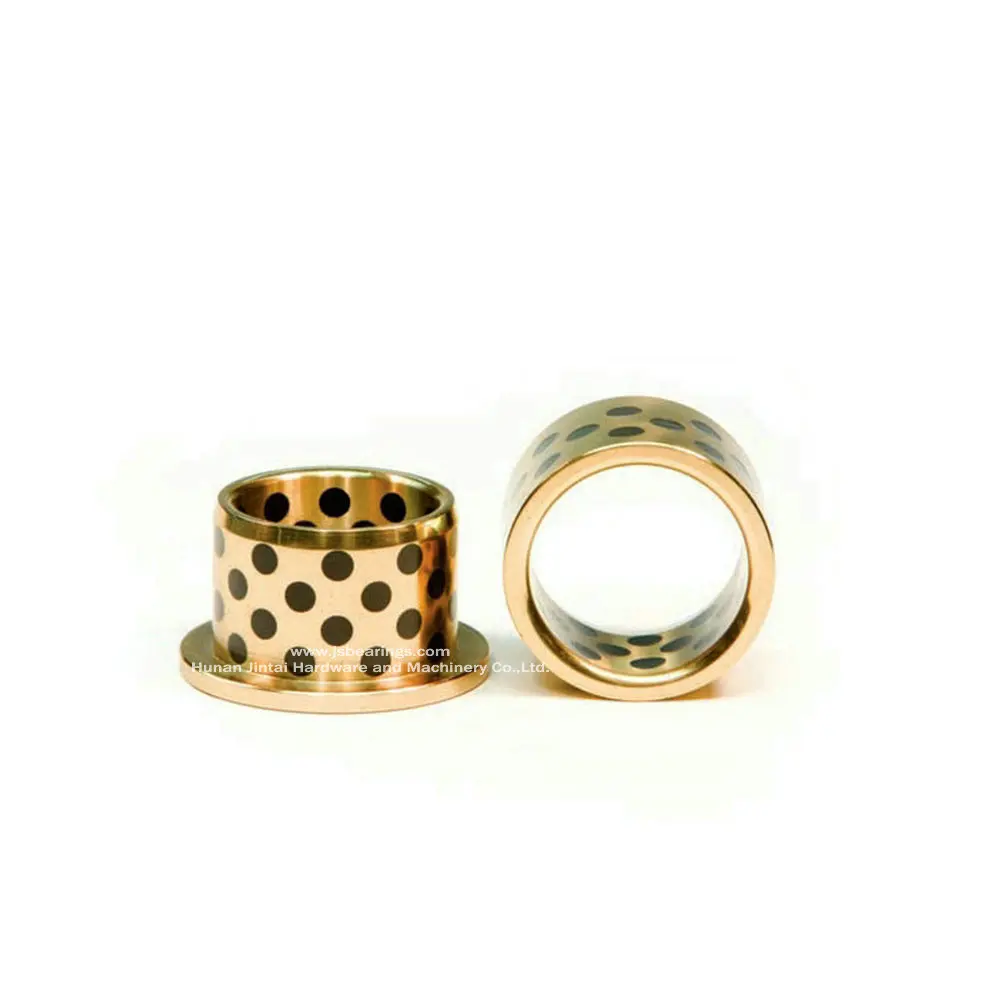

Tin-Bronze With Solid Lubricant Casting Bronze Bearings

Detailed Product Description
Material:Tin-Bronze With Solid LubricantApplication:On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th

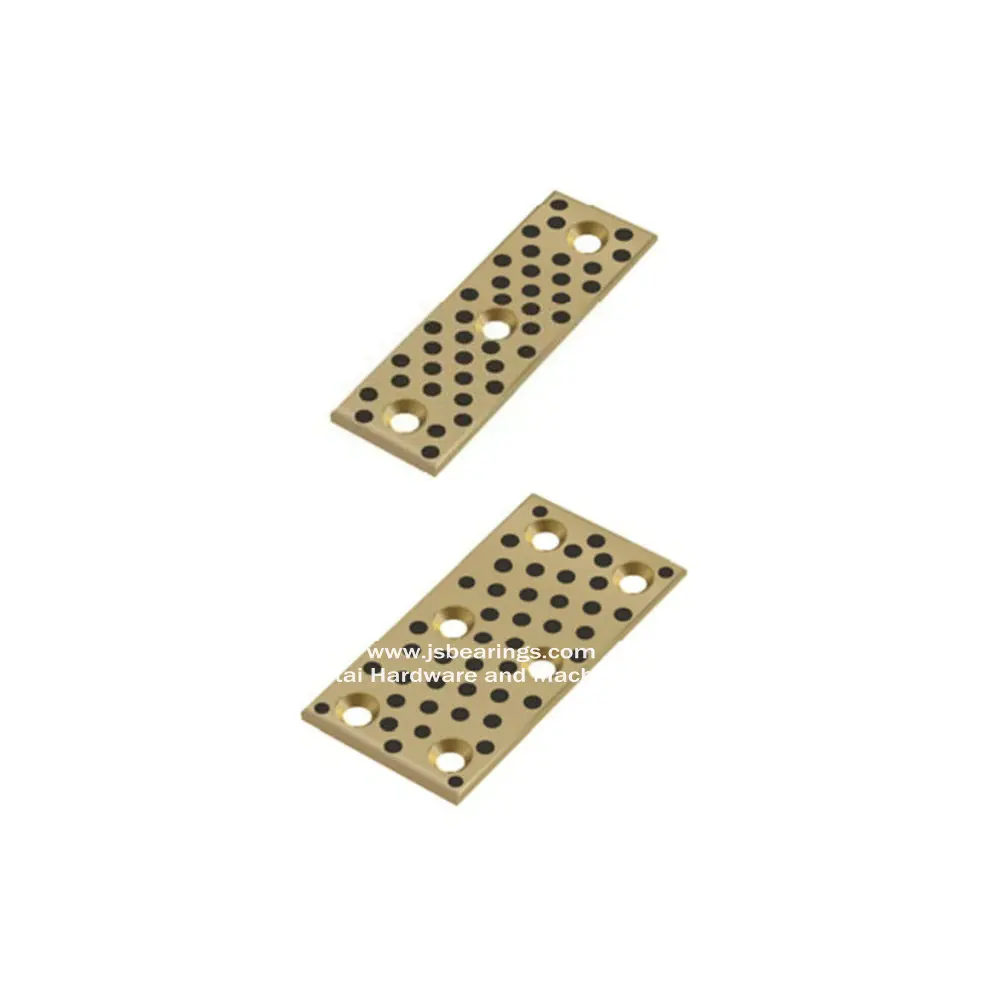

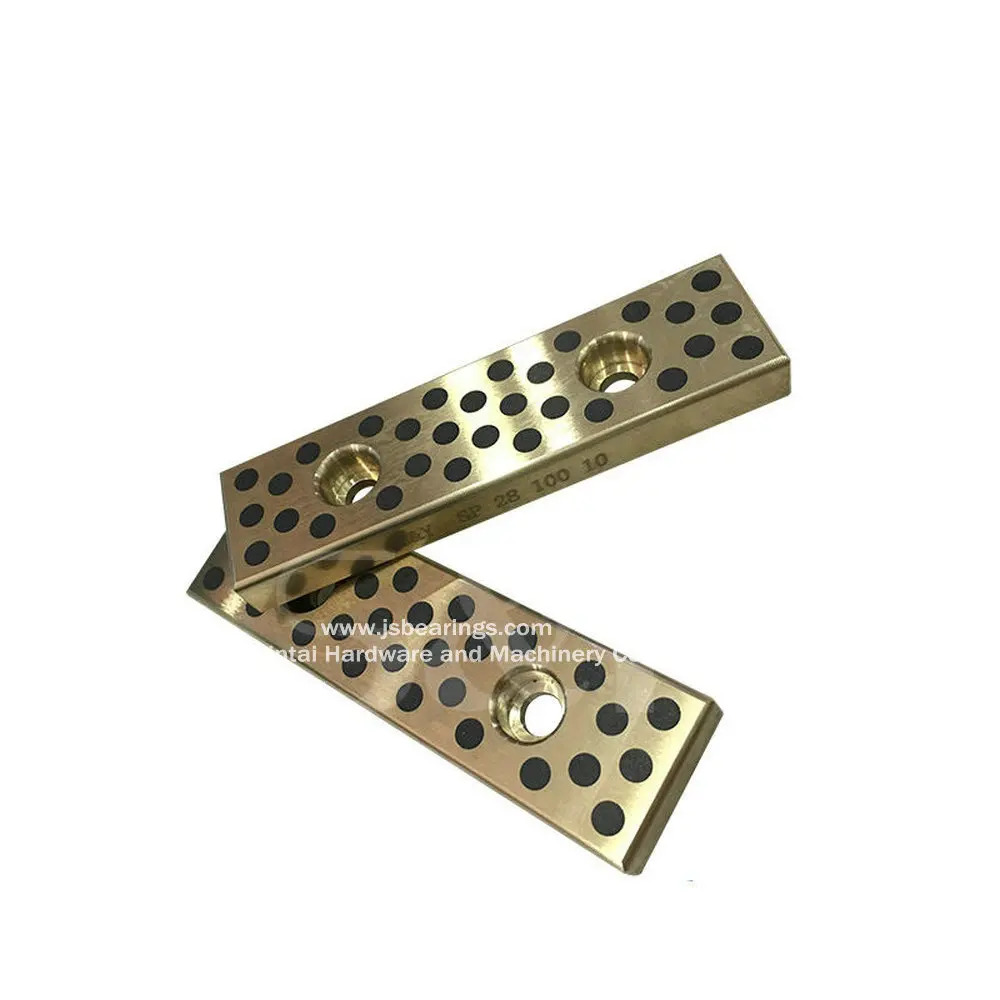

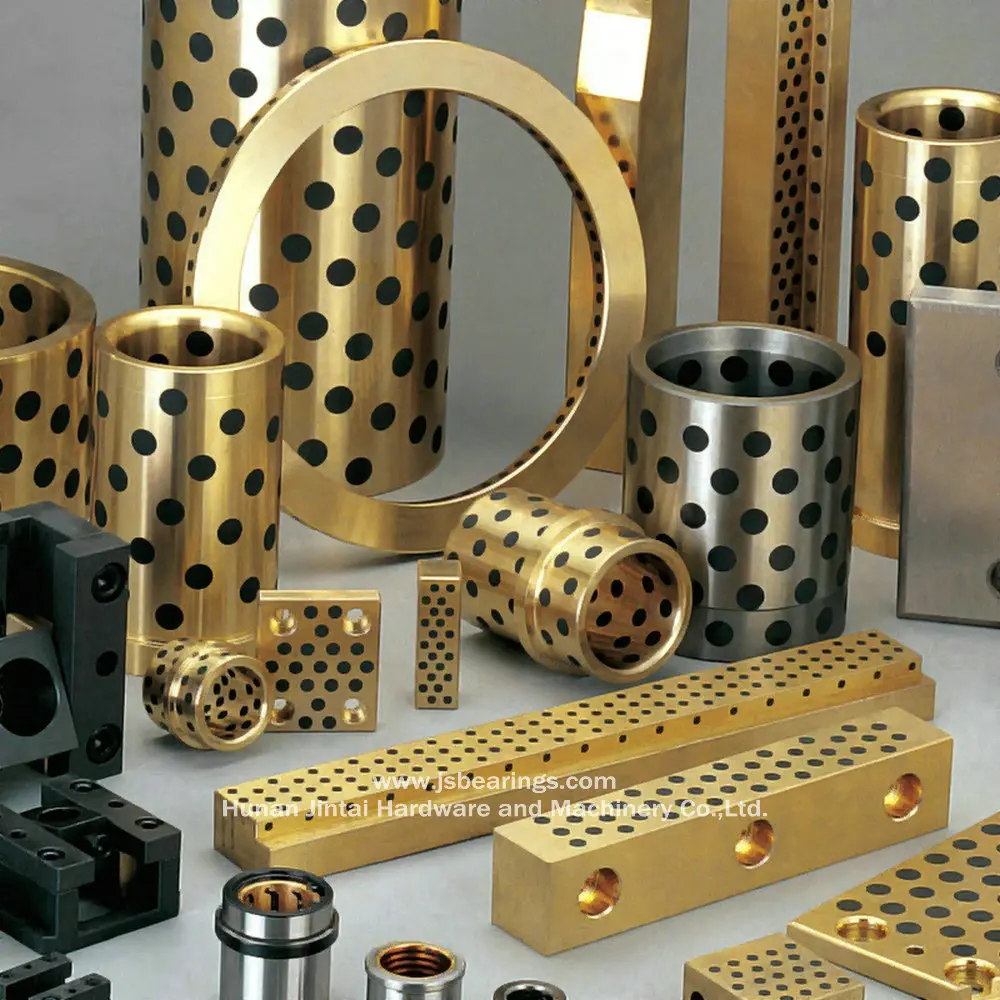

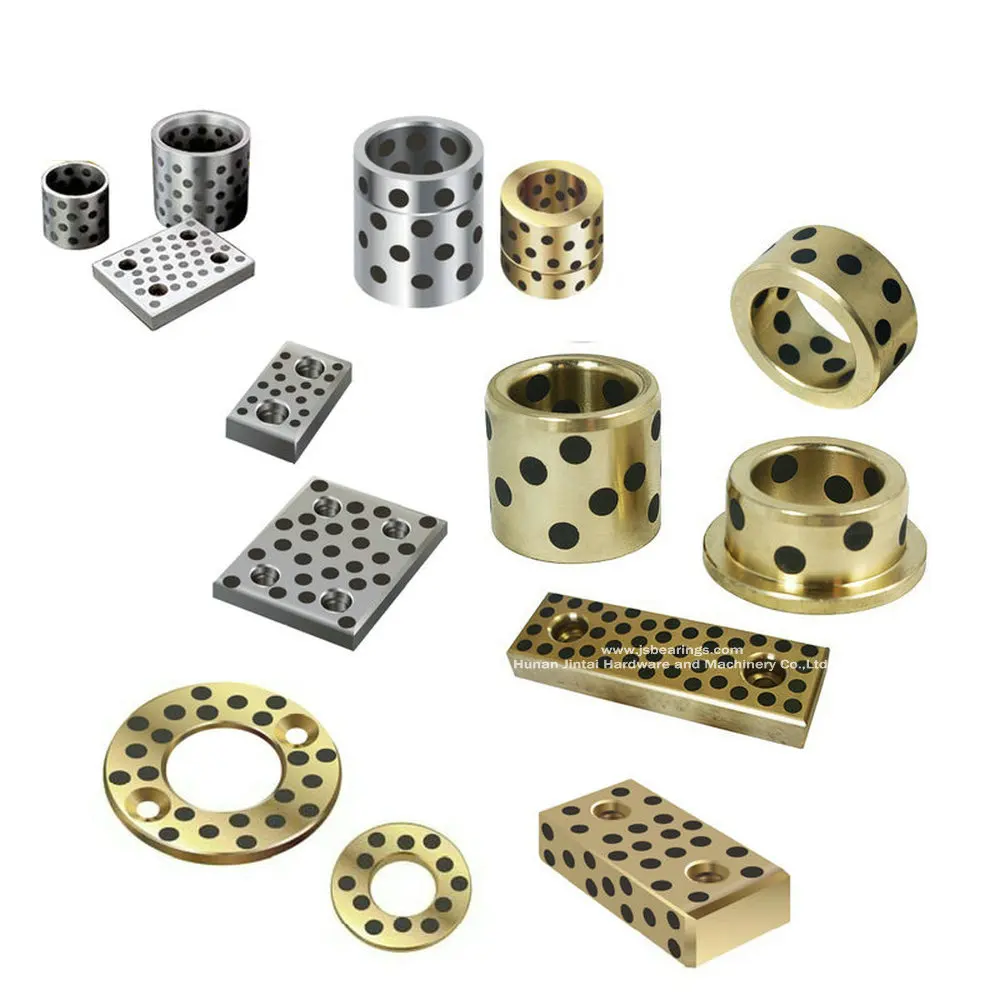

Types:Cylinder Bearings, Thrust Washer, Slide Block, Etc.Name:JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
Hardness:≥60 HBWorking Temperature Limits:-40~+250℃



Tin-Bronze With Solid Lubricant Casting Bronze Bearings is backed with Tin-Bronze. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled.



JDB Bearings Bronze based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.



Tin-Bronze With Solid Lubricant Casting Bronze Bearings are mainly used in conditions of light load, temperature and mediate running velocity. For instance, Tin-Bronze With Solid Lubricant Casting Bronze Bearings could be used on no oil parts on the building, metallurgy and transportation machines.



JDB Bearings is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.



For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.



Chemical Compositions

Product NO.Chemical Compositions
052CuSnPbZnAl SiSFePNiSb
83~874.0~6.04.0~6.04.0~6.0<0.01<1.0<0.3<0.1<2.0<0.2



Physical and Mechanical Performance

Performance IndexDataPerformance IndexData
Densityg/cm³8.7HardnessHB≥60
Linear Expansion Coefficient10^-5/℃1.6-1.8Flexibility CoefficientKN/mm²85-115
Heat-conducting CoefficientW/(m·k)46-63Tensility%≥15
Tensile StrengthN/mm²≥240FrictionOil Lubricationμ0.03
Anti-compact Tenacity≥KJ/m^3100-200Dry Friction0.16



Application Condition Limits

Lubrication ConditionsNon- LubricationPeriodical LubricationConsecutive Lubrication
Working Temperature Limits℃-40~+250-40~+150-40~+150
Max. Load pressureN/mm²404040
Max. Linear Velocitym/s0.400.851.00
Max. PV ValueN/mm²·m/s1.001.652.00



  • Types and sizes list:

 jdb-size-1jdb-size-2

jdb-size-3jdb-size-4

  • Plant

-1

  • Production Line


  • Inspection




  •  Packings:

packing





  • Other bushings:


bronze bushing / sintered bushing / PTFE composit bushing / wrapped brozne bushing/bimetal bushing



Our sliding bearings including:

 bush-all-1



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
