ER34615M/W200(A) D type Replacement Battery for Visonic Siren Battery MCS 710 MCS730 visonic Alarm

Product Overview

Description

ER34615M/W200(A) D type Replacement Battery for Visonic Siren Battery MCS 710 MCS730 visonic Alarm



Specification :

No	Item	Specifications
1	Normal Voltage	3.6V
2	Normal Capacity	14500mAh
3	Standard Discharge Current	5mA~3000mA
4	Dimensions	34.5*61.5mm
5	Weight	105g
6	Max continuous Discharge Current	2000mA
7	Pulse Discharge Current	3000mA
8	Top	Tip-Top/Flat-Top
9	Battery Type	Li-SOCl2
10	Discharge Temp.	-55 ~+ 85 (degree centigrade)
11	Storage Temp	-5 ~35 (degree centigrade)
12	Certifications	UL/CE/RoHS/MSDS/UN38.3/IEC62133
13	Warranty	24 months



♦  Nominal capacity                                                                                                      14.5Ah

(at 5.0 mA, +25ºC, 2.0V cut off. The capacity restored by the
cell varies according to current drain, temperature and cut off voltage.)

---------------------------------------------------------------------------------------------------------------------------
♦   Rated voltage                                                                                                            3.6 V

---------------------------------------------------------------------------------------------------------------------------
♦   Maximum recommended continuous current                                                  2000 mA
(to get 50% of the nominal capacity at +25ºC with 2.0V
cut off. Higher currents possible. Consult ACT.)

---------------------------------------------------------------------------------------------------------------------------
♦   Pulse capability: varies according to pulse characteristics (frequency
and duration), temperature, cell history (storage conditions prior to
usage) and the application's acceptable minimum voltage.

---------------------------------------------------------------------------------------------------------------------------
♦   Maximum pulse current capability                                                                     3000 mA
---------------------------------------------------------------------------------------------------------------------------

♦   Storage (recommended)                                                                                         30ºC max
               (possible without leakage)                                                                             -55º+125ºC

---------------------------------------------------------------------------------------------------------------------------
♦  Operating temperature range                                                                              -55º / +85ºC
(Operation at temperature different from ambient may lead
to reduced capacity and lower voltage plateau readings.)

---------------------------------------------------------------------------------------------------------------------------

WARNING:
Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat
above 212ºF (100ºC), incinerate, or expose contents to water.

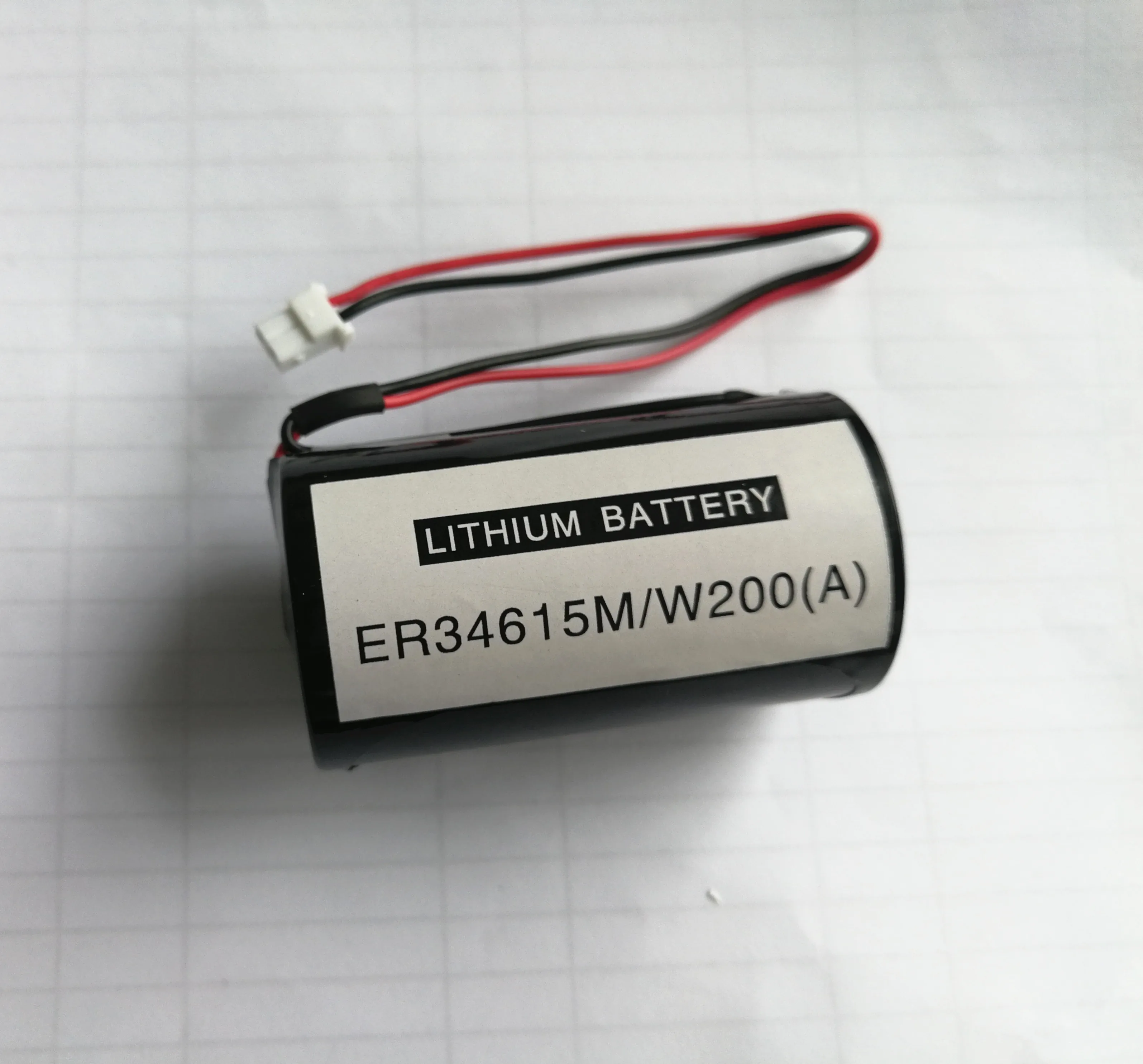

Battery  view:





We offer the siren battery in two variations. The standard model is 14,500mAh which lasts 1-2yrs, and the Extended Life 19,000mAh battery offering 50% more battery backup duration for 3-4yrs lifespan.  Ahead Cell Technology is the  seller to offer the latest higher capacity replacement for your Visonic alarm, and its compatible with all systems offering great value for money



Specification:
Type: ACT Lithium D Battery, ER34615
P/N: 0-9912-K, ER34615M/W200
Finish: Black wrapped, 200mm cable

Variations:
Standard 14.5A: 3.6V 14.5Ah, 0-9912-K
Extended 19A: 3.6V 19Ah, 0-9912-K
Compatible with the following Visonic alarms: MCS-710, MCS-730, MCS-730AC

Other Batteries:
TL-2150 (ER14250) : MCT-101, MCT-102, MCT-104, MCPIR-3000, MDT-122



NOTE: Other batteries for a range of alarm manufacturers are available, please see our other listings. The original issued 14.5A battery should be replaced every 1-2 years to ensure your alarm has enough battery power to sound the alarm in the event of a power cut. The Extended Life 19,000mAh battery will offer 3-4 years use before needing to be replaced. A flat battery will cause an alarm to sound on most systems. Images represent manufactures original product, see description for details. Contact us for more details.



And you can customze the requirement battery with Nickel strip and Solder:
