Liquefied petroleum gas 3/4 inch solenoid valve
- Category: >>>
- Supplier: Guangzhou Liancheng Energy Technology Development Co. Ltd.Guangzhou Ltd.
Share on (62045611647):
Product Overview
Description

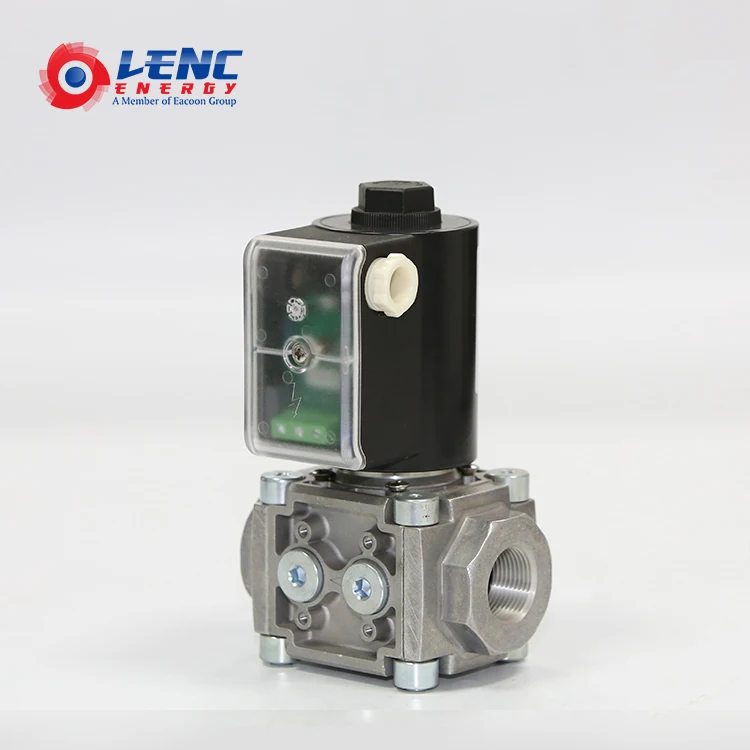

Liquefied petroleum gas 3/4 inch solenoid valve two way dn20
Product Description
Product Details
This kind of solenoid valve is adopted to add a regulate knob device on the basis of the quick-opening valve, and the gas flow size can be regulated by turning the knob when the valve is opened.
It can be applied to gaseous media such as natural gas, methane, liquefied petroleum gas, etc. There are bypass holes on both sides or bottom of the valve body, and its diameter is G1/4"

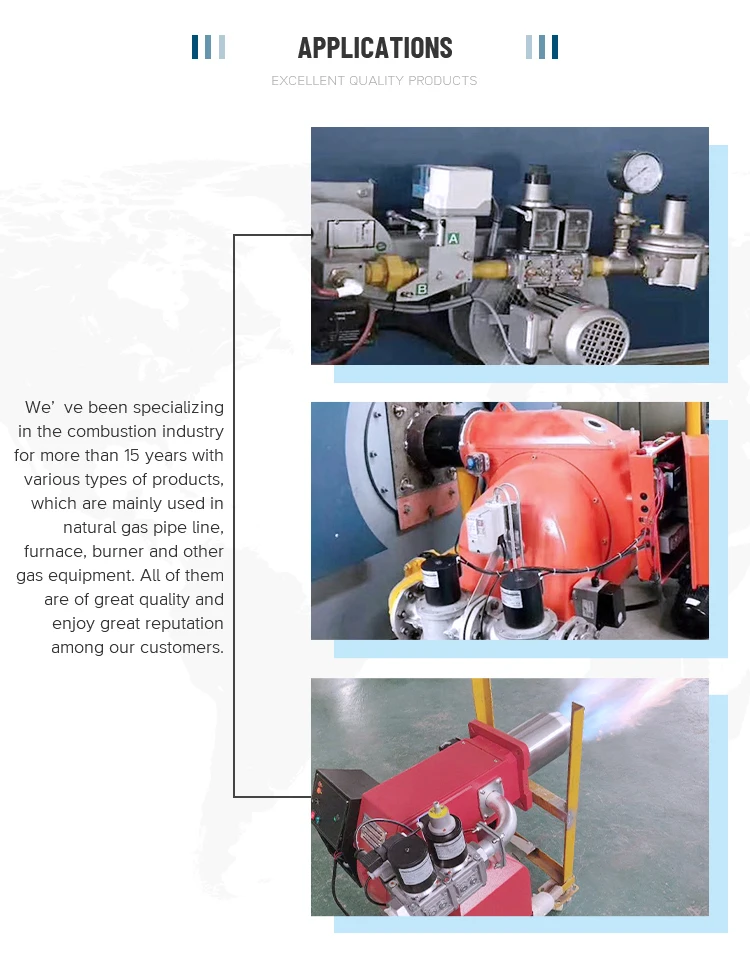

Fuel gas solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency.
The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas.
Fast opening and fast closing type
With flow adjustment function
Technology parameter
TYPE | Passage DN (mm) | Connection | Max Pressure (Mbar) | Operating temperature(℃) | Protection |
DN10 | 10 | RP 3/8" | 360 | -15 to 60 | IP54 |
DN15 | 15 | RP 1/2" | 360 | -15 to 60 | IP54 |
DN20 | 20 | RP 3/4″ | 360 | -15 to 60 | IP54 |
DN25 | 25 | RP 1″ | 360 | -15 to 60 | IP54 |
DN32 | 32 | RP 1¼″ | 200 | -15 to 60 | IP54 |
DN40 | 40 | RP 1½″ | 200 | -15 to 60 | IP54 |
DN50 | 50 | RP 2" | 200 | -15 to 60 | IP54 |
DN65 | 65 | PN16 | 200 | -15 to 60 | IP54 |
DN80 | 80 | PN16 | 200 | -15 to 60 | IP54 |
