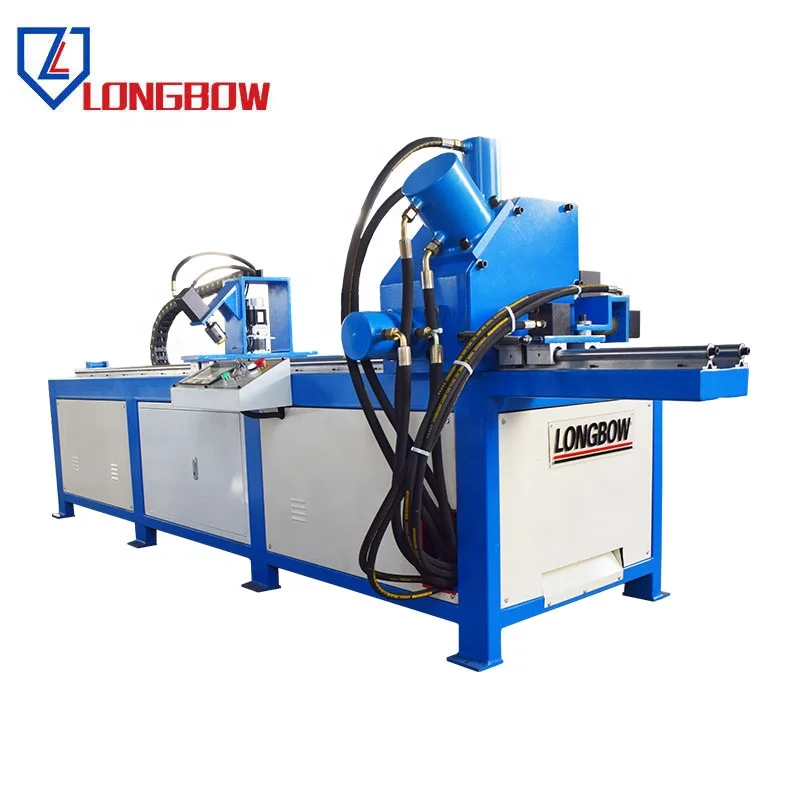

Product Overview
Description

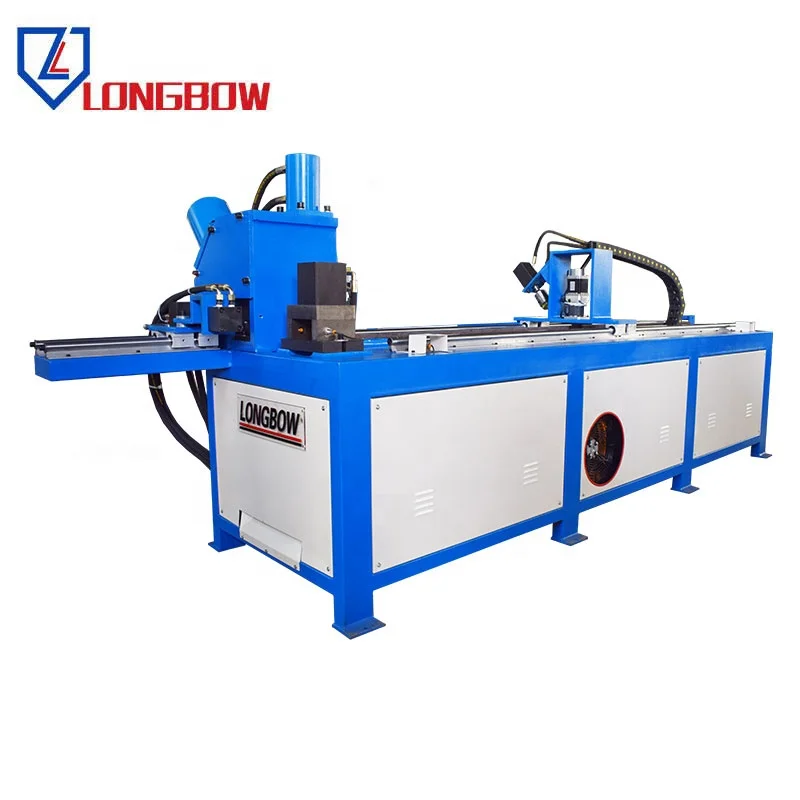

Products Description

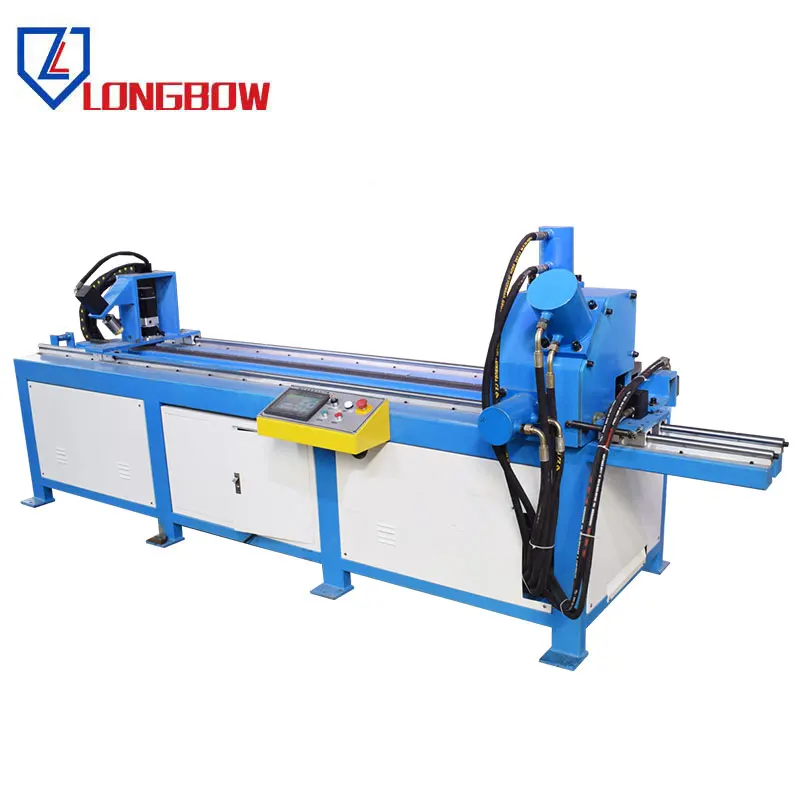

Performance features
1.It's a brand new design which can keep angle steel tailing less than 350mm.
2.It's controlled by servo motor and it's feeding dimensions are accurate.
3.It only requires to input the size of workplace, distance between holes and how many holes to punch when programming, which is very easy to operate.
4.With production memory functions, the production orders can be reacked and checked.
5.The new design mold can complete the angle steel switching within 5seconds, with the durable punch.

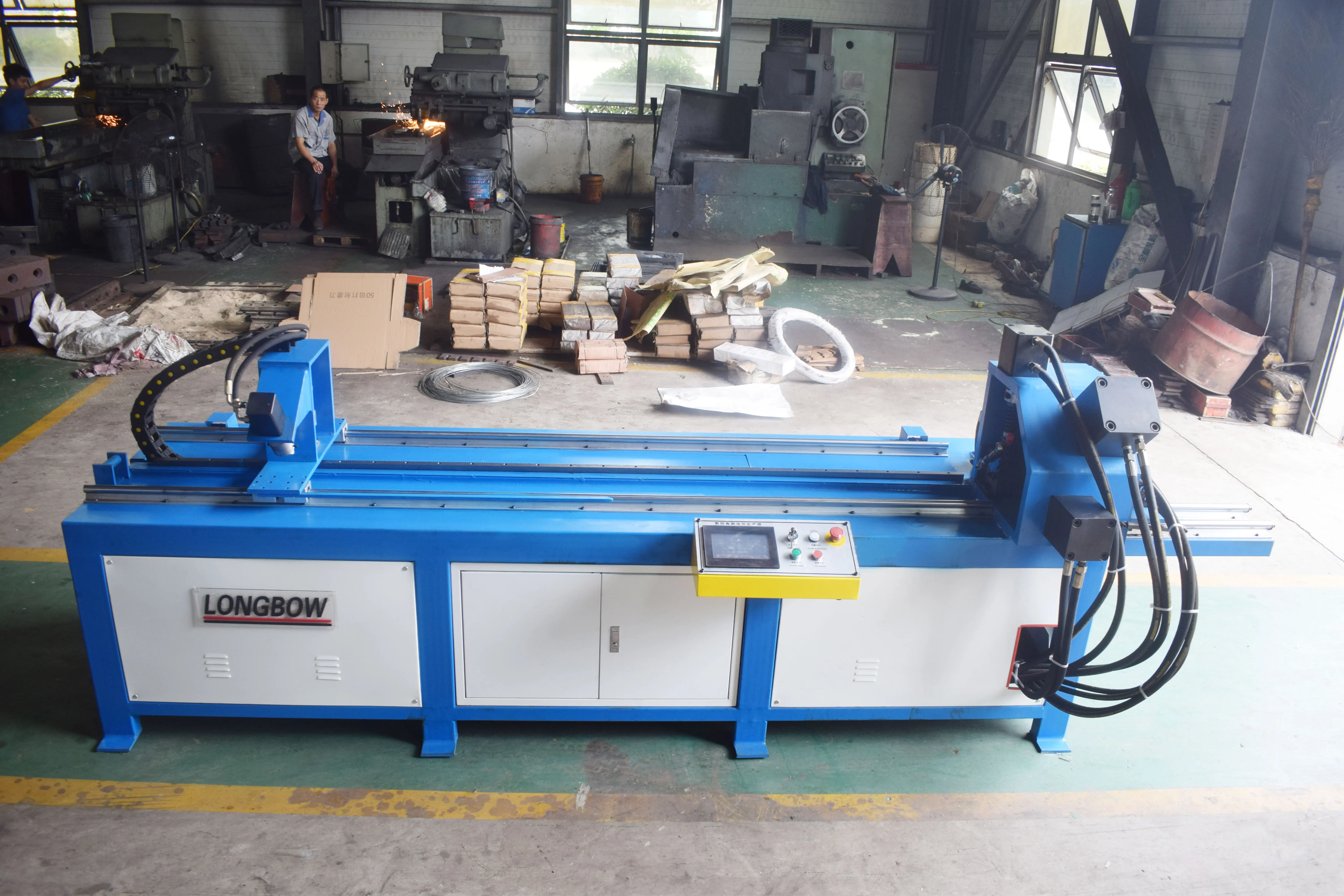

Function

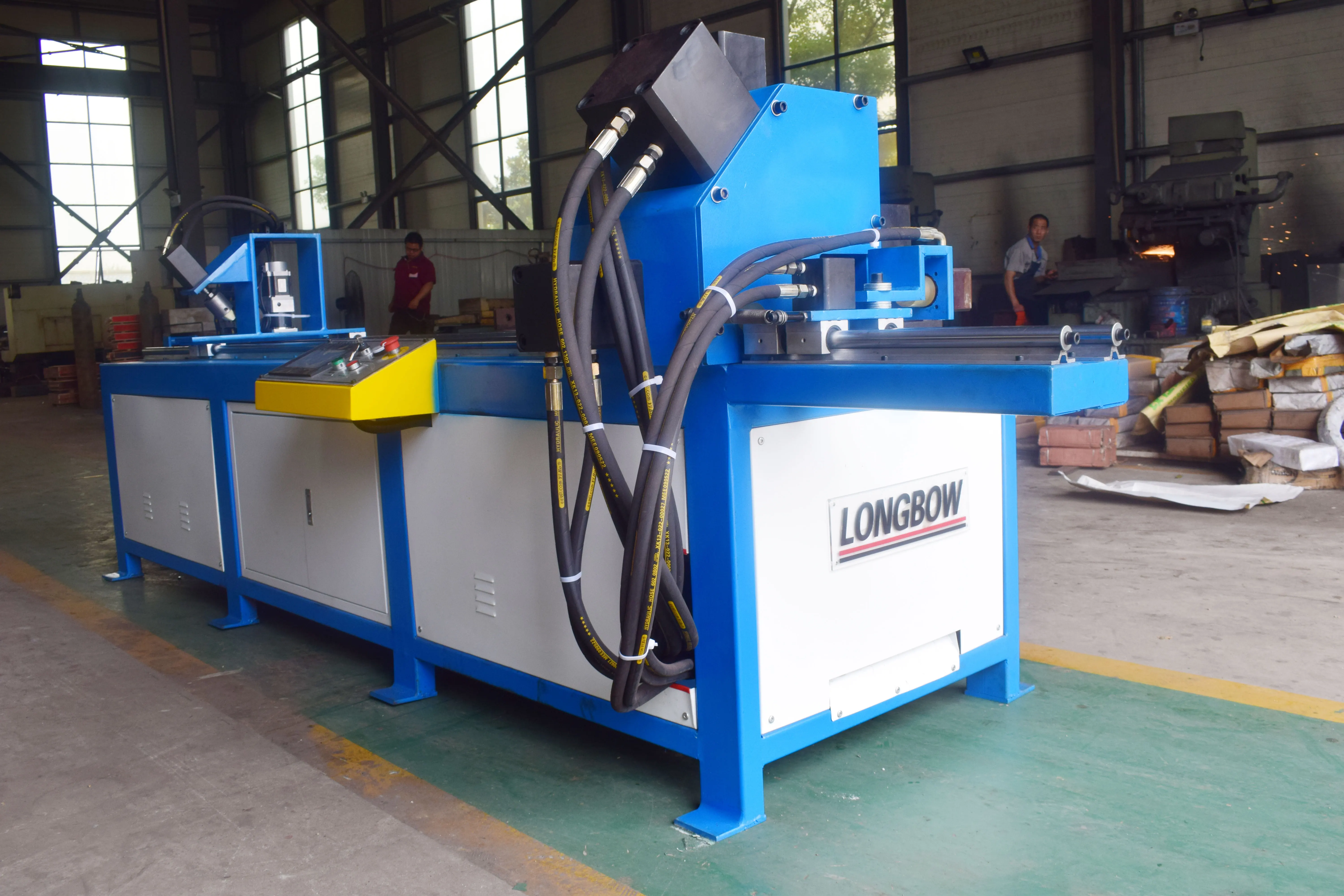

Fully automatic angle steel flange production line or CNC angle steel flange production line, Is mainly for punching and cutting duct angle steel flange. The machine are designed to deed, punch, cut, automatically in order to save labor improve efficiency.
It's very fast, accurate and highly automatic.
It's very fast, accurate and highly automatic.

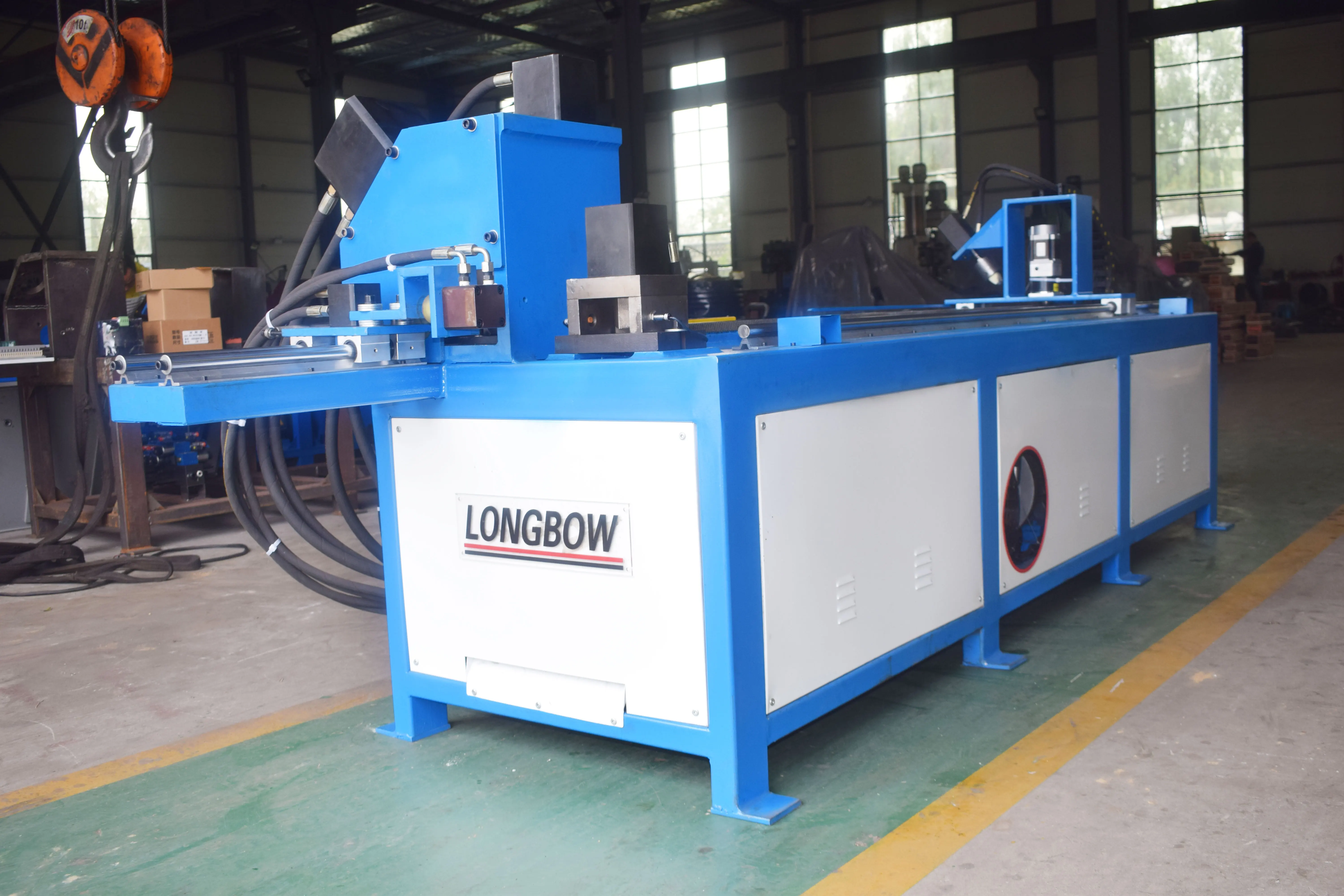

Main technical parameters
1.Scale of angle steel to process:#3-#5 angle steel.
2.Common punching sizes: max9.5-13mm, min4.2-5.2mm.
3.The number of punches which can be installed simultaneously: 2.
4.Common length of angle steel: 6000mm.
5.Machining accuracy no more the: 0.5mm.
6.Feeding speed of angle steel: 1520m/min.
2.Common punching sizes: max9.5-13mm, min4.2-5.2mm.
3.The number of punches which can be installed simultaneously: 2.
4.Common length of angle steel: 6000mm.
5.Machining accuracy no more the: 0.5mm.
6.Feeding speed of angle steel: 1520m/min.
Model | Working range | Dimension(mm)L*W*H | Power(kw) | Weight(kg) |
JG-30/50 | 30/40/50 Angle steel | 3600*1100*1400 | 7.5 | 1000 |

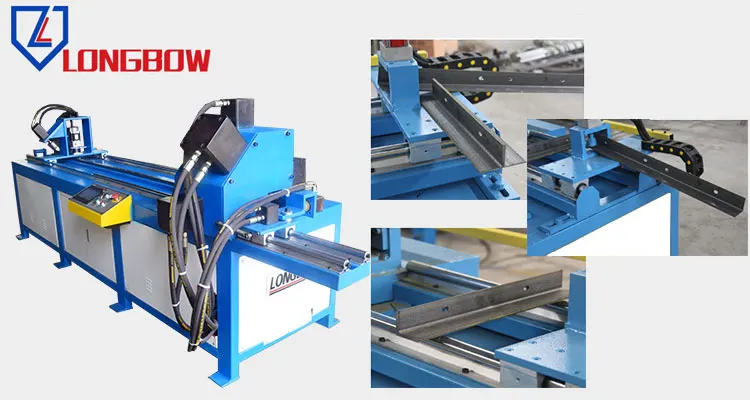

Details Images
machine parts

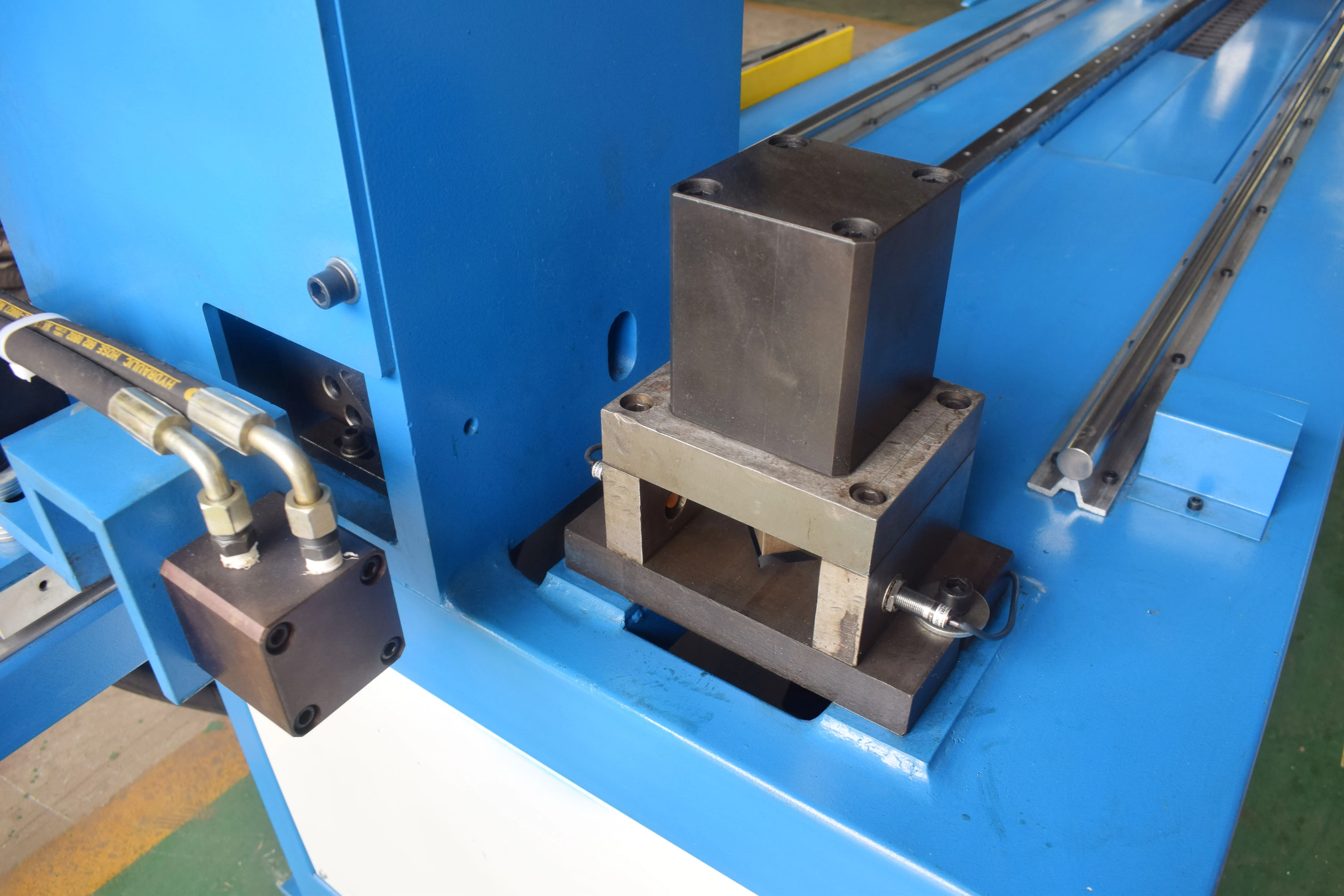

Name:punching and cutting mold
Material:High alloy tool steel
Original:china
Selected high quality steel products are made by forging, high temperature quenching, fine grinding and other processes. Ensure that each rolling wheel is inspected and installed on the equipment after passing the inspection.
machine parts

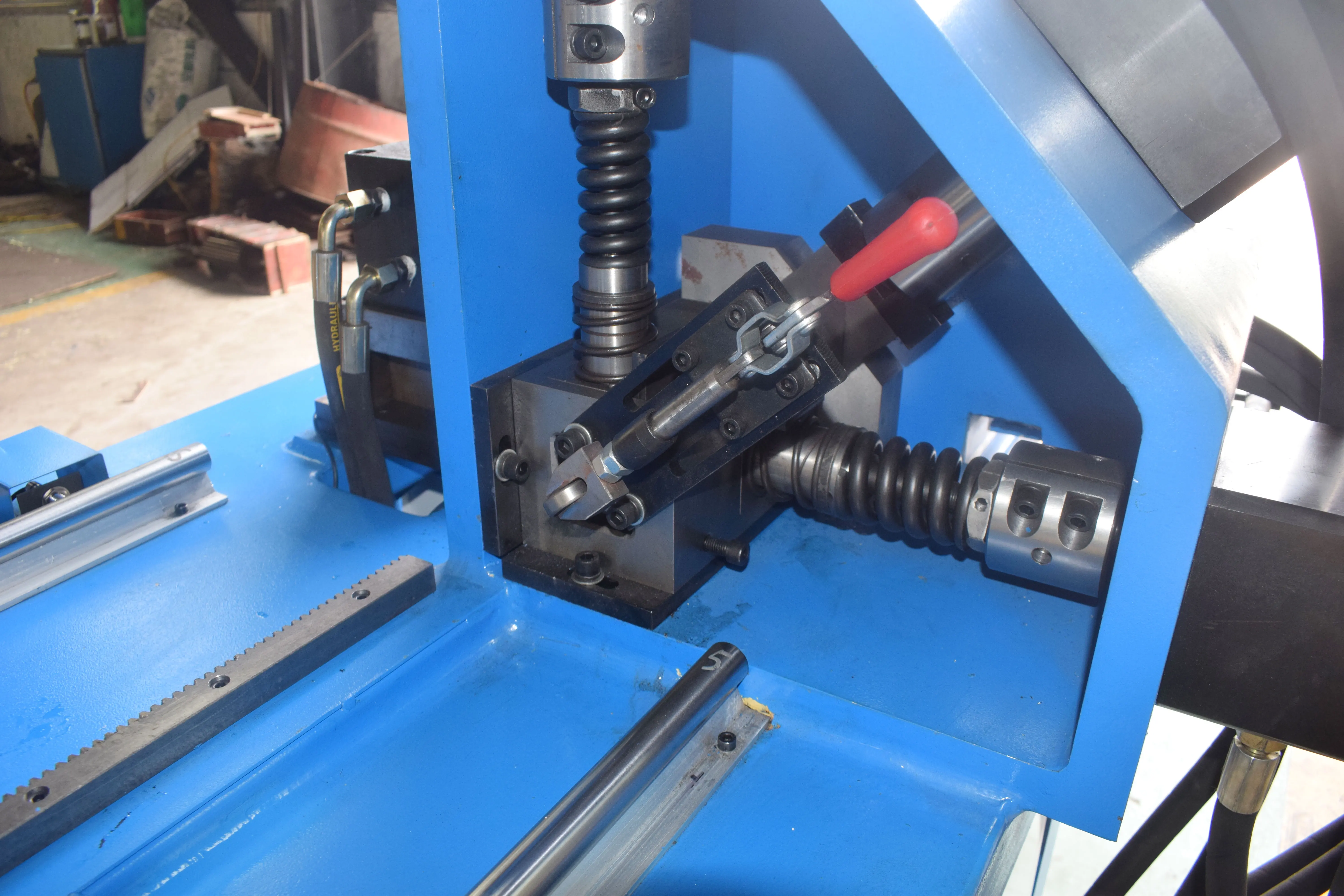

Name: Chamfering device
The angle iron is inserted into the device. After the induction switch senses the angle iron, it will chamfer automatically. Other companies use the foot switch to control whether to cut or not.
Shearing force:Hydraulic
Original:chinaThe angle iron is inserted into the device. After the induction switch senses the angle iron, it will chamfer automatically. Other companies use the foot switch to control whether to cut or not.
machine parts

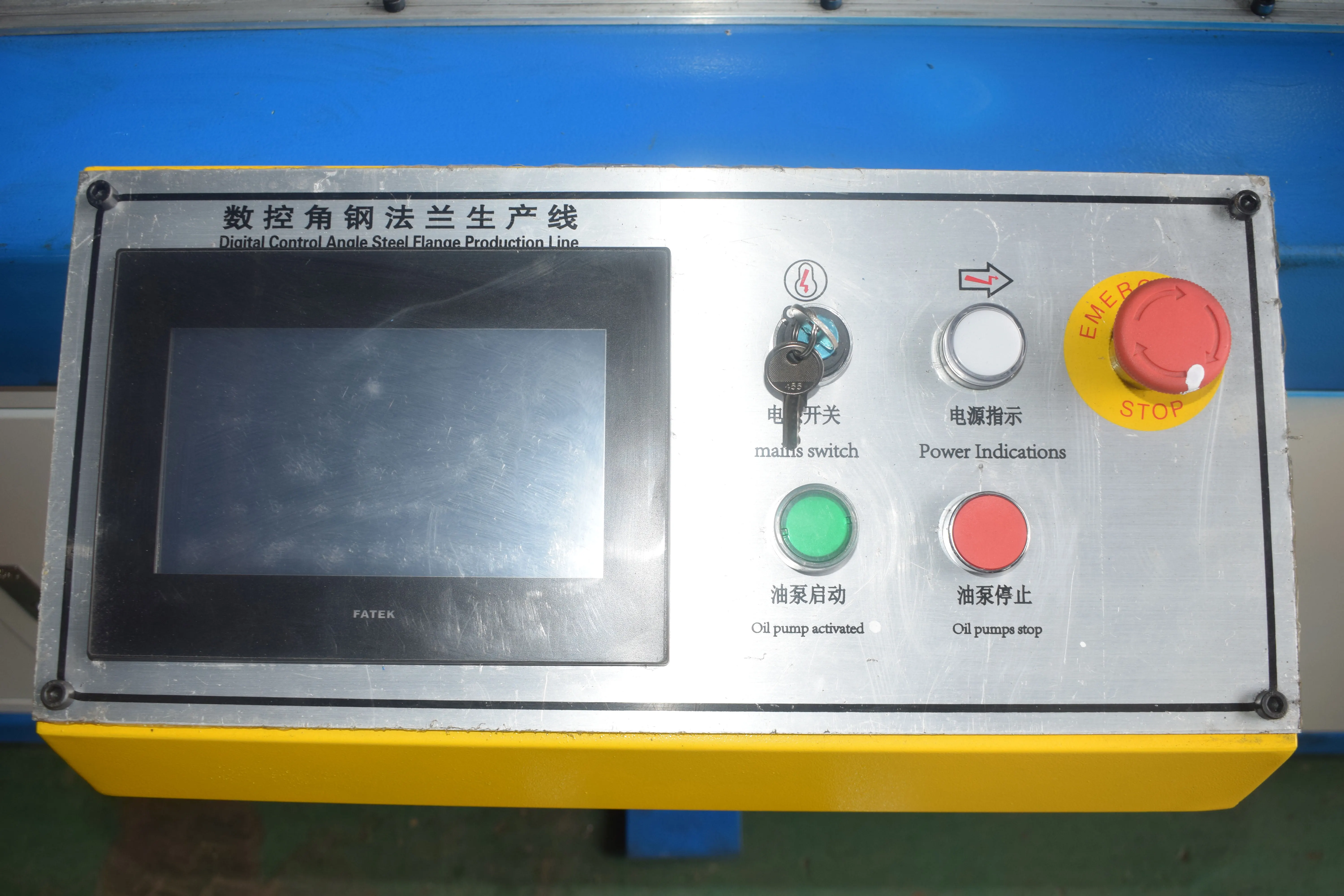

Name: Control system
Brand: FATEKOriginal:china
You can input the required punching hole distance on the operation panel, or you can set the length to be cut. After input, the system will run automatically.to make the operation easier and more convenient.
machine parts

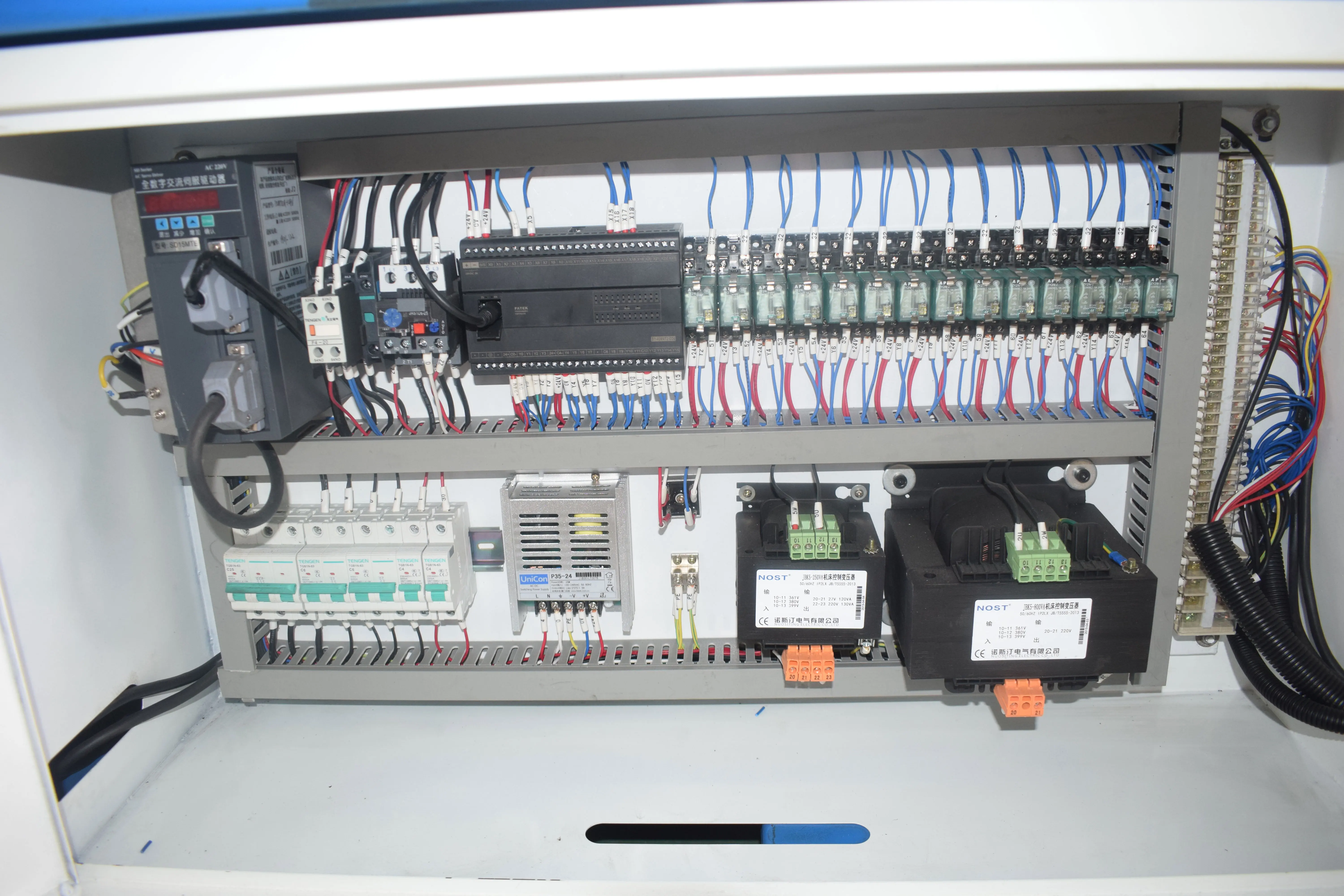

Name: electrics
Brand:Schneider
Original:France
It adopts high quality Schneider Electric with high stability and long service life.also change the voltage according to your country's voltage to meet the actual voltage produced in your country.
Brand:Schneider
Original:France
It adopts high quality Schneider Electric with high stability and long service life.also change the voltage according to your country's voltage to meet the actual voltage produced in your country.
