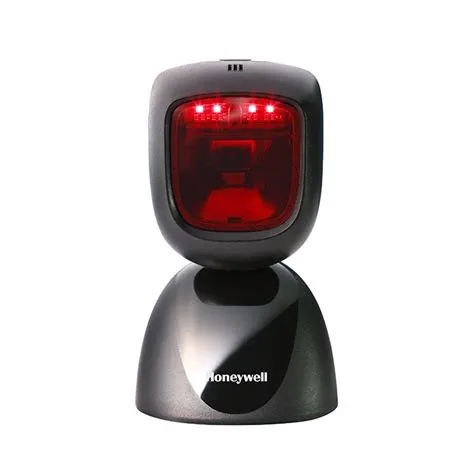

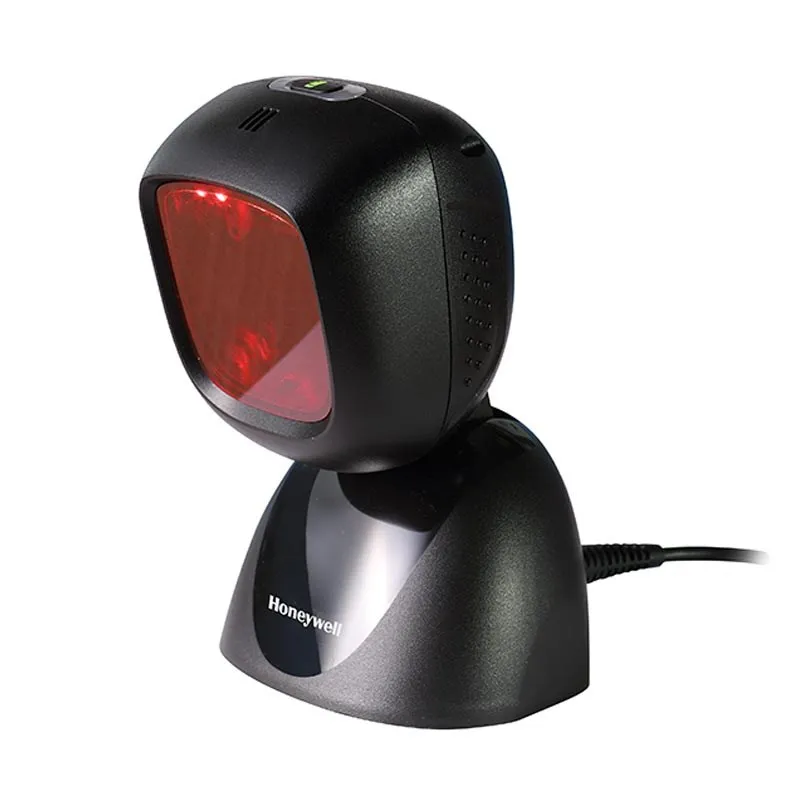

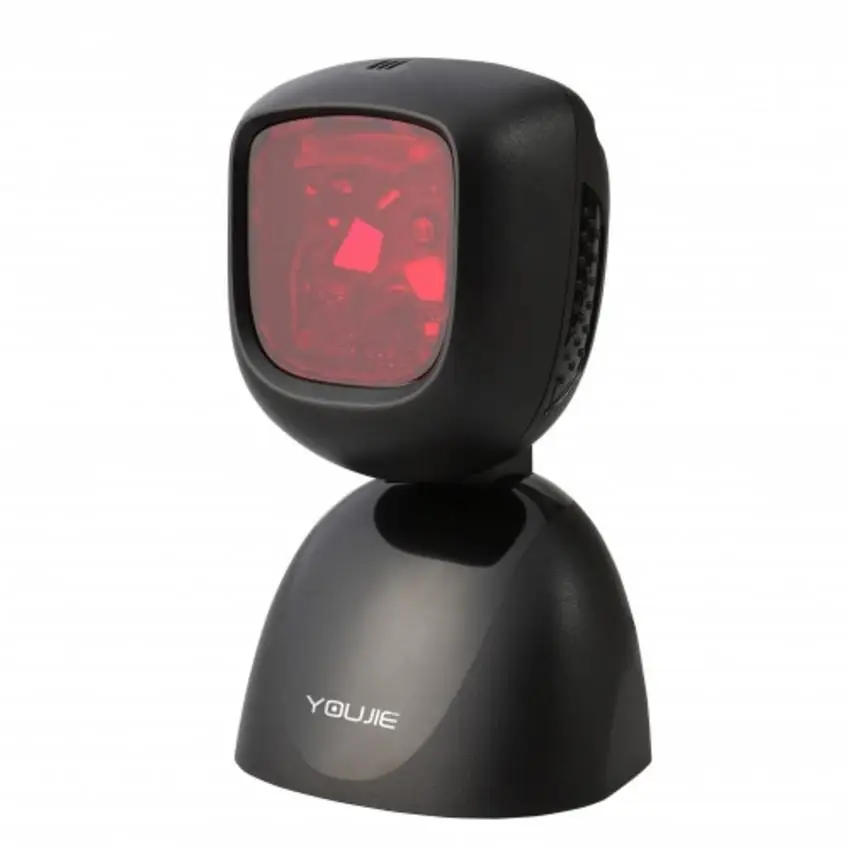

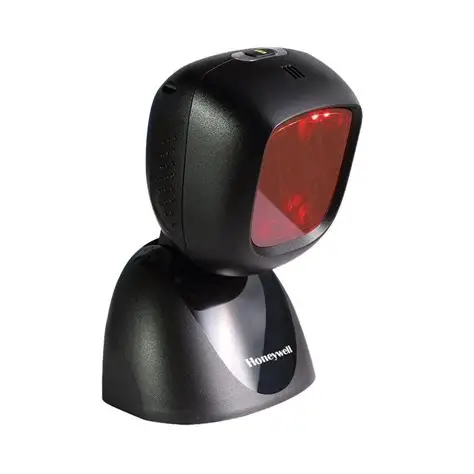

Honeywell HF600 2D CMOS Area imaging Omnidirectional Barcode scanner & Fixed Barcode Reader

Honeywell Youjie HF600 2D Presentation Area-imaging Barcode Scanner

With 2D barcode getting increasingly popular in various applications, customers are looking for affordable high-performance 2D barcode scanners. Designed with leading technology and superior performance, Youjie launches a new hands-free areaimaging scanner HF600, which can be widely used in multiple applications, such as retail POS, logistics tracking, pharmacy and office automation.

Features:

-Ergonomic Design: 2-modular body design with large window can easily meet various scanning needs

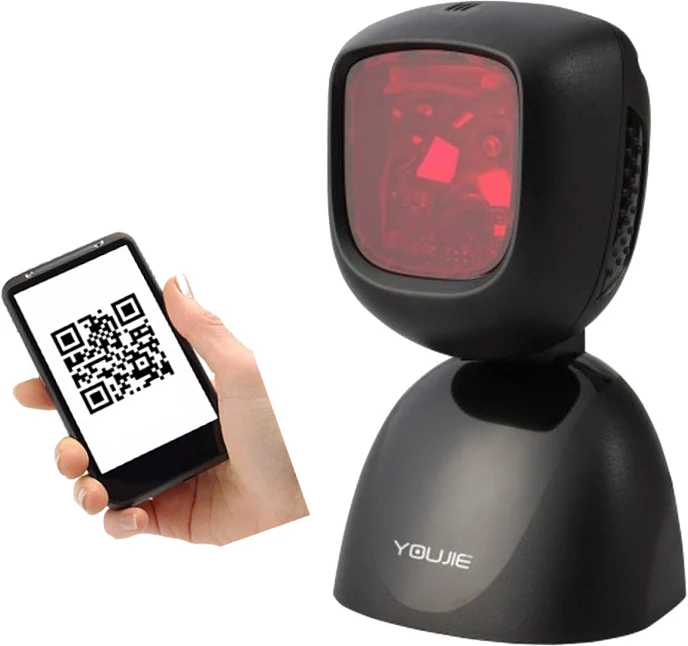

-Switch for Mobile Scanning: a single button enables the optimal scanning of 2D barcodes on mobile phones,improving efficiency and customer satisfaction

-Sleep Mode With IR Activation: effectively reduces power consumption, extends product life and lowers operating costs

-Intelligent Lighting Technology: with 3 adjustable lighting options, scanner illumination is optimized for superior 2D scanning performance and high motion tolerance

Mechanical

Dimensions (LxWxH): 87.4mm×98.2mm×170mm

Weight: 340g

Electrical

Input Voltage: 5 VDC ± 0.5 V

Operating Power: 2W (400mA @5V)(typical)

Standby Power: 0.45W (90mA @5V) (typical)

DC Power Supply: Class2:5.2VDC @1A

Certification: China RoHS

Environmental

Operating Temperature: 0°C to 40°C

Storage Temperature: -40°C to 60°C

Humidity: 0% to 95% relative humidity non-condensing

Light Levels: 100,000LUX

Drop: Designed to withstand 1 m drop

Scanning Performance

Light Source: Visible diode 610 to 620nm

Beeper: 3 intensity levels high medium and low

Visual Indicators: Steady White and Blue = ready to scan; Flashing Blue = good read

Host System Interfaces: USB RS232 Serial KBW

Scan Pattern: Presentation scan; mobile scan

Print Contrast: 35% minimum reflectance difference

Tilt Pitch Skew: 60°, 60°, 70°

Decode Capability: Reads

Typical Performance*

Narrow Width\tDepth of Field

5 mil Code39\t0mm – 40mm

6.7mil PDF417\t0mm –74mm

10mil Data Matrix\t0mm – 73mm

13mil UPC-A\t0mm – 253mm

20mil QR\t0mm – 191mm

20mil Code39\t0mm – 334mm

*Resolution: 1D : 5 mil (0.127 mm), PDF417 6.7mil (0.170mm)

*Performance may be impacted by bar code quality and environmental conditions
