Description of transformer making machine - Transformer Tank Making Machine

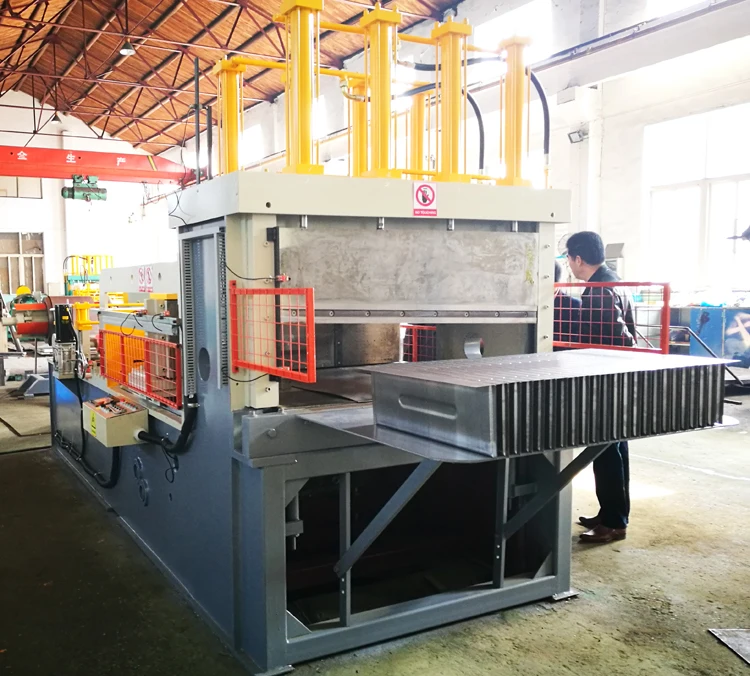

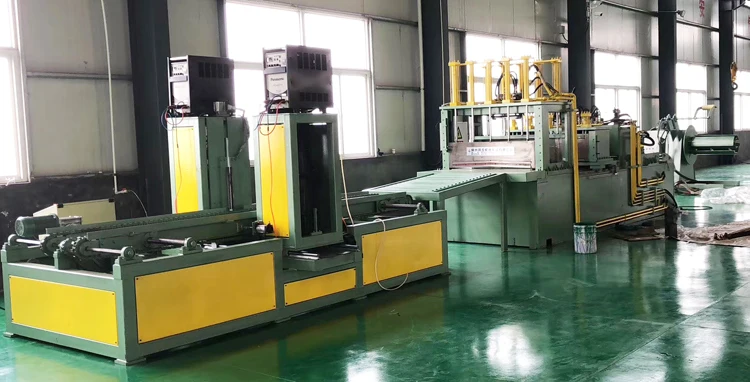

This machine is strengthened with steel plates welded structure, more stable working, and is special for forming corrugated tank fin walls automatically.

The feeding device adopts servo motor, replacing original step-motor, more accurate feeding.

One station roller leveling device extra to original design, much better finished fin quality.

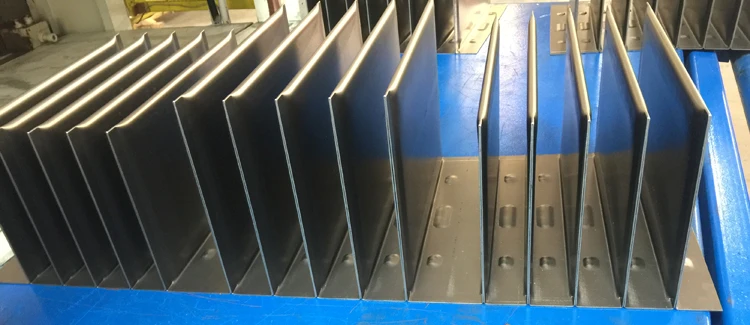

Ribs can be added according to requirement.

Buildup and configuration of transformer tank making machine:

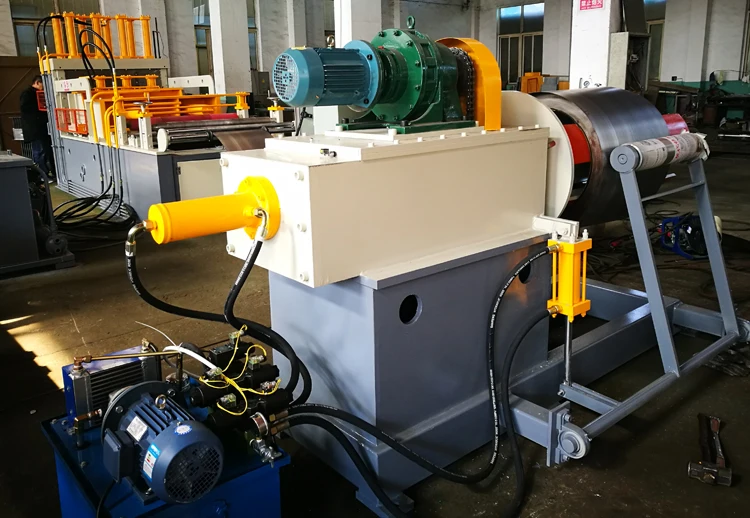

1) Decoiler: hydraulic expansion, active driven, capacity 5T.

2) Hydraulic station: max. pressure 21MPa, max. flux 94L/min, pump motor 22kW; main hydraulic components are from Taiwan.

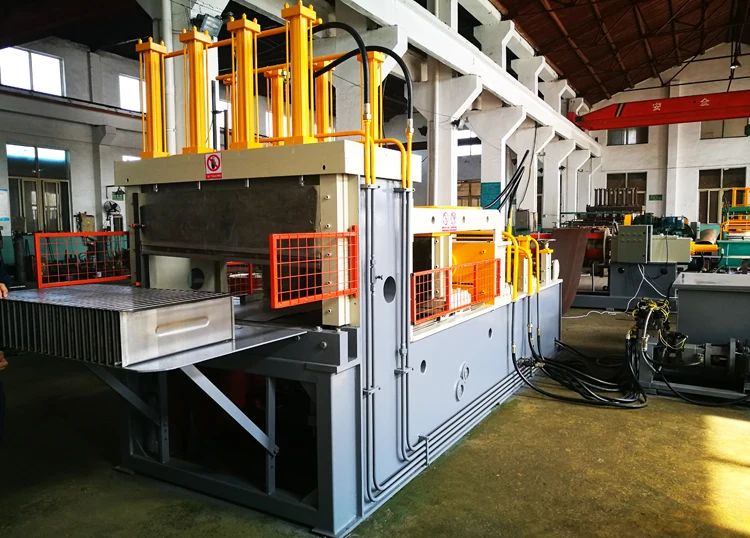

3) Main forming unit: servo feeding, automatic forming.

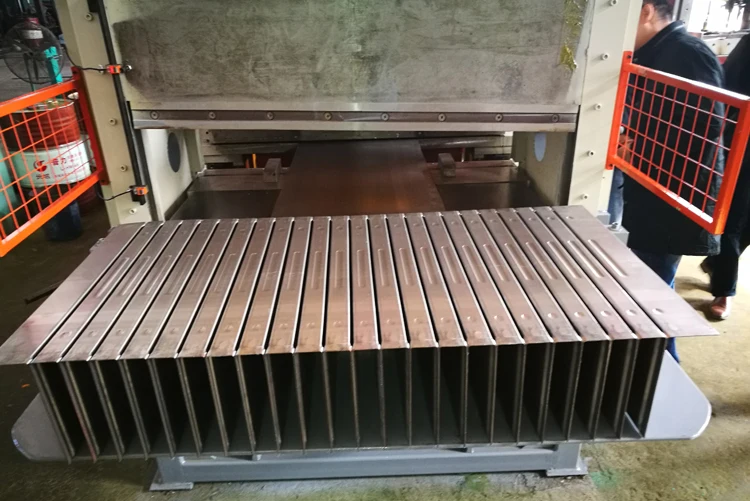

4) Shearing device: hydraulic driven to cut formed fins, automatic.

5) Run-out table: manual, 1.5m long.

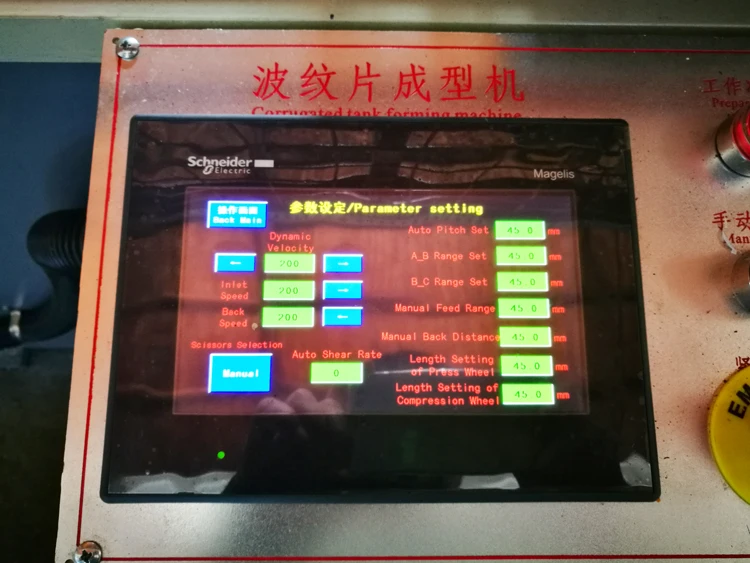

6) PLC control system: PLC, touch screen are Siemens brand, from joint venture in China.

7) Motor is from Siemens brand from China.

8) Electric components is Schneider brand, from joint venture in China.

9) Liner guide is from THK of Japan.

10) Power supply: 380V, 3 Phase, 50 Hz

Main technical data of transformer tank making machine

Item	Data
Width of blank steel coil	300~1300mm*
Thickness of steel	1~1.5mm

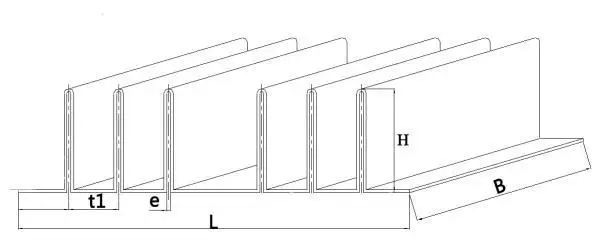

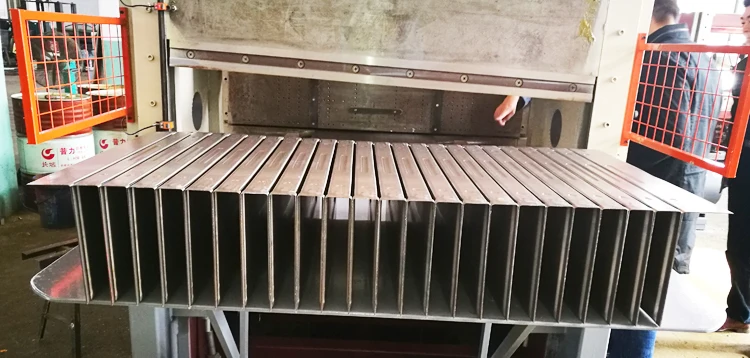

Height of fin	50~400mm
Pitch between fin	45~80mm
Space inside fin	5-8mm
Forming speed	3~4 fins per minute
Dimension	5800 x 1680 x 2200mm

Note: 1600mm wide is optional, can be speically ordered.
