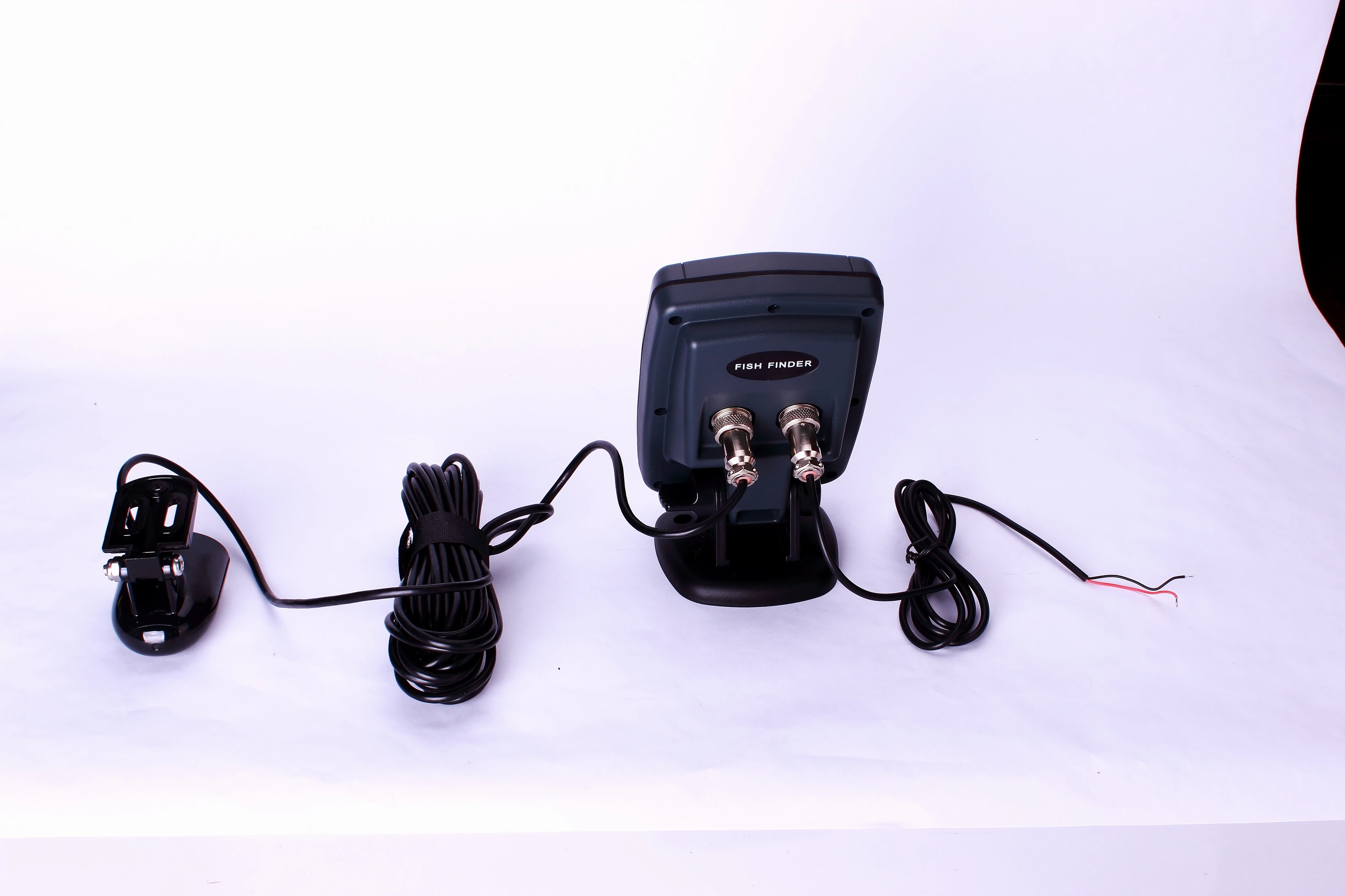

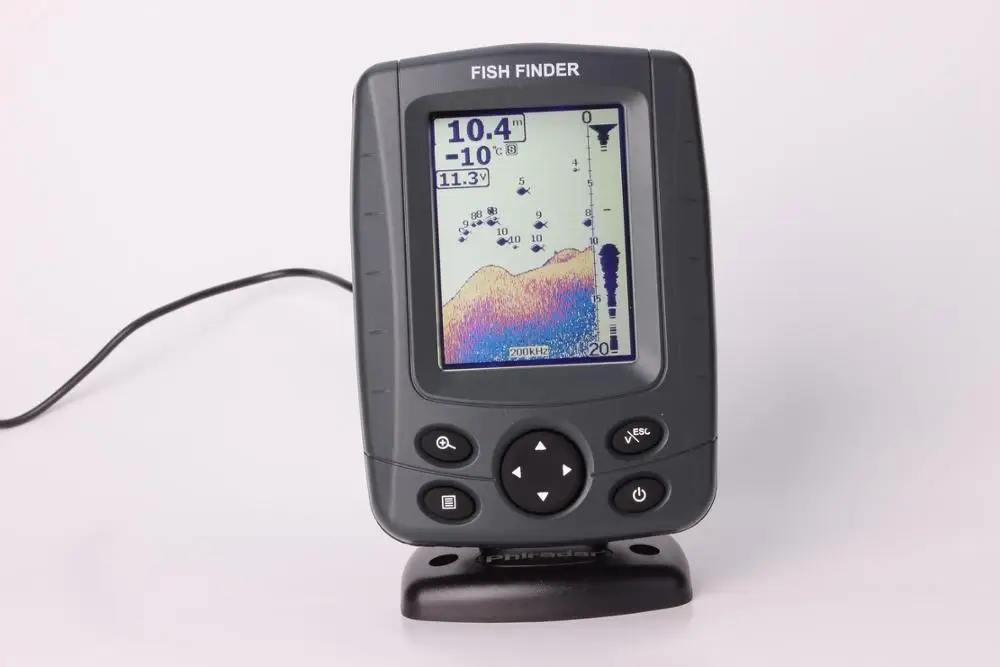

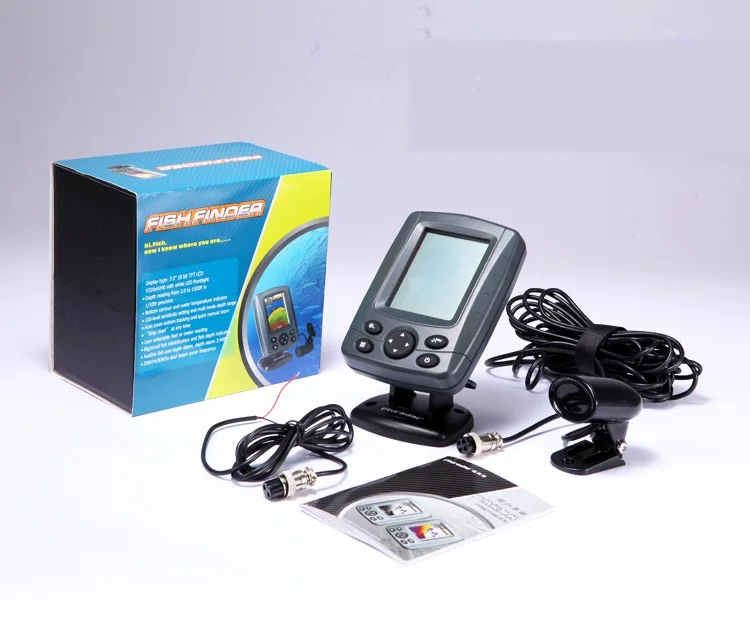

boat sonar detector color fish finder gps fish finder for carp fishing boat fishing and kayak fishing

Specifications:

Main Unit

Display: : 3.5" 18 bit TFT V480xH320 with Color LED

RTS Real Time Sonar Signal, First Time Fish Signal Display

Fish Arches Display, Checking the Big/Small Fish and Fish School more Accurately

Three User Selectable Sonar Chart Display Color Options (White, Blue and Gray)

Multi-languages menu (English; Russian; French; Chinese; Japanese; Finnish; Polish; German; Italian; Spanish; Dutch; Korean; Swedish; Greek; Danish; Portuguese; Czech)

Auto Zoom Bottom Tracking and Quick Manual Zoom

Bottom Contour Indicator (Three colors, Yellow, Red and Blue to Distinguish the Stiffness of the Underwater Material )

User Selectable Big/Small Fish Alarm, Depth Alarm and Low Voltage Alarm

100 Levels Sensivity Setting

Auto or Manual Depth Range, User Selectable Detecting Depth Range

“Stop Chart” at any Time

Power Supply: 12V DC;

1800 watts peak-to-peak power; 240 watts RMS power

 Sonar

Depth reading from 2.0 to 240ft (80M) in 1/10th precision

200KHZ/83KHZ Dual Beam Sonar Frequency

Beam Angle: 20/60 Degree

Built in Water Temperature Sensor

Working Temperature: -20 --70 Degree
