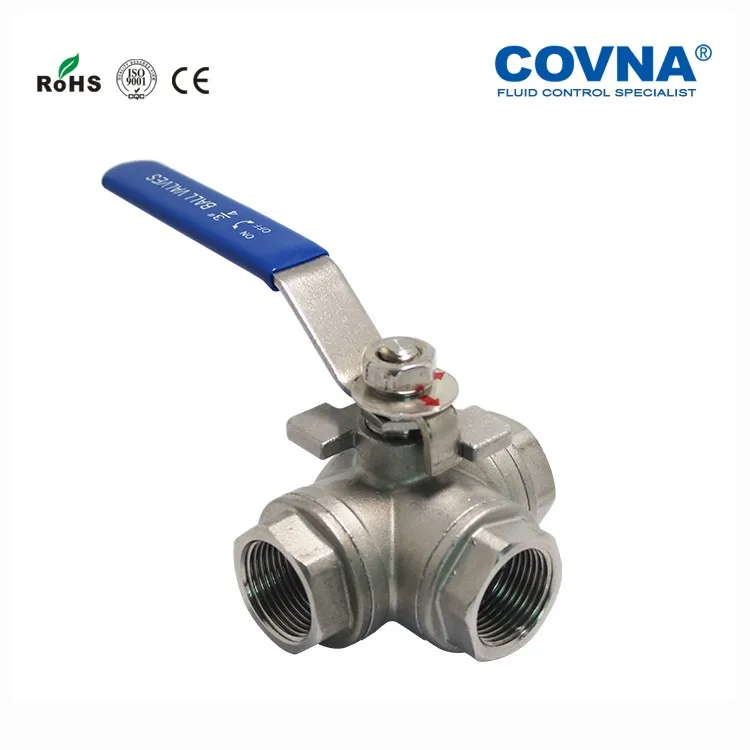

DN15 T Port PN64 High Pressure NPT Threaded SS 304 Lever Operated 1/2 Thread Three Way Ball Valve upvc/brass/stainless
- Category: Ball Valves >>>
- Supplier: COVNA Industry Automation Co. Ltd.
Share on (62045974346):
Product Overview
Description
Specifications
Item | DN15 T Port PN64 High Pressure NPT Threaded SS 304 Lever Operated 1/2 Thread Three Way Ball Valve |
Size Range | 1/2" ~ 2", DN15~DN50 |
Medium | Water, Air, Steam, Gas, Oil, etc |
Temperature | NBR: -5℃~80℃; EPDM: -5℃~120℃; FKM: -5℃~120℃; PTFE: -30°~180° |
Pressure | 1.6~6.4MPa |
Port Thread | NPT, BSPP, BSP |
Material | Brass or Stainless Steel |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |

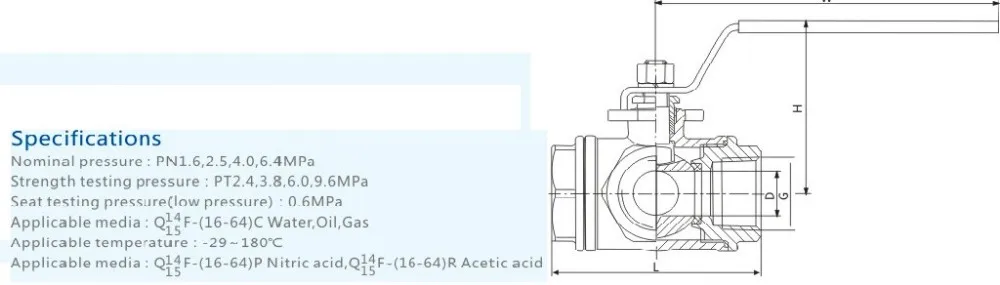

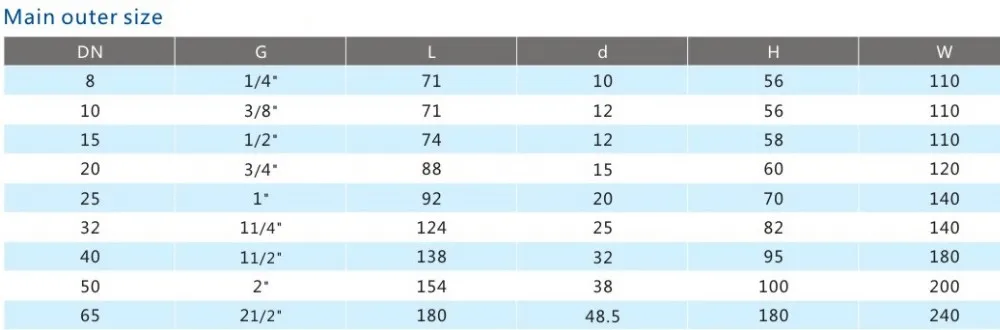

Technical Parameters | ||||||
Flow Diagram | ||||||
T Pattern
L Pattern
Application
Production Flow
About COVNA
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA Top Sales Team
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing
Packing: DN15 T Port PN64 High Pressure NPT Threaded SS 304 Lever Operated 1/2 Thread Three Way Ball Valve packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
