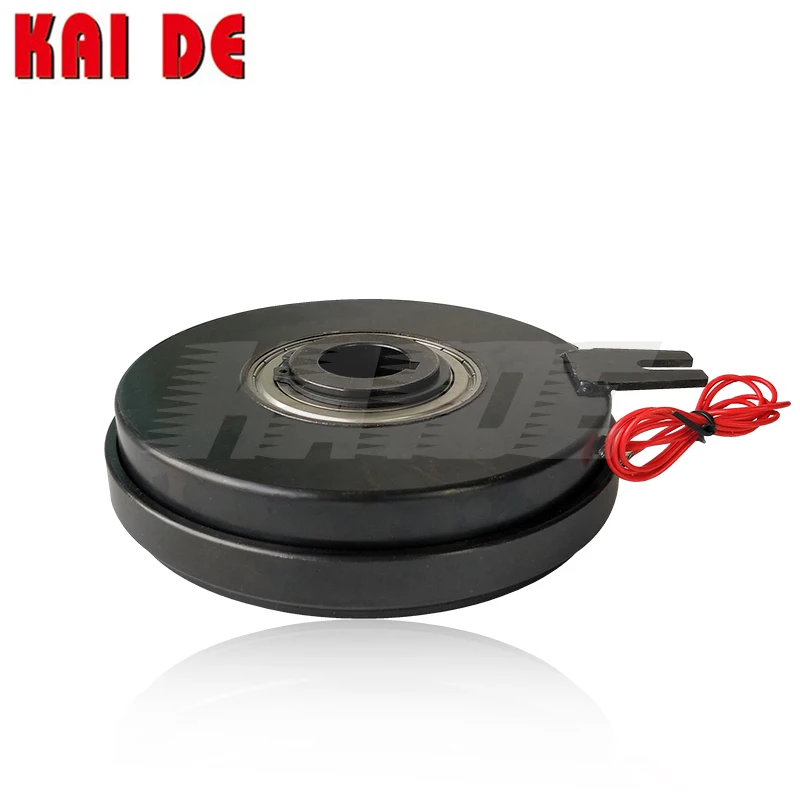

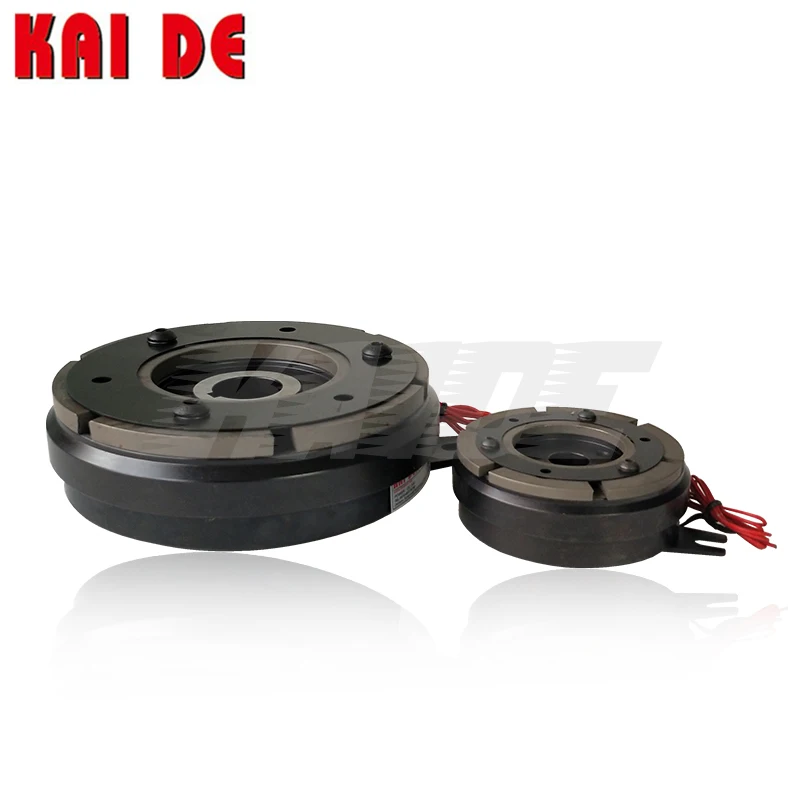

High quality Micro small Magnetic powder brake Factory price
Principle:

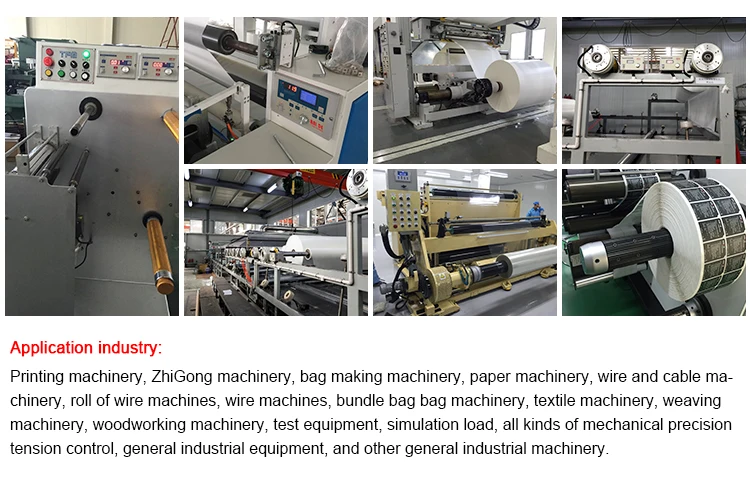

Electromagnetic clutch also known as electromagnetic coupling. It is the application of electromagnetic induction principle and friction between the internal and external friction, so that the mechanical transmission system of the two rotating moving parts, in the case of active parts do not stop rotating, driven parts can be combined with or separated from the electromagnetic mechanical connector, is an automatic implementation of electrical appliances. Electromagnetic clutch can be used to control mechanical starting, reverse, speed and braking. It has the advantages of simple structure, fast action, small control energy and remote control. Although small in size, it can transfer large torque; When used as brake control, it has the advantage of quick and smooth braking, so the electromagnetic clutch is widely used in various machining machines and mechanical transmission systems.
The role of the electromagnetic clutch is to actuator torque (or power) from the drive shaft side to the driven shaft side. It is widely used in various institutions (such as the transmission mechanism in machine tools and various electric institutions, etc.) to achieve rapid start, braking, forward and reverse rotation or function such as speed. Electromagnetic clutch is an important component in automatic control system because it is easy to realize remote control and is much easier to operate than other mechanical, hydraulic or pneumatic clutches.

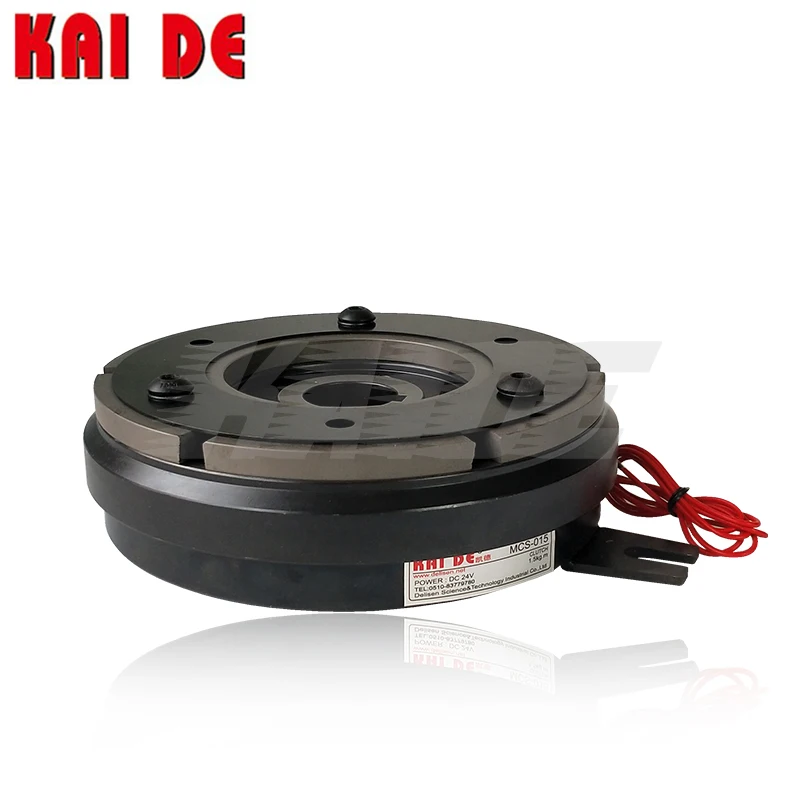

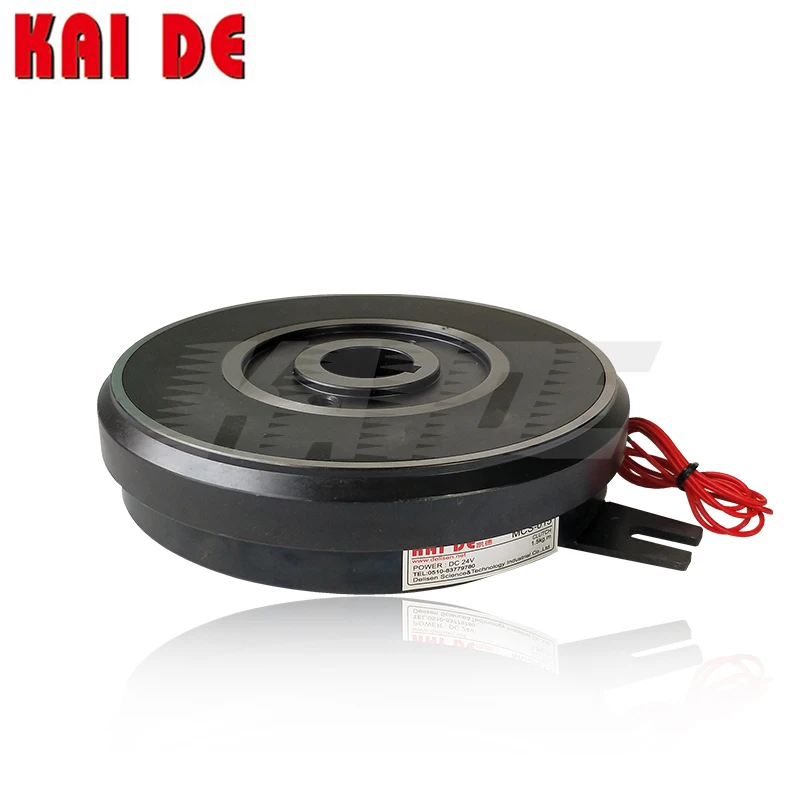

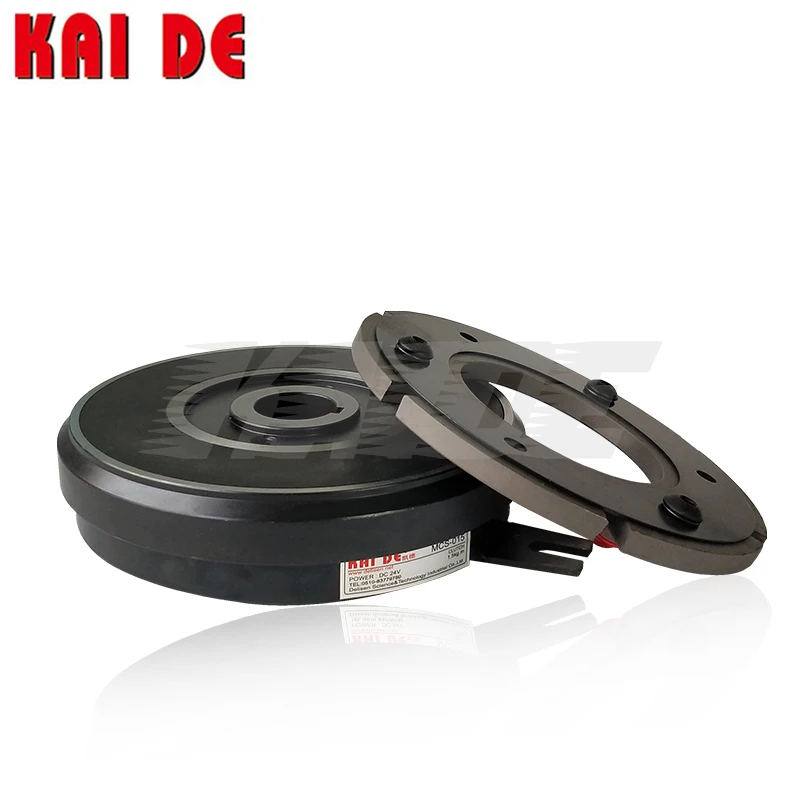

| Model | MCS-006 | MCS-015 | MCS-025 | MCS-050 | MCS-100 | MCS-200 | MCS-400 | |
| Static friction torque[kgf-m] (N-m) | 0.6(6) | 1.5(15) | 2.5(25) | 5.0(50) | 10(100) | 20(200) | 40(400) | |
| Kinetic friction torque[kgf-m] (N-m) | 0.5(5) | 1.0(10) | 2.0(20) | 4.0(40) | 8(80) | 16(160) | 32(320) | |
| Powder [DC24V] (W) at20℃ | 11 | 15 | 20 | 25 | 35 | 45 | 60 | |
| Weight(kg) | 1.0 | 1.5 | 2.5 | 4 | 7 | 11 | 21 | |
| Maximum speed (r/min) | 1800 | |||||||
| Radius | A1 | 63 | 80 | 100 | 125 | 160 | 200 | 250 |
| A2 | 46 | 60 | 76 | 95 | 120 | 158 | 210 | |
| A3 | 34.5 | 41.5 | 51.5 | 61.5 | 79.5 | 99.5 | 124.5 | |
| B | 67.5 | 85 | 106 | 133 | 169 | 212.5 | 264 | |
| C | 67.5 | 85 | 106 | 133 | 169 | 212.5 | 264 | |
| D | 12 | 15 | 20 | 25 | 30 | 40 | 50 | |
| F | 20 | 25 | 30 | 40 | 50 | 65 | 80 | |
| H | 24 | 26.5 | 30 | 33.5 | 37.5 | 50 | 65 | |
| K | 2 | 2 | 2 | 2 | 3.2 | 3.2 | 4 | |
| L1 | 31 | 34.5 | 39.5 | 44.5 | 50.5 | 60.5 | 77.5 | |
| L2 | 28 | 31 | 36 | 40.5 | 46.5 | 55.5 | 64 | |
| M | 27 | 29.5 | 34 | 37.5 | 42 | 50 | 65 | |
| P | 7.5 | 8 | 9 | 9 | 11.5 | 12.5 | 13 | |
| V1 | 3-3.1 | 3-4.1 | 3-5.1 | 3-6.1 | 3-8.1 | 3-10.2 | 4-12.2 | |
| V2 | 6.3 | 8 | 10.5 | 12 | 15 | 18 | 18 | |
| V3 | 5 | 6.2 | 8 | 10 | 13 | 15 | 16 | |
| X | 1 | 1.2 | 1.5 | 1.8 | 3.2 | 3.5 | 4 | |
| a | 0.2(±0.05) | 0.3(+0.05,-0.1) | 0.5(-0,-0.15) | |||||
| shaft | G1 | 42.5 | 57.5 | 62.5 | 77.5 | 100 | 115 | 140 |
| G2 | 50 | 65 | 70 | 85 | 112 | 135 | 160 | |
| G3 | 9.5 | 10.5 | 11.5 | 11.5 | 18.5 | 20 | 20 | |
| Y1 | 4.5 | 5.5 | 6.5 | 6.5 | 9 | 10.5 | 10.5 | |
| Y2 | 14 | 16 | 16 | 16 | 25 | 36 | 40 | |
| b | 4 | 5 | 5 | 7 | 7 | 10 | 12 | |
| t | 1.8 | 2.3 | 2.3 | 3.3 | 3.3 | 3.8 | 3.8 | |
Advantages:
1. High speed response: because it is dry type, the transmission of torque is fast and convenient.
2, durability: good heat dissipation, and the use of advanced materials, even high frequency, high energy use, but also very durable.
3. Easy assembly and maintenance: the magnetic field coil in the ball bearing is static, so there is no need to remove the core or use the carbon brush. It is easy to use.
4. The action is indeed: the use of plate shrapnel, although there is a strong vibration will not produce loose, good durability.
