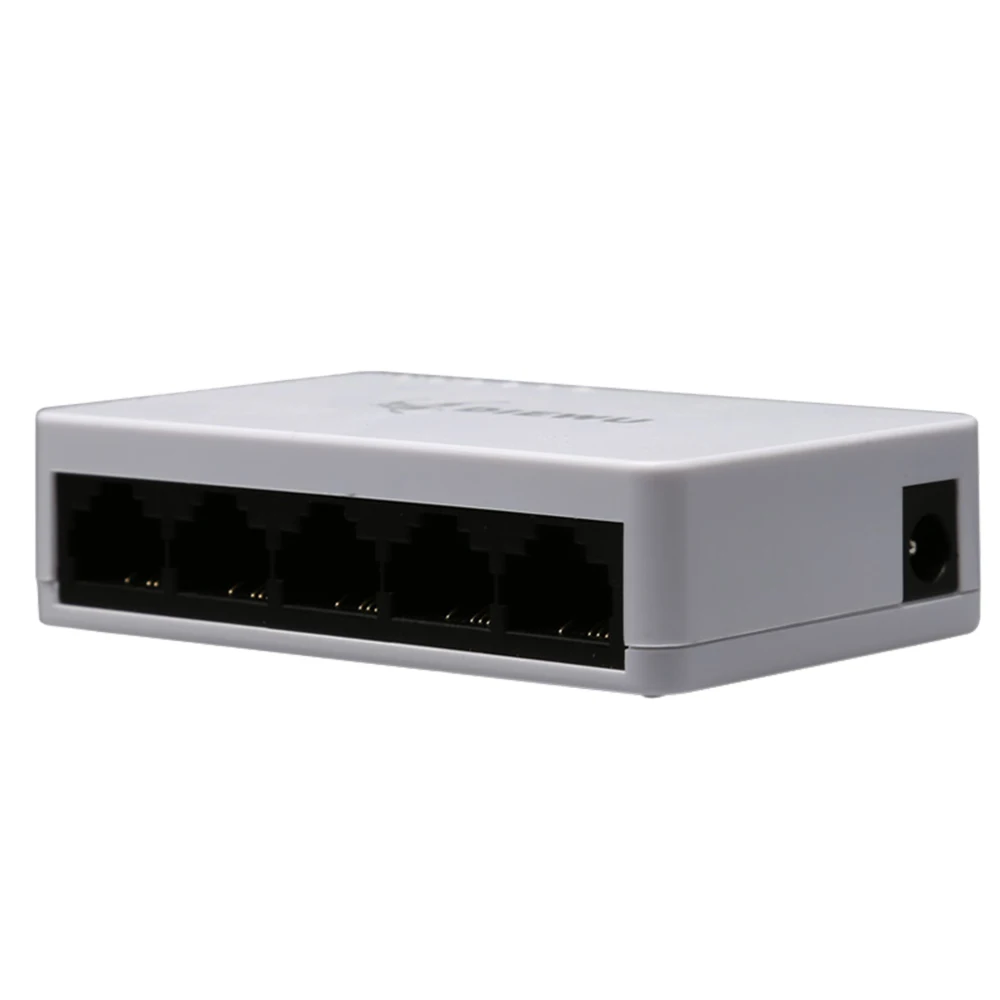

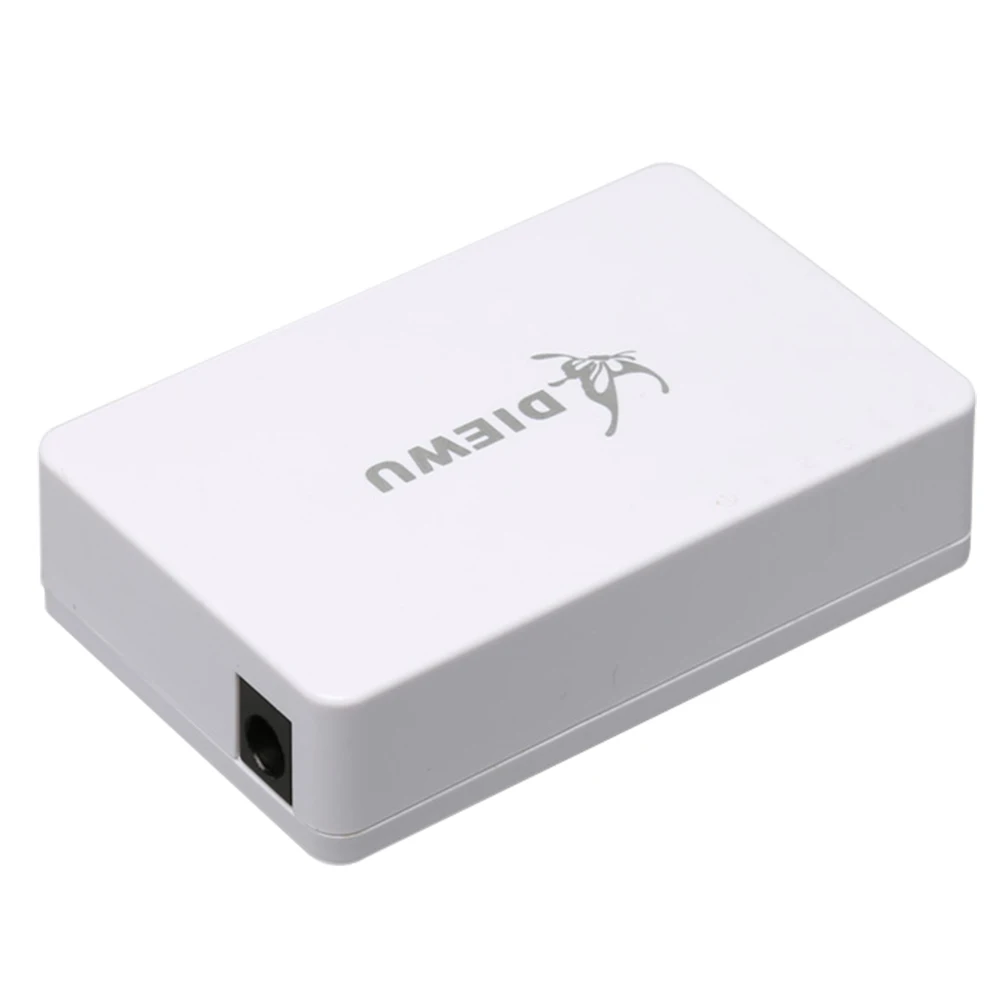

DIEWU manufacturer white case 5 ports RJ45 Megabit 10/100mbps ethernet lan switch
- Category: >>>
- Supplier: Shenzhen Diewu Technology co. Ltd
Share on (62046028889):
Product Overview
Description
DIEWU manufacturer white case 5 ports RJ45 Megabit 10/100mbps ethernet lan switch
Product Description
Specifications of 5 port ethernet switch
Model number | TXE107 |
Chipset | IP175G |
Port number | 5 port 10/100M Auto MDI-MDIX RJ45 |
Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az |
Network media | 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP |
Data rate | 10/100M |
Forwarding rate | 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps |
LED Indicator | 10/100Mbps(Link/Act),Power |
Dimension | 81*51*21mm |
Power Input | DC5V/500mA |
Power Consumption | Max1.5W |
Environment | Operating Temperature: 0 ℃-40 ℃ |
Relative Humidity: 10%-90%(non-condensing) | |
Storage Temperature: -40℃-70℃ | |
Relative Humidity: 5%-90%(non-condensing) |
Chipset Feature :
· 5 port Embedded 10/100 PHY Switch Controller
· Support 5 100BaseTX or 4 100Base TX + 1 FX
· Support Auto MDI-MDIX function
· Power Management Tool (PWMT®)
- APS, auto-power saving while Link-off
- IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps
· - WOL+®, light traffic power saving
- PWD, force-off power saving
· Support Auto Factory Test (AFT®)
· Single Power 3.3V supply
· Built in Vcore Regulator
· Two Priority queues per port
· Support 802.1p & DiffServ based QoS
· QoS
- Port base
- 802.1p
- IP DiffServ IPV4/IPV6
- TCP/UDP port number
- Pins configure ports priority (VIP port)
· Support max forwarding packet length 1552/1536 bytes option
· Support port mirror function
· Support 1k MAC address
· Support broadcast storm protection
· Support port trunking (LACP)
· Support 16 VLAN (IEEE Std 802.1q)
- Port-based/Tagged-based VLAN
- Support insert, remove tag
· Built-in 50 ohm resistors for simplifying BOM
· 85nm Process
· Package and operation temperature
· IP175G: 48 Pin QFN(6x6), 0~70℃

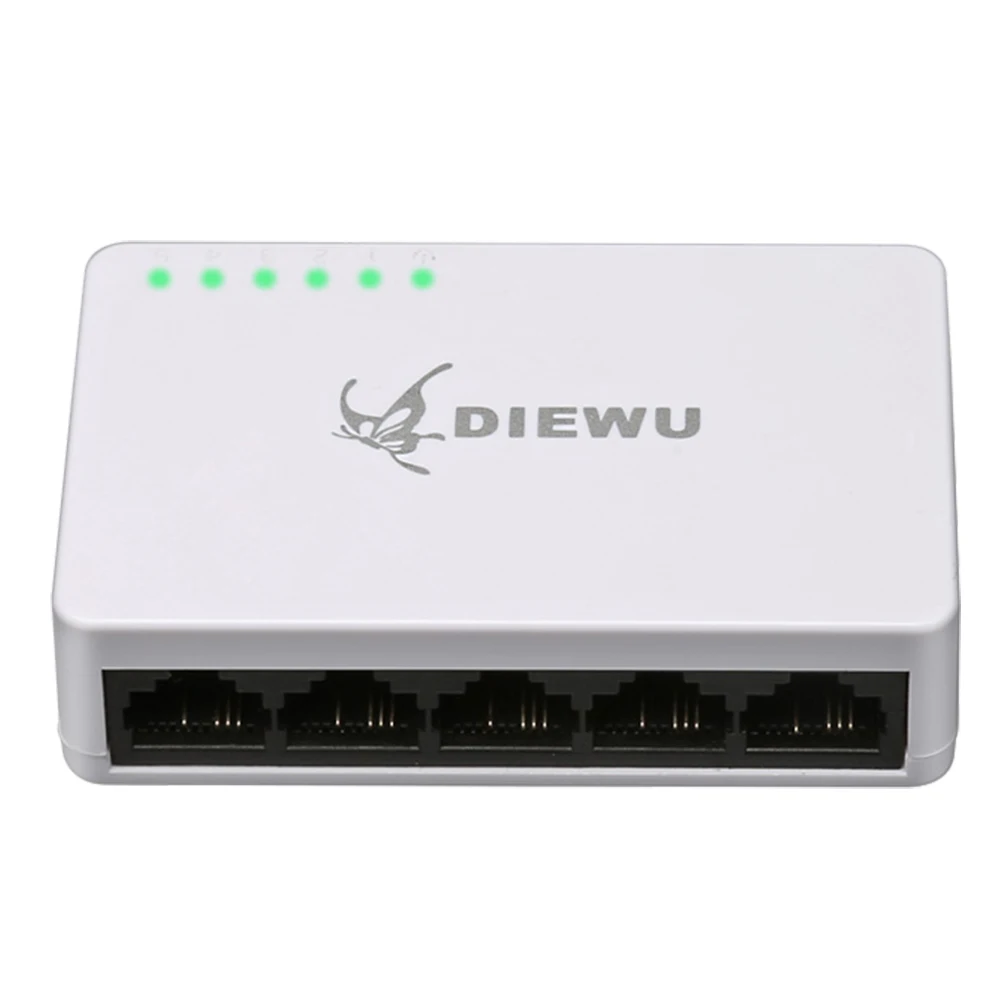

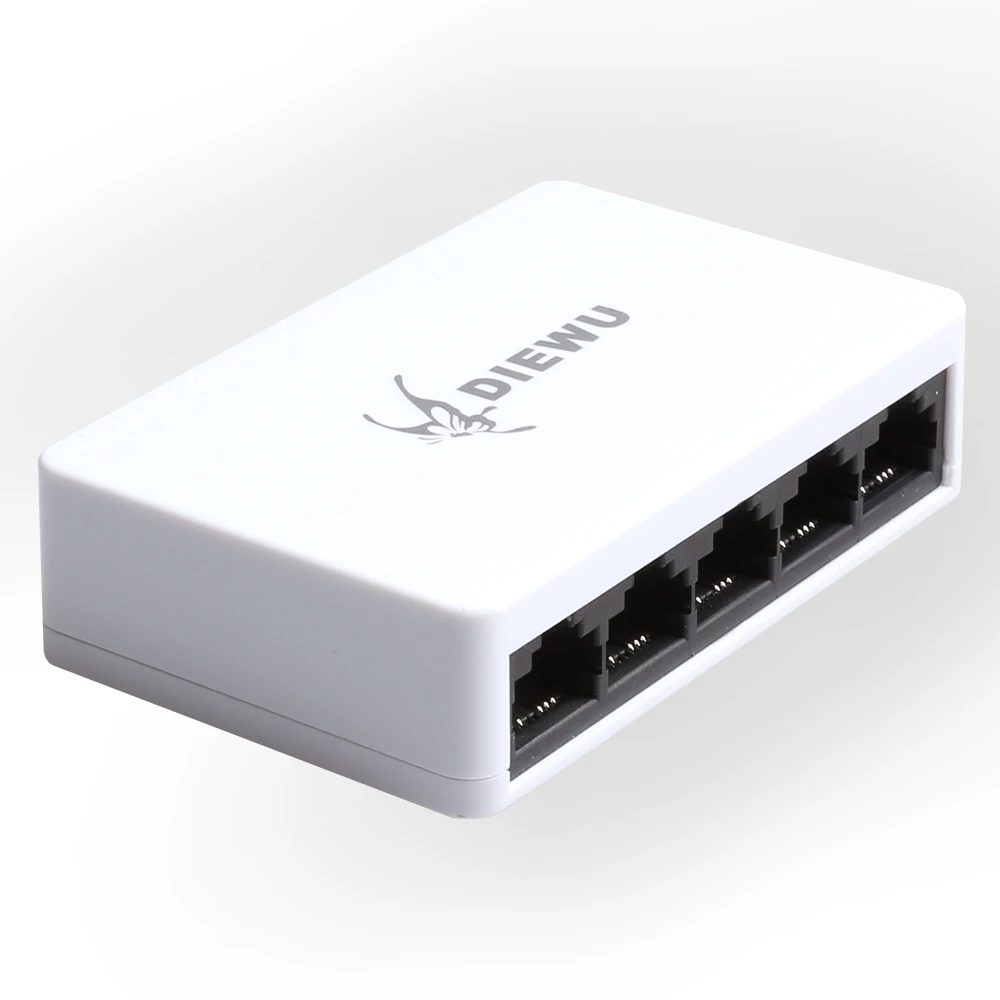

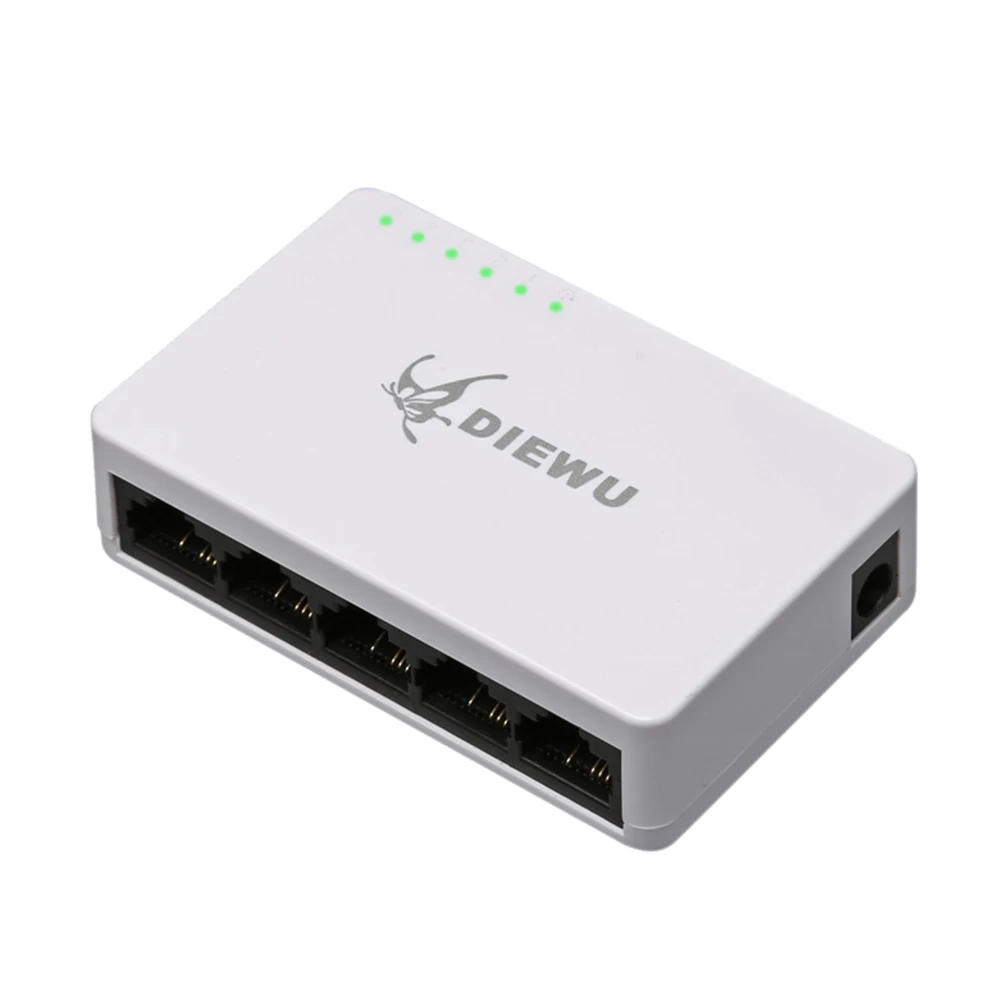

Product Show of 5 port ethernet switch
Related Products

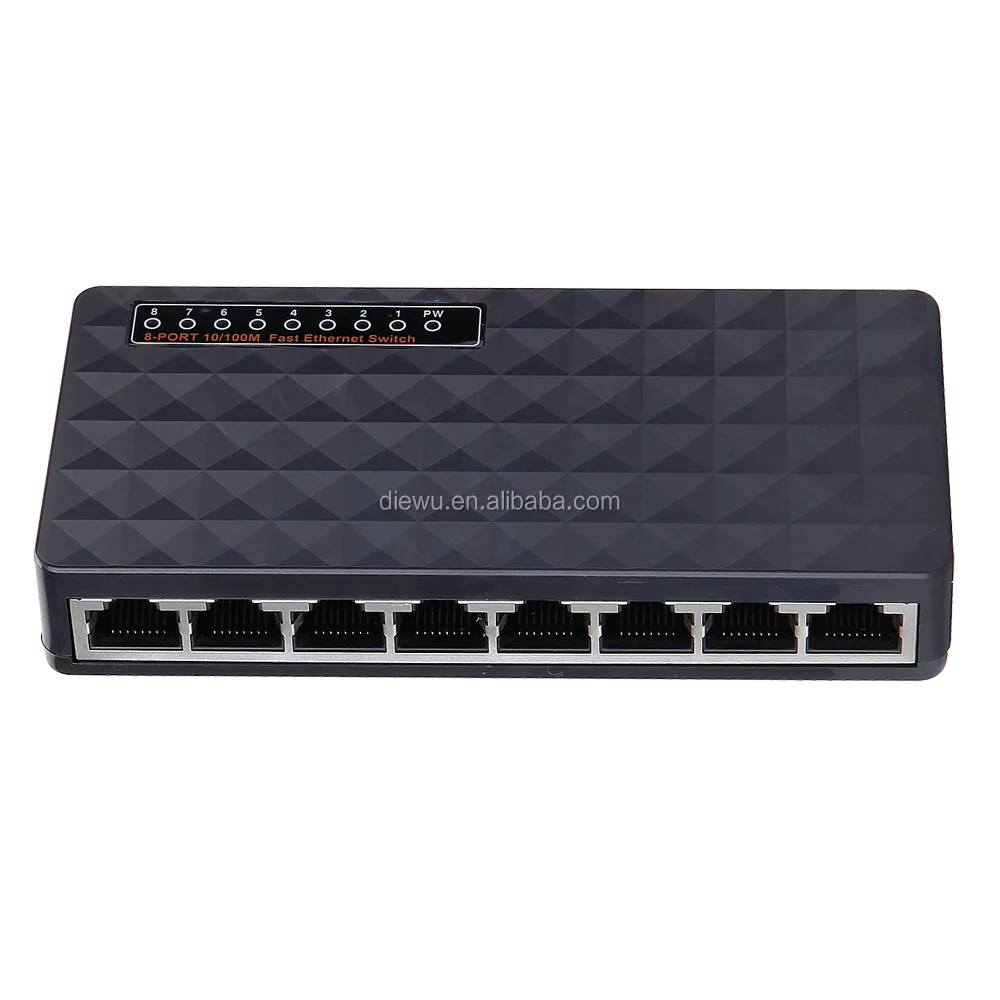

Similar 8 port ethernet switch you may like
