Good quality PET strap making machine from zhangjiagang city
- Category: >>>
- Supplier: Greenwill Machinery ( Zhangjiagang) Co. Ltd.
Share on (62046235543):
Product Overview
Description
Good quality PET strip making machine
Greenwill machinery is the professional manufacturer of PET PP strap extrusion line. We could meet high quality strap production and high capacity request from customers.
Our PET strap machine could meet over 6:1 stretching rate, and 200m/min speed extrusion.
This production line is used to product the pet packing band,pet packing strap;adopt the plc control the whole line do the auotmatic production,it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other
Character :
It use single screw extruder system
For PET strap production, It use 100% recycling material
Measurement pump ensure constant and stable production
Two pull four station filter can efficiently eliminate impurity
Large hauling force stretch device and insulation oven
PET Strap equipment list:
| No. | Description | Qty. |
| 1 | PET200 Efficient dehumidification drying preliminary crystal system | 1 set |
| 2 | Three constituents mixing and feeding system | 1 set |
| 3 | Single screw extruder | 1 set |
| 4 | Double-column exhausting hydraulic screen changer | 1 set |
| 5 | High temperature melt pump | 1 set |
| 6 | PET extrusion dies | 1 set |

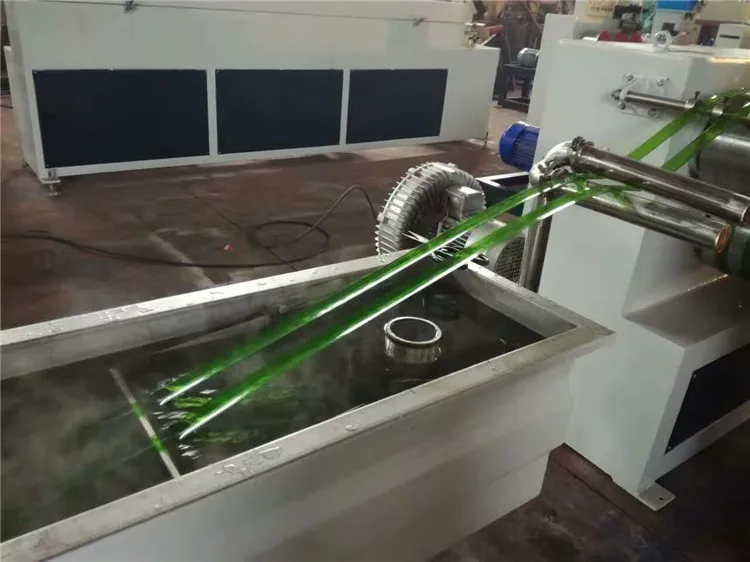

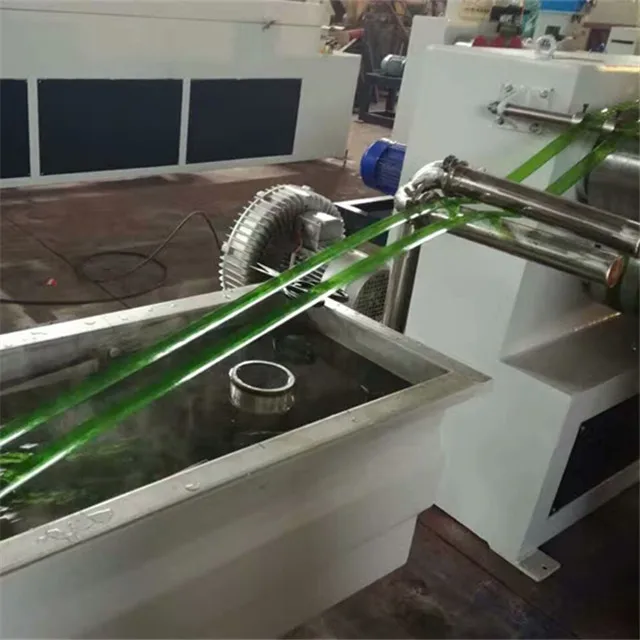

| 7 | Water cooling tank | 1 set |

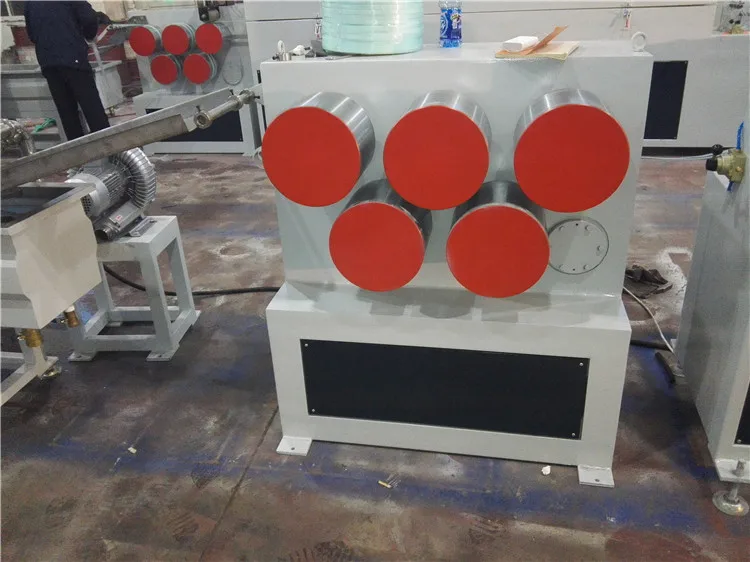

| 8 | The first 5-roller preheating unit | 1 set |

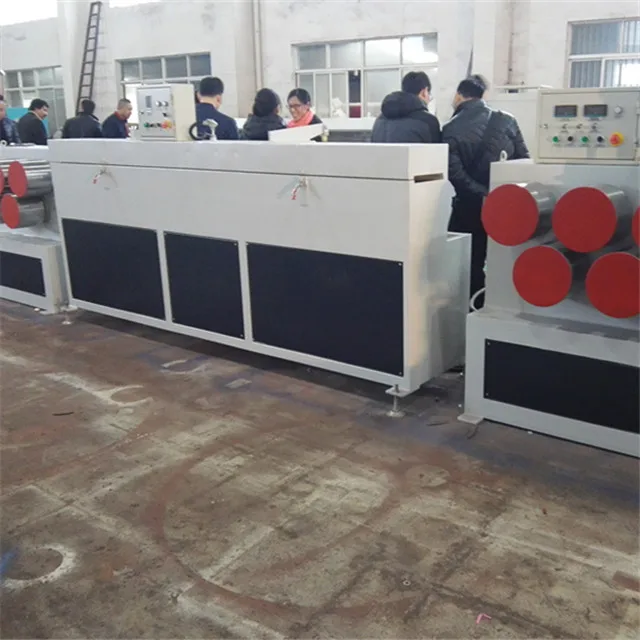

| 9 | Convection oven | 1 set |

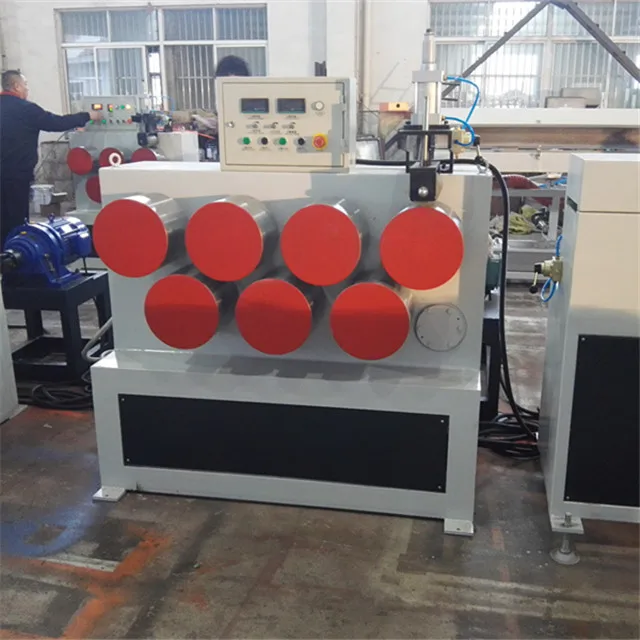

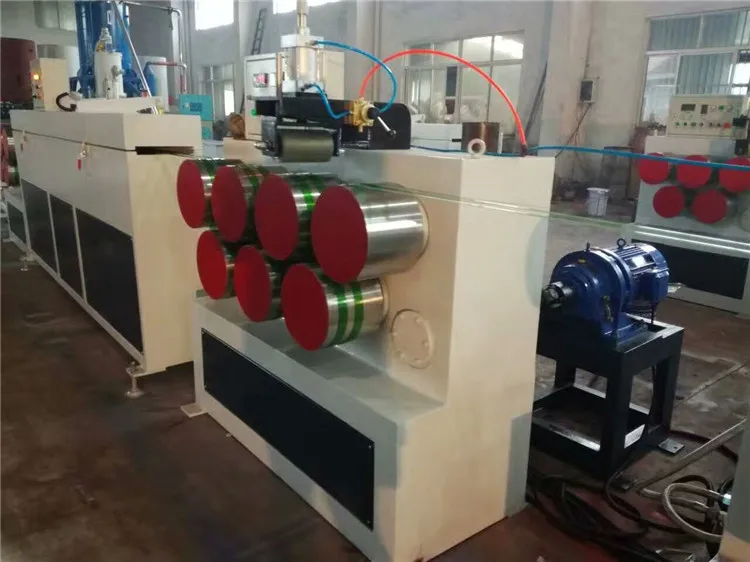

| 10 | The first stretching machine | 1 set |
| 11 | The second stretching machine | 1 set |
| 12 | Embossing machine | 1 set |
| 13 | Heat setting machine | 1 set |
| 14 | Water cooling tank | 1 set |
| 15 | 3-roller traction machine | 1 set |

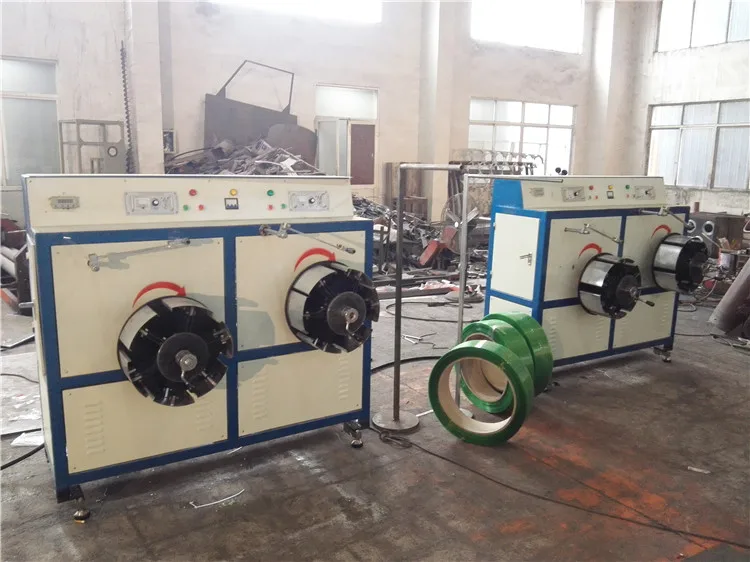

| 16.1 | Double-position winding machine (PLC controlled) | 2 sets |
| 16.2 | Double-position winding machine (mechanical) | 2 sets |
| 17 | Electrical Control system | 1 set |
| 18 | Technical Information | 1 Manual |

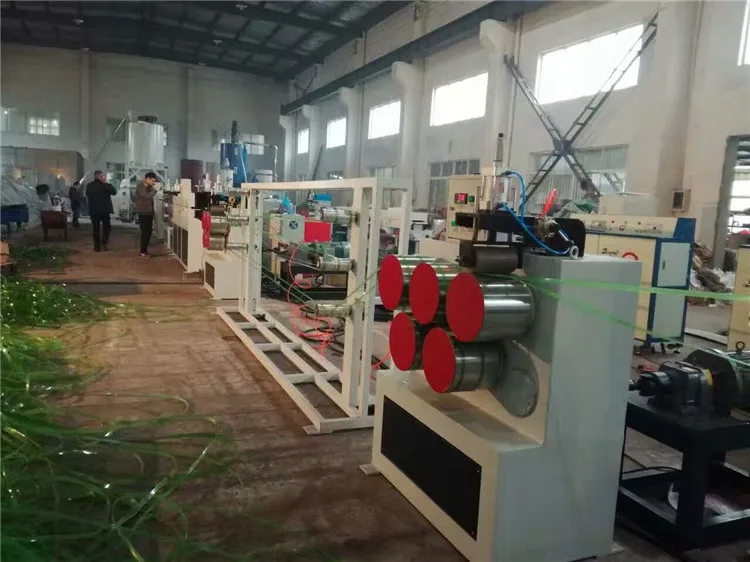

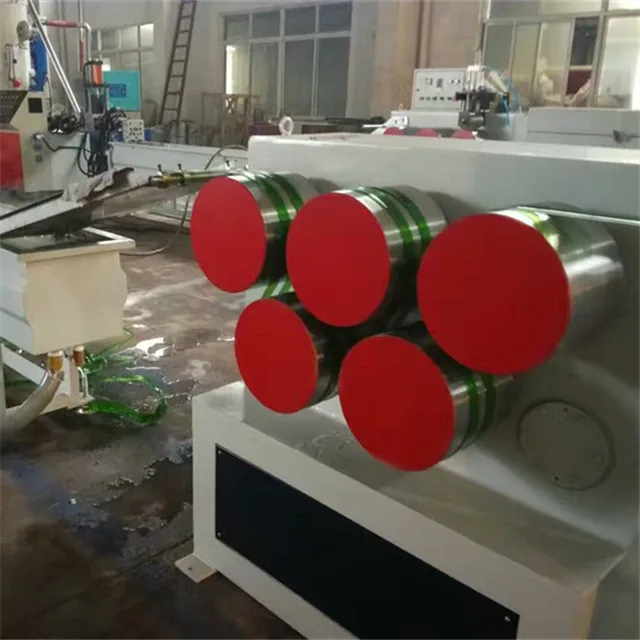

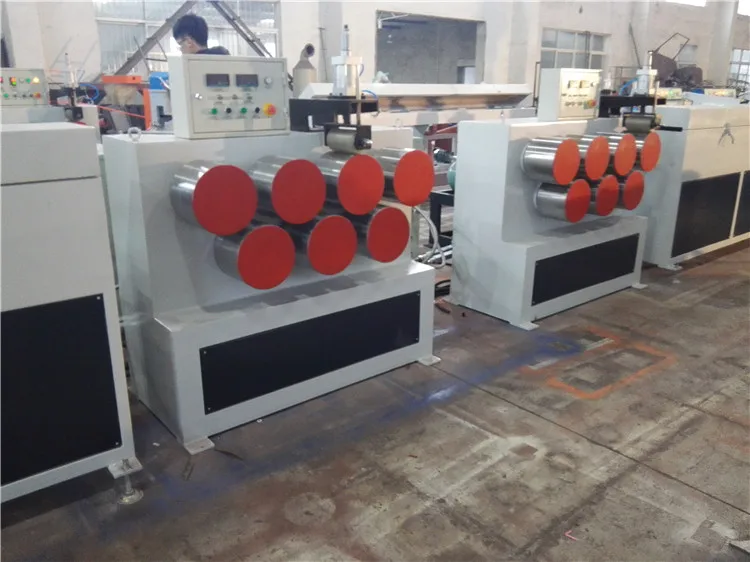

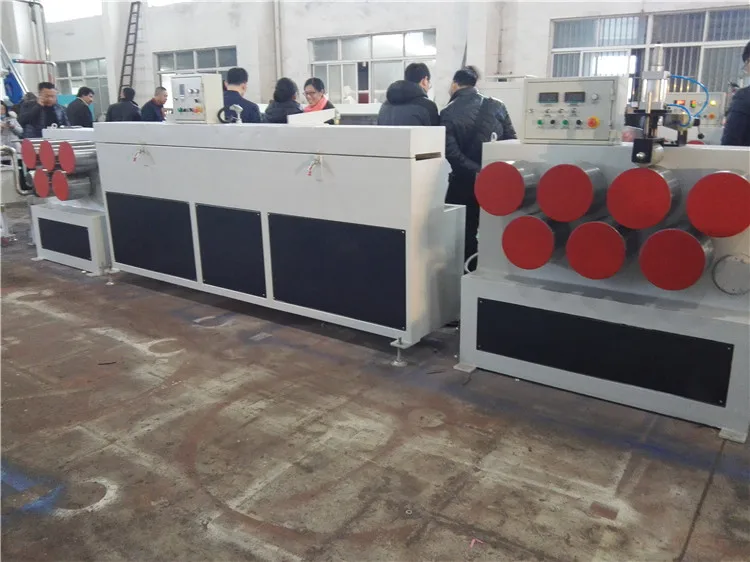

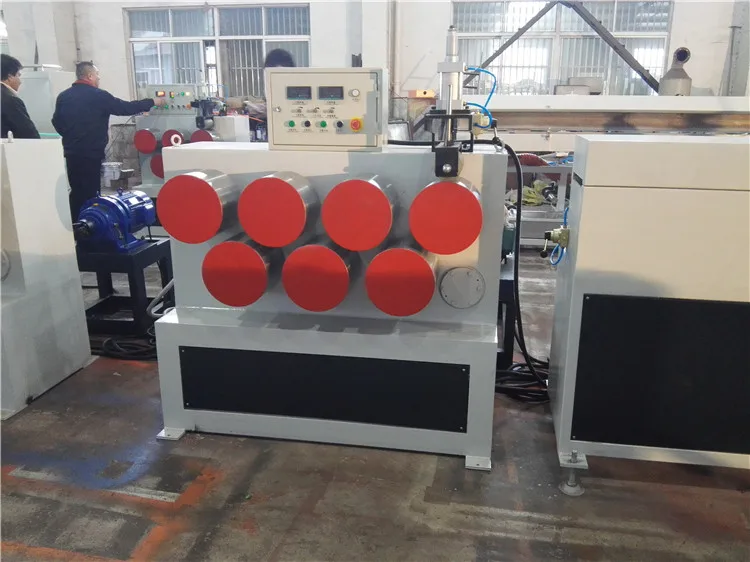

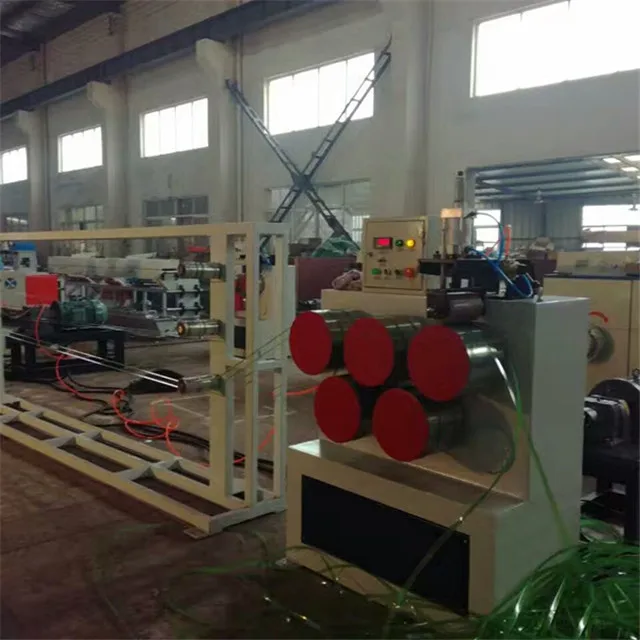

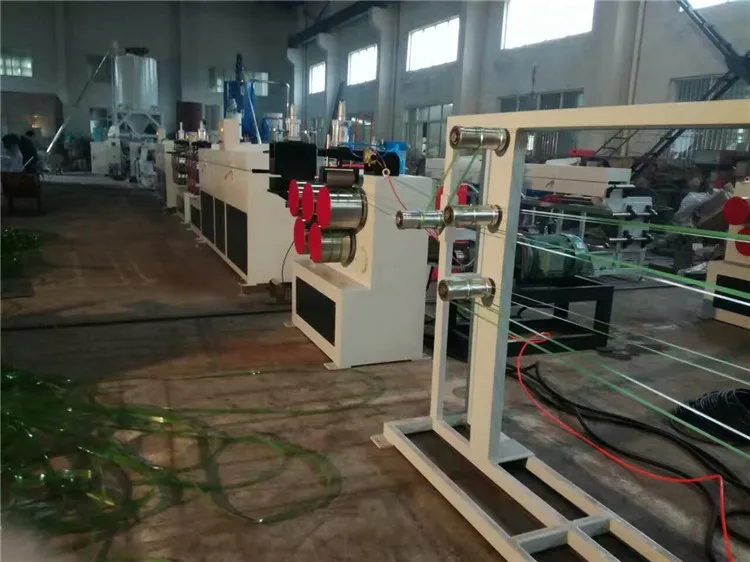

Good quality PET strip making machine photos:
Good quality PET strip making machine
