Product Overview

Description


Product Description

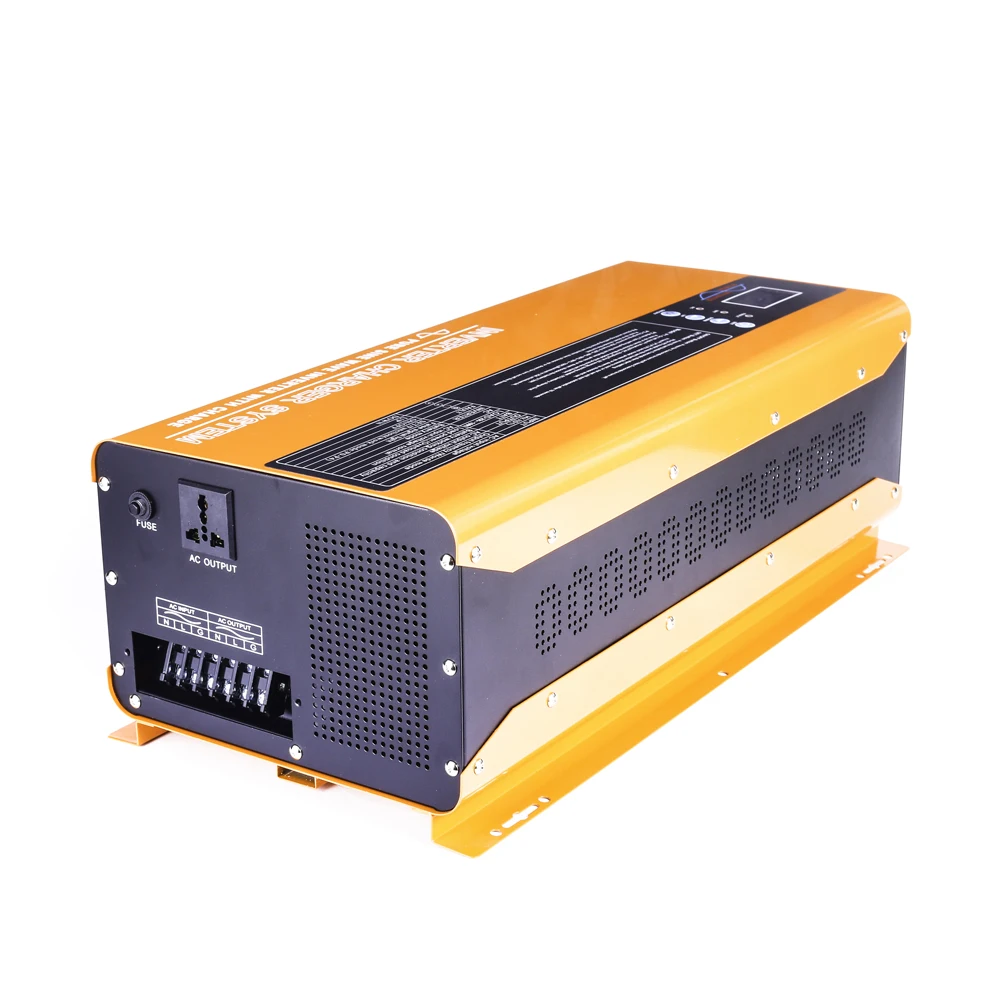

AMPLEC Inverter Solar Offgrid 5kw Fronius Hybrid Inverter Solar

Detailed Images
Specification
\t
Model
\t
5000W
\t
5000W
\t
5000W
\t
Rated capacity
\t
5000W
\t
5000W
\t
5000W
\t
Peak Power
\t
15000W
\t
15000W
\t
15000W
\t
Nominal battery voltage
\t
24VDC
\t
48VDC
\t
96VDC
\t
Input
\t
\t
DC input voltage range
\t
24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC
\t
Mains input voltage range
\t
AC220V:170-270VAC
\t
Mains input frequency range
\t
45-65HZ
\t
Temperature protection
\t
≥85℃ alarm ≥90℃ machine shut off
\t
Output
\t
\t
Battery low voltage alarm
\t
24VDC:21V 48VDC:42V 96VDC:84V
\t
Battery low voltage protection
\t
24VDC:20V 48VDC:40V 96VDC:80V
\t
Battery over voltage protection
\t
24VDC:33.4V 48VDC:66.8V 96VDC:133.6V
\t
Battery over voltage alarm
\t
24VDC:30V 48VDC:60V 96VDC:120V
\t
Over power protection
\t
110% more than rated capacity
\t
Temperature protection
\t
≥85℃ alarm ≥90℃ machine shut off
\t
Output
\t
\t
Efficiency
\t
≥85%
\t
Output voltage (battery mode)
\t
220VAC±2%
\t
Output frequency (battery mode)
\t
50/60HZ±1%
\t
Output wave form
\t
pure sine wave
\t
Output voltage range (mains mode)
\t
Stabilization output:220VAC±10%
\t
Thermal method
\t
Cooling fan in intelligent control
\t
≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
\t
Working mode P1
\t
Mains Priority mode(default working mode)
\t
Mains priority mode with AC charging
\t
Working mode P2
\t
Energy saving mode
\t
Load power≤10% machine turns off, ≥11%-100% machine turns on
\t
Working mode P3
\t
Solar power priority( Solar power priority without AC charging)
\t
When charging: Battery voltage≥13V, turn converting mode;when converting: Battery voltage≤10.5V, turn mains mode.
\t
MPPT Solar charge controller
\t
PV current rating
\t
50A
\t
60A
\t
100A
\t
60A
\t
100A
\t
DC Voltage
\t
48V
\t
48V
\t
48V
\t
96V
\t
96V
\t
MPPT working voltage and scope
\t
72VDC-160VDC
\t
72VDC-160VDC
\t
72VDC-160VDC
\t
120VDC-200VDC
\t
120VDC-200VDC
\t
Maximum power of solar panel
\t
2400W
\t
2880W
\t
4800W
\t
6000W
\t
9600W
\t
Machine efficiency
\t
99%
\t
99%
\t
99%
\t
99%
\t
99%
\t
Comnunication
\t
RS232:optional
\t
Temperature
\t
-20~70℃
\t
Humidity
\t
<95%
\t
Size
\t
640*270*205mm
\t
Packing Size
\t
740*350*275mm
Our Company

Other Products Recommendation

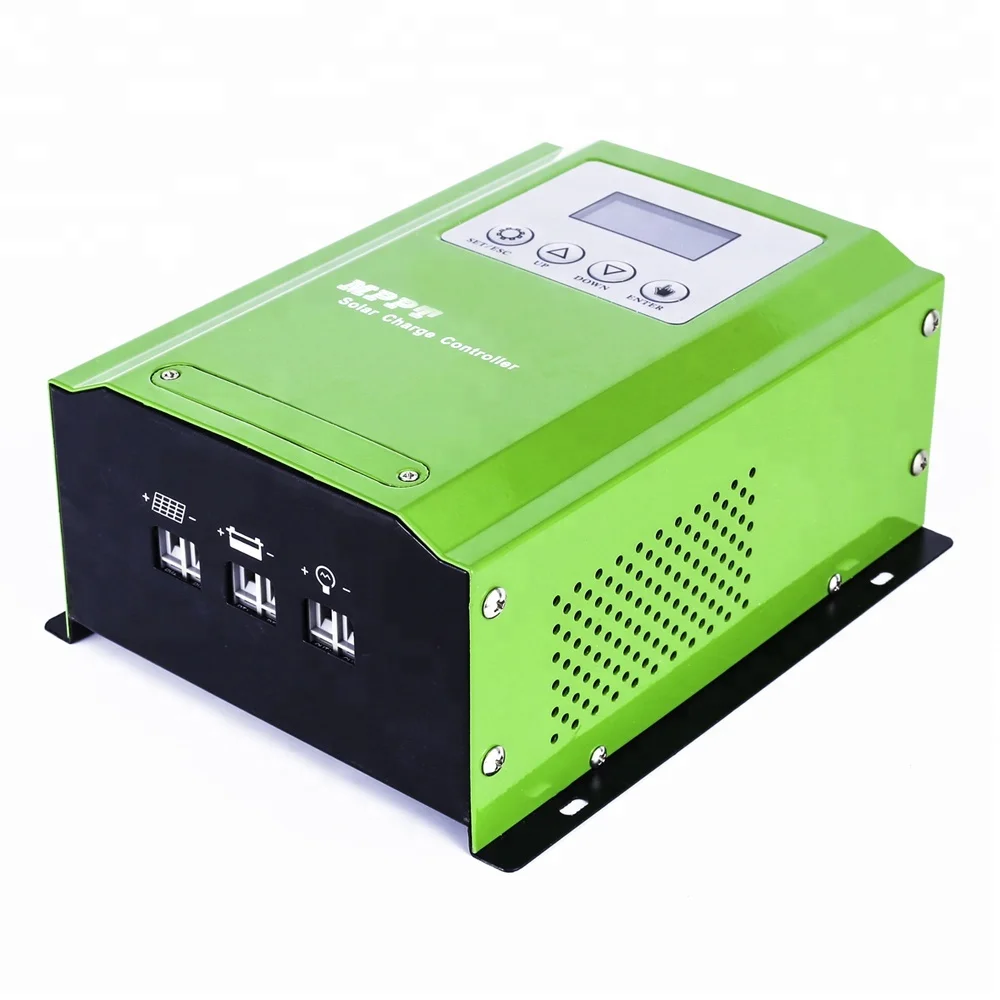

MPPT solar charge controller 60A

Unit Price : USD $ 97/PCS

     Solar Hybrid Inverter with Charger

        Unit Price : USD $ 171-600/PCS

Pure SIne Wave inverter with charger

300W-1500W:  71USD-150USD/PCS

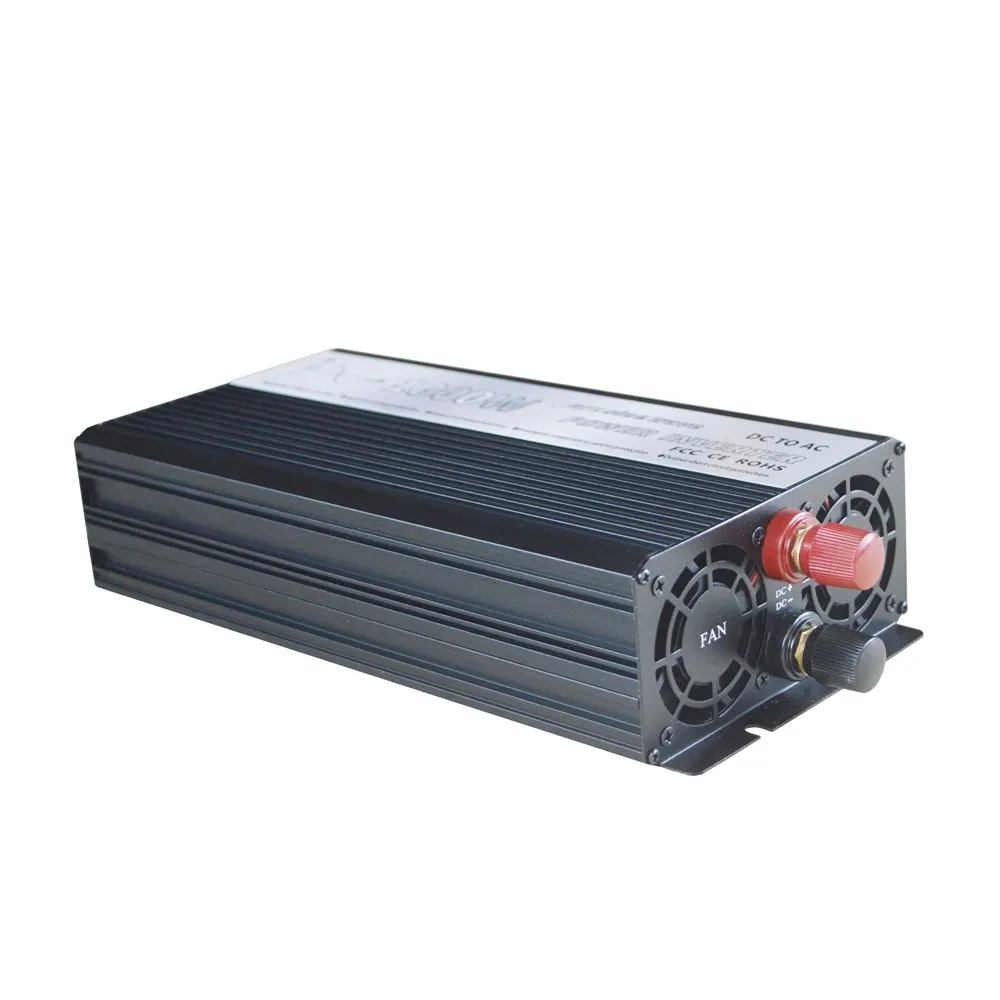

1000W Pure sine wave inverter
