Высококачественные японские штампы для рисования SUMIDIA Coolervie SUMIDIA, алмазная поликристаллическая алмазная проволока PCD, пресс формы для CD
- Category: >>>
- Supplier: Anhui Coolervie Wire Drawing Die Company Limited
Share on (62046715757):
Product Overview
Description
COMPANY PROFILE
INTRODUCTION
- Area of 30000 square meters
⁃ Production area 12000 square meters
⁃ 800 sets of production equipment
⁃ More than 300 employee
⁃ Complete production process
⁃ Monthly output of 5000+ PCs
⁃ ISO 9001 quality system certification
⁃ Support OEM and ODM processing customizationArea of 30000 square meters
⁃ Production area 12000 square meters
⁃ 800 sets of production equipment
⁃ More than 300 employee
⁃ Complete production process
⁃ Monthly output of 5000+ PCs
⁃ ISO 9001 quality system certification
⁃ Support OEM and ODM processing customizationArea of 30000 square meters
PRODUCT DESCRIPTION

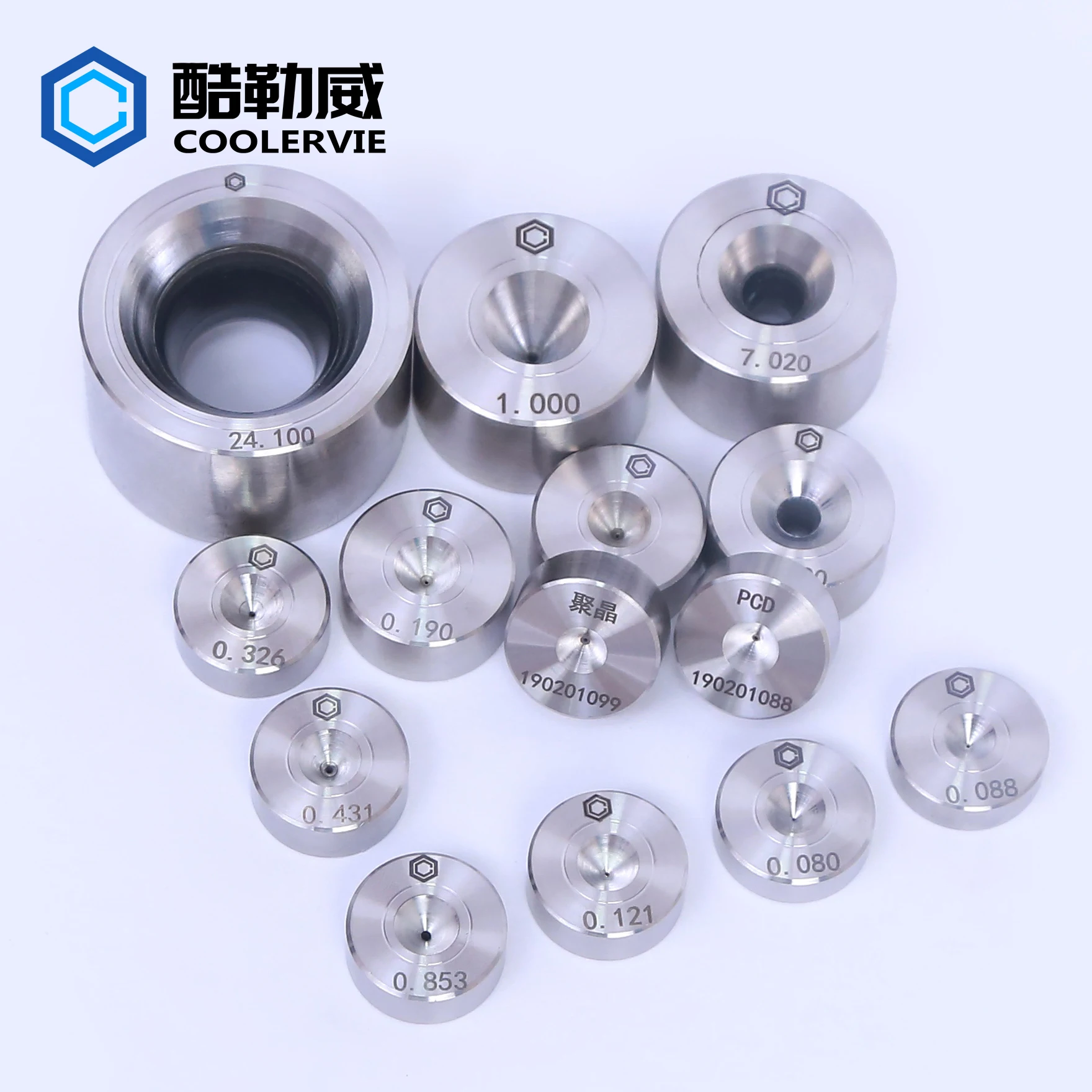

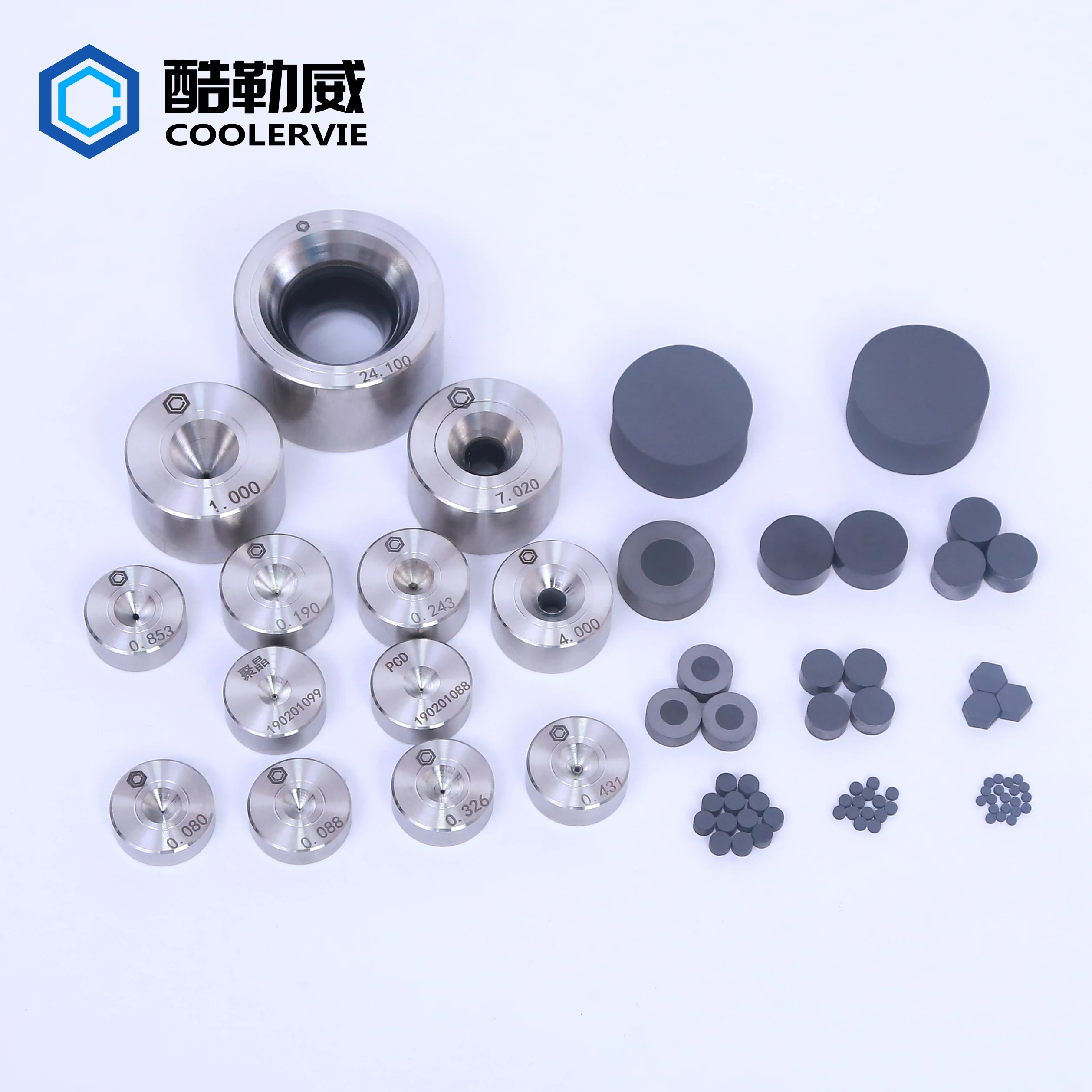

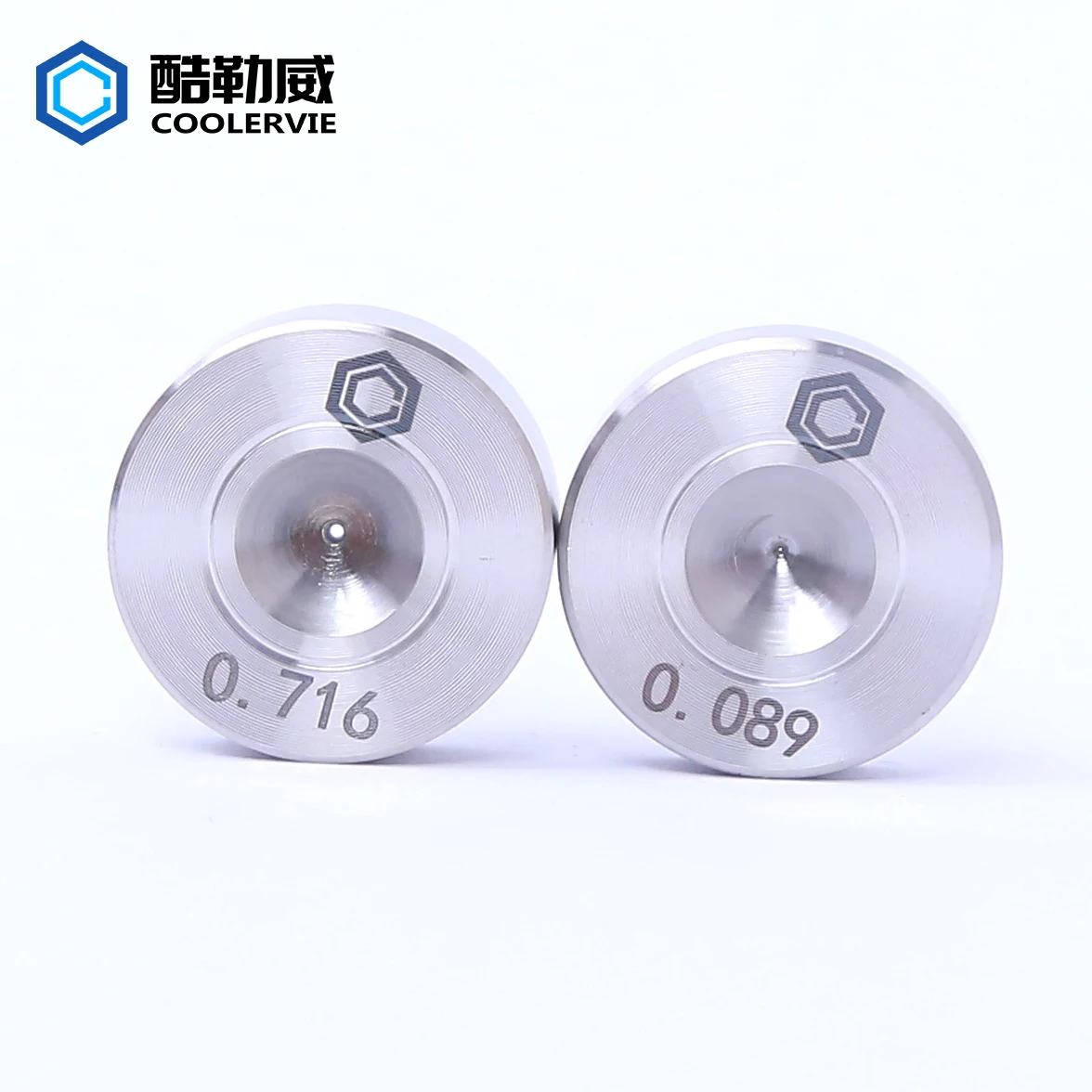

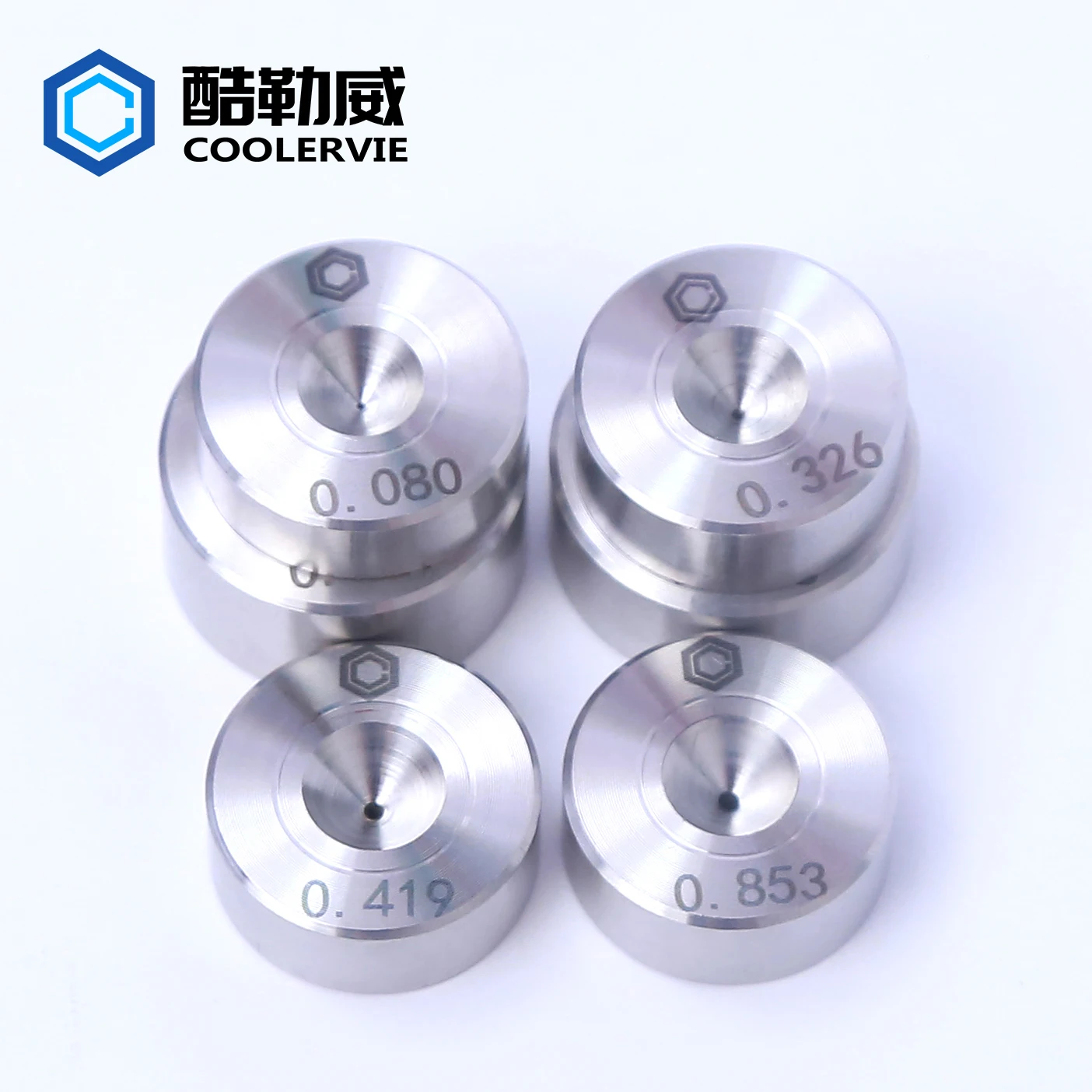

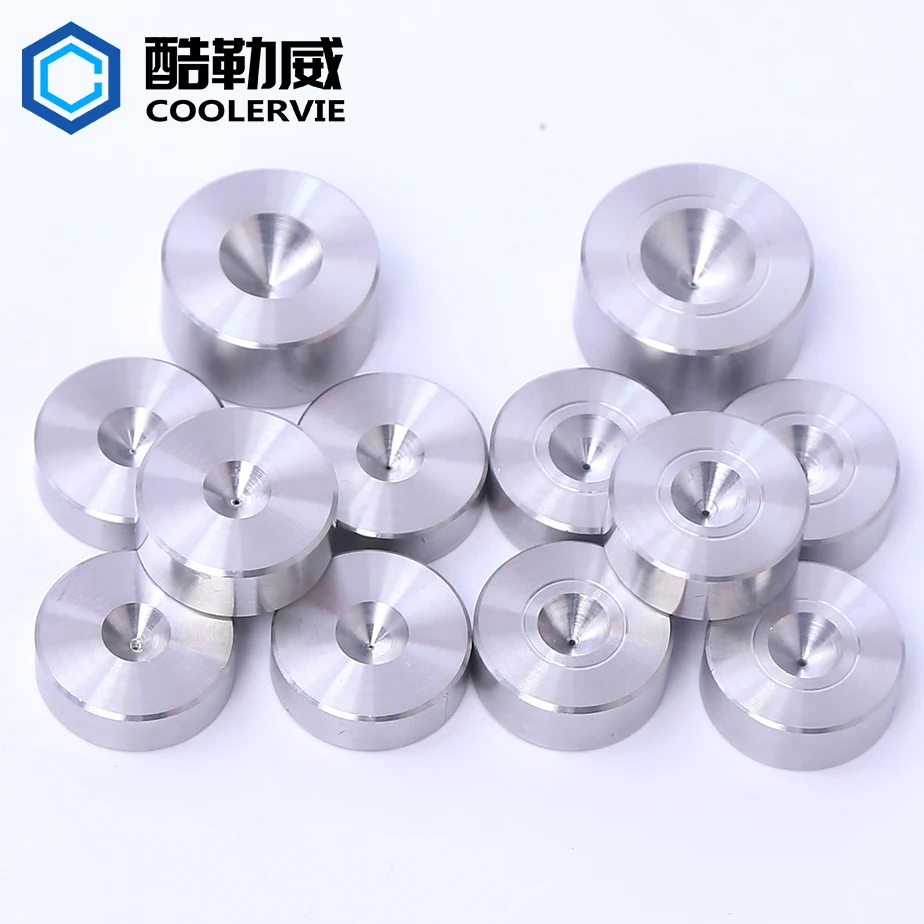

PCD Dies

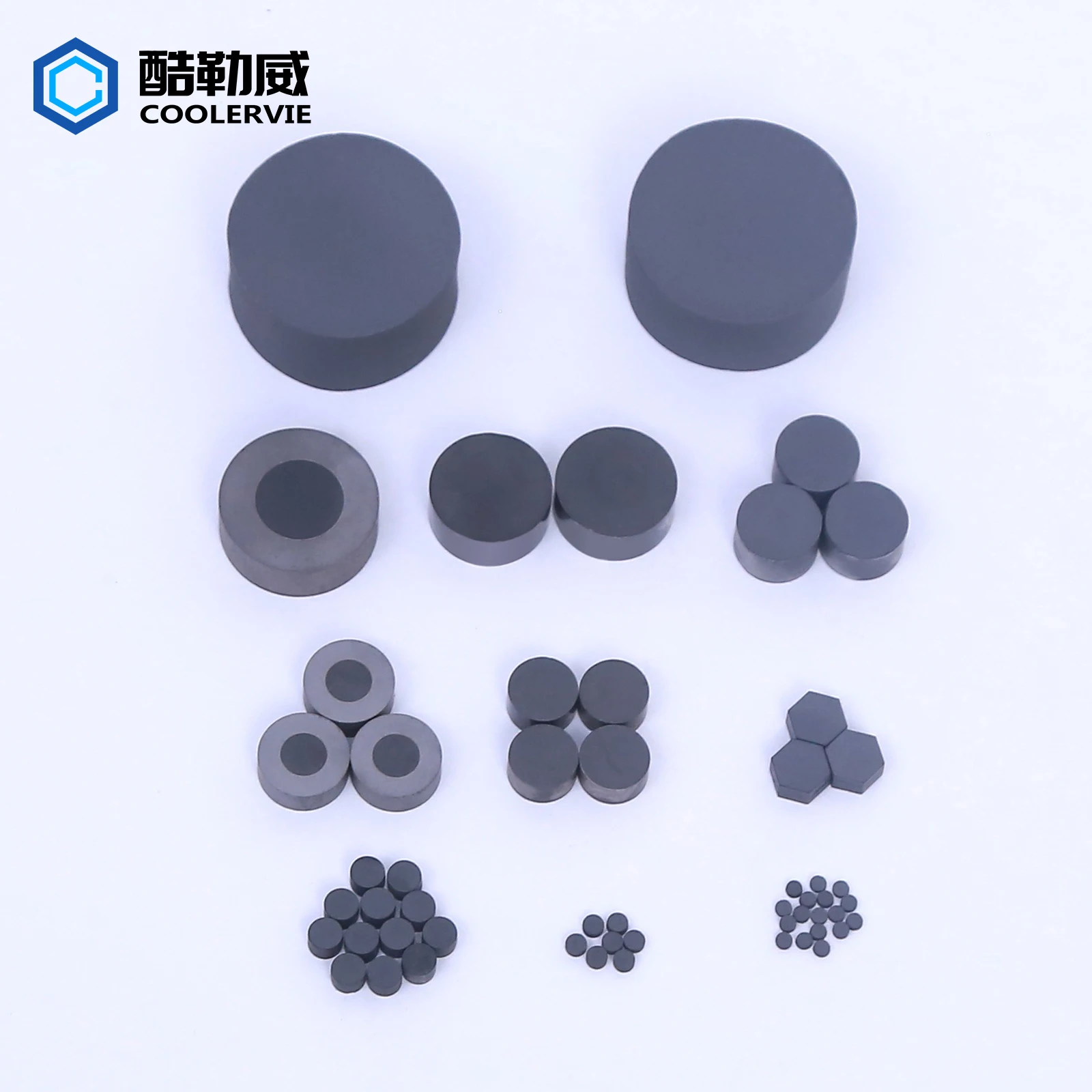

- The polycrystalline drawing die produced by our company is made of diamond micro-powder under the action of metal catalyst
(cobalt) and sintered by high pressure and high temperature process.
- Under strict process control conditions, the diamond microcrystalline particles form a diamond bond, which makes it have high
hardness and high thermal conductivity similar to natural diamond.
- At the same time, because the diamond micro-powder is irregularly arranged, the polycrystalline diamond appears as Isotropic,
processing does not have to consider its orientation, and has better toughness and wear resistance.
(cobalt) and sintered by high pressure and high temperature process.
- Under strict process control conditions, the diamond microcrystalline particles form a diamond bond, which makes it have high
hardness and high thermal conductivity similar to natural diamond.
- At the same time, because the diamond micro-powder is irregularly arranged, the polycrystalline diamond appears as Isotropic,
processing does not have to consider its orientation, and has better toughness and wear resistance.
ADVANTAGES
⁃ Long lasting tooling, ideal for long production runs
⁃ Wire remains round, even with significant wear
⁃ Wire surface quality matching your requirements
⁃ High-accuracy dies available
⁃ Wire remains round, even with significant wear
⁃ Wire surface quality matching your requirements
⁃ High-accuracy dies available
PRODUCT SPECIFICATIONS

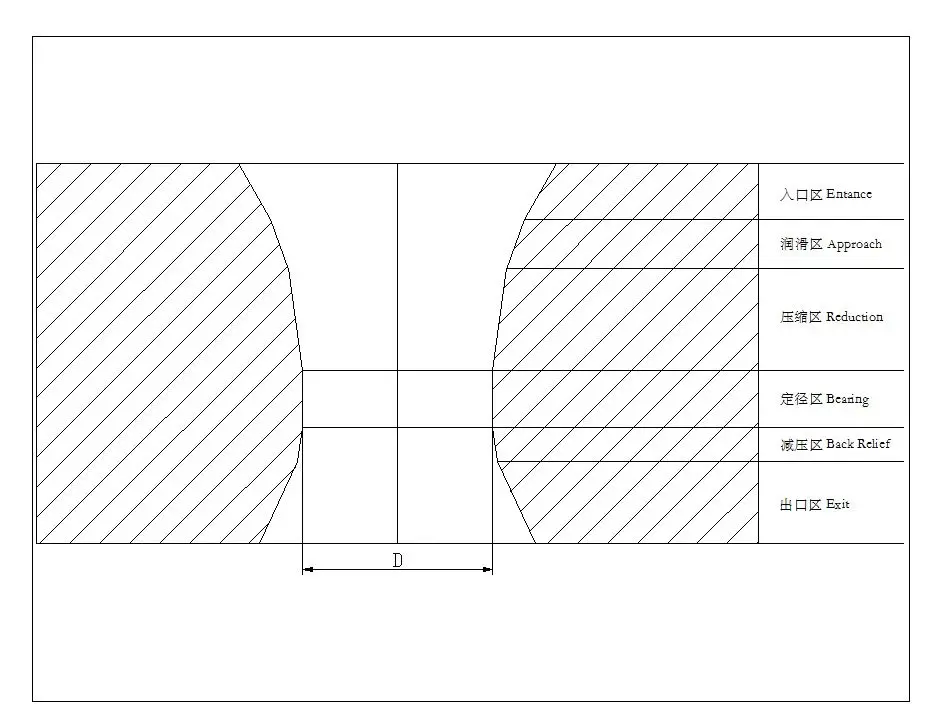

Die Structure
⁃ Entrance Part ⁃ Reduction Part ⁃ Bearing Part ⁃ Back Relief ⁃ Exit Part
NO. | ITEM | STANDARD |
1 | Entrance Angle | 30°±5° |
2 | Reduction Angle | 16°±2° |
3 | Bearing Length | 20%-50% of Dia. |
4 | Ovality | ≦1um |
5 | Exit Angle | 50°±20° |
6 | Back Relief | 15°±5° |
MANUFACTURING TECHNIQUE
Flow Chart
⁃ Blank inspection ⁃ Outer casing production ⁃ Reinforcement ⁃ Coning ⁃ Exit Part
⁃ Cylindrical grinding ⁃ Laser die profile drilling ⁃ Shaping and polishing ⁃ Hole size calibration
⁃ Cylindrical grinding ⁃ Laser die profile drilling ⁃ Shaping and polishing ⁃ Hole size calibration

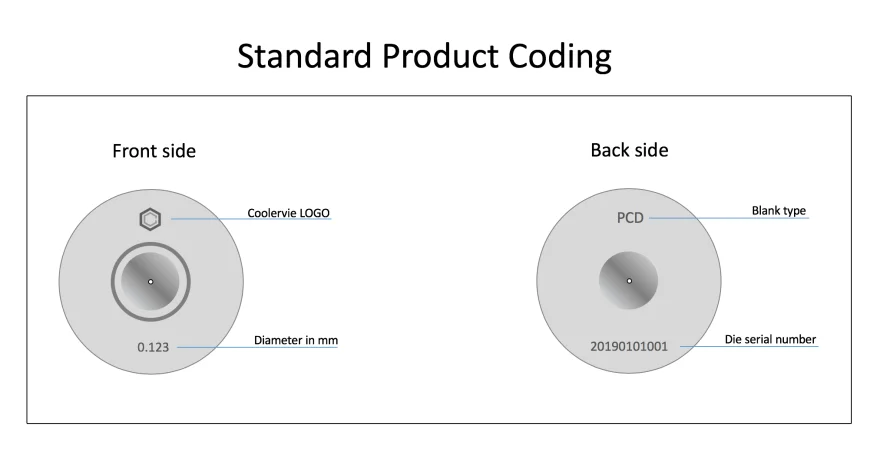

CASING MARK
Mark Design
⁃ Company LOGO/name ⁃ Diameter in mm ⁃ Blank type ⁃ Die serial number
* Support customers DIY or no mark
* Support customers DIY or no mark

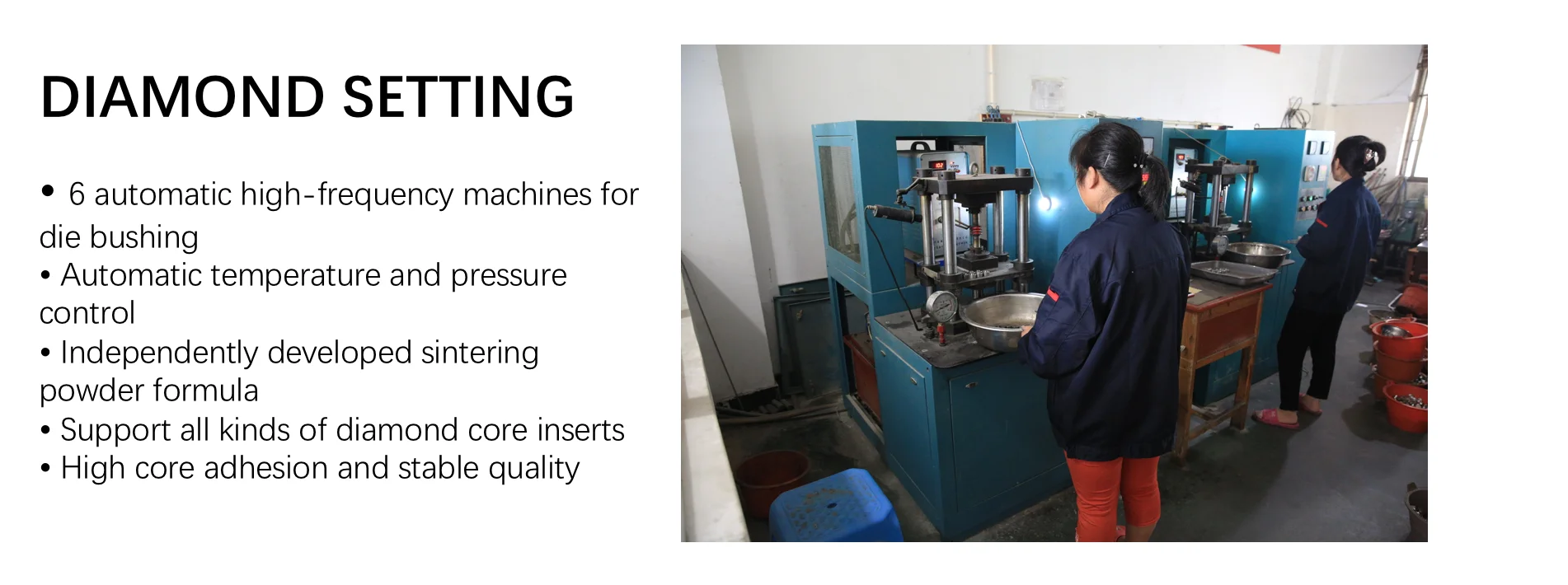

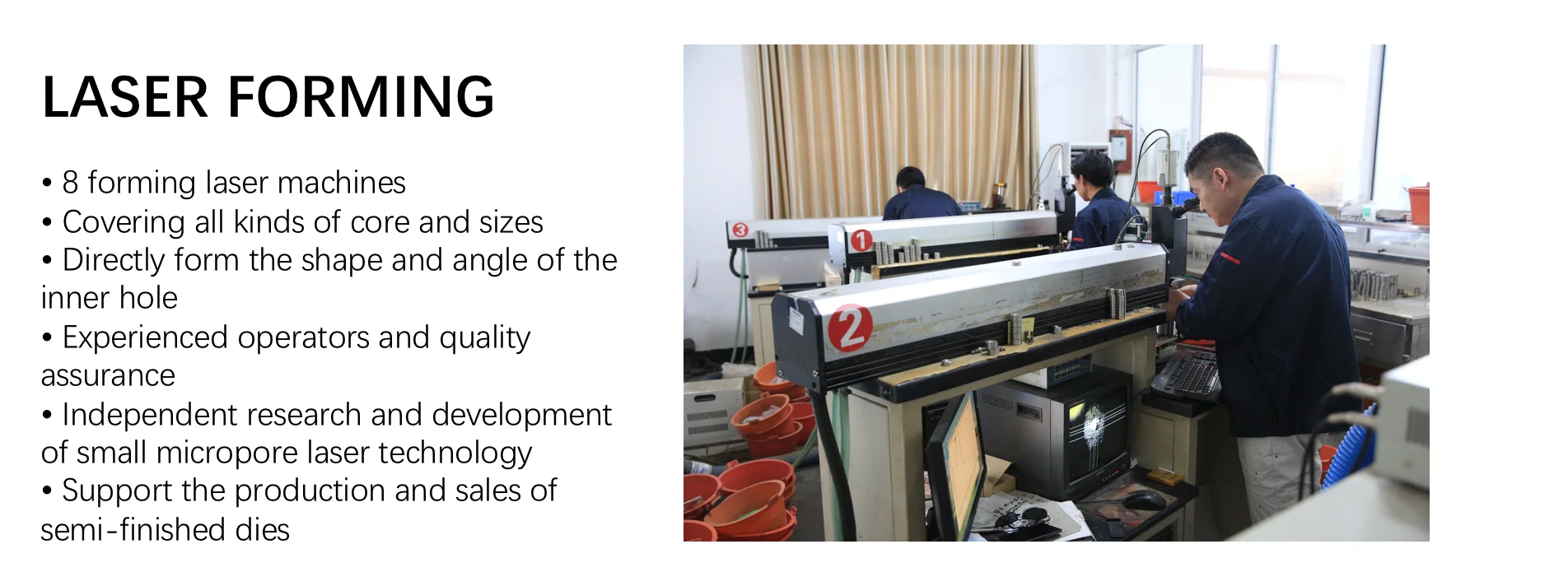

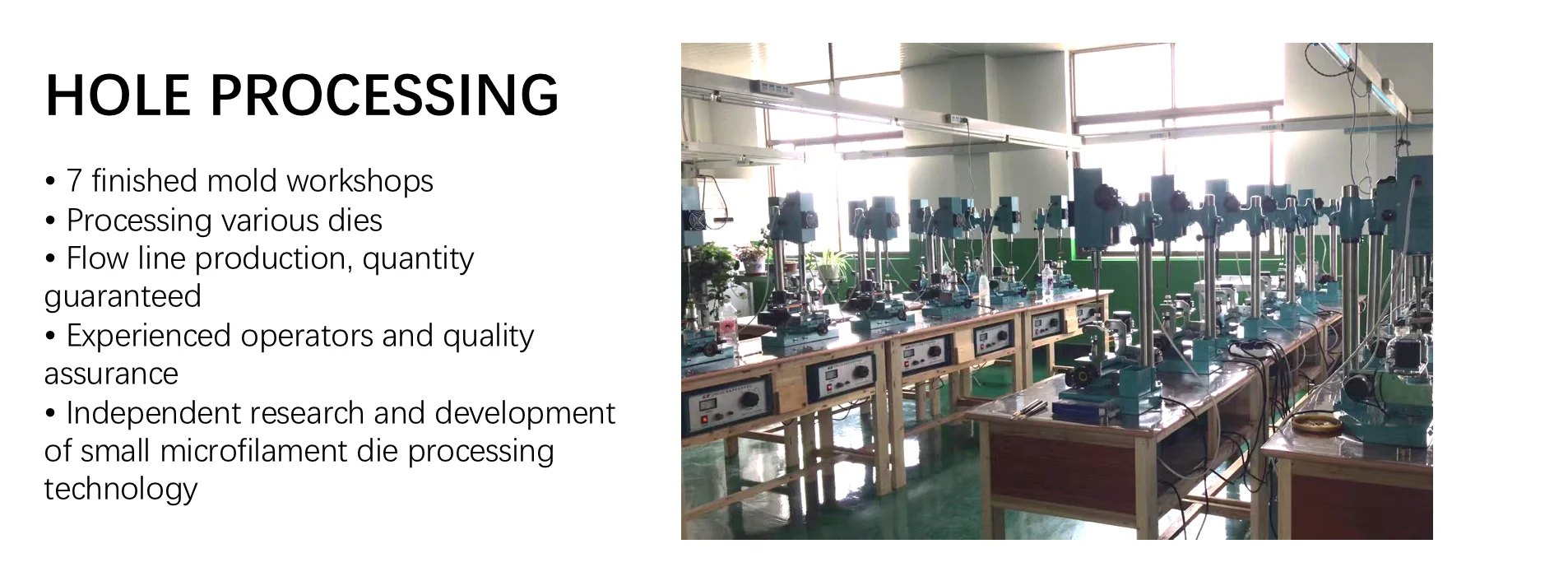

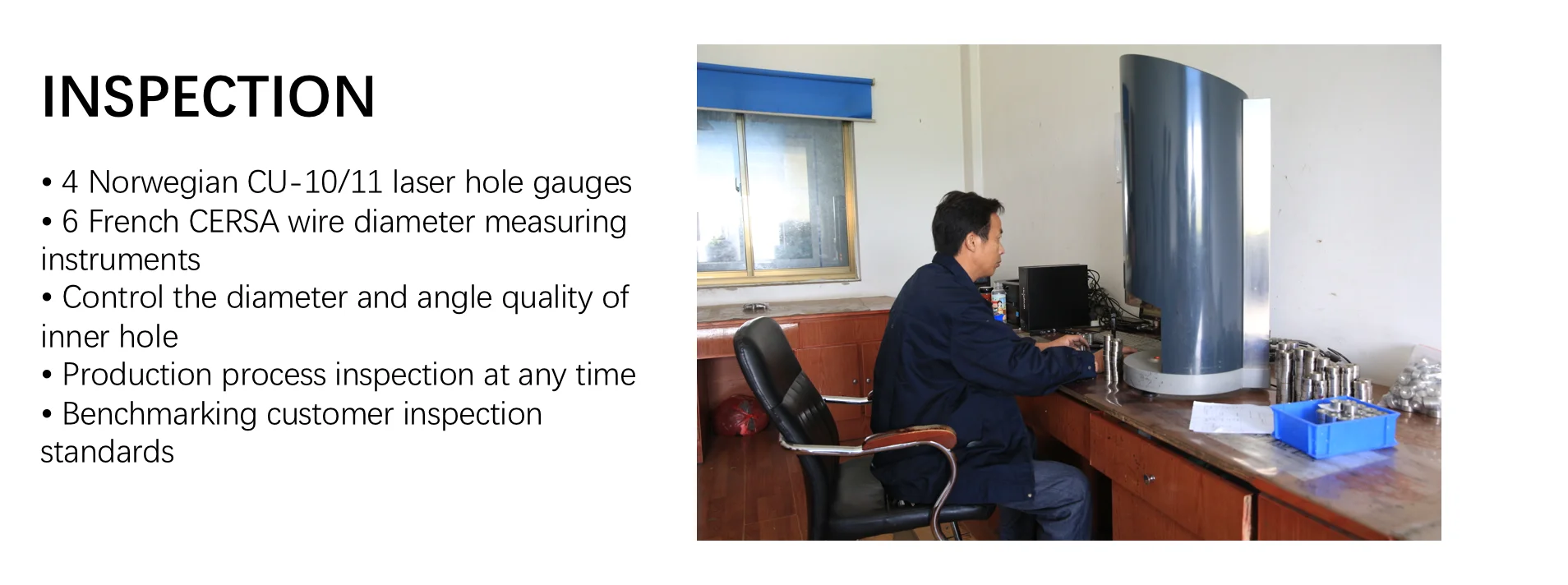

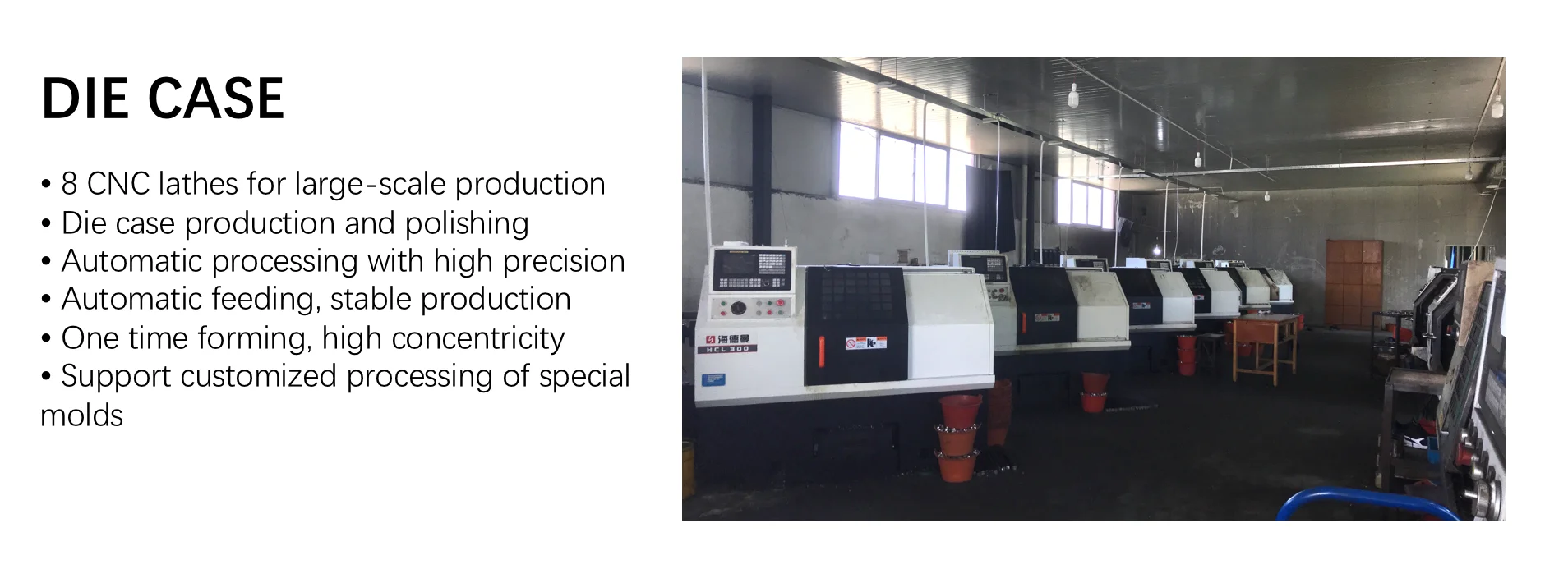

PRODUCTION PICTURES
WHY CHOOSE US
Rich production experience
Our team has been engaged in the development, production and sales of wire drawing dies for more than 20 years. We have accumulated rich production experience and can fully meet the customer's product requirements quickly and technically.

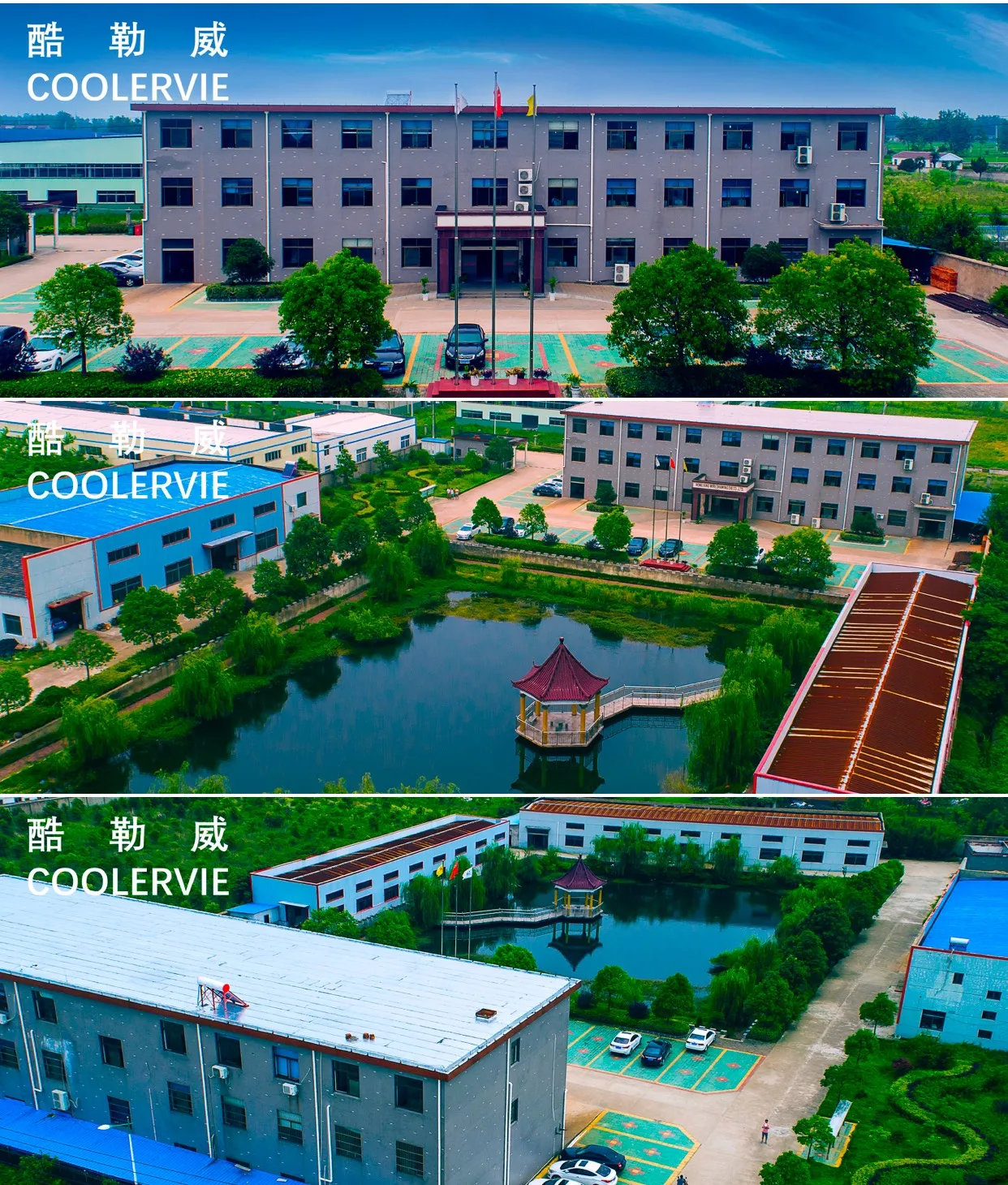

Large scale of production
Our company currently covers an area of 30,000 square meters, production area of 12,000 square meters, more than 30 million yuan in fixed assets, 800 sets of production equipment, more than 400 production staff, 45 technical staff, strong technical force with the support of most advanced production and detection equipment, and perfect management system.
High quality service
We have the strength and technology to meet the high demands of our customers. At the same time, we will communicate and improve the quality of the product in the first time. Our company guarantees that all products sold can be returned or exchanged.
FAQ
1. Are you trading company or manufacturer?
-We are dies manufacturer with more than 20 years of production experience.
2. What kinds of dies do you provide?
-We provide wire drawing dies including PCD, Mono/SSCD, ND, TC, and die tools.
3. What areas are your products generally used for?
-Our dies are the keys to the production of various kinds of cables and wires, which can be found all around us in modern day life.
4. What product attributes can your customers customize?
-Die blank type, inner diameter, casing size, all most every shape parameter, and die appearance.
5. What is your production capacity?
-Normally our company can produce more than 5000+ dies every month.
