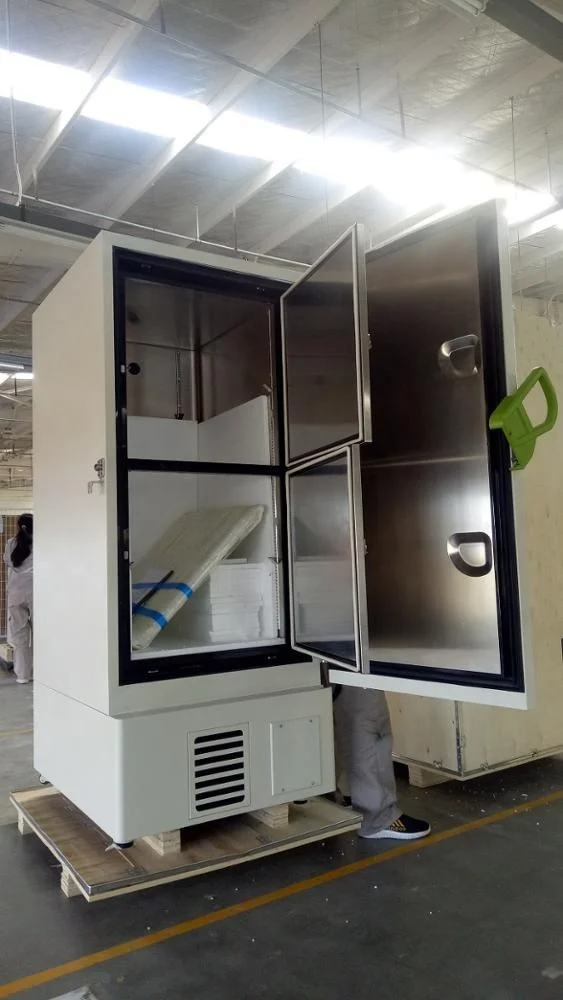

MKLAB High Configured 408L 86 Degree Ultra Low Temperature Freezer Laboratory Freezer
- Category: >>>
- Supplier: Qingdao Micron Lab Trading Co. Ltd. [Shandong China]Qingdao
Share on (62046852434):
Product Overview
Description
MKLAB High-Configured 408L -86℃ Ultra Low Temperature Freezer Laboratory Freezer
Features
1 Two-compressor cascade refrigeration system specially designed for cryogenic applications.
2 Wide available voltage range: 187V~242V.
3 Wide temperature range :10℃~32℃can reach -86℃.
4 Accurate Temperature control technology to make the temperature maintain -60℃~-86℃and accuracy 0.1 °C.
5 USB port to read temperature and alarm conditions in recent 1 months.
6 VIPⅡPLUS technology, special narrow design for entering elevators.(only for 588 838)
7 Removable heat exchanger,almost all of the relevant components of the cooling components could be maintenance and replacement.
Safety
1 Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
2 Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery,condenser failure,high ambient temperature alarm,abnormal voltage alarm.
3 Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
4 Keyboard lock, password protection to avoid set parameter randomly.
5 Special noise reduction design.
Humanized design
5 4 casters with stopper for easy moving and fixation.
6 Standard 25mm test hole for easy connecting to temperature monitoring systems.
7 3 adjustable shelves for easy storing.
8 Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.
9 Visual and audible alarm and all alarm can be through reserved for remote alarm port remote alarm
10 Removable condenser front cover convenient for cleaning and maintenance.
| Model | MKF-86V408 | |
| Capacity(L/cu.ft) | 408/14.4 | |
| Interior size(W*D*H)(mm) | 606×575×1180 | |
| Exterior size(W*D*H)(mm) | 872×1028×1945.5 | |
| Temp. range(℃) | -60~-86℃ | |

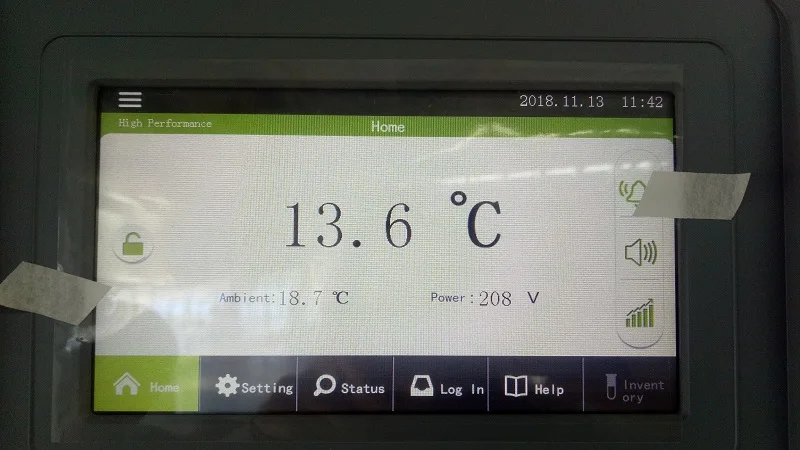

| Temp. controller | Microprocessor | |
| Ambient temp.(℃) | 10~32℃ | |

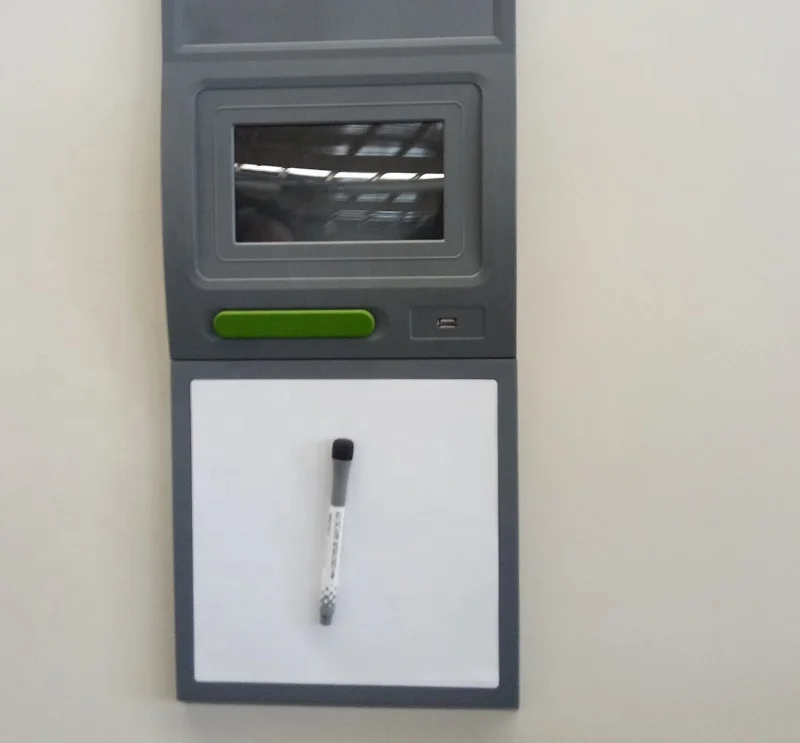

| Display | LCD display | |
| Specification | Shelf/drawer QTY | Stainless steel |
| shelf/3 | ||
| Consumption | 11.6 kWh/24h | |
| Noise(db) | 55 | |
| Refrigeration System | Refrigerant | R290/R170 |
| Refrigeration method | Direct refrigeration | |
| Compress/QTY | SECOP/2 | |
| Evaporator &material | Submerged coil evaporator/ Copper tube evaporator | |
| Condenser | Copper tube and finned | |
| Sensor | PTC | |
| Defrost | Manual | |
| Alarm | High/low temperature | √ |
| Power failure | √ | |
| Abnormal voltage | √ | |
| Sensor error | √ | |
| Filter screen check | √ | |
| Thermostat failure | √ | |
| Low battery | √ | |
| Condenser clean | √ | |
| High ambient temp. | √ | |
| Door ajar | √ | |
| Power | Voltage/Frequency | AC220V±10%,50/60Hz |
| Power(W) | 1540W | |
| Current(A) | 7 | |
| Material | Insulation | PURF |
| Internal | Stainless steel | |
| External | Color sprayed steel | |
| Accessories | Foot | / |
| Castor | √ | |
| Inside door | 2 | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | √ | |
| Chart recorder | Optional | |
| Data logger | Optional | |
|
Power failure backup system(alarm) |
72h | |
| Remote alarm port | √ | |
| CO2 back up system | Optional | |
| LN2 back up system | Optional | |
| Package | NT./GT.(kg) | 215/245 |
| Package size (W*D*H)(mm) | 954×955×2094 | |
| Cold storage box loading QTY | 2’ Boxes | 288 |
| 3’ boxes | 192 | |
Medical Refrigerator Medical Refrigerator Medical Refrigerator
MKR-5V306/406 MKR-5V656 MKR-4V658
-86℃ ULT Freezer -86℃ ULT Freezer -86℃ ULT Freezer
MKF-86V50 MKF-86V340 MKF-86V588/838

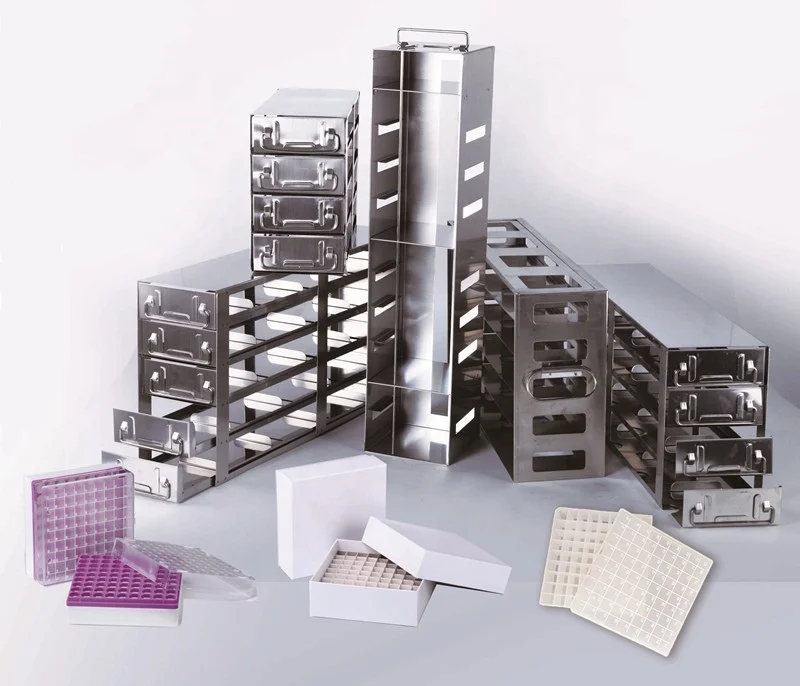

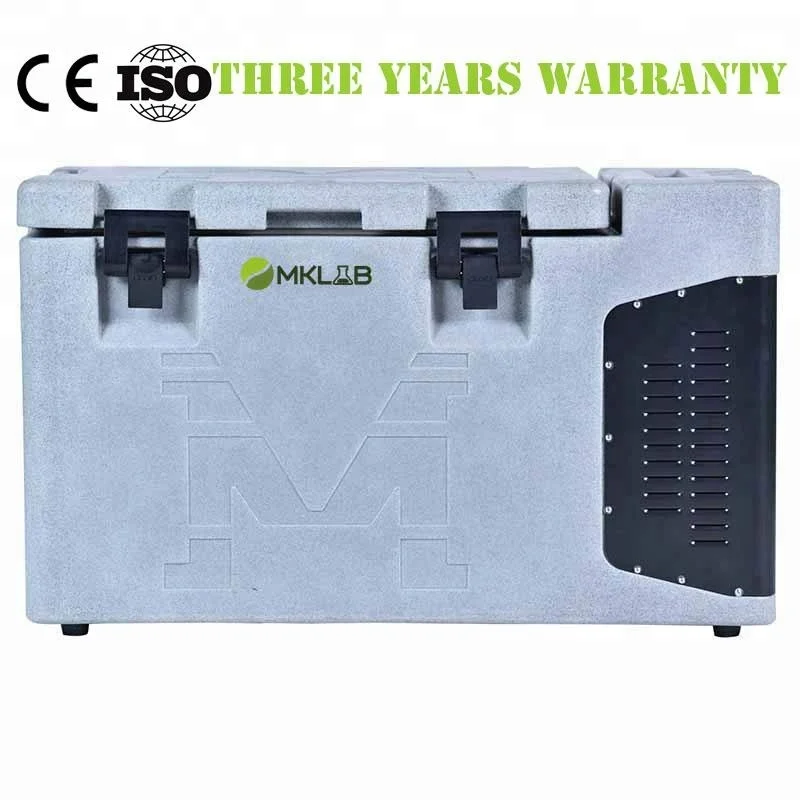

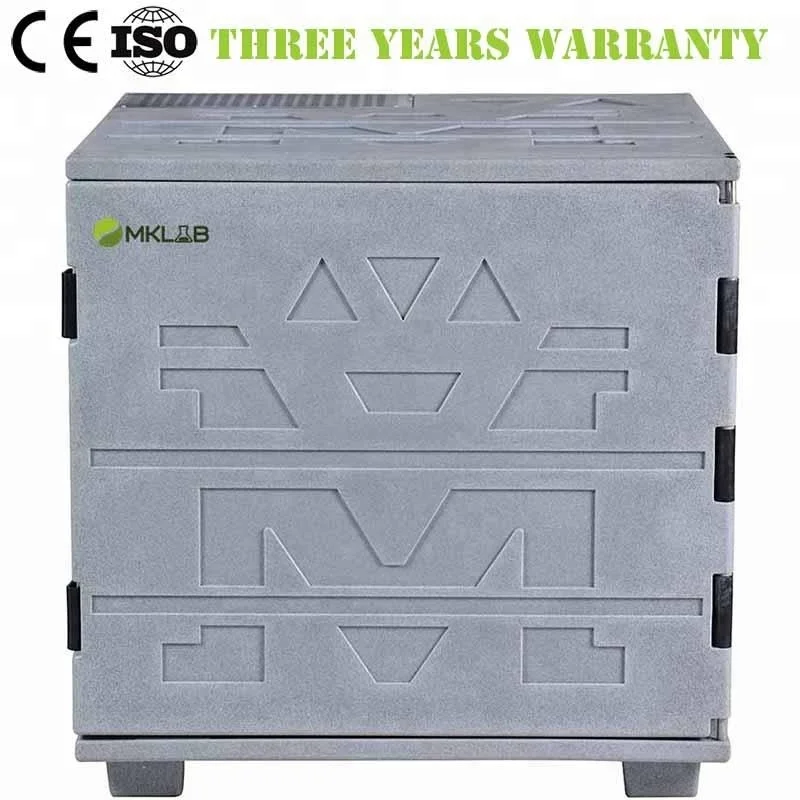

30L Mobile Vaccine Refrigerator 700L Mobile Vaccine Refrigerator Freezer Racks
Q: Are you trading company or manufacture?
A: Trading company with R&D capacity, holding share in the manufactories
Q: How about your goods quality?
A: 1. All running products comply with CE standard.
2. Independent quality inspection team, 100% testing before delivery.
3. Well-known third-party testing service available, such as SGS, BV and TUV etc.
Q: How about your service?
A: 1. Reply to any questions within 1 hours during working time.
2. Real-time feedback of production process and shipping information.
3. Contracted third-part maintenance company in more than 60 countries.
4. Life-long responsibility for all our products, big compensation for not well repaired products within the warranty period.
Q: Could you do OEM service?
A: Yes, all types of OEM service available.
Q: How long is your delivery time?
A: We have safety stock for around 60% of running products. 7 working days delivery time for stock goods, one for no stock products.
Q: How about your quality warranty?
A:2~5 years upon products features, please confirm the exactly warranty time of your interested products before order.
Q: What is your terms of payment?
A: T/T, Western Union, L/C, Credit Card etc. We prefer on-line order and payment.
