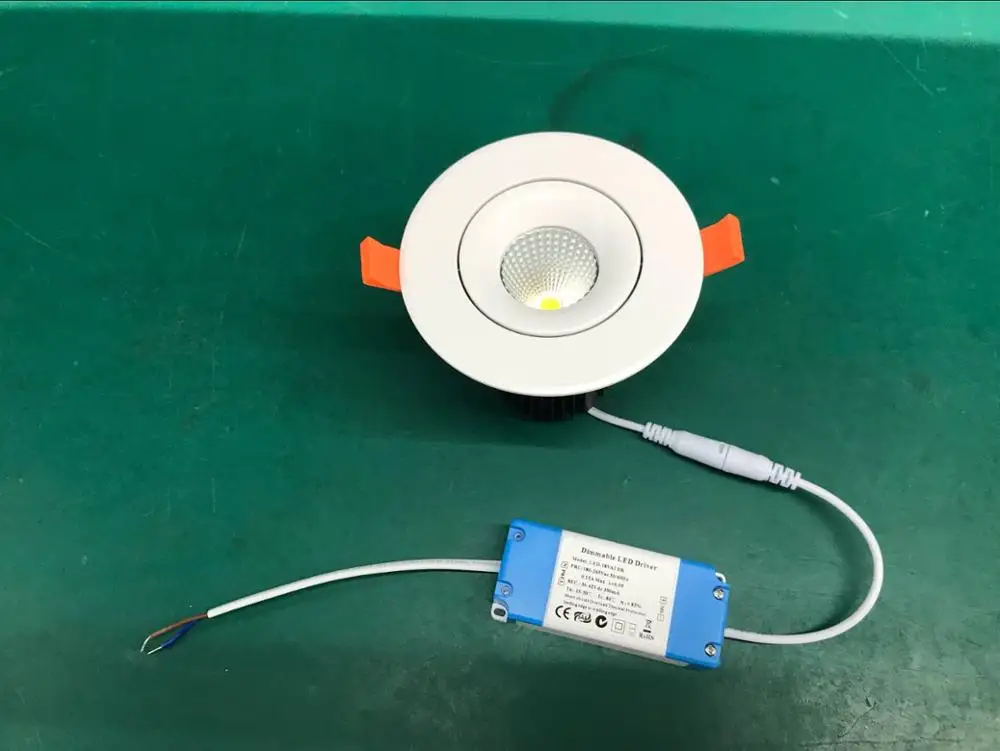

downlight led cob 5w 10w 15w 2700k
- Category: LED Downlights >>>
- Supplier: Shenzhen Yizhongxing Lighting Limited
Share on (62046862270):
Product Overview
Description
Product Description
| Part No. | TD224 |
| Related wattage: | 5w 7w 10w 15W |
| Input voltage: | 100-240 VAC |
| Usage | Accent lighting |
| Operating frequency: | 50/60 Hz |
| Power factor | 0.9 |
| Beam angle | 24/60° |
| LED CHIP | cob led |
| Luminous flux | 1150-1200LM |
| Light color | Warm white/ Pure white/ Cold white |
| CRI | ≥85/90 |
| Diameter/ Cutout | 95*H81mm/70mm |
| Shell Housing | White |
| Driver | External |
| Dimmable | Optional |
| Main material | Aluminum alloy |
| Working temperature | -20~45 °C |
| Storage temperature | -20~80 °C |
| Lifespan | 50000 h |
| Certificates & standard | CE, ROHS |
| Warranty | 3 years |
More watts options
| Model No. | Power | Power Factor | LED | Lumen | CRI | Beam Angle | Cut-out | Dimension | |
| TD224-05W | 5W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 70mm | Φ95*H59mm | |
| TD224-07W | 7W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 70mm | Φ95*H59mm | |
| TD224-10W | 10W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 70mm | Φ95*H81mm | |
| TD224-12W | 12W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 70mm | Φ95*H81mm | |
| TD224-15W | 15W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 90mm | Φ119*H103mm | |
| TD224-20W | 20W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 90mm | Φ119*H103mm | |
| TD224-30W | 30W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 110mm | Φ142*H118mm | |
| TD224-40W | 40W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 145mm | Φ180*H128mm | |
| TD224-50W | 40W | >0.95 | COB | 100-120lm/w | ≥90 | 60° | 158mm | Φ193*H128mm | |
2.Advantages
1) We are specialized in manufacturing different kinds of cob led spotlight.
2) We can supply high quality products with best price for our clients.
3) Our products have passed the certification of CE and ROHS.
4Our products have broad market, such as North America, Europe, Australia and South Asia.
5) Our experienced R&D team and Quality Testing Department can guarantee trend-setting products and product quality.
6) We have enough skilled workers to ensure products to be timely delivered.
3.Applications
1) Home and office lighting, display case lighting
2) Commercial and industrial lighting
3) School and college lighting
4) Showcase lighting, bar lighting, art working lighting
5) Warehouse lighting, hotel and restaurant lighting
6) Decoration lighting, under cabinet lighting.
FAQ
Q1 How do you evaluate LED products?
Lumen output is only part of the story and can be misleading. To fully evaluate an LED product one needs to review the overall system efficiency,optical control, thermal management of the LEDs, and know at what point in time the fixture will reach 30 percent lumen depreciation. Products with good optical efficiency and thermal management will be able to deliver more lumens, on average, than traditional HID products.
Q2 How long will my LED Light last?
LEDS last up to 8 times longer than CFL and Incandescent lamps and you can expect at least 35,000 hours of use from your LED Lamp.
