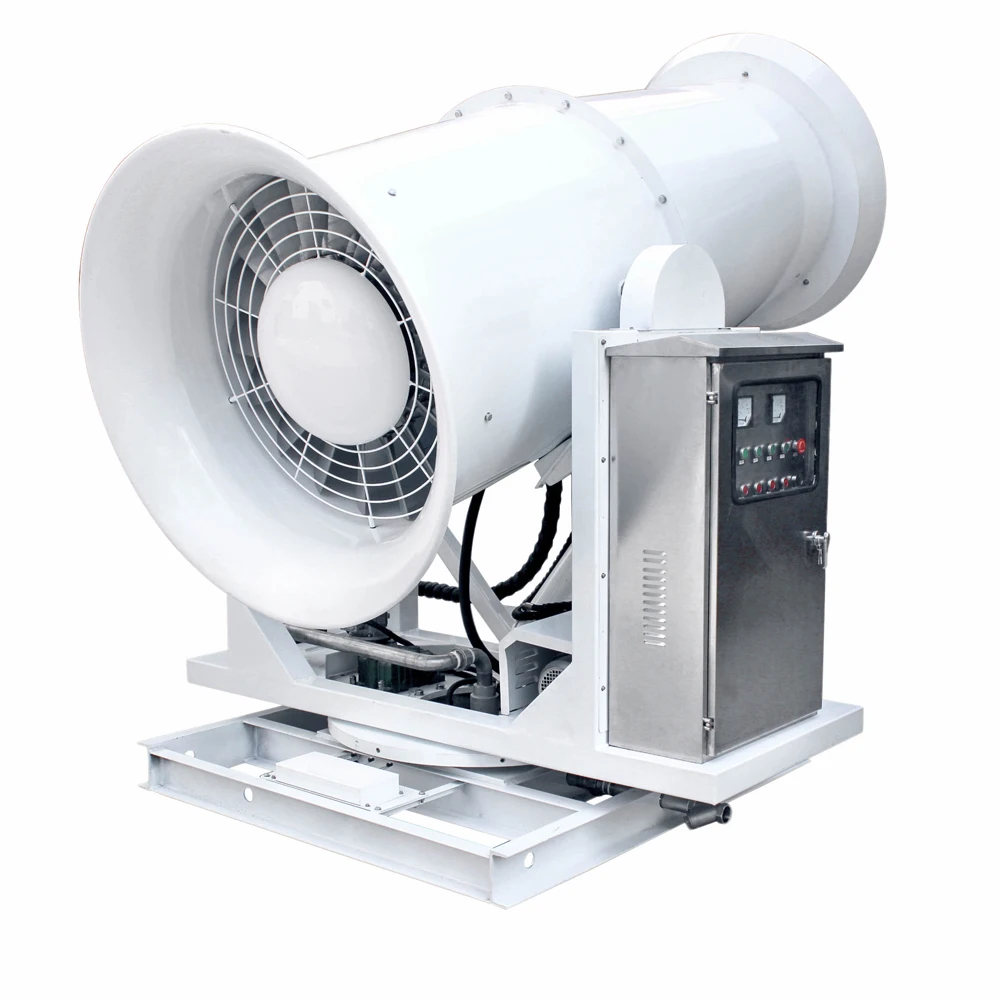

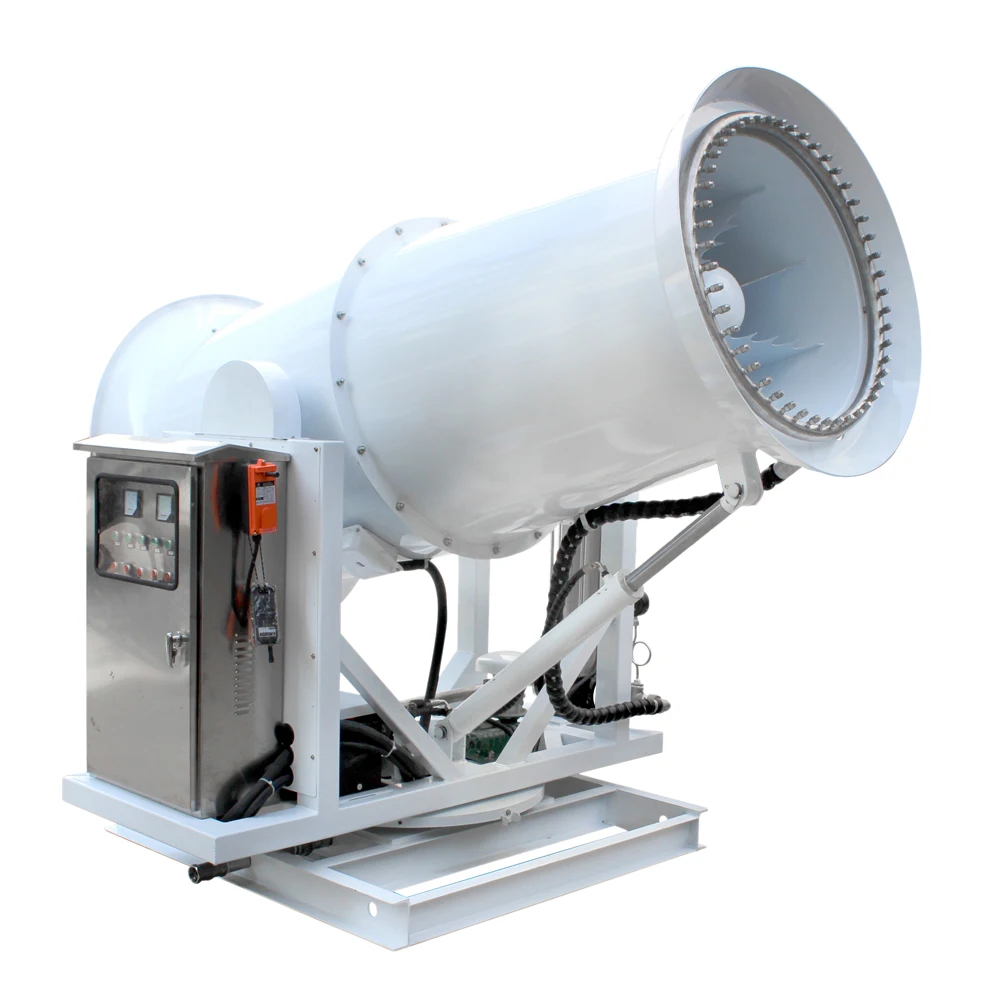

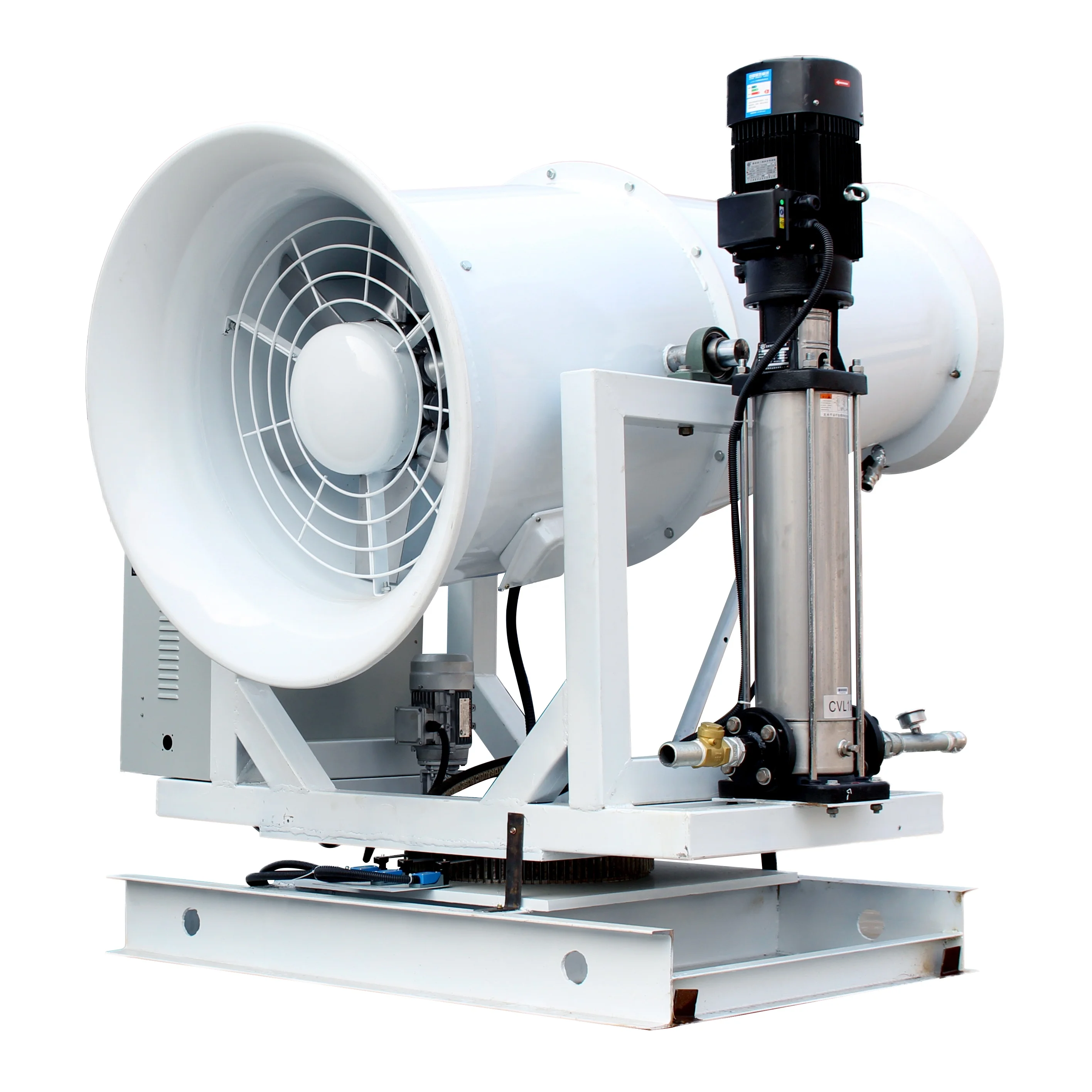

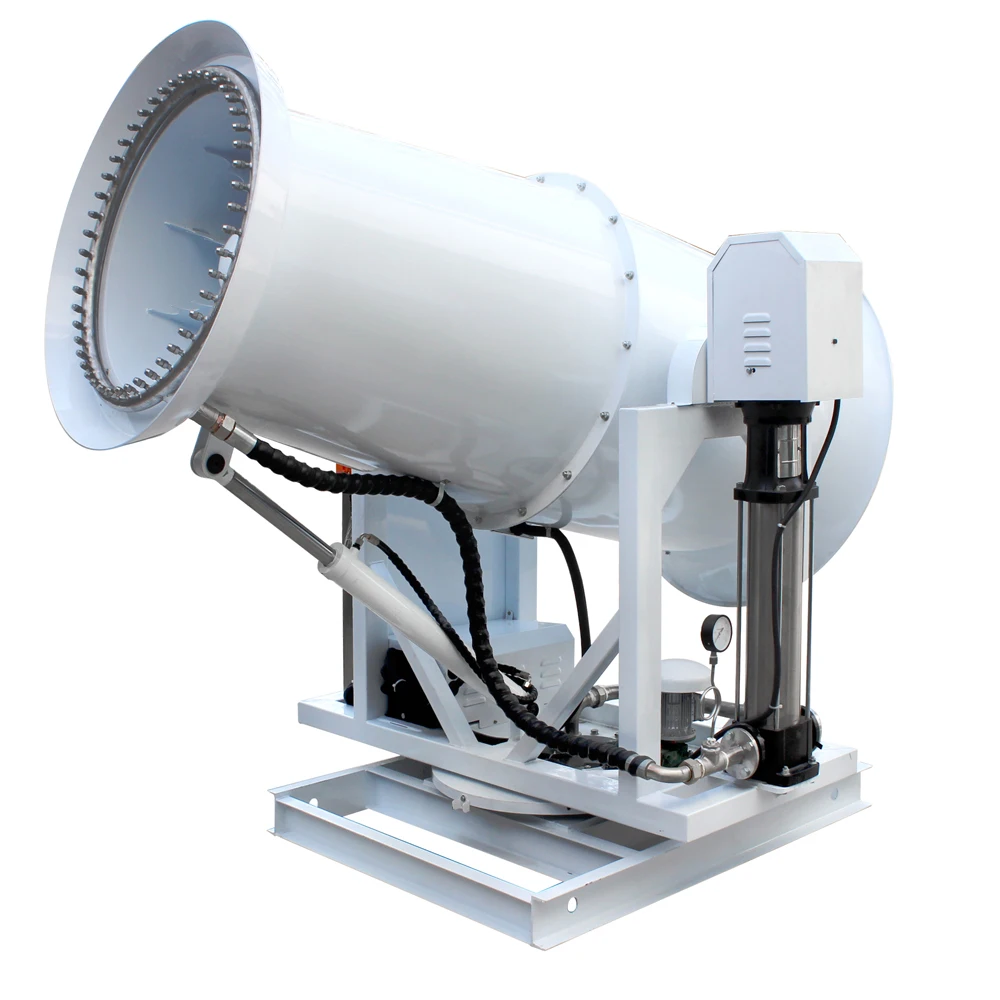

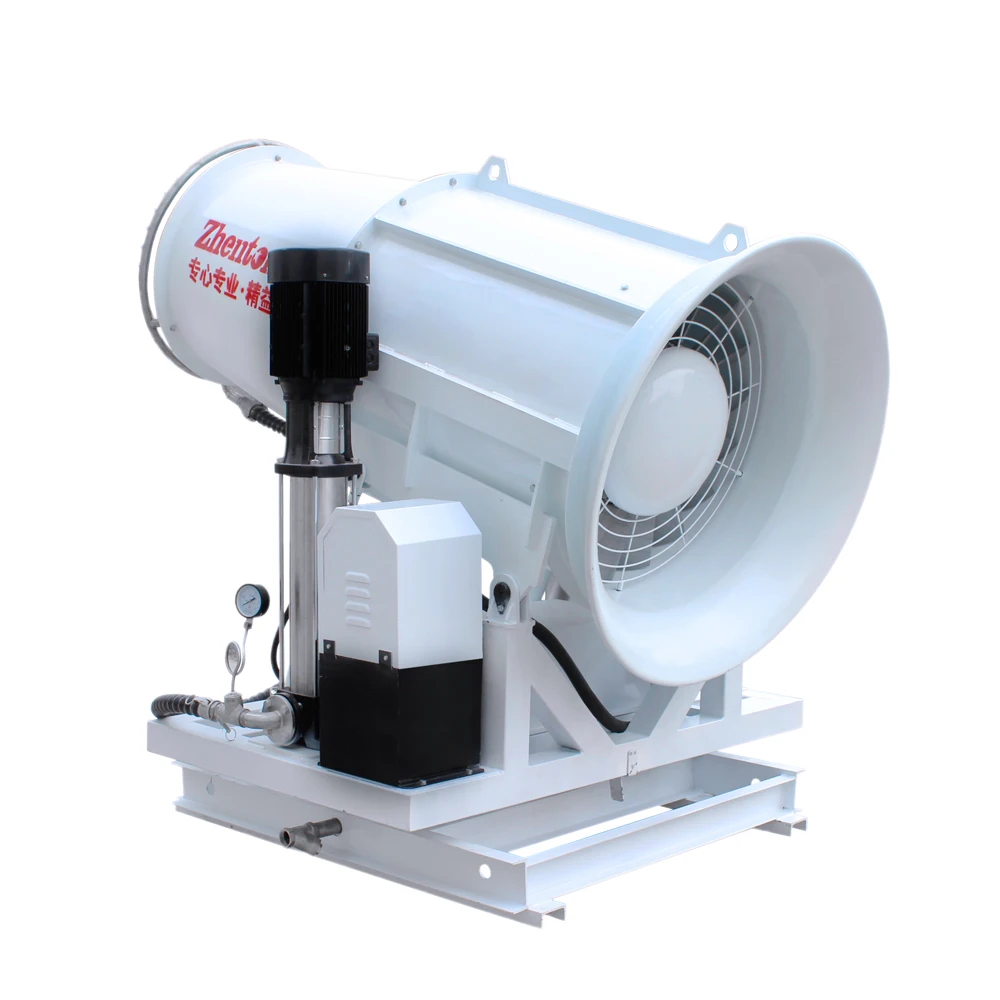

80 Meters Range Fog Air Blast Cannon Sprayer with Water Metal Spray Pump Customized Stainless Steel Pump Sprayer Making Machine

Share on (62046972107):


Price:

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tFOG CANNON \t\t\t\t\t\t\t


DUST SUPPRESSION CANNON

Zhenton fog cannons have a long reach and a long range and can suppress dust by producing a column of mist that leaves the 'cannon' at high speed and that can reach a range of 120 meters.When the mist or spray reaches the dust it can 'knock down' up to 90% of the dust. This type of dust suppression is best suited to building demolition, construction sites, quarries and mines, foundries, steel and slag facilities, waste transfer stations, and recycling plants.





PAREMETER


DUST SUPPRESSION CANNON ZT-80


POWER

Fan motor
Kw
37
Water pump
Kw
7.5
Slewing bearing
KW
0.18





Main
performance

parameters

Horizontal Rotation Angle(adjustable by remote controller or control panel )

°

360
Pitching Angle(adjustable by remote controller or control panel )

°

-10°-60°
Control methods
Remote control/PCL
Automatic control
Max Throw Range
M
60meters *no wind conditions
Air Volume
m³/h
118080
Inlet Water Pressure
Mpa
0.3-0.8


CANNON DESCRIPTION


According to the principle of air delivery, the mist cannon uses high pressure pump and micro atomizing nozzle to atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the water mist is larger with the help of the rotary mechanism.
