Automatic PVC PET Toothbrush Blister Labeling Packing Machine
- Category: Blister Packaging Machines >>>
- Supplier: Guangdong Chuangyan Technology Co. Ltd.
Share on (62047001408):
Product Overview
Description
Product Description
Main Features
*Muti-function (Blistering, Labeling, Heat Sealing, Punching and Packing).
*High Efficiency, High Stability, Low noise and No Pollution .
*High Accuracy of label positioning.
*Space saving, Paper and Labor saving with high productivity.
*Using bearings from German INA, AFG, DURBAL and Japan NSK,IKO.
*Durable and easy to operate.
SPECIFICATIONS | ||||||
Item | Description | Parameter | Unit | |||
1 | Punching Frequency | 15-20 | times/min | |||
2 | Maximum molding area | 250*180 | mm | |||
3 | Maximum forming depth | 40 | mm | |||
4 | Maximum label length | 80 | mm | |||
5 | The thickness of packaging material(PVC/PET) | 0.15-0.5(standard) | mm | |||
6 | Equipment size | 3850*1100*1800 | mm | |||
7 | Weight | 2500 | KG | |||
8 | Machine Power | 5 | KW | |||
9 | Machine Voltage | 380 (three-phase four-wire) | V | |||
10 | Machine Frequency | 50 | Hz | |||
11 | Air-compressor | ≥0.15 | m2/min | |||
12 | Machine Pressure | 0.5-0.7 | MPa | |||
Detailed Images
1 Spindle Part
Principle:
Using servo double cam linkage spindle.
Features:
(1) High precision synchronized positioning of dies.
(2) High torque (maximum torque: 40000 kgm)
(3) High stability, low wear and noise.

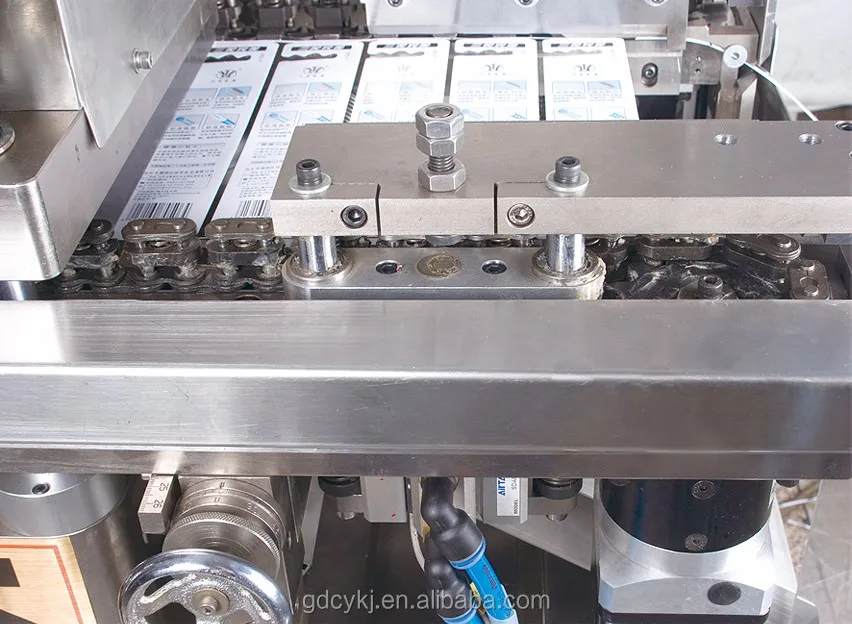

2 Film-drawing Part
Principle:
Using servo drive chain clamp film.
Features:
The film is positioned with a smooth tolerance of ±0.2mm, large adjustable stroke and filming without pasted.

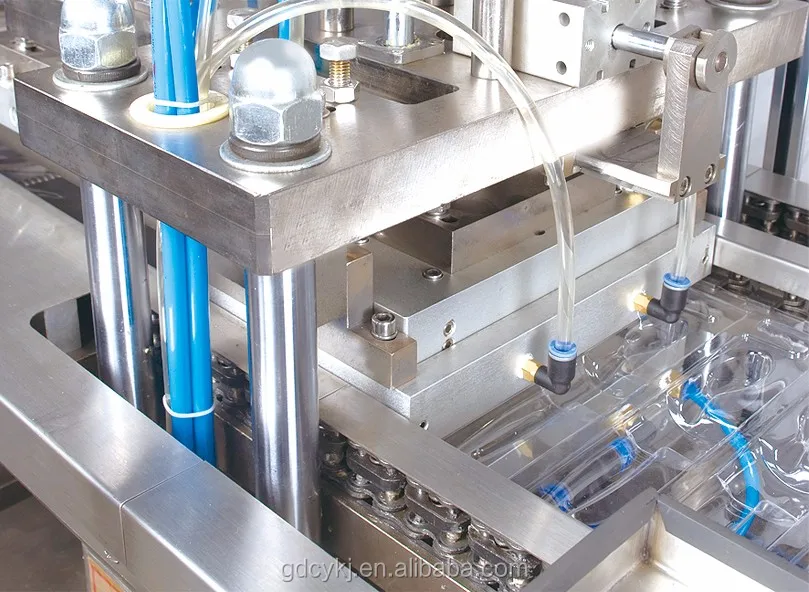

3 Blister Part
Principle:
Using pneumatic slider position
Features:
Precise blister positioning depth, compact structure, low air consumption and easy mold replacement.
4 Heat-sealed Part
Principle:
Using heat sealed and adjustable liquid pressurized cylinder
Features:
Good heat-sealing paste effect, good flatness, high efficiency, strong adjustability of paper card thickness.
5 Punching part
Principle:
Using double cam with soft cutting and punching.
Features:
Low cost of punching die, easy replacement, small blanking force and low noise.
6 Paper Feeding Part
Principle:
Using special scanning prospecting type.
Features:
(1) High resolution of front and back of the paper card, not cause heat-sealing sticky on the die.
(2) Multi-layer paper card detachable function.

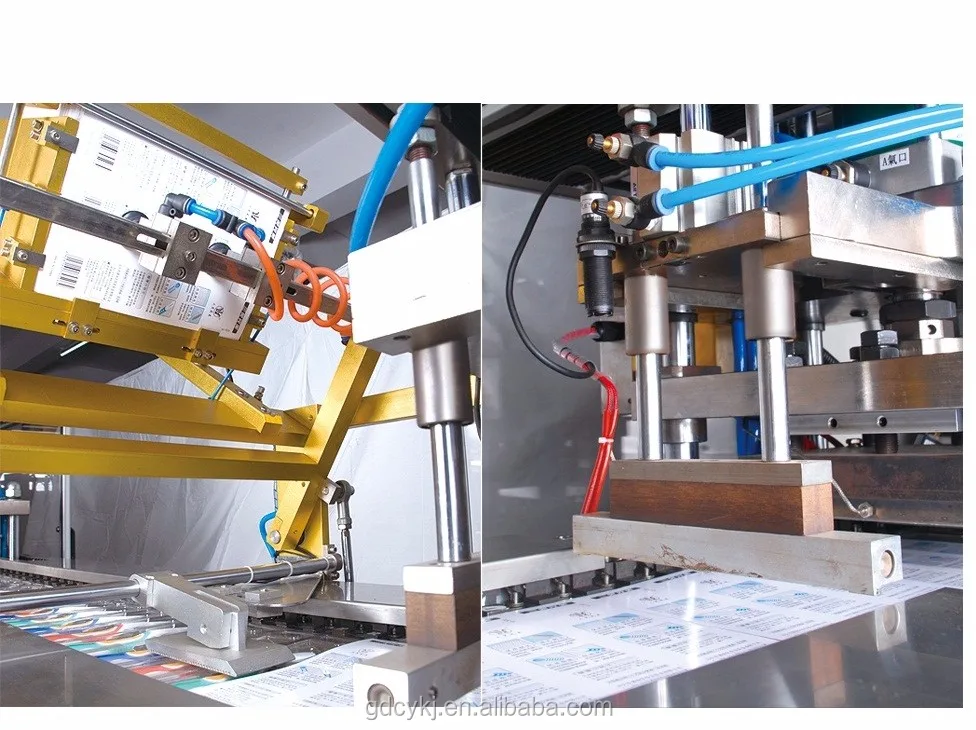

7 Labeling part
Principle:
Using servo drive reverse labeling.
Features:
High smooth accuracy of label positioning, strong adjust ability of three-axis and simple operation of exchanging the label.
8 Trimming and discharging part
Principle:
Using automatic layout of trimming material.
Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.

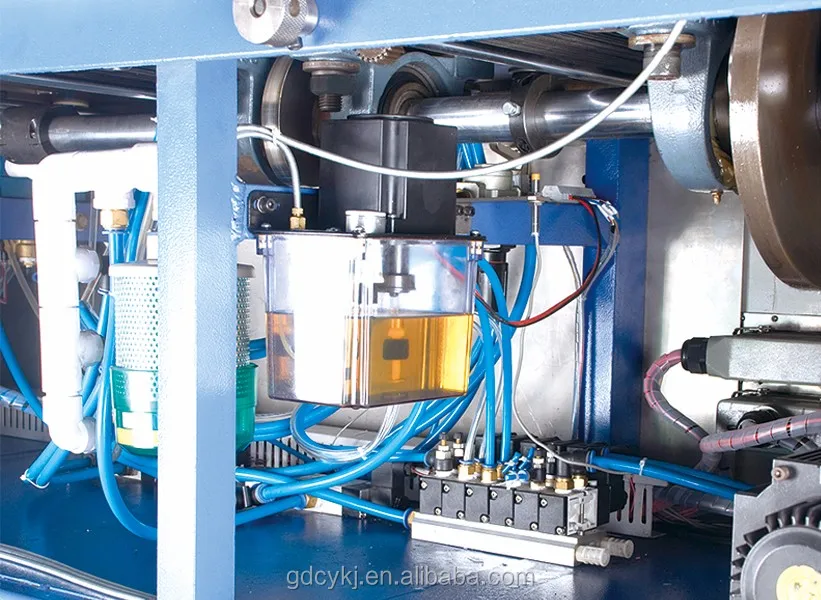

9 Vacuum, Steam and Oil Circuit Parts
Principle:
Using automatic layout of trimming material.
Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.
Our Company
Certifications
Packing & Delivery
Package | ||
Size | 3850*1100*1800 (mm) | |
Weight | 2500 Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
Our Service
Pre-Sales Service
* View our factory.
* Inquiry and consulting support.
* Provide advice based on buyer funds budget.
* Toothbrush whole production line support.
* Introduction raw material suppliers
After-Sales Service
* Training how to install and operate the machine.
* Engineers available to service machinery overseas.
* 1 year non-human damage warranty on spare parts.
FAQ
1. Q: Are you a factory or trade company?
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/ HongKong /Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit first, and 70% balance before shipment.
We'll show you the photos of the products and packages before you pay the balance.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, competitive price, superior after-sale service and whole production line of machinery and raw materials.
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/ HongKong /Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit first, and 70% balance before shipment.
We'll show you the photos of the products and packages before you pay the balance.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, competitive price, superior after-sale service and whole production line of machinery and raw materials.
